Yard Man YM90 41ADY90C901 Gas String Trimmer

Model: YM90 41ADY90C901 41ADY90C901 YM90

Save Part Not Listed?
product name

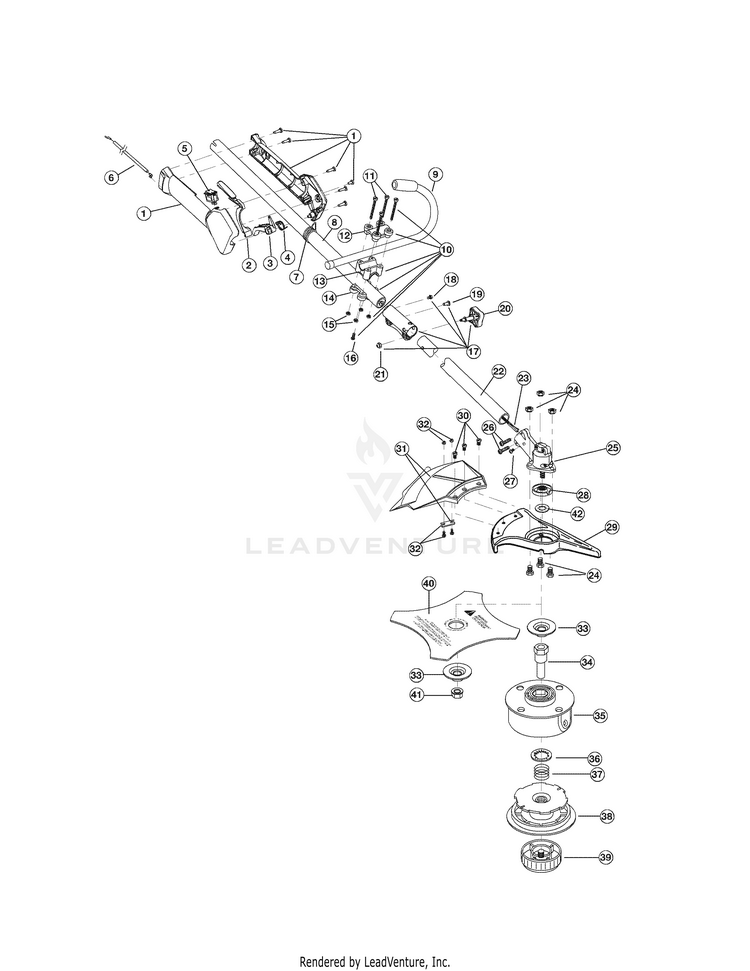

Boom and Trimmer Parts

...
...
1
THROTTLE HOUSING AS MTD-753-04339
...
2
LVR:THROT:LKOUT:YD MN YEL MTD-753-04340
...
3
THROTTLE TRIGGERBC:MTD MTD-753-06754
...
4
Throttle Trigger Spring MTD-791-182690
...
5
Switch Assembly MTD-791-182405
...
6
Throttle Cable MTD-753-04405
...
7
SHOULDER STRAP CLAMP MTD-4301A
...
7
Harness Clip MTD-791-610327
...
8
Upper Drive Shaft Housing Assembly MTD-753-04236
...
9
J-Handle Assembly MTD-791-181099
...
10
Handle Bracket Assembly (includes 11-16) MTD-791-683295
...
11
Screw MTD-791-181811
...
12
Upper Handle Clamp MTD-791-181812
...
13
Middle Handle Clamp MTD-791-181813
...
14
Lower Handle Clamp MTD-791-181814
...
15
Nut MTD-791-181815
...
16
Anti-Rotation Screw MTD-791-145569
...
17
Split Boom Coupler (Incl Ref No. 10-13) MTD-753-1190
...
18
Screw MTD-791-182057
...
19
Bolt MTD-791-181617
...
20
ADJUSTMENT KNO MTD-791-181618B
...
21
Adjustment Knob Nut MTD-712-04018A
...
22
LOWER DRIVE SHAFT HOUSING ASSEMBLY MTD-791-180804
...
23
Lower Flexible Drive Shaft MTD-791-613300
...
24
Shield Mount Screw Assembly MTD-791-182200
...
25
2 piece Gearbox Assembly (includes 26-28 & 42) MTD-791-182193
...
26
SCREW #10-24X11/16 T-25 MTD-791-182195
...
27
Anti-Rotation Screw MTD-791-145569
...
28
Blade Driver MTD-791-182196
...
29
Blade Shield/Shield Mount MTD-791-147492
...
30
Shield Mounting Screw MTD-791-683304
...
31
Shield and Blade Assembly (includes 32) MTD-753-1191
...
32
Blade Assembly MTD-791-682061
...
33
Retaining Washer MTD-791-147490
...
34
Spool Shaft MTD-791-612483
...
35
SPOOL ASM-OUTER 3000 NLAUD MTD-791-683301
...
36
RETAINER MTD-1772
...
37
Spring MTD-791-610636B
...
38
Inner Reel MTD-791-147495
...
39
KNOB ASSEMBLY-BUMP 3000 STRG TRM MTD-791-180814B
...
40
4-Tooth Blade MTD-791-145873B
...
41
Nut MTD-712-04105
...
42
Palnut MTD-753-04348
...
xx
Blade Retaining Kit (includes 33 & 41) (NOT SHOWN) MTD-791-180014B
...
xx
Locking Rod Tool (NOT SHOWN) MTD-791-613226
...
xx
Shoulder Harness (NOT SHOWN) MTD-791-682075B
...
xx
Bump Head Assembly Optional Accessories MTD-791-147498
...
xx
Reel and Line Assembly (NOT SHOWN) Optional Accessories MTD-753-1224

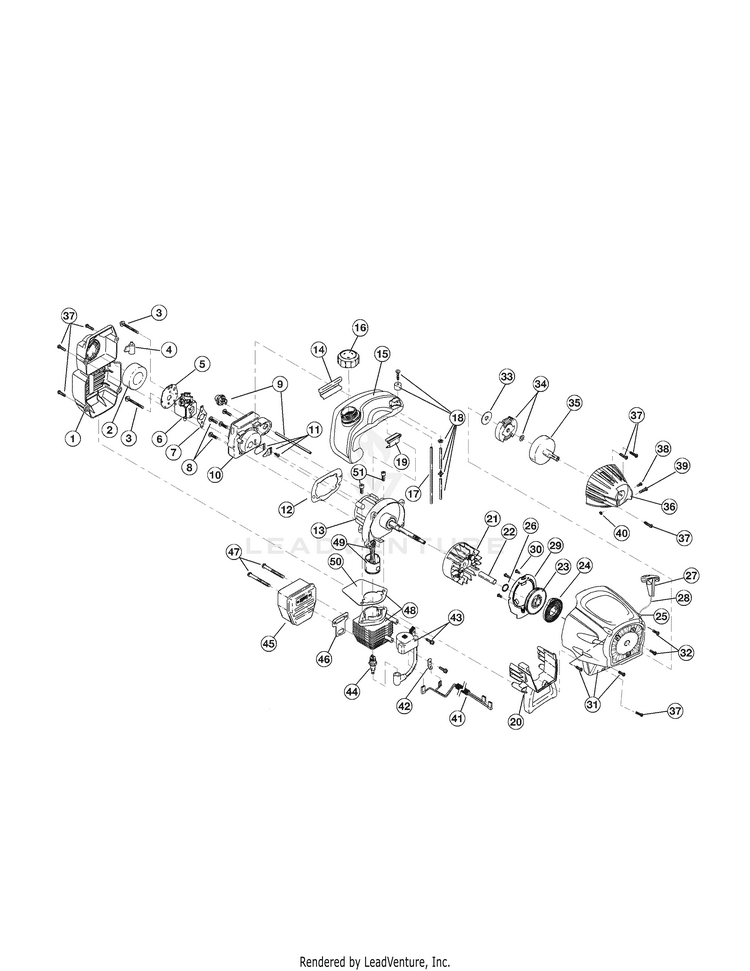

Engine Parts

...
...
1
COVER ASSEMBLY:AIRCL:MFLR MTD-753-04810
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
CHOKE LEVER MTD-753-04227
...
5
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
6
Carburetor Assembly (includes 7 & 18) MTD-753-04338
...
7
CARBURETOR GASKET MTD-791P610675
...
8
SCREW, 10-24X.75 T-2 MTD-791-181860
...
9
Primer and Hose Assembly MTD-791-683974B
...
10
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
Carburetor Mount Gasket MTD-753-1208
...
13
CRANKCASE SERV ASSEMBLY:-9 MTD-753-04332
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
TANK ASSEMBLY:BK CAP W/ MTD-753-04307
...
16
Fuel Tank Cap MTD-791-182612
...
17
Fuel Return Line MTD-791-181086
...
18
Fuel Line Assembly MTD-753-04233
...
19
PAD, FRONT MOUNTING MTD-791-145308
...
20
EXT-SHROUD W/HOLE MTD-753-04702
...
21
Flywheel Assembly MTD-753-05240
...
22
SPACER MTD-791-181065
...
23
PULLEY:START MTD-753-1199
...
24
Recoil Spring MTD-753-04286
...
25
GDE:ROPE:START MTD-753-1200
...
26
Pulley Retainer MTD-753-04288
...
27
Pull Handle MTD-631-04164B
...
28
Rope MTD-791-613103
...
29
PLATE:PRESSURE MTD-753-04417
...
30
Screw, 10-9 x .50 MTD-1755
...
31
HOUSING ASSEMBLY:START:YDMN MTD-753-04335
...
32
SCREW:10-32X.5 MTD-1964
...
33
Washer MTD-9162-1
...
34
Starter Clutch Assembly MTD-753-05860
...
35
Clutch Drum Assembly MTD-791-153592
...
36
CVR ASSEMBLY:CL MTD-753-1204
...
37
Cover Screw MTD-791-181345
...
38
Anti-Rotation Screw MTD-791-182519
...
39
SCREW MTD-9689A
...
40
HEX NUT MTD-712-0161
...
41
LEAD, WIRE AND SLE MTD-791-182798
...
42
TAB, GROUND MTD-791-611063
...
43
PULSE MDL ASSEMBLY:W/HD MTD-753-04336
...
44
Spark Plug MTD-791-610311B
...
45
MUFFLER ASM CAT NLAUD MTD-753-05169
...
46
Exhaust Gasket MTD-753-04619
...
47
Muffler Mounting Bolts MTD-710-04188A
...
48
Cylinder Assembly (includes 51 & 52) MTD-753-04814
...
49
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
50
Cylinder Gasket MTD-753-04182
...
51
Cylinder Bolt MTD-791-182723
...
xx
SCREEN-SPA MTD-753-04689
...
xx
Piston Ring Set (NOT SHOWN) MTD-753-1209
...
xx
SHORT BLOCK MTD-753-04812
...
xx
Clutch Springs (Qty. 2) (NOT SHOWN) MTD-791-181599
