Yard Man YM75 41ADY75C401 Gas String Trimmer

Model: YM75 41ADY75C401 41ADY75C401 YM75

Save Part Not Listed?
product name

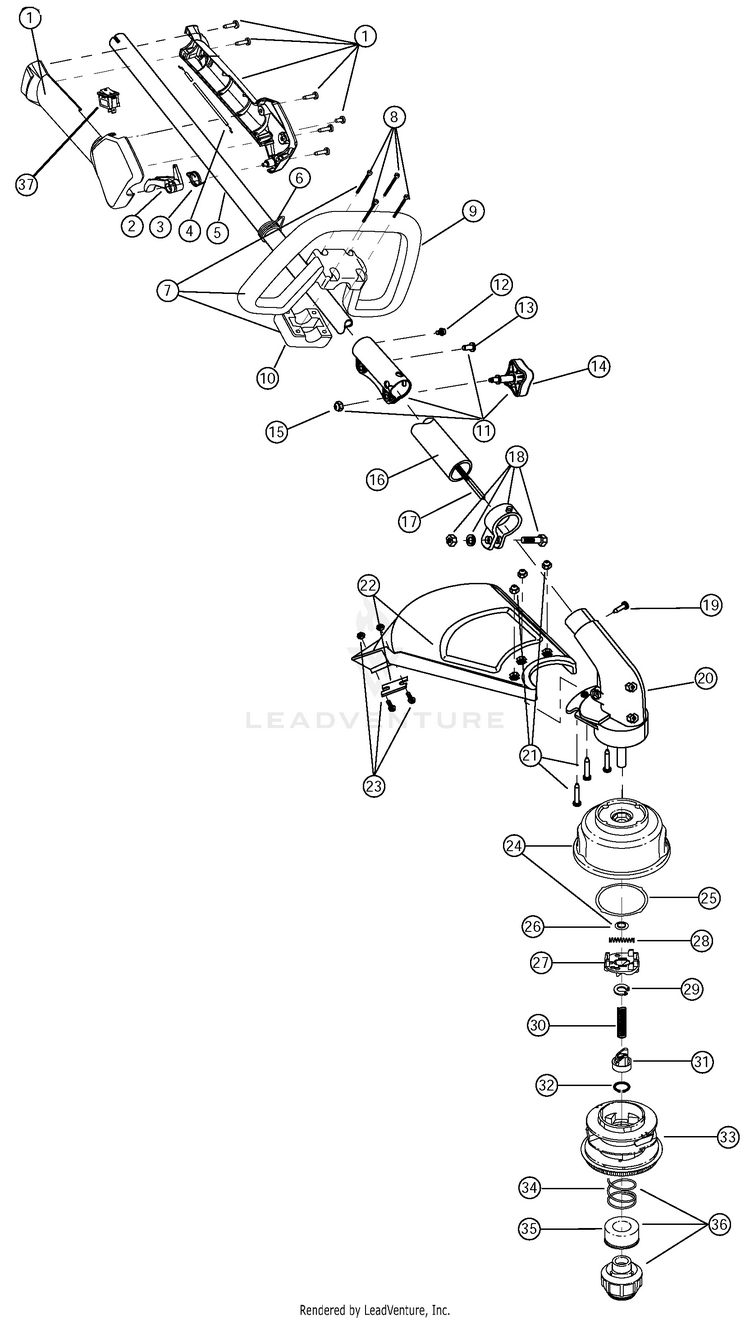

Boom And Trimmer Parts

...
...
1
THROTTLE:GRIP:TRIG:AS (includes 2 & 3) MTD-791-00057
...
2
THROTTLE TRIGGERBC:MTD MTD-753-06754
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Throttle Cable Assembly MTD-791-182877
...
5
Upper Drive Shaft Housing Assembly MTD-753-04236
...
6
SHOULDER STRAP CLAMP MTD-4301A
...
6
Harness Clip MTD-791-610327
...
7
D-HANDLE A (includes 8-10) MTD-791-180869
...
8
Screw MTD-791-181070
...
9
HANDLE-LOOP MTD-791-182167
...
10
BASE-LOOP HANDLE MTD-791-182168
...
11
ASSEMBLY, CLICK LINK CL (includes 12-15) MTD-791-182928
...
12
Screw MTD-791-182057
...
13
Bolt MTD-791-181617
...
14
ADJUSTMENT KNO MTD-791-181618
...
15
NUT, ELASTIC LOCK MTD-791-181886
...
16
TRIMMER BOOM ASSEMBLY MTD-753-04089
...
17
Lower Flexible Drive Shaft MTD-791-181166
...
18
CLAMP ASSEMBLY-LOWER (includes 19) MTD-791-153597
...
19
Anti-Rotation Screw MTD-791-145569
...
20
SPEED SPOOL GEARBOX ASSEMBLY MTD-791-181566
...
21
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
22
ASSEMBLY, GUARD AND BLADE MTD-791-180548
...
23
Blade Assembly MTD-791-180553
...
24
Outer Spool and Eyelet Assembly w/ Retainer MTD-791-181457
...
25
Retainer MTD-791-181458
...
26
Thrust Washer MTD-791-181561
...
27
Slider MTD-753-04257
...
28
SPRING, SPEED SPOOL S MTD-791-181459
...
29
E-Clip MTD-791-181532
...
30
SPRING, PLUNGER MTD-791-181531
...
31
PLUNGER, SPEED SPO MTD-791-181462
...
32
C-CLIP MTD-791-181463
...
33
Reel and Line Assembly MTD-791-181460B
...
34
Large Spring MTD-791-181465
...
35
SEAL, SPEED SPOOL MTD-791-181467
...
36
BUMP HEAD KNOB ASSEMBLY (includes 34 & 35) MTD-791-181468B
...
37
Switch Assembly MTD-791-182405
...
xx
Reel and Line Assembly Optional Accessory; Item not shown MTD-791-181460B
...
xx
Shoulder Strap Assembly Optional Accessory; Item not shown MTD-791-682075B

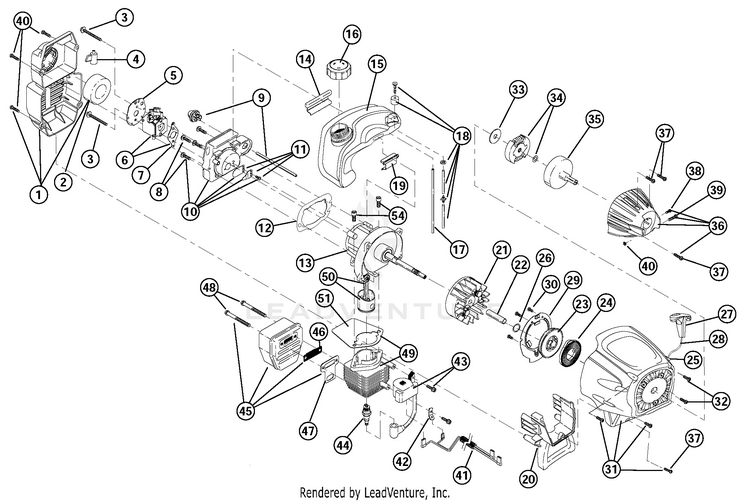

Engine Parts

...
...
1
AIR CLEANER/MUFFLER COVER ASSEMBLY (includes 2 & 37) MTD-753-1192
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
CHOKE LEVER MTD-753-04227
...
5
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
6
Carburetor Assembly (includes 7 & 18) MTD-753-04338
...
7
CARBURETOR GASKET MTD-791P610675
...
8
SCREW, 10-24X.75 T-2 MTD-791-181860
...
9
Primer and Hose Assembly MTD-791-683974B
...
10
CARBURETOR MOUNT ASSEMBLY (includes 8 & 11) MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
Carburetor Mount Gasket MTD-753-1208
...
13
CRANKCASE SERV ASSEMBLY:-9 (includes 8) MTD-753-04332
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
TANK ASSEMBLY:BK CAP W/ (includes 16-18) MTD-753-04307
...
16
Fuel Cap Assembly MTD-791-182612
...
17
Fuel Return Line MTD-791-182352
...
18
Fuel Line Assembly MTD-753-04233
...
19
PAD, FRONT MOUNTING MTD-791-145308
...
20
EXTN-SHROUD W/STAN MTD-753-04611
...
21
Flywheel Assembly MTD-753-05240
...
22
SPACER MTD-791-181065
...
23
PULLEY:START MTD-753-1199
...
24
Recoil Spring MTD-753-04286
...
25
GDE:ROPE:START MTD-753-1200
...
26
Pulley Retainer MTD-753-04288
...
27
Pull Handle MTD-631-04164B
...
28
Rope MTD-791-613103
...
29
PLATE:PRESSURE MTD-753-04417
...
30
Screw, 10-9 x .50 MTD-1755
...
31
HOUSING ASSEMBLY:START:YDMN (includes 23-28 & 32) MTD-753-04335
...
32
SCREW:10-32X.5 MTD-1964
...
33
Washer MTD-9162-1
...
34
Starter Clutch Assembly MTD-753-05860
...
35
Clutch Drum Assembly MTD-791-153592
...
36
CVR ASSEMBLY:CL (includes 37-40) MTD-753-1204
...
37
Cover Screw MTD-791-181345
...
38
Anti-Rotation Screw MTD-791-182519
...
39
SCREW MTD-9689A
...
40
HEX NUT MTD-712-0161
...
41
LEAD, WIRE AND SLE MTD-791-182798
...
42
TAB, GROUND MTD-791-611063
...
43
PULSE MDL ASSEMBLY:W/HD MTD-753-04336
...
44
Spark Plug MTD-791-610311B
...
45
MUFFLER ASM CAT NLAUD (includes 46-48) MTD-753-05169
...
46
SCRN:SPK ARST:A-31 MTD-791-182747
...
47
Muffler Gasket MTD-753-04619
...
48
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
49
Cylinder Assembly (includes 51 & 52) (includes 51) MTD-753-04814
...
50
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
51
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
52
Cylinder Bolt MTD-791-182723
...
xx
O.E.M. Carburetor Repair Kit (Zama) Item not shown MTD-791-180090
...
xx
Gasket Diaphragm Repair Kit (Zama) Item not shown MTD-791-180091
...
xx
Piston Ring Set Item not shown MTD-753-1209
...
xx
SHORTBLOCK:31CC:CLU:W/S (includes 8, 12, 13, 44, 47-52); Item not shown MTD-753-04334
...
xx
Clutch Springs (Qty. 2) Item not shown MTD-791-181599
