Yard Man YM70SS 41ADY70C901 Gas String Trimmer

Model: YM70SS 41ADY70C901 41ADY70C901 YM70SS

Save Part Not Listed?
product name

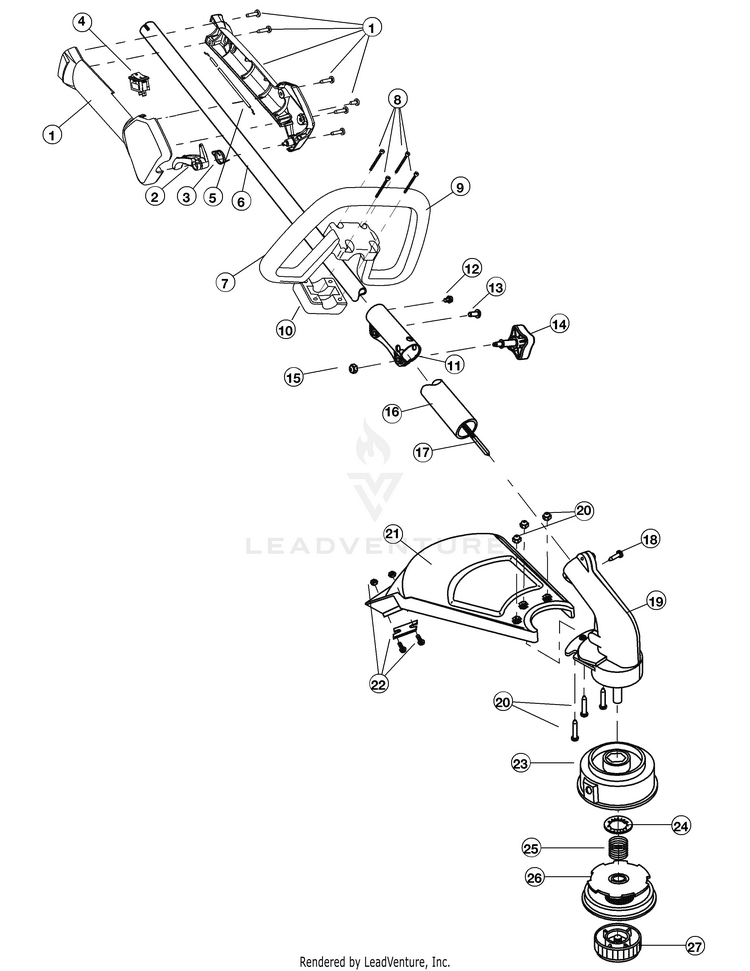

Boom & Trimmer

...
...
1
Throttle Housing Assembly (includes 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch MTD-791-182405
...
5
Throttle Cable Assembly MTD-753-04405
...
6
Upper Drive Shaft Housing Assembly MTD-753-04344
...
7
D-HANDLE A MTD-791-180869
...
8
Screw MTD-791-181070
...
9
HANDLE-LOOP MTD-791-182167
...
10
BASE-LOOP HANDLE MTD-791-182168
...
11
Split Boom Coupler (Incl Ref No. 10-13) MTD-753-1190
...
12
Screw MTD-791-182057
...
13
Bolt MTD-791-181617
...
14
ADJUSTMENT KNO MTD-791-181618B
...
15
Adjustment Knob Nut MTD-712-04018A
...
16
TRIMMER BOOM ASSEMBLY MTD-753-04089
...
17
Lower Flexible Drive Shaft MTD-753-05182
...
18
Anti-Rotation Screw MTD-791-145569
...
19
GEARBOX ASSEMBLY MTD-753-05183
...
20
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
21
ASSEMBLY, GUARD AND BLADE MTD-791-180548
...
22
Blade Assembly MTD-791-682061
...
23
Outer Spool Assembly (includes 24) MTD-791-153619
...
24
Retainer MTD-791-610660
...
25
Spring MTD-791-610317B
...
26
Inner Reel MTD-753-1155
...
27
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly Optional Accessories not shown MTD-953-1156
...
xx
Reel & Line Assembly Optional Accessories not shown MTD-953-1156

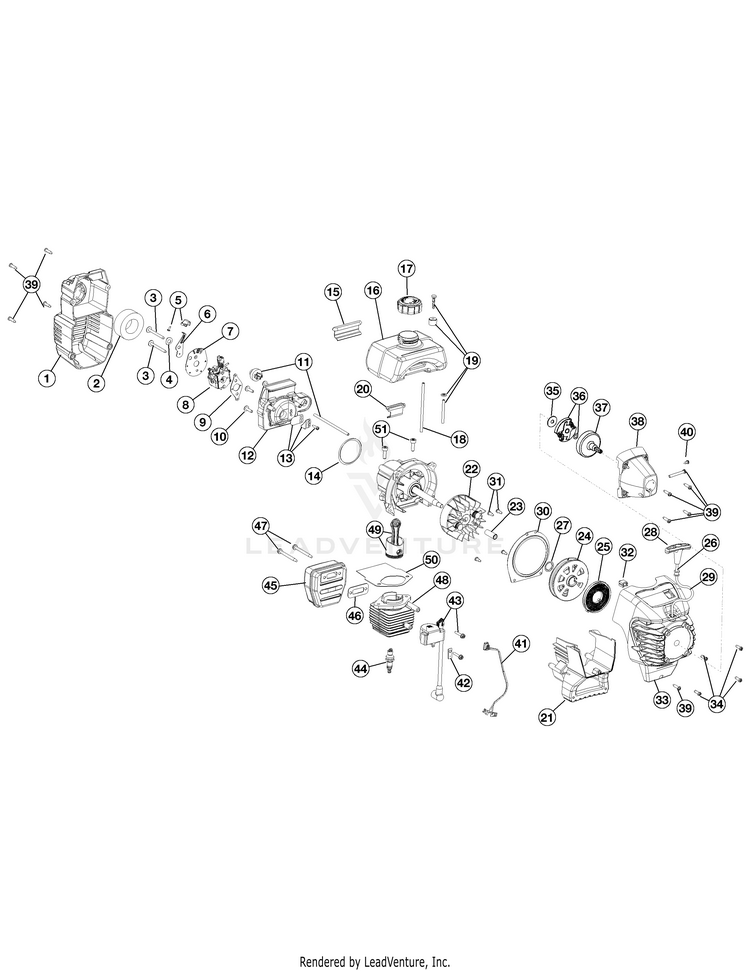

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
6
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
7
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
8
DUAL CARBURETOR ASSEMBLY MTD-753-05133
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer & Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
O-Ring MTD-721-04163
...
15
PAD, REAR MOUNT PAD MTD-791-612134
...
16
FUEL TANK ASSEMBLY MTD-791-182767
...
17
Fuel Cap Assembly MTD-753-04084
...
18
Fuel Return Line MTD-791-181086
...
19
Fuel Line Assembly MTD-753-04233
...
20
PAD, FRONT MOUNTING MTD-791-145308
...
21
EXT ASSEMBLY:SHRD MTD-753-05091
...
22
Flywheel Assembly MTD-753-05240
...
23
Spacer MTD-791-181525
...
24
START ASSEMBLY:S/A:PUL MTD-753-04823
...
25
Recoil Spring MTD-753-04286
...
26
Rope Guide MTD-791-611061
...
27
Pulley Retainer MTD-753-04288
...
28
Pull Handle MTD-631-04164B
...
29
Rope MTD-791-613103
...
30
RET ASSEMBLY:SPG ASSIST MTD-753-04928
...
31
Screw, 10-9 x .50 MTD-1755
...
32
RET:EYELET:S/A MTD-753-04824
...
33
STARTER HOUSING ASSEMBLY MTD-753-05492
...
34
SCREW:10-32X.5 MTD-1964
...
35
Washer MTD-9162-1
...
36
Starter Clutch Assembly MTD-753-05860
...
37
Clutch Drum Assembly MTD-791-153592
...
38
ASM-CLUTCH COVER NLAUD MTD-753-04889
...
39
Cover Screw MTD-791-181345
...
40
Anti-Rotation Screw MTD-791-182519
...
41
WIRE:LEAD:RED/BK MTD-753-05025
...
42
TAB, GROUND MTD-791-611063
...
43
PULSE MDL ASSEMBLY:W/HD MTD-753-04336
...
44
Spark Plug MTD-791-610311B
...
45
MUFFLER ASM CAT NLAUD MTD-753-05169
...
46
Exhaust Gasket MTD-753-04619
...
47
Muffler Mounting Bolts MTD-710-04188A
...
48
Cylinder Assembly (includes 50 & 51) MTD-753-04814
...
49
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
50
Cylinder Gasket MTD-753-04182
...
51
Cylinder Bolt MTD-791-182723
...
xx
SCREEN-SPA not shown MTD-753-04689
...
xx
Piston Ring Set not shown MTD-753-1209
...
xx
SHORT BLOCK not shown MTD-753-04812
...
xx
Clutch Springs (Qty. 2) not shown MTD-791-181599
