Yard Man YM45SC 41AS4SCG055 Gas Blowers

Model: YM45SC 41AS4SCG055 41AS4SCG055 YM45SC

Back To Assemblies

Save Part Not Listed?
product name

General Assembly

...
...
1
INTAKE COVER SCBLO MTD-753-05917
...
2
Spring MTD-753-05918
...
3
Screw MTD-710-04194
...
4
Handle Grips MTD-753-05919
...
5
IMPELLER HOUSING OTR MTD-753-05920
...
6
Latch Tube MTD-753-05926
...
7
Nut MTD-753-05927
...
8
Washer MTD-753-06444
...
9
Impeller MTD-753-05929
...
10
THROTTLE TRIGGER MTD-753-05930
...
11
SCREW, M5 X18 MTD-9052-1
...
12
COVER MUFFLER MTD-753-05931
...
13
Inner Trigger Lock MTD-753-05924
...
14
WAVE WASHER MTD-736-04353
...
15
Switch MTD-791-182405
...
16
Impeller Housing MTD-753-06693
...
17
Outer Trigger Lock MTD-753-05932
...
18
Fuel Cap MTD-753-05289
...
19
Fuel Tank Assembly (Incl. Ref No. 18) MTD-753-05933
...
20
ENGINE COVER ASSEMBLY MTD-753-06652
...
21
Spark Plug Cover MTD-753-05935
...
22
SCREW M5X0.8 MTD-710-04604A
...
23
Upper Tube MTD-753-05936
...
24
Lower Tube MTD-753-05937
...
25
Latch Spring MTD-753-05939
...
26
Wire Ground MTD-753-05964
...
27
STRAP GROUND MTD-753-05965
...
28
Screw, 10-9 x .50 MTD-1755

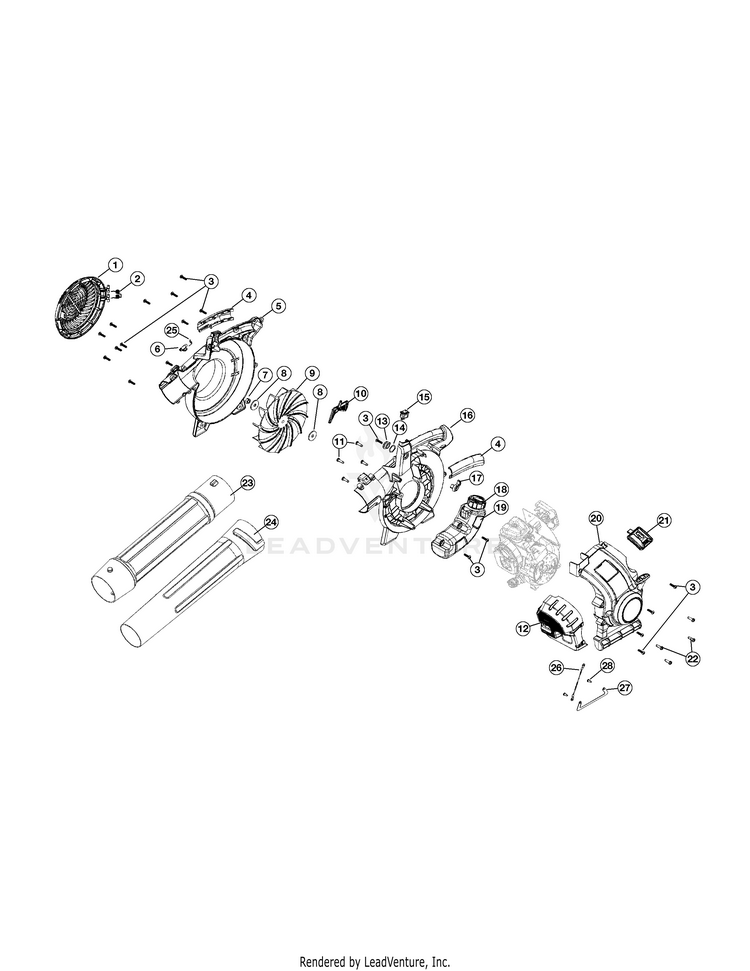

Schematic Image Zoomed
