Yard Man YM4125CS 41ADY42C901 Gas String Trimmer

Model: YM4125CS 41ADY42C901 41ADY42C901 YM4125CS

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

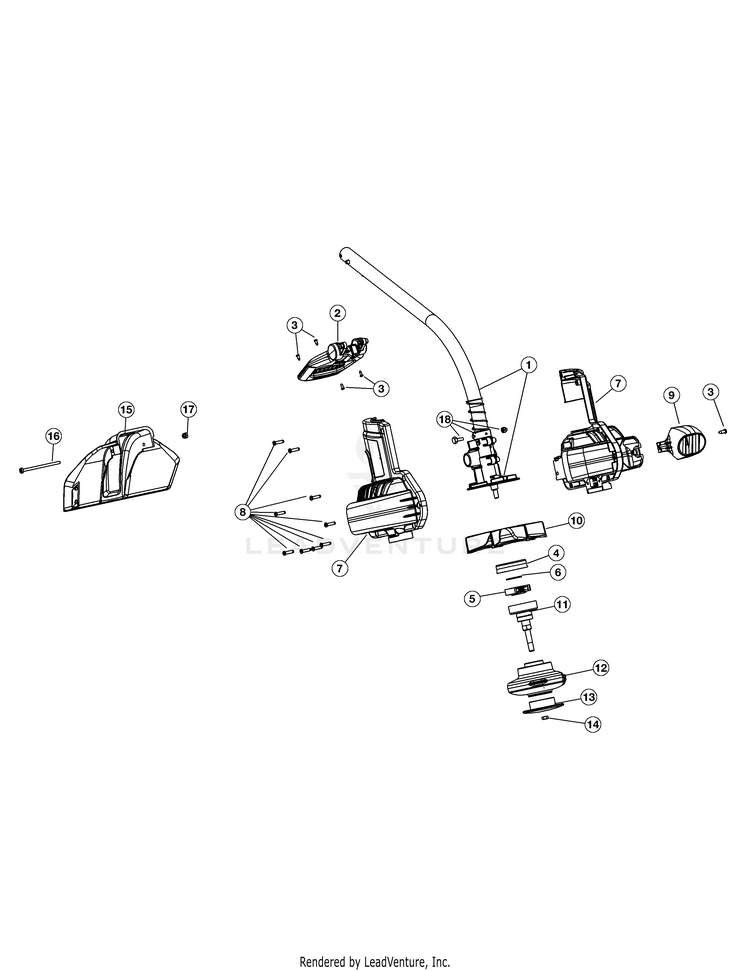

General Assembly 2

...
...
1
LOWER DRIVE SHAFT MTD-753-05272
...
2
SHIFT HANDLE ASSEMBLY MTD-753-05453
...
3
Screw, 10-9 x .50 MTD-1755
...
4
CLUTCH DRUM CONTAI MTD-753-05233
...
5
CLUTCH ASSEMBLY MTD-753-05257
...
6
Washer MTD-9162-1
...
7
HOUSING ASSEMBLY MTD-753-05454
...
8
Screw MTD-710-04508
...
9
NOZZLE MTD-753-05455
...
10
IMPELLER MTD-753-05276
...
11
CLUTCH DRUM W/SPOO MTD-753-05277
...
12
FIXED LINE HEAD MTD-753-05456
...
13
GLIDE CAP MTD-731-05714
...
14
Locknut MTD-712-04018A
...
15
GUARD ASSEMBLY W/BLADE MTD-753-05282
...
16
SCREW 10-24 x 3.25 MTD-710-04563
...
17
HEX NUT MTD-712-0161
...
18
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
xx
Hanger Not Shown MTD-731-08926
...
xx
Replacement Line Not Shown MTD-796-00027
