Yard Man YM400 41BDY40G701 Gas String Trimmer

Model: YM400 41BDY40G701 41BDY40G701 YM400

Back To Assemblies

Save Part Not Listed?
product name

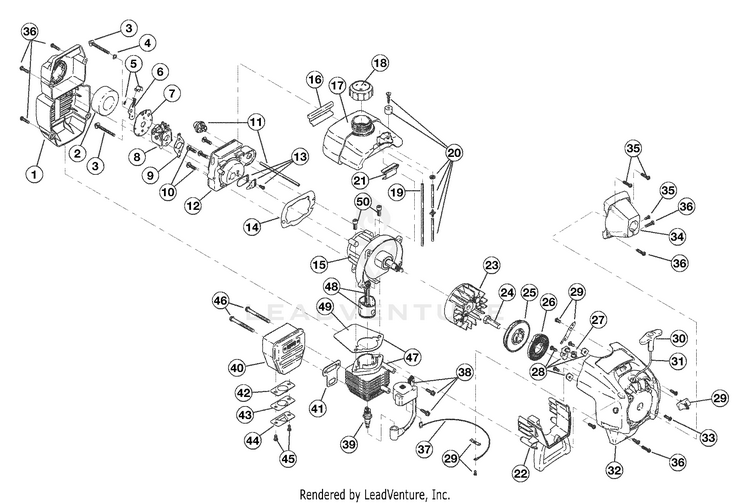

Engine Parts

...
...
1
Air Cleaner/Muffler Cover Assembly (includes 2 & 35) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & (includes 5) MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 6) MTD-753-04419
...
8
CARBURETOR ASSEMBLY W/FUEL LINE (includes 9) MTD-753-04333
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE SVC ASSEMBLY:45. (includes 10 & 22) MTD-753-04321
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:B (includes 18-20) MTD-753-04311
...
18
Fuel Tank Cap MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
EXT-SHROUD W/HOLE (includes 36) MTD-753-04702
...
23
Flywheel Assembly MTD-753-05240
...
24
NUT, SQUARE DRIVE MTD-791-610303
...
25
PULLEY:START MTD-753-1199
...
26
Recoil Spring MTD-791-613102
...
27
Rope Guide MTD-791-611061
...
28
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
29
ASSEMBLY, SWITCH (BLACK (includes 38) MTD-791-182618
...
30
Pull Handle MTD-631-04164B
...
31
Rope MTD-791-613103
...
32
HOUSING ASSEMBLY:ST (includes 25-31, 33 & 36) MTD-753-04293
...
33
SCREW:10-32X.5 MTD-1964
...
34
ASM-CLUTCH COVER NLAUD (includes 35 & 36) MTD-753-04889
...
35
SCREW:8-18 MTD-753-04466
...
36
Screw MTD-791-181345
...
37
LEAD, WIRE IDC 500 MTD-791-180036
...
38
MODULE ASSEMBLY PULSE CARBURETOR MTD-753-04109
...
39
Spark Plug MTD-791-610311B
...
40
MUFFLER ASM CAT NLAUD (includes 41-46) MTD-753-05169
...
41
Exhaust Gasket MTD-753-04619
...
42
SCREEN-SPA MTD-753-04689
...
43
SEAL MTD-753-04690
...
44
HOOD MTD-753-04691
...
45
MUFFLER ASSEMBLY MTD-753-04315
...
46
Muffler Mounting Bolts MTD-710-04188A
...
47
Cylinder Assembly (includes 51 & 52) (includes 49 & 50) MTD-753-04814
...
48
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
49
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
50
Cylinder Bolt MTD-791-182723
...
xx
Piston Ring Item Not Shown MTD-753-1209
...
xx
SHBLK:31CC (includes 10, 15, 23, 39, 47 & 48-50) Item Not Shown MTD-753-04322
