Yard Man YM400 41BDY40G401 Gas String Trimmer

Model: YM400 41BDY40G401 41BDY40G401 YM400

Back To Assemblies

Save Part Not Listed?
product name

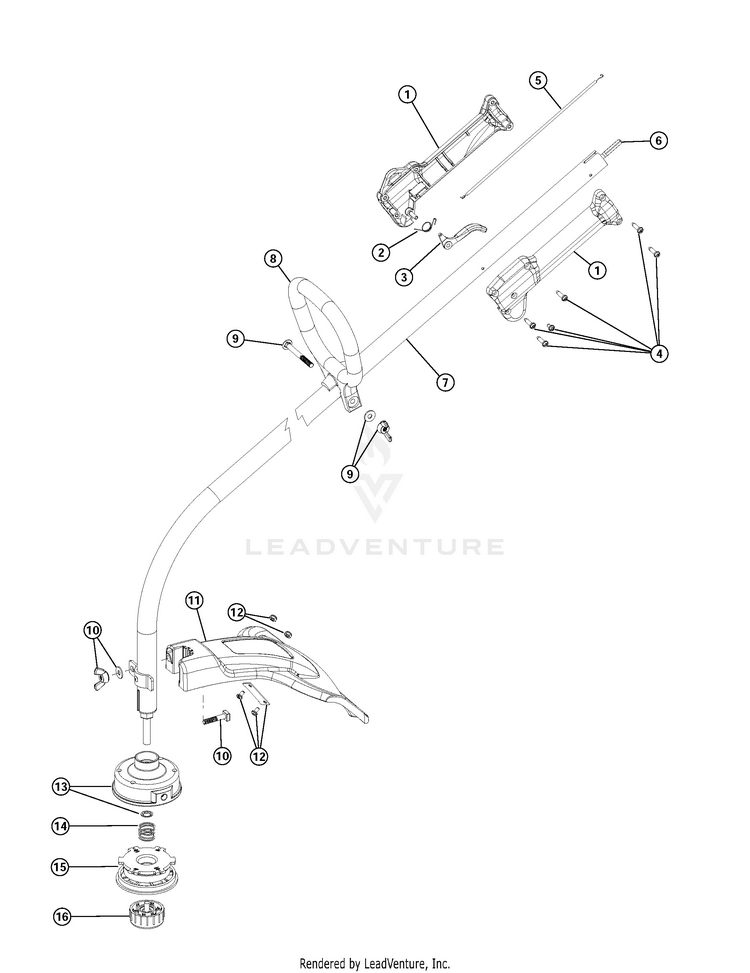

Boom And Trimmer Parts

...
...
1
THROT GRIP ASSEMBLY:WLOOP (includes 2-4) MTD-753-04294
...
2
Throttle Trigger Spring MTD-791-610314
...
3
THROTTLE TRIGGERYDMN YE MTD-753-04295
...
4
SET SCREW MTD-791-145888
...
5
Throttle Cable MTD-791-182068
...
6
Flexible Drive Shaft MTD-753-04280
...
7
DRIVE SHAFT HOUSING ASSEMBLY:OP (includes 6 & 13) MTD-753-04366
...
8
D-HANDLE AND HARDWARE (includes 9) MTD-791-153064
...
9
D-Handle Hardware MTD-791-181587
...
10
Guard Mounting Hardware MTD-753-04282
...
11
Guard MTD-753-04283
...
12
Blade Assembly MTD-791-180553
...
13
OUTER REEL W/RETAINING RING MTD-753-04284
...
14
Spring MTD-791-610317B
...
15
Inner Reel MTD-753-1155
...
16
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly Optional Accessory; Not Shown MTD-791-153577B
...
xx
Shoulder Strap Assembly Optional Accessory; Not Shown MTD-791-682075B
