Yard Man YM400 41ADY40G901 Gas String Trimmer

Model: YM400 41ADY40G901 41ADY40G901 YM400

Back To Assemblies

Save Part Not Listed?
product name

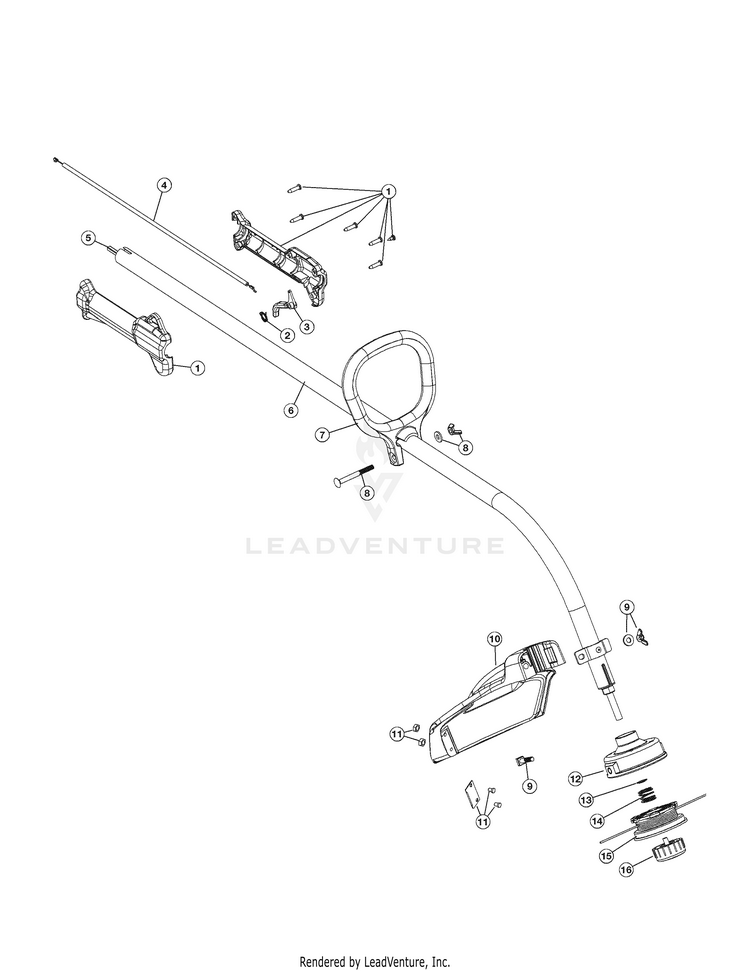

Boom and Trimmer Parts YM400

...
...
1
THROTTLE GRIP ASSEMBLY WOOP MTD-753-04927
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable MTD-753-04901
...
5
Flexible Drive Shaft MTD-753-04280
...
6
BOOM & FLX MTD-753-05041
...
7
D-HANDLE AND HARDWARE MTD-791-153064
...
8
D-Handle Hardware MTD-791-181587
...
9
Guard Mounting Hardware MTD-753-04282
...
10
Guard (includes 11) MTD-753-04283
...
11
Blade Assembly MTD-791-180553
...
12
OUTER REEL W/RETAINING RING MTD-753-04284
...
13
Retainer MTD-791-610660
...
14
Spring MTD-791-610317B
...
15
Inner Reel MTD-753-1155
...
16
Bump Knob MTD-791-153066B
Schematic Image Zoomed
