Yard Man YM400 41ADY40G755 Gas String Trimmer

Model: YM400 41ADY40G755 41ADY40G755 YM400

Save Part Not Listed?
product name

Boom And Trimmer Parts

...
...
1
GRIP ASSEMBLY:THROT:W/T (includes 2 & 3) MTD-753-04114
...
2
Throttle Trigger Spring MTD-791-610314
...
3
THROTTLE TRIGGERYDMN YE MTD-753-04295
...
4
Throttle Cable MTD-791-102068
...
5
DRIVE SHAFT HOUSING ASSEMBLY:OP MTD-753-04366
...
6
D-HANDLE AND HARDWARE (includes 7) MTD-791-153064
...
7
D-Handle Hardware MTD-791-181587
...
8
Guard Mounting Hardware MTD-753-04282
...
9
Guard (includes 10) MTD-753-04283
...
10
Blade Assembly MTD-791-180553
...
11
OUTER REEL W/RETAINING RING (includes 12) MTD-753-04284
...
12
Retainer MTD-791-610660
...
13
Spring MTD-791-610317B
...
14
Inner Reel MTD-753-1155
...
15
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel and Line Assembly Item Not Shown MTD-791-153577B
...
xx
Shoulder Strap Assembly Item Not Shown MTD-791-682075B

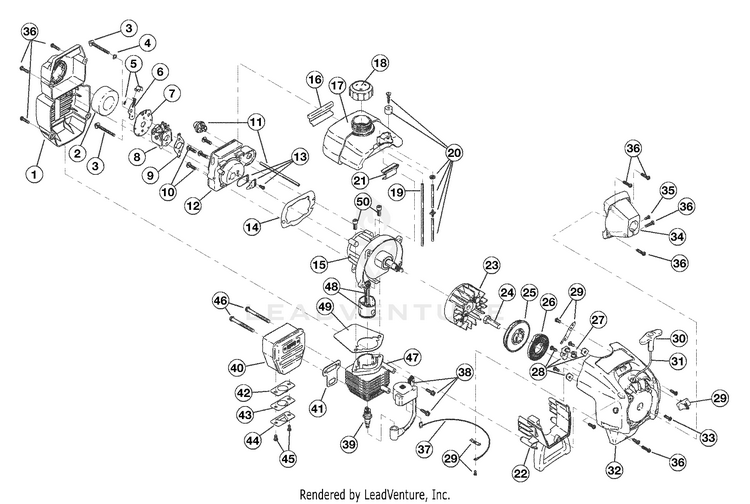

Engine Parts

...
...
1
COVER-AIRCLEANER (includes 2 & 36) MTD-753-04303
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & (includes 5) MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 6) MTD-753-04419
...
8
CARBURETOR WITH FUEL LINES (includes 9 & 20) MTD-753-04320
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10 & 13) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE ASSEMBLY:W/PSHF: (includes 10) MTD-753-04319
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:B (includes 18-20) MTD-753-04311
...
18
Fuel Tank Cap MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
EXTN-SHROUD W/STAN MTD-753-04611
...
23
Flywheel Assembly MTD-753-05240
...
24
NUT, SQUARE DRIVE MTD-791-610303
...
25
START PULLEY KIT MTD-753-04232
...
26
Recoil Spring MTD-791-613102
...
27
Rope Guide MTD-791-611061
...
28
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
29
ASSEMBLY, SWITCH (BLACK (includes 37) MTD-791-182618
...
30
Pull Handle MTD-631-04164B
...
31
Rope MTD-791-613103
...
32
HOUSING ASSEMBLY:ST (includes 25-31 & 33) MTD-753-04293
...
33
SCREW:10-32X.5 MTD-1964
...
34
ASM-CLUTCH COVER NLAUD (includes 35 & 36) MTD-753-04889
...
35
Anti-Rotation Screw MTD-791-182519
...
36
Screw MTD-791-181345
...
37
LEAD, WIRE IDC 500 MTD-791-180036
...
38
MODULE ASSEMBLY PULSE CARBURETOR MTD-753-04109
...
39
Spark Plug MTD-791-610311B
...
40
MUFFLER ASSEMBLY WITH GASKET (includes 41-46) MTD-753-04110
...
41
Muffler Gasket MTD-753-04619
...
42
SCREEN-SPARK AR MTD-753-04312
...
43
MUFFLER ASSEMBLY MTD-753-04313
...
44
MUFFLER ASSEMBLY MTD-753-04314
...
45
MUFFLER ASSEMBLY MTD-753-04315
...
46
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
47
Cylinder Assembly (includes 51 & 52) (includes 49 & 50) MTD-753-04814
...
48
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
49
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
50
Cylinder Bolt MTD-791-182723
...
xx
KIT-ENGINE GASKET MTD-753-04183
...
xx
O.E.M. Carburetor Repair Kit (Walbro) Item Not Shown MTD-791-180602
...
xx
SET, WALBRO LIMITE Item Not Shown MTD-791-181873
...
xx
Piston Ring Item Not Shown MTD-753-1209
...
xx
SHBLK:31CC:NON-CLU (includes 15, 39, 47 & 48) Item Not Shown MTD-753-04146
