Yard Man YM400 41ADY40G401 Gas String Trimmer

Model: YM400 41ADY40G401 41ADY40G401 YM400

Back To Assemblies

Save Part Not Listed?
product name

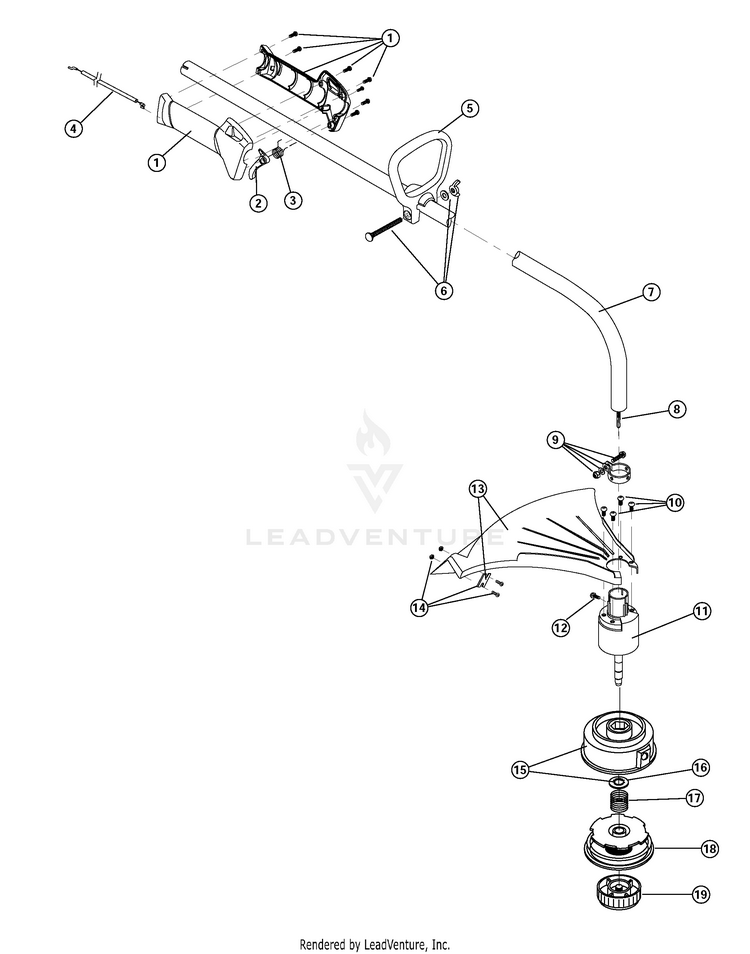

Boom And Trimmer Parts

...
...
1
THROT GRIP ASSEMBLY:WLOOP (Incl. Ref No. 2 & 3) MTD-753-04294
...
2
Throttle Trigger Spring MTD-791-610314
...
3
THROTTLE TRIGGERYDMN YE MTD-753-04295
...
4
Throttle Cable Assembly MTD-791-182068
...
5
D-HANDLE AND HARDWARE (Incl. Ref No.6) MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
DRSHF HOUSING ASSEMBLY:46.5 MTD-753-04276
...
8
Flexible Drive Shaft MTD-753-04280
...
9
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
10
SCREW, #10-24X.50 M MTD-791-181858
...
11
SHAFT ASSEMBLY-BRG HOUSING MTD-791-181784
...
12
Anti-Rotation Screw MTD-791-145569
...
13
SHIELD ASSEMBLY WITH BLADE (Incl. Ref No. 14) MTD-791-181659
...
14
BLADE ASSEMBLY MTD-791-181823
...
15
Outer Spool w/ Retainer (Incl. Ref No. 16) MTD-791-153619
...
16
Retainer MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Head Knob Assembly MTD-791-153066B
...
xx
LINE .080 Optional Accessory; Not Shown MTD-791-610375
...
xx
Reel & Line Assembly Optional Accessory; Not Shown MTD-791-153577B
...
xx
Bump Head Assembly Optional Accessory; Not Shown MTD-791-180897B
...
xx
Shoulder Strap Assembly Optional Accessory; Not Shown MTD-791-682075B
