Yard Man YM320BV 41CS320G901 Gas Blowers

Model: YM320BV 41CS320G901 41CS320G901 YM320BV

Save Part Not Listed?
product name

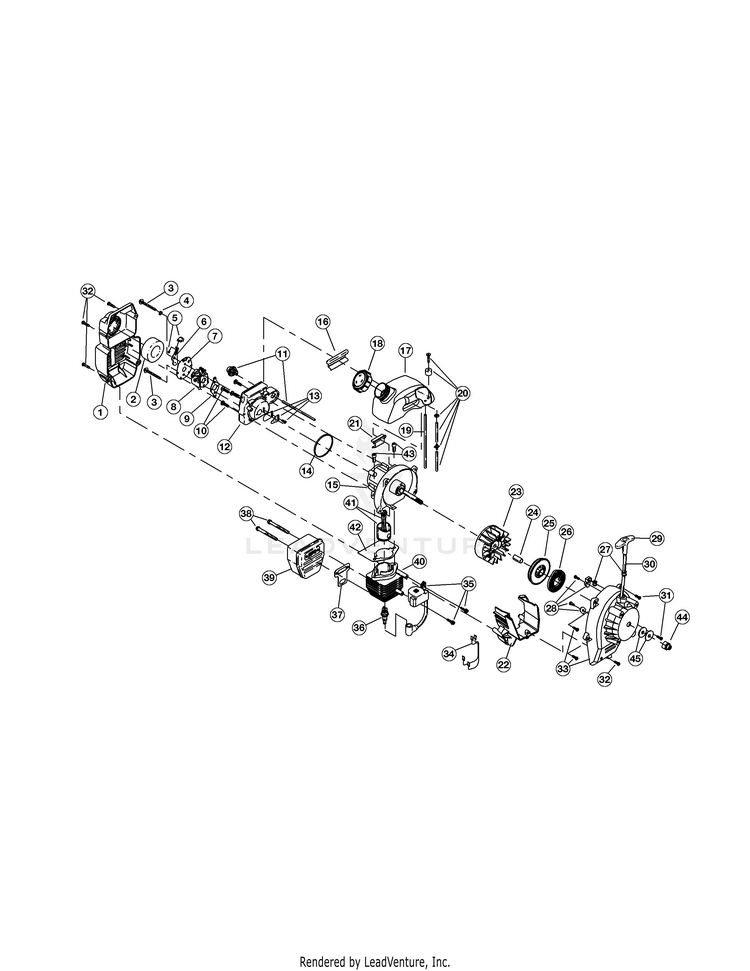

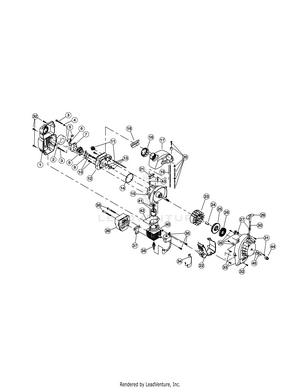

Engine Assembly

...
...
1
Air Cleaner/Muffler Cover Assembly (Incl. 2 & 32) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
Wavey Washer MTD-936-0271
...
5
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
6
CHOKE LEVER ASSEMBLY:W/ (Incl. 5) MTD-753-04418
...
7
PLATE ASSEMBLY:CHOKE:WV (Incl. 6) MTD-753-04419
...
8
Carburetor Assembly (Incl. 9 & 20) MTD-753-04408
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (Incl. 10,13 & 14) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Ring MTD-721-04163
...
15
CRANKCASE & PSHF ASSEMBLY (Incl. 10) MTD-753-04328
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:BK CAP W/ (Incl. 18-20) MTD-753-04310
...
18
Fuel Cap Assembly MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
EXTENSION, SHROUD (Incl. 32) MTD-791-182401
...
23
Flywheel Assembly MTD-753-05240
...
24
SPACER MTD-750-04245
...
25
PULLEY:START MTD-753-1199
...
26
Recoil Spring MTD-791-613102
...
27
Rope Guide MTD-791-611061
...
28
ASSEMBLY, PULLEY RETAINER MTD-791-180930
...
29
Pull Handle MTD-631-04164B
...
30
Rope MTD-791-613103
...
31
SCREW:10-32X.5 MTD-1964
...
32
Cover Screw MTD-791-181345
...
33
ASSEMBLY, STARTER HOUSING (Incl. 25-32) MTD-791-181931
...
34
LEAD, WIRE 10.5" B MTD-791-182402
...
35
MOD ASSEMBLY:W/HDWR MTD-753-05866
...
36
Spark Plug MTD-791-610311B
...
37
Exhaust Gasket MTD-791-180980
...
38
Muffler Mounting Bolt Assembly MTD-710-04188A
...
39
MUFFLER ASM CAT NLAUD (Incl. 37 & 38) MTD-753-05169
...
40
Cylinder Assembly (Incl. 42 & 43) MTD-753-04814
...
41
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
42
Cylinder Gasket MTD-753-04182
...
43
Cylinder Bolt MTD-791-182723
...
44
NUT, DRIVE IMPELLE MTD-791-181524
...
45
Washer MTD-9162-1
...
xx
Piston Ring Not shown MTD-753-1209
...
xx
SHORTBLOCK:31CC:BLO:-9 Not shown (Incl. 10, 15, 36, 40-43) MTD-753-04895

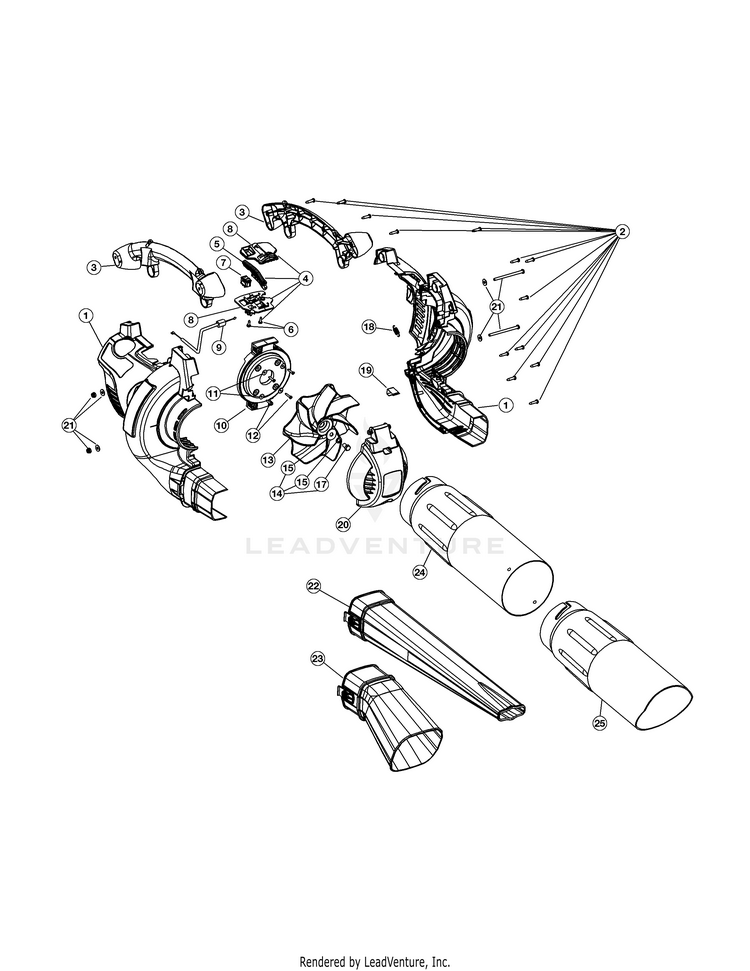

General Assembly

...
...
1
ENG COVER ASSEMBLY (Incl. 2) MTD-753-04450
...
2
Screw MTD-791-181345
...
3
BLOWER HANDLE ASSEMBLY (Incl. 2) MTD-753-05047
...
4
LEVER ASSEMBLY:THROTTLE:CONT (Incl. 5, 6 & 8) MTD-753-05013A
...
5
Throttle Control Lever MTD-791-00048
...
6
SCREW, 6X.375X1/2 PL MTD-791-182423
...
7
Rocker Switch Assm MTD-791-182405
...
8
LEVER ASSEMBLY:THROTTLE:CONT MTD-753-05013A
...
9
THROTTLE CABLE MTD-791-00049
...
10
ADAPTER-ENG MOUNT (Incl. 11 & 12) MTD-753-04483
...
11
Washer MTD-791-182409
...
12
SCREW, 10-9X1.00 PH MTD-791-181903
...
13
Impeller Blade MTD-731-04275
...
14
HDWE-IMPELLER (Incl. 15-17) MTD-753-04482
...
15
Washer MTD-736-04107
...
16
Lock Washer MTD-736-04110A
...
17
Bolt MTD-791-182414
...
18
SPRING-DOOR MTD-753-04456
...
19
DOOR LOCK CLIP MTD-732-04092A
...
20
DOOR-VAC MTD-753-04454
...
21
MOUNTING PLATE HARDWARE MTD-791-182424
...
22
TUBE, BLOWER (HIGH MTD-791-182647
...
23
Vacuum Bag Adaptor MTD-791-182477
...
24
TUBE, UPPER VACUUM (ELEC BLWR- MTD-791-180466
...
25
Lower Vacuum Tube MTD-791-180467
...
xx
CLAMP, BAG NYLON Not shown MTD-791-612930
...
xx
BAG ASSEMBLY-VAC W/BAG & CABLE TIE Not shown (Incl. 23, Bag, & Cable Tie) MTD-753-04458
...
xx
Shoulder Strap Not shown MTD-791-682075B
