Yard Man YM300 41ADY30G401 Gas String Trimmer

Model: YM300 41ADY30G401 41ADY30G401 YM300

Save Part Not Listed?
product name

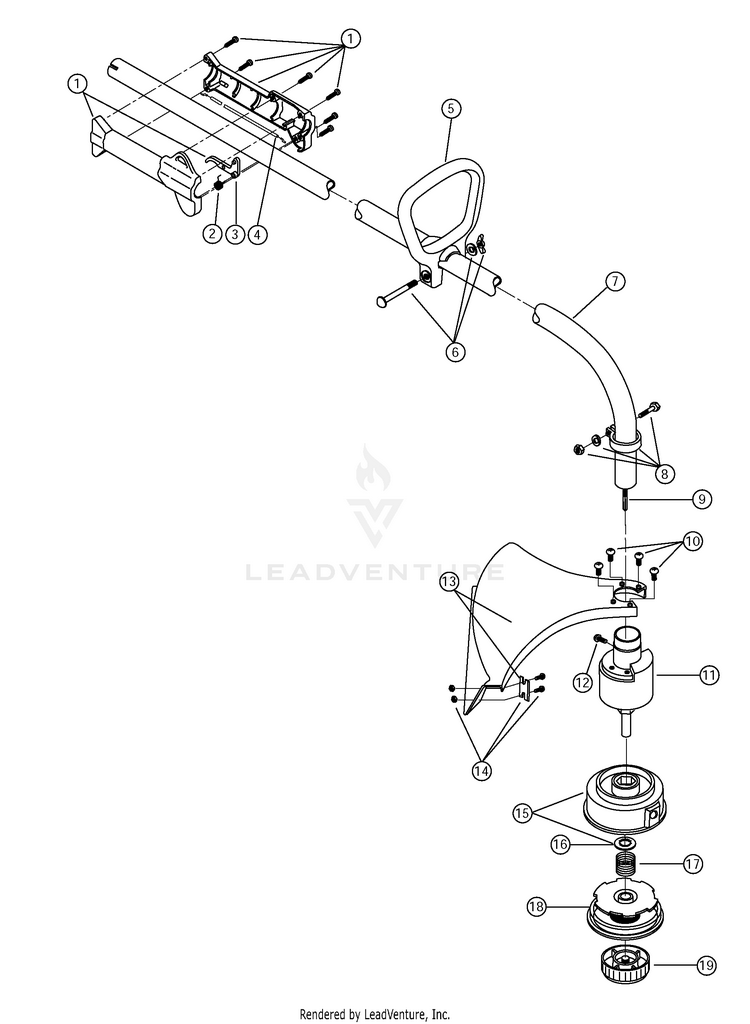

Boom And Trimmer Parts

...
...
1
THROTTLE &TRIGGER HOUSING ASSEMBLY (includes 2 & 3) MTD-753-04279
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable Assembly MTD-791-182068
...
5
D-HANDLE AND HARDWARE (includes 6) MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
ASSEMBLY, DRIVE SHAFT H MTD-791-181893
...
8
CLAMP ASSEMBLY-LOWER (includes 12) MTD-791-153597
...
9
Flexible Drive Shaft MTD-753-04280
...
10
SCREW, #10-24X.50 M MTD-791-181858
...
11
SHAFT ASSEMBLY-BRG HOUSING (includes 16) MTD-791-181784
...
12
Anti-Rotation Screw MTD-791-145569
...
13
SHIELD ASSEMBLY WITH BLADE (includes 14) MTD-791-181659
...
14
BLADE ASSEMBLY MTD-791-181823
...
15
Outer Spool and Eyelet Assembly (includes 16) MTD-791-153619
...
16
Retainer MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Head Knob Assembly MTD-791-153066B
...
xx
Replacement Line, 0.80 Diameter Optional Accessory; Not Shown MTD-791-610375B
...
xx
Reel and Line Assembly Optional Accessory; Not Shown MTD-791-153577B
...
xx
Bump Head Assembly (includes 15-19); Optional Accessory; Not Shown MTD-791-180897B
...
xx
Shoulder Strap Assembly Optional Accessory; Not Shown MTD-791-682075B

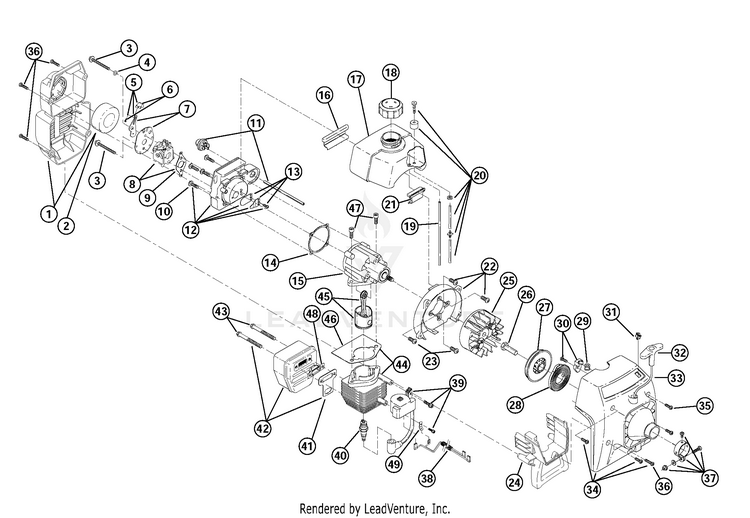

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 36) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5 & 6) MTD-753-04419
...
8
Carburetor Assembly (includes 9 & 20) MTD-753-04408
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10, 13 & 14) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE ASSEMBLY: (includes 10 & 23) MTD-791-181865
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
FUEL TANK ASSEMBLY (includes 18-20) MTD-791-181152
...
18
Fuel Tank Cap MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
ASSEMBLY, SHROUD ASSEMB (includes 23) MTD-791-153520
...
23
SCREW, 1/4-20X.562 F MTD-791-181861
...
24
EXTN-SHROUD W/STAN (includes 36) MTD-753-04611
...
25
Flywheel Assembly MTD-753-05240
...
26
NUT, SQUARE DRIVE MTD-791-610303
...
27
START PULLEY KIT MTD-753-04232
...
28
Recoil Spring MTD-791-613102
...
29
Rope Guide MTD-791-611061
...
30
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
31
SWITCH:POS ON/OFF:WEAD (includes 38) MTD-753-04241
...
32
Pull Handle MTD-631-04164B
...
33
Rope MTD-791-613103
...
34
STARTER HOUSING ASSEMBLY (includes 27-33, 35, 36 & 38) MTD-753-04244
...
35
SCREW:10-32X.5 MTD-1964
...
36
Cover Screw MTD-791-181345
...
37
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
38
WIRE:LEAD:RED/BK MTD-794-00028
...
39
MOD ASSEMBLY:W/HDWR (includes 49) MTD-753-04245
...
40
Spark Plug MTD-791-610311B
...
41
Muffler Gasket MTD-753-04619
...
42
MUFFLER ASM CAT NLAUD (includes 41, 43 & 48) MTD-753-05169
...
43
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
44
Cylinder Assembly (includes 51 & 52) (includes 46 & 47) MTD-753-04814
...
45
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
46
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
47
Cylinder Bolt MTD-791-182723
...
48
SCRN:SPK ARST:A-31 MTD-791-182747
...
49
TAB, GROUND MTD-791-611063
...
xx
ENGINE GASKET KIT Not Shown MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit (Walbro) Not Shown MTD-791-180602
...
xx
Gasket Diaphragm Repair Kit (Walbro) Not Shown MTD-791-181069
...
xx
Piston Ring Not Shown MTD-753-1209
...
xx
SHORTBLOCK:31CC:NC:KEYL (includes 10, 15, 23, 40, 44-47); Not Shown MTD-753-04173
