Yard Man YM1500 41CDY15G901 Gas String Trimmer

Model: YM1500 41CDY15G901 41CDY15G901 YM1500

Save Part Not Listed?
product name

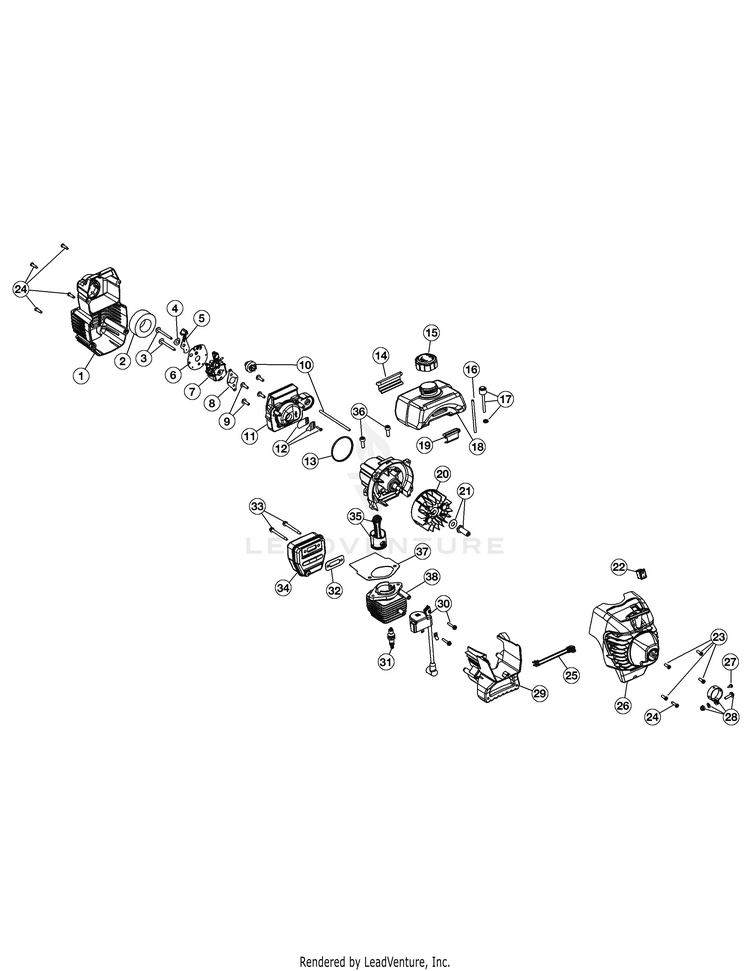

Engine Assembly

...
...
1
Air Cleaner Cover Assembly (includes 2 & 24) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
6
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419
...
7
Carburetor Assembly (includes 8 & 17) MTD-753-04408
...
8
CARBURETOR GASKET MTD-791P610675
...
9
SCREW, 10-24X.75 T-2 MTD-791-181860
...
10
Primer and Hose Assembly MTD-791-683974B
...
11
CARBURETOR MOUNT ASSEMBLY (includes 9, 12 & 13) MTD-753-1196
...
12
REED VALVE ASSEMBLY MTD-791-684451
...
13
O-Ring MTD-721-04163
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
Fuel Tank Cap MTD-791-182612
...
16
Fuel Return Line MTD-791-181086
...
17
Fuel Line Assembly MTD-791-682039
...
18
FUEL TANK ASSEMBLY (includes 15-17) MTD-791-182767
...
19
PAD, FRONT MOUNTING MTD-791-145308
...
20
Flywheel Assembly MTD-753-05240
...
21
NUT, SQUARE DRIVE MTD-791-610303
...
22
Switch Assembly MTD-791-182405
...
23
SCREW:10-32X.5 MTD-1964
...
24
Cover Screw MTD-791-181345
...
25
WIRE:LEAD:RED/BK MTD-794-00028
...
26
STARTER HOUSING ASSEMBLY YELLOW (includes 22-25) MTD-753-05021
...
27
SCREW:8-18 MTD-753-04466
...
28
CLAMP ASSEMBLY (includes 27) MTD-753-05056
...
29
EXT ASSEMBLY:SHRD (includes 24) MTD-753-05091
...
30
MODULE ASSEMBLY WITH HARDWARE MTD-753-04324
...
31
Spark Plug MTD-791-610311B
...
32
Exhaust Gasket MTD-753-04619
...
33
Muffler Mounting Bolts MTD-710-04188A
...
34
MUFFLER ASM CAT NLAUD (includes 32, 33 & Spark Arrestor) MTD-753-05169
...
35
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
36
Cylinder Bolt MTD-791-182723
...
37
Cylinder Gasket MTD-753-04182
...
38
Cylinder Assembly (includes 36 & 37) MTD-753-04814
...
xx
Piston Ring Set (not shown) MTD-753-1209
...
xx
SHORTBLOCK:31CC:N/C:-9 (not shown)(includes Crankcase, 9, 31, & 35-38) MTD-753-04826

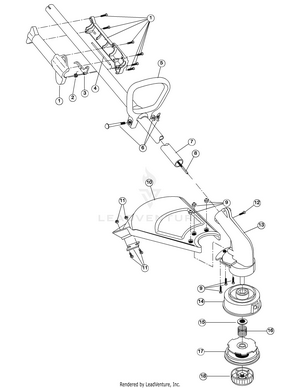

General Assembly YM1500

...
...
1
THROTTLE GRIP ASSEMBLY WOOP (includes 2 & 3) MTD-753-04927
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable MTD-753-04901
...
5
D-HANDLE AND HARDWARE (includes 6) MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
HOUSING ASSEMBLY:DR MTD-753-04330
...
8
FLEXIBLE DRIVE SHAFT MTD-753-05211
...
9
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
10
ASSEMBLY, GUARD AND BLADE (includes 11) MTD-791-180548
...
11
Blade Assembly MTD-791-180553
...
12
Anti-Rotation Screw MTD-791-145569
...
13
GEARBOX ASSEMBLY (includes 14-18) MTD-753-05185
...
14
Outer Spool Assembly (includes 15) MTD-791-153619
...
15
Retainer MTD-791-610660
...
16
Spring MTD-791-610317B
...
17
Inner Reel MTD-753-1155
...
18
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line (not shown) MTD-791-153577B
