Yard Man YM1500 41BDY15G901 Gas String Trimmer

Model: YM1500 41BDY15G901 41BDY15G901 YM1500

Save Part Not Listed?
product name

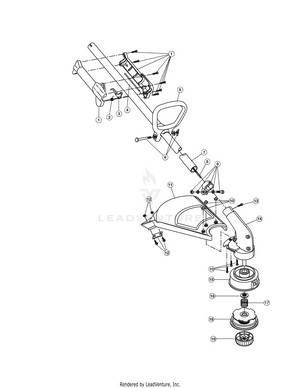

Boom and Trimmer Parts YM1500

...
...
1
THROTTLE GRIP ASSEMBLY WOOP MTD-753-04927
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable MTD-753-04901
...
5
D-HANDLE AND HARDWARE MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
BOOM ASSEMBLY:46.5":SS MTD-753-04828
...
8
Flexible Drive Shaft MTD-753-04251
...
9
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
10
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
11
ASSEMBLY, GUARD AND BLADE MTD-791-180548
...
12
Blade Assembly MTD-791-180553
...
13
Anti-Rotation Screw MTD-791-145569
...
14
ASSEMBLY, GEARBOX MTD-791-180549
...
15
Outer Spool Assembly (includes 16) MTD-791-153619
...
16
Retainer MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Head Knob Assembly MTD-791-153066B

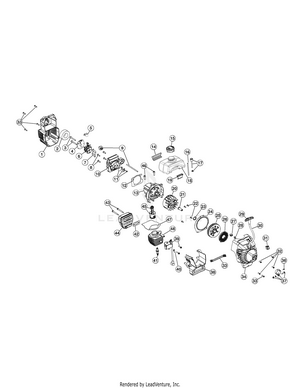

Engine Parts YM1500

...
...
1
COVER ASSEMBLY:AIRCL:MFLR MTD-753-04810
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
5
CHOKE LEVER MTD-753-04227
...
6
Carburetor Assembly (includes 7 & 17) MTD-753-04807
...
7
CARBURETOR GASKET MTD-791P610675
...
8
SCREW, 10-24X.75 T-2 MTD-791-181860
...
9
Primer and Hose Assembly MTD-791-683974B
...
10
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
Carburetor Mount Gasket MTD-753-1208
...
13
CRANKCASE SVC ASSEMBLY:45. MTD-753-04321
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
Fuel Tank Cap MTD-791-182612
...
16
Fuel Return Line MTD-791-181086
...
17
Fuel Line Assembly MTD-791-682039
...
18
FUEL TANK ASSEMBLY MTD-791-182767
...
19
PAD, FRONT MOUNTING MTD-791-145308
...
20
Flywheel Assembly MTD-753-05240
...
21
NUT, SQUARE DRIVE MTD-791-610303
...
22
Screw, 10-9 x .50 MTD-1755
...
23
Palnut MTD-753-04288
...
24
RET ASSEMBLY:SPG ASSIST MTD-753-04928
...
25
START ASSEMBLY:S/A:PUL MTD-753-04823
...
26
Recoil Spring MTD-753-04286
...
27
RET:EYELET:S/A MTD-753-04824
...
28
Rope Guide MTD-791-611061
...
29
Pull Handle MTD-631-04164B
...
30
Rope MTD-791-613103
...
31
Switch Assembly MTD-791-182673
...
32
SCREW:10-32X.5 MTD-1964
...
33
Cover Screw MTD-791-181345
...
33
WIRE:LEAD:RED/BK MTD-794-00028
...
34
STARTER HOUSING ASSEMBLY YELLOW MTD-753-05021
...
36
SCREW:8-18 MTD-753-04466
...
37
CLAMP ASSEMBLY MTD-753-05056
...
38
EXT-SHROUD W/HOLE MTD-753-04702
...
39
MODULE ASSEMBLY WITH HARDWARE MTD-753-04324
...
40
TAB, GROUND MTD-791-611063
...
41
Spark Plug MTD-791-610311B
...
42
Exhaust Gasket MTD-753-04619
...
43
Muffler Mounting Bolts MTD-710-04188A
...
44
MUFFLER ASM CAT NLAUD MTD-753-05169
...
45
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
46
Cylinder Bolt MTD-791-182723
...
47
Cylinder Gasket MTD-753-04182
...
48
Cylinder Assembly (includes 46 & 47) MTD-753-04814
...
xx
Piston Ring Set (NOT SHOWN) MTD-753-1209
...
xx
SCREEN-SPA MTD-753-04689
...
xx
SHORTBLOCK:31CC:N/C:-9 MTD-753-04826
