Yard Man YM1500 41ADY15G701 Gas String Trimmer

Model: YM1500 41ADY15G701 41ADY15G701 YM1500

Back To Assemblies

Save Part Not Listed?
product name

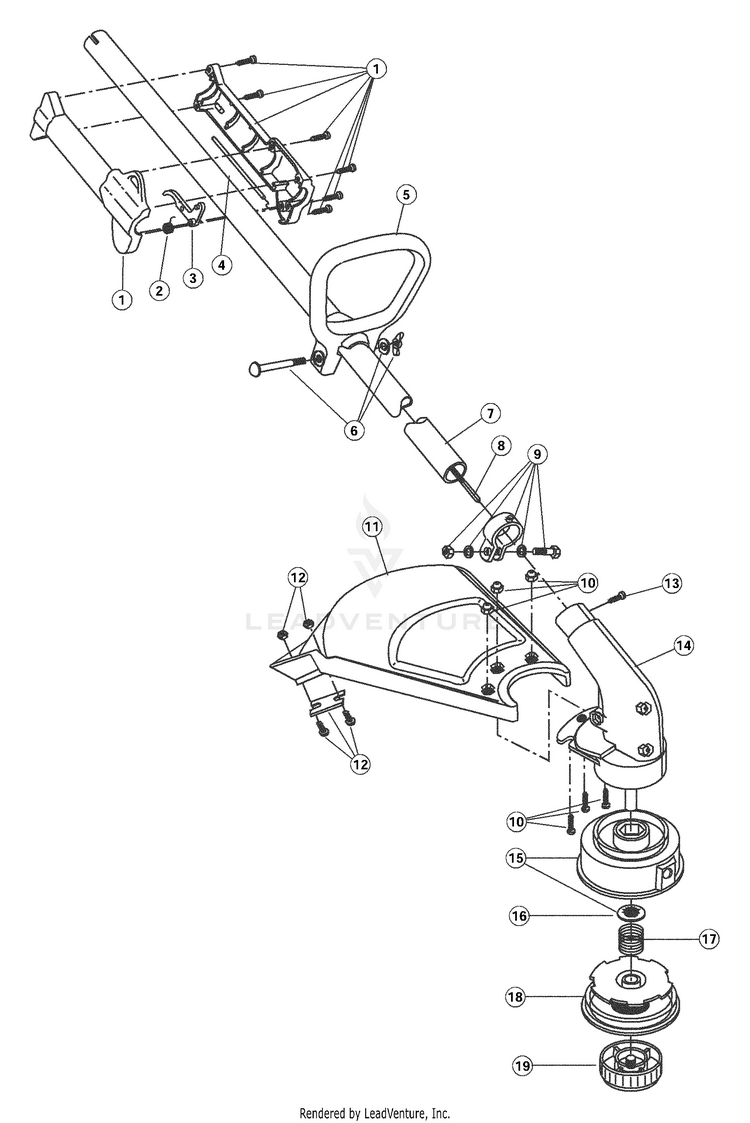

Boom And Trimmer

...
...
1
THROT GRIP ASSEMBLY:WLOOP (Includes 2 & 3) MTD-753-04294
...
2
Throttle Trigger Spring MTD-791-610314
...
3
THROTTLE TRIGGERYDMN YE MTD-753-04295
...
4
Throttle Cable Assembly MTD-791-182068
...
5
D-HANDLE AND HARDWARE (Includes 6) MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
HOUSING ASSEMBLY:DR MTD-753-04330
...
8
Flexible Drive Shaft MTD-753-04280
...
9
CLAMP ASSEMBLY-LOWER (Includes 13) MTD-791-153597
...
10
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
11
ASSEMBLY, GUARD AND BLADE (Includes 12) MTD-791-180548
...
12
Blade Assembly MTD-791-180553
...
13
Anti-Rotation Screw MTD-791-145569
...
14
ASSEMBLY, GEARBOX (Includes 15) MTD-791-180549
...
15
Outer Spool and Eyelet Assembly MTD-791-153619
...
16
Retainer MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Head Knob Assembly MTD-791-153066B
...
xx
LINE .080 Optional Accessory; Not shown MTD-791-610375
...
xx
Reel & Line Assembly Optional Accessory; Not shown MTD-791-153577B
...
xx
Shoulder Strap Assembly Optional Accessory; Not shown MTD-791-682075B
