Yard Man YM1500 41ADY15G401 Gas String Trimmer

Model: YM1500 41ADY15G401 41ADY15G401 YM1500

Back To Assemblies

Save Part Not Listed?
product name

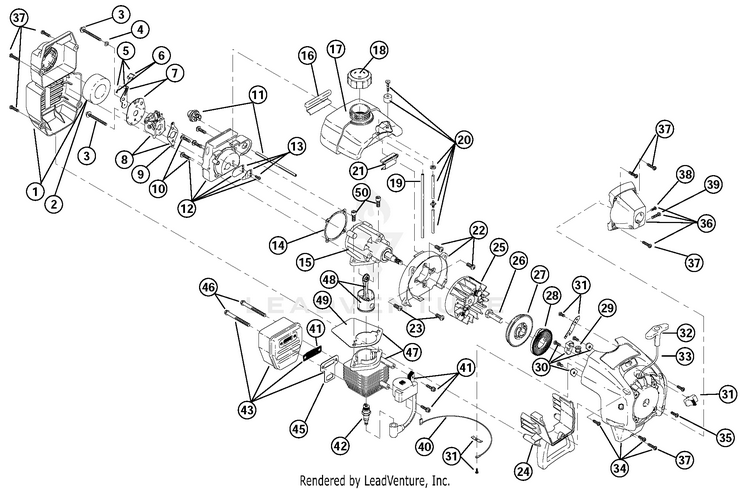

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 37) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419
...
8
Carburetor Assembly (includes 9) MTD-753-04408
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE ASSEMBLY:NON-CL: (includes 10 & 22) MTD-753-04272
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:B (includes 18-20) MTD-753-1186
...
18
Fuel Tank Cap MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
ASSEMBLY, SHROUD ASSEMB MTD-791-153520
...
23
SCREW, 1/4-20X.562 F MTD-791-181861
...
24
EXTN-SHROUD W/STAN MTD-753-04611
...
25
Flywheel Assembly MTD-753-05240
...
26
NUT, SQUARE DRIVE MTD-791-610303
...
27
START PULLEY KIT MTD-753-04232
...
28
Recoil Spring MTD-791-613102
...
29
Rope Guide MTD-791-611061
...
30
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
31
ASSEMBLY, SWITCH (BLACK (includes 40) MTD-791-182618
...
32
Pull Handle MTD-631-04164B
...
33
Rope MTD-791-613103
...
34
HOUSING ASSEMBLY:ST (includes 27-33 & 40) MTD-753-04293
...
35
SCREW:10-32X.5 MTD-1964
...
36
ASM-CLUTCH COVER NLAUD (includes 37-39) MTD-753-04889
...
37
SET, STARTER HOUSI MTD-791-181501
...
38
Anti-Rotation Screw MTD-791-182519
...
39
Clamping Screw MTD-791-181345
...
40
LEAD, WIRE IDC 500 MTD-791-180036
...
41
IGNITION MODULE ASSEMBLY MTD-753-04125
...
42
Spark Plug MTD-791-610311B
...
43
MUFFLER ASM CAT NLAUD (includes 44-46) MTD-753-05169
...
44
Cylinder Assembly (includes 51 & 52) MTD-753-04814
...
45
Muffler Gasket MTD-753-04619
...
46
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
47
Cylinder Assembly (includes 51 & 52) (includes 49) MTD-753-04814
...
48
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
49
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
50
Cylinder Bolt MTD-791-182723
...
xx
ENGINE GASKET KIT not shown MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit (Walbro) not shown MTD-791-180602
...
xx
SET, WALBRO LIMITE not shown MTD-791-181873
...
xx
Piston Ring not shown MTD-753-1209
...
xx
SHORTBLOCK:31CC:NC:KEYL (includes 10, 15, 23, 42, 46-50); not shown MTD-753-04173
...
xx
SET, STARTER HOUSI not shown MTD-791-181501
...
xx
SEAL, SEAL not shown MTD-791-610309
