Yard Man YM137 41AC137C901 Electric String Trimmer

Model: YM137 41AC137C901 41AC137C901 YM137

Save Part Not Listed?
product name

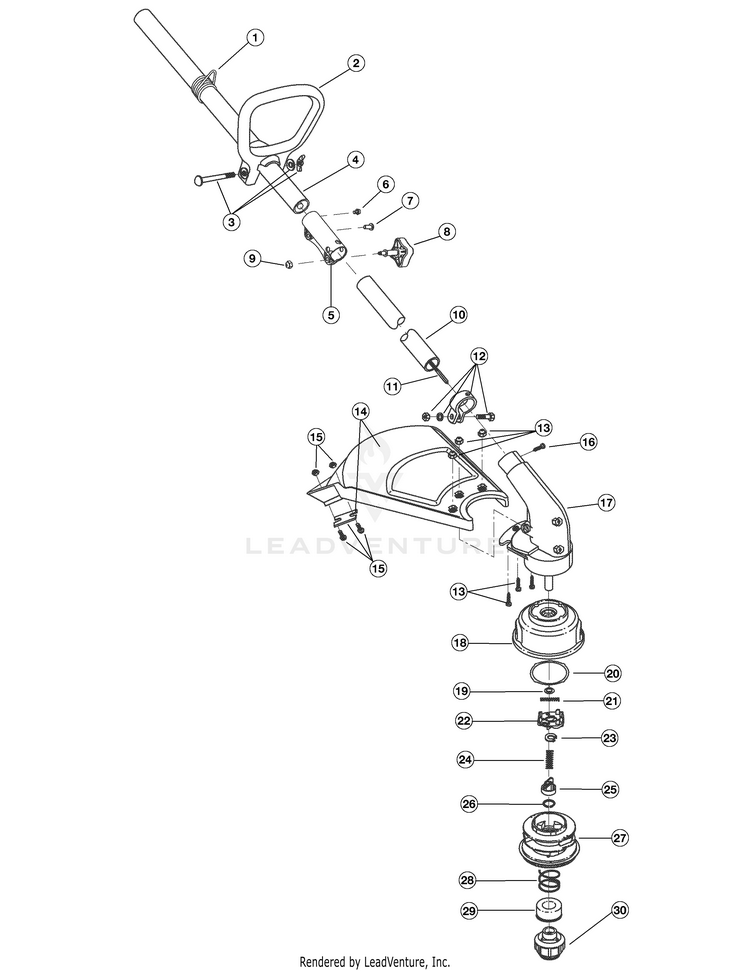

Boom & Trimmer Assembly 2006 & prior

...
...
1
SHOULDER STRAP CLAMP MTD-4301A
...
1
Shoulder Harness Clamp MTD-791-610327
...
2
D-HANDLE AND HARDWARE MTD-791-153064
...
3
D-Handle Hardware Assembly MTD-791-181587
...
4
HOUSING ASSEMBLY UPPER W/FLEXSHAFT MTD-753-04345
...
5
ASSEMBLY, CLICK LINK CL MTD-791-182928
...
6
Screw MTD-791-182057
...
7
Bolt MTD-791-181617
...
8
ADJUSTMENT KNO MTD-791-181951
...
9
NUT, ELASTIC LOCK MTD-791-181886
...
10
TRIMMER BOOM ASSEMBLY MTD-753-04089
...
11
Flexible Drive Shaft MTD-791-181166
...
12
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
13
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
14
ASSEMBLY, GUARD AND BLADE MTD-791-180548
...
15
Blade Assembly MTD-791-180553
...
16
Anti-Rotation Screw MTD-791-145569
...
17
SPEED SPOOL GEARBOX ASSEMBLY MTD-791-181566
...
18
Outer Spool Assembly (includes 19) MTD-791-181457
...
19
Retainer MTD-791-181458
...
20
Thrust Washer MTD-791-181561
...
21
SPRING, SPEED SPOOL S MTD-791-181459
...
22
Slider MTD-753-04257
...
23
E-Clip MTD-791-181532
...
24
SPRING, PLUNGER MTD-791-181531
...
25
PLUNGER, SPEED SPO MTD-791-181462
...
26
C-CLIP MTD-791-181463
...
27
Reel and Line Assembly MTD-791-181460B
...
28
Large Spring MTD-791-181465B
...
29
SEAL, SPEED SPOOL MTD-791-181467
...
30
BUMP HEAD KNOB ASSEMBLY MTD-791-181468B
...
xx
Reel and Line Assembly Not Shown - Optional Accessories MTD-791-181460B
...
xx
GEAR BOX ASSEMBLY W/SPINDLE Not Shown - Optional Accessories MTD-791-181470
...
xx
Reel and Line Assembly Not Shown - Optional Accessories MTD-791-181460B
...
xx
Shoulder Strap Assembly Not Shown - Optional Accessories MTD-791-682075B

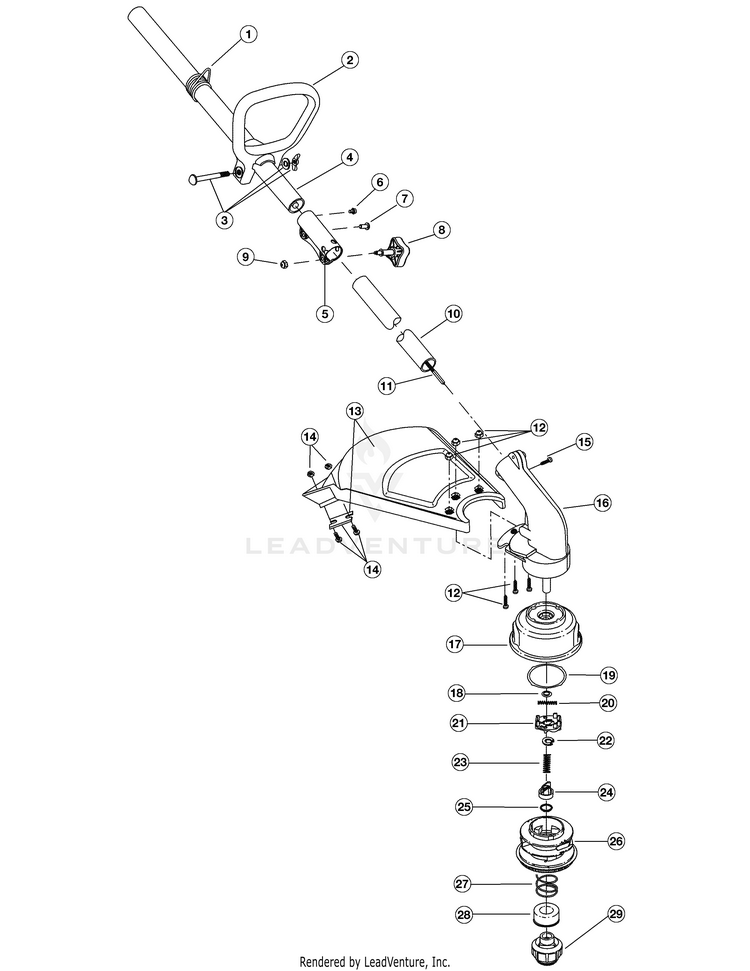

Boom & Trimmer Assembly 2007 & after

...
...
1
SHOULDER STRAP CLAMP MTD-4301A
...
1
Shoulder Harness Clamp MTD-791-610327
...
2
D-HANDLE AND HARDWARE MTD-791-153064
...
3
D-Handle Hardware Assembly MTD-791-181587
...
4
HOUSING ASSEMBLY UPPER W/FLEXSHAFT MTD-753-04345
...
5
ASSEMBLY, CLICK LINK CL MTD-791-182928
...
6
Screw MTD-791-182057
...
7
Bolt MTD-791-181617
...
8
ADJUSTMENT KNO MTD-791-181951
...
9
NUT, ELASTIC LOCK MTD-791-181886
...
10
TRIMMER BOOM ASSEMBLY MTD-753-04089
...
11
Flexible Drive Shaft MTD-753-05182
...
12
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
13
ASSEMBLY, GUARD AND BLADE MTD-791-180548
...
14
Blade Assembly MTD-791-180553
...
15
Anti-Rotation Screw MTD-791-145569
...
16
GEARBOX ASSEMBLY SPDSPL MTD-753-05188
...
17
Outer Spool Assembly (includes 18) MTD-791-181457
...
18
Retainer MTD-791-181458
...
19
Thrust Washer MTD-791-181561
...
20
SPRING, SPEED SPOOL S MTD-791-181459
...
21
Slider MTD-753-04257
...
22
E-Clip MTD-791-181532
...
23
SPRING, PLUNGER MTD-791-181531
...
24
PLUNGER, SPEED SPO MTD-791-181462
...
25
C-CLIP MTD-791-181463
...
26
Reel and Line Assembly MTD-791-181460B
...
27
Large Spring MTD-791-181465B
...
28
SEAL, SPEED SPOOL MTD-791-181467
...
29
BUMP HEAD KNOB ASSEMBLY MTD-791-181468B
...
xx
Reel and Line Assembly Optional Accessories MTD-791-181460B
...
xx
Reel and Line Assembly Optional Accessories MTD-791-181460B
...
xx
Shoulder Strap Assembly Optional Accessories MTD-791-682075B

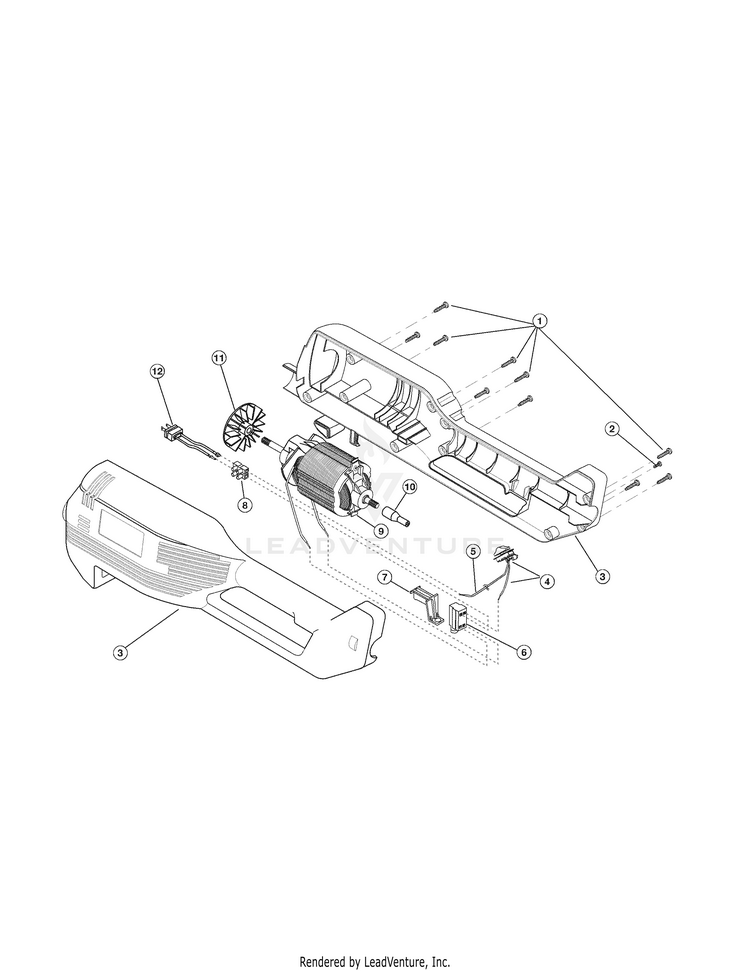

Motor and Housing Parts

...
...
1
ASSEMBLY, HOUSING SCREW MTD-791-180300
...
2
Anti-Rotation Screw MTD-791-145569
...
3
MOTOR HOUSING ASSEMBLY YEL MTD-753-04608
...
4
ASSEMBLY, 2-SPEED SWITCH MTD-791-180302
...
5
LEAD, WIRE MTD-791-180559
...
6
ASSEMBLY, SWITCH MTD-791-180150
...
7
TRIGGER, ELECTRIC MTD-791-182318
...
8
BLOCK, TERMINAL MTD-791-180305
...
9
MOTOR, 115V 2 1/2" STACK MTD-791-180154
...
10
DRIVER, ELECTRIC TRIMMER MTD-791-180152
...
11
Cooling Fan MTD-791-180155
...
12
PLUG, RECESSED MTD-791-181645
