Yard Man YM137 41AC137C701 Electric String Trimmer

Model: YM137 41AC137C701 41AC137C701 YM137

Back To Assemblies

Save Part Not Listed?
product name

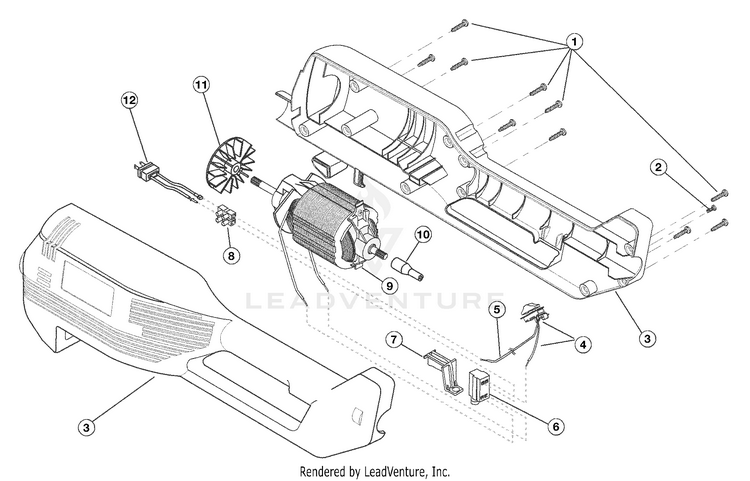

Motor And Housing Parts

...
...
1
ASSEMBLY, HOUSING SCREW MTD-791-180300
...
2
Anti-Rotation Screw MTD-791-145569
...
3
MOTOR HOUSING ASSEMBLY YEL MTD-753-04608
...
4
ASSEMBLY, 2-SPEED SWITCH MTD-791-180302
...
5
LEAD, WIRE MTD-791-180559
...
6
ASSEMBLY, SWITCH MTD-791-180150
...
7
TRIGGER, ELECTRIC MTD-791-182318
...
8
BLOCK, TERMINAL MTD-791-180305
...
9
MOTOR, 115V 2 1/2" STACK (includes 11 & 12) MTD-791-180154
...
10
DRIVER, ELECTRIC TRIMMER MTD-791-180152
...
11
Cooling Fan MTD-791-180155
...
12
PLUG, RECESSED MTD-791-181645
