Yard Man YM1000 41ADY10G401 Gas String Trimmer

Model: YM1000 41ADY10G401 41ADY10G401 YM1000

Back To Assemblies

Save Part Not Listed?
product name

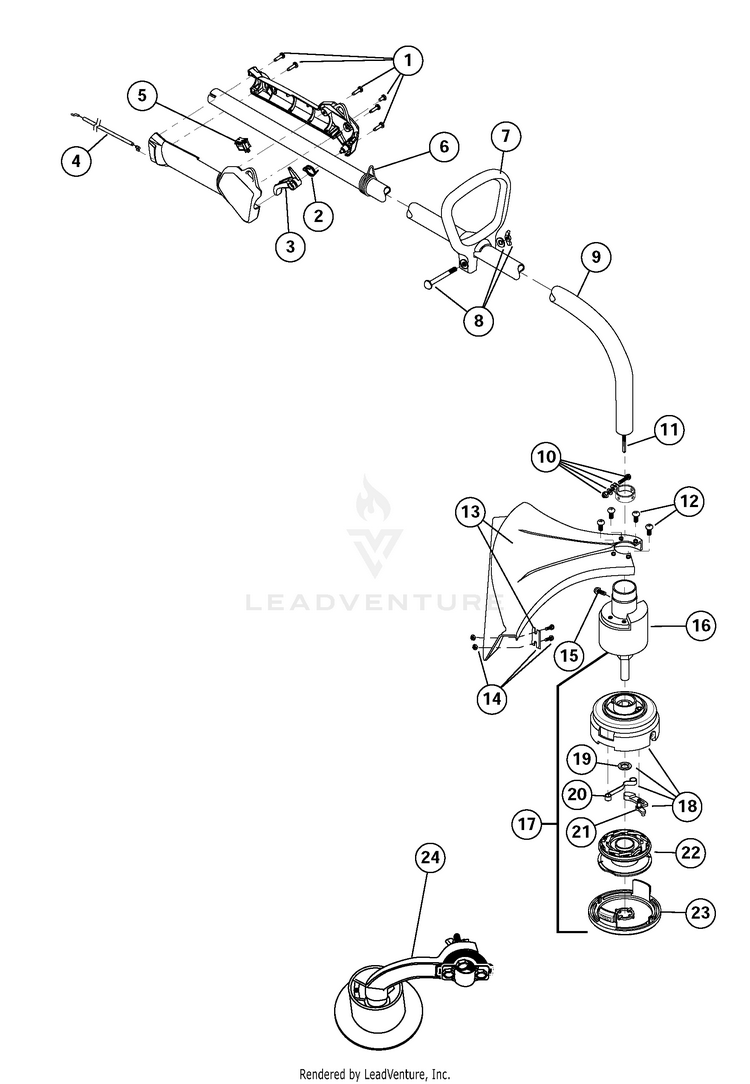

Boom And Trimmer Parts Boom D-Handle

...
...
1
THROTTLE:GRIP:TRIG:AS MTD-791-00057
...
2
Throttle Trigger Spring MTD-791-182690
...
3
THROTTLE TRIGGERBC:MTD MTD-753-06754
...
4
Throttle Cable Assembly MTD-791-182068
...
5
Switch Assembly (Momentary) MTD-791-182405
...
6
SHOULDER STRAP CLAMP MTD-4301A
...
6
Harness Clip MTD-791-610327
...
7
D-HANDLE AND HARDWARE MTD-791-153064
...
8
D-Handle Hardware MTD-791-181587
...
9
DRIVE SHAFT HOUSING ASSEMBLY MTD-753-1162
...
10
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
11
Flexible Drive Shaft MTD-753-04280
...
12
SCREW, #10-24X.50 M MTD-791-181858
...
13
GUARD ASSEMBLY W/BLADE MTD-791-180341
...
14
Blade Assembly MTD-791-180553
...
15
Screw, Anti-Rotation MTD-791-182519
...
16
SHAFT ASSEMBLY- MTD-791-182870
...
16
ASSEMBLY, BUSHING HOUSI MTD-791-153312
...
17
HEAD ASSEMBLY-TRIMMER MTD-791-182840
...
18
SPOOL ASSEMBLY-OUTER MTD-791-182841
...
19
Palnut MTD-753-04348
...
20
PAWL SPRING MTD-791-182842
...
21
PAWL-RATCH MTD-791-182843
...
22
REEL-INNER MTD-791-182844
...
23
SPOOL COVER MTD-791-182845
...
24
ASSEMBLY-EDGE GDE Optional Accessory MTD-792-10623
...
xx
LINE .080 Optional Accessory; Not Shown MTD-791-610375
...
xx
AFS REPLACEMENT ASSEMBLY Optional Accessory; Not Shown MTD-791-00052
...
xx
Shoulder Strap Assembly Optional Accessory; Not Shown Optional Accessory; Not Shown MTD-791-682075B
