Yard Man 31BH763G401 (2004) Snow Thrower

Model: 31BH763G401 (2004)

Save Part Not Listed?
product name

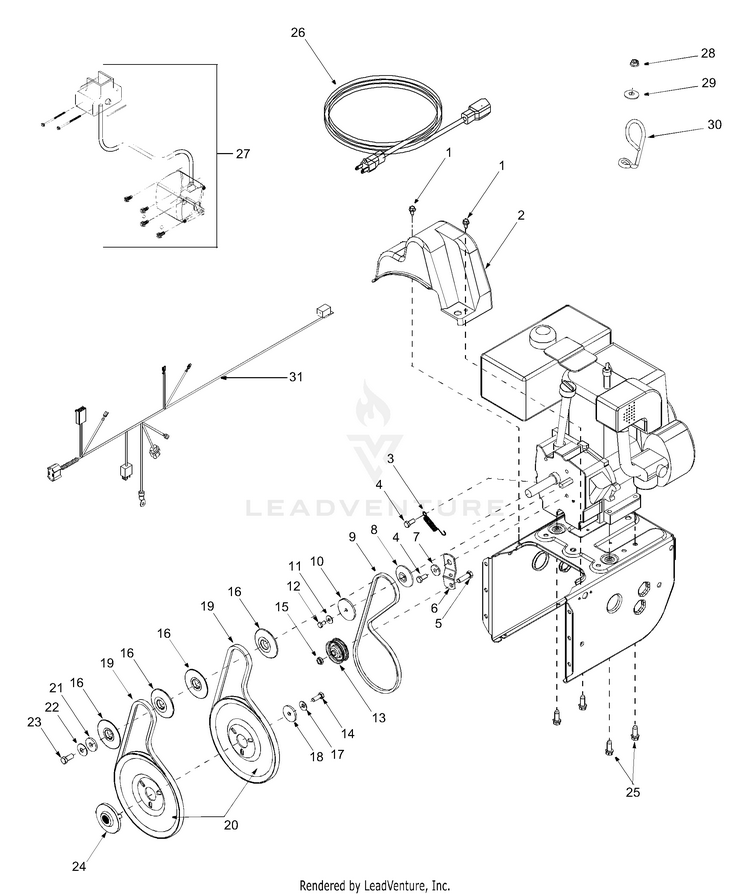

Drive & Engine Accessories

...
...
1
Hex Washer Screw 1/4-20 x .625 MTD-710-1652
...
2
Belt Cover MTD-731-1324
...
3
Extension Spring MTD-932-0710
...
4
Hex Screw 5/16-24 x .75 MTD-710-0627
...
5
Hex Cap Screw 3/8-16 x 1.25 MTD-710-3005
...
6
BRACKET-IDLR- MTD-05896A
...
7
Shoulder Spacer MTD-748-0234
...
8
HALF PULLEY MTD-956-0987
...
9
V - Belt MTD-954-0346
...
10
HALF PULLEY MTD-756-0986
...
11
SPRING WASHER BELL MTD-736-0270
...
12
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
13
Flat Idler MTD-756-0313
...
14
Lock Hex Cap Screw 5/16-24 MTD-710-1245B
...
15
Lock Jam Nut 3/8-16 MTD-712-0181
...
16
Pulley Half MTD-756-0569
...
17
Bell Washer MTD-736-0242
...
18
Flat Washer MTD-736-0505
...
19
BELT: 3V X 35.00 LG MTD-954-0430C
...
20
Auger Pulley MTD-756-0967
...
21
Flat Washer 3/8 x 1.25 OD MTD-736-0247
...
22
Bell Washer MTD-736-0331
...
23
Hex Cap Screw 3/8-24 MTD-710-0696
...
24
Adapter Pulley MTD-948-0360
...
25
Hex Screw 3/8-16 x 1.0 MTD-710-0654A
...
26
3-Prong Extension Cord MTD-929-0071B
...
27
STARTER MOTOR MTD-TC-33329H
...
28
Lock Nut, 1/4-20 MTD-712-0324
...
29
Flat Washer, .28 x .74 x .063 MTD-736-0173
...
30
Cable Guide MTD-732-0705
...
31
HEATED GRIPS HARNESS ASSEMBLY W/DIODE MTD-629-1094A

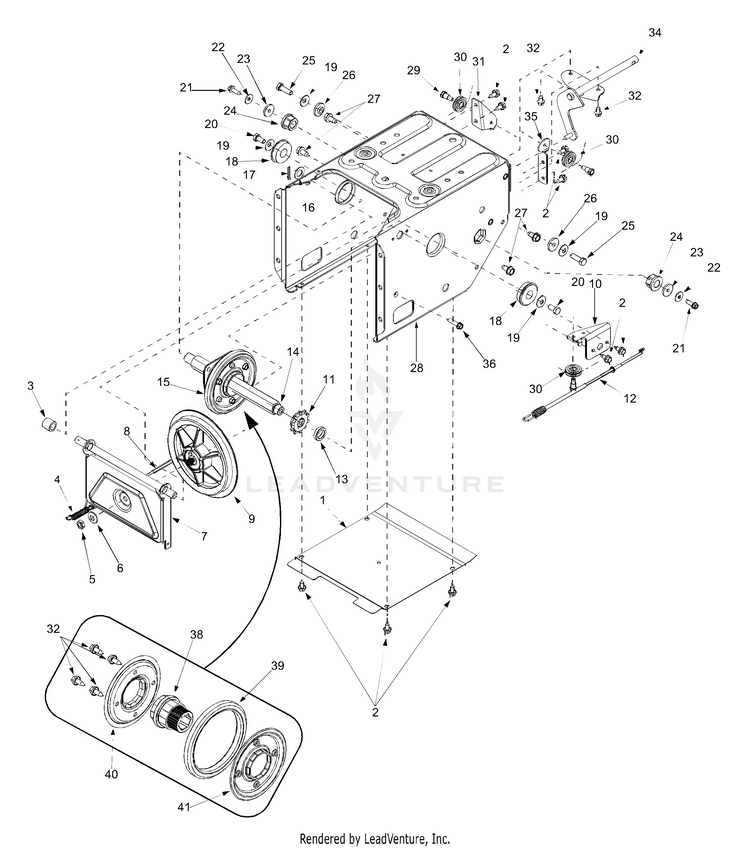

Frame

...
...
1
TRACK FRAME COVER (POWDER BLACK) MTD-784-5648A-0637
...
2
Tap Screw 1/4-20 x .625 MTD-710-1652
...
3
Spacer .508 ID x .75 OD MTD-748-0190
...
4
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
5
Jam Nut 3/8-24 MTD-712-0711
...
6
Bell Washer .401 ID x .87 OD MTD-736-0105
...
7
BRACKET ASSEMBLY MTD-984-0021-0637
...
8
Cable-Drive Clutch MTD-946-0898
...
9
Friction Wheel Disc Ass'y. MTD-956-0012A
...
10
GUIDE BRACKET MTD-784-5689A-0637
...
11
10T Sprocket MTD-713-0413
...
12
Cable-Auger Clutch MTD-946-0897
...
13
Spacer MTD-950-0997
...
14
DRIVE SHAFT MTD-711-1042
...
15
Wheel Assembly Friction MTD-984-0042C
...
16
Flat Washer .536 ID x .93 OD MTD-736-0160
...
17
Cotter Pin MTD-714-0474
...
18
BALL BEARING MTD-941-0563
...
19
Bell Washer .34 ID x .872 OD MTD-736-0242
...
20
Hex Cap Screw 5/16-18 x .625 MTD-710-0538
...
21
Tap Screw 1/4-20 x .75 MTD-710-0875
...
22
SPRING WASHER BELL MTD-736-0270
...
23
Flat Washer 1/4 ID x .93 OD MTD-736-0176
...
24
Hex Flange Bearing MTD-741-1111
...
25
Hex Cap Screw 5/16-18 x 1" MTD-710-0643
...
26
Shoulder Spacer MTD-748-0234
...
27
Tap Screw 5/16-18 x .625 MTD-710-0604A
...
28
FRAME ASSEMBLY MTD-984-0031
...
29
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
30
Cable Roller MTD-756-0625
...
31
DRIVE GUIDE BRACKET MTD-784-5688
...
32
Tap Screw 1/4-20 x .5 MTD-710-0599
...
33
Shift Frame Bracket MTD-784-5590
...
34
SHAFT ASSEMBLY (POWDER BLACK) MTD-684-0014B-0637
...
35
AUGER GUIDE BRACKET MTD-784-5687A
...
36
Tap Screw 1/4-20 x 1.250 MTD-710-0809
...
37
Friction Wheel Bearing MTD-618-0063A
...
38
Wheel Assembly Friction MTD-984-0042C
...
39
Rubber Only MTD-935-0243B
...
40
FRICTION PLATE MTD-790-00011
...
41
Friction Plate MTD-790-00010

Gear Assembly

...
...

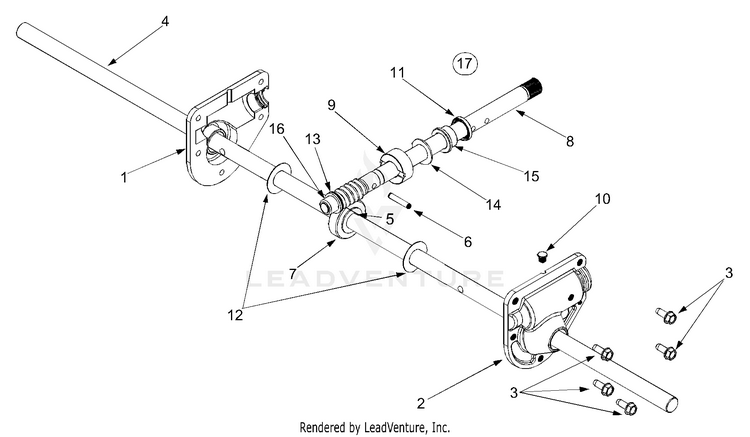

1
RH Housing MTD-918-0123A
...
2
LH Housing MTD-918-0124A
...
3
Self Tapping Screw, 1/4-20 x .75 MTD-710-0642
...
4
Spiral Axle 28" MTD-711-0910A
...
5
KEY 3/16 x 5/8 H MTD-914-0161
...
6
Spring Spiral Pin, .25 x 1.25 MTD-715-0143
...
7
WORM GEAR 20T MTD-917-04861
...
8
IMPELLER SHAFT MTD-717P0526
...
9
Thrust Collar MTD-718-0186
...
10
Grease Plug MTD-721-0325
...
11
Grease Seal MTD-721-0327
...
12
Flat Washer, .76 x 1.5 x .030 MTD-736-0351
...
13
Flat Washer, .508 x 1.0 x .020 MTD-736-0369
...
14
Flat Washer, .76 x 1.5 x .060 MTD-736-0445
...
15
Flange Bearing, .75 x 1.0 x .59 MTD-741-0662
...
16
Flange Bearing, .503 ID x .75 OD MTD-741-0663
...
17
Gear Assembly: Auger 28" MTD-918-0416B

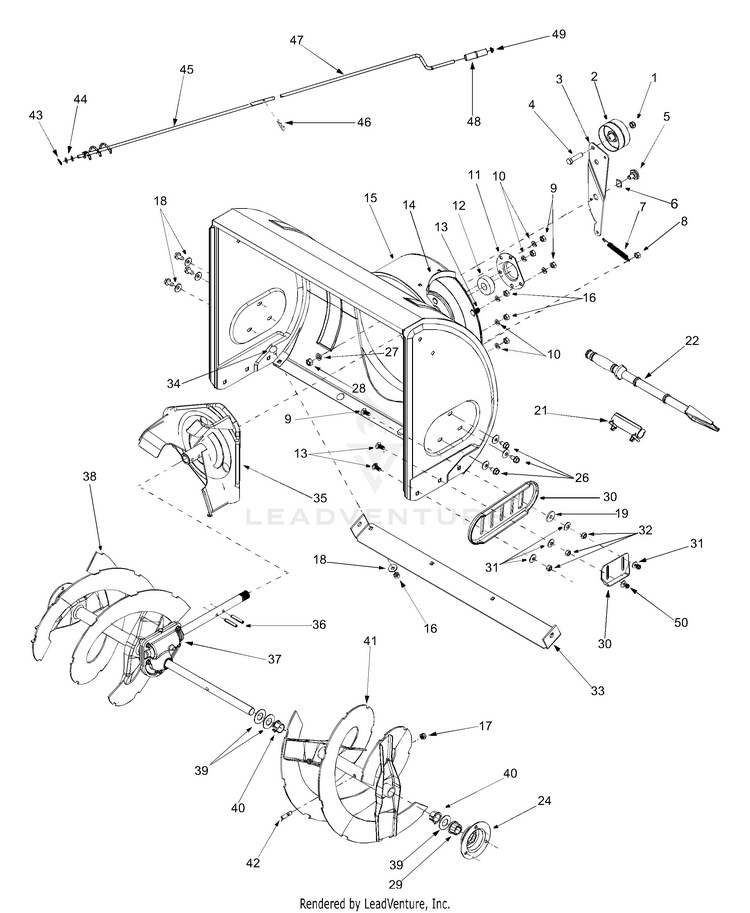

General Assembly

...
...
1
Lock Jam Nut 3/8-24 MTD-712-0116
...
2
Flat Idler MTD-756-0178
...
3
Auger Idler Brkt. MTD-984-0064-0637
...
4
Hex Cap Screw 3/8-24 x 1.50 MTD-710-0459A
...
5
Shoulder Screw MTD-738-0281
...
6
Wave Washer MTD-936-0167
...
7
Ext. Spring 3.6" Lg. MTD-932-0611
...
8
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
9
Carriage Bolt, 5/16-18 x 1.00 MTD-710-0276
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Housing MTD-05931A
...
12
Flange Ball Bearing MTD-941-0309
...
13
Carriage Bolt, 5/16-18 x .75 MTD-710-0451
...
14
Chute Reinforcement MTD-705-5226
...
15
28" HOUSING ASSEMBLY MTD-684-0041D
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Lock Nut 5/16-18 MTD-712-0429
...
18
Belleville Washer MTD-736-0242
...
19
Flat Wshr, .344ID x 1.125 OD MTD-736-0231
...
21
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
22
Snow Removal Tool MTD-931-2643
...
24
Bearing Housing MTD-784-5618A-0637
...
26
Hex Screw 5/16-12 MTD-710-0726
...
27
Lock Washer 3/8 MTD-736-0169
...
28
Hex Nut 3/8-16 MTD-712-0798
...
29
Hex Flange Bearing MTD-941-0245
...
30
Skid Shoe MTD-784-5580
...
31
Bell Washer MTD-736-0242
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Shave Plate: Auger 28" MTD-790-00118-0637
...
34
Carriage Bolt 5/16-18 x 1.00 MTD-710-0451
...
35
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
36
Pin MTD-715-0114
...
37
Gear Assembly: Auger 28" MTD-918-0416B
...
38
Spiral Assembly: RH 28" MTD-684-04184-0637
...
39
Flat Washer MTD-736-0188
...
40
FLANGE BUSHING MTD-741-0493C
...
41
28" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04185-0637
...
42
Shear Bolt 5/16-18 x 1.5 MTD-710-0890A
...
43
Hairpin Clip MTD-714-0104
...
44
Flat Washer MTD-736-0185
...
45
CHUTE CRANK ASSEMBLY(POWDER BLACK) MTD-684-0053B-0637
...
46
Hairpin Clip MTD-714-0101
...
47
Upper Chute Crank MTD-747-0737-0637
...
48
Chute Crank Knob MTD-720-0201A
...
49
Push Cap MTD-726-0100
...
50
Hex L-Nut 5/16-18 Thd. MTD-712-3009

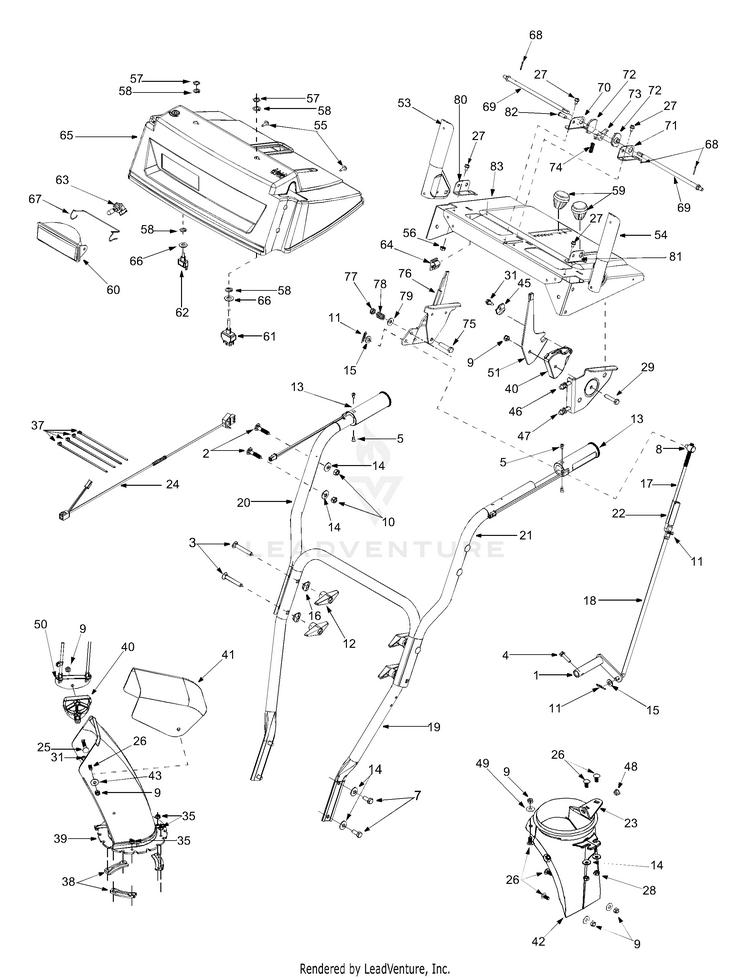

Handle & Chute

...
...
1
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
2
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
3
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
4
TT Screw 1/4-20 x 1" MTD-710-0788
...
5
C-Sunk Screw #10-16x 0.625" MTD-710-0837
...
7
Hex Screw 5/16-18 x .75" MTD-710-1880
...
8
Engagement Ferru MTD-911-0677
...
9
Hex Lock Nut 5/16-18 MTD-712-0429
...
10
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
11
Cotter Pin MTD-714-0104
...
12
Handle Knob MTD-720-0284
...
13
Heated Grip MTD-725-1757
...
14
Belleville Washer MTD-736-0242
...
15
FLAT WASHER MTD-736-0275
...
16
Saddle Washer MTD-736-0451
...
17
SHIFT ROD MTD-747-0620A
...
18
LOWER SHIFT ROD MTD-747-0621
...
19
LOWER HANDLE MTD-749-0951A
...
20
UPPER HANDLE (RH) MTD-749-0952A
...
21
UPPER HANDLE (LH) MTD-749-0953A
...
22
Rod-Clutch Lock MTD-950-0963
...
23
Chute Crank Bracket MTD-784-5647-0637
...
24
LOWER HARNESS ASSEMBLY MTD-629-0937
...
25
Carriage Bolt: 5/16-18 x 1.5" MTD-710-0262
...
26
Carriage Bolt: 5.16-18 x .750" MTD-710-0451
...
27
TT Screw: 1/4-20 x 0.5" MTD-710-0599
...
28
HEX NUT 5/16-18 MTD-712-3010
...
29
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
31
Hex Screw AB:1/4-14 x 0.625" MTD-710-0896
...
35
LOCK NUT 1/4 MTD-912-3027
...
37
Cable Tie MTD-725-0157
...
38
Chute Flange Keeper MTD-731-0851A
...
39
Lower Chute MTD-731-1300E
...
40
Cable Guide: Chute Tilt MTD-731-1313C
...
41
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
42
Adapter Chute MTD-731-1379D
...
43
5/16 Washer MTD-736-0159
...
45
SPECIAL WASHER MTD-736-0506A
...
46
Chute Deflector Control Cable MTD-946-0896
...
47
Chute Deflector Cable w/ Clip MTD-946-0901
...
48
BUSHING .380 ID MTD-941-0475
...
49
5/16 Washer MTD-736-0159
...
50
Cable Bracket MTD-784-5594
...
51
Handle, Chute Tilt MTD-784-5604A-0637
...
53
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
54
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
55
Special Screw, #10-16 x .625 MTD-710-04669
...
56
Hex Sems Nut: 1/4-20 MTD-712-0271
...
57
HEX NUT MTD-712-0693
...
58
LOCK RING MTD-716-0398
...
59
Knob MTD-920-0232
...
60
Lens/Lamp Assembly Housing MTD-925-1672
...
61
Toggle Switch: Double Throw MTD-925-1755
...
62
TOGGLE SWITCH (SINGLE) MTD-925-1756
...
63
Headlight Bulb MTD-925-1759
...
64
CLAMP-MTG MTD-726-0152
...
65
HANDLE PANEL MTD-731-2564
...
66
Flat Washer MTD-736-0226
...
67
Headlight Retainer MTD-747-1136
...
68
Cotter Pin: 3/32 x .75 MTD-714-0507
...
69
Cam Rod MTD-747-0877
...
70
Brkt., Handle Support - RH MTD-784-5680-0637
...
71
HANDLE BRACKET (LH) MTD-784-5679-0637
...
72
Cam Handle Lock MTD-748-0362
...
73
Handle Lock Pawl MTD-948-0363
...
74
Compression Spring: .36 x 1.0 MTD-732-0145
...
75
Hex Cap Screw: 3/8-24 x 1.5 MTD-710-0459A
...
76
KIT-SHIFT HANDLE:S MTD-753-05395
...
77
Jam Nut, 3/8-24 MTD-712-0116
...
78
Comp. Spring: .39 x .6 x .88 MTD-732-0193
...
79
Bell Washer MTD-736-0105
...
80
Brkt., Handle Support - RH MTD-784-5682-0637
...
81
LH Handle Support Bracket MTD-784-5681
...
82
Clevis Pin MTD-711-0653
...
83
HANDLE PANEL ASSEMBLY MTD-684-0102A
...
xx
GEARBOX ASSEMBLY 24" W FITTING MTD-918-0414B

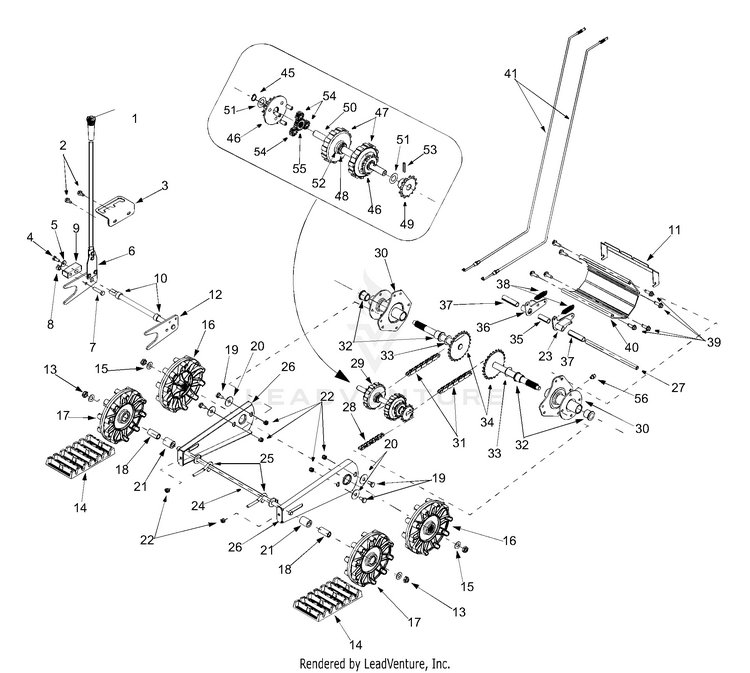

Track

...
...
1
Grip MTD-720-0223
...
2
Tap Screw, 5/16-18 x .625 MTD-710-0604A
...
3
TRACK LOCKOUT PLATE MTD-784-5642
...
4
Hex Cap Screw, 5/16-24 x .75 MTD-710-0157
...
5
Bell Washer, .34 ID x .872 OD MTD-736-0242
...
6
HANDLE ASSEMBLY MTD-684-0038
...
7
Hex Cap Screw, 3/8-24 x 1.5 MTD-710-0459A
...
8
Hex Nut, 3/8-24 MTD-712-0214
...
9
LIFT SHAFT DRIVE MTD-748-0353A
...
10
Spacer, .628 ID x .875 OD x .5 MTD-750-0547
...
11
STEERING BRACKET MTD-784-5609
...
12
PIVOT ROD ASSEMBLY MTD-684-0009A
...
13
Jam Nut, 1/2-20 MTD-712-0346
...
14
SNOW TRACK MTD-731-1292
...
15
FLAT WASHER .510 x .995 MTD-736-0272
...
16
Track Drive Wheel MTD-731-1538A
...
17
Wheel Assembly Idler MTD-631-0032A
...
18
SPACER MTD-750-0995
...
19
Screw, .435 x .178-5/16 x .56 MTD-738-0140
...
20
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
21
SPACER-.51IDX1.34LG MTD-750-0909
...
22
Hex Nut, 5/16-18 MTD-712-0429
...
23
LH Dogg Assembly MTD-618-0044
...
24
KIT-REPLACEMENT MTD-753-05977
...
25
EYEBOLT5/16-18 x 3.0 MTD-710-1231
...
26
TRACK SIDE PLATE MTD-784-5639
...
27
ACTUATOR SHAFT MTD-711-0911
...
28
Chain MTD-713-0233
...
29
Shaft Assembly MTD-918-0169B
...
30
Hub Assembly MTD-683-0024-0637
...
31
Chain MTD-713-0437
...
32
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339
...
33
Flat Washer, .793 x 1.24 x .06 MTD-736-0287
...
34
Axle Assembly MTD-611-0053
...
35
SPLIT SPACER MTD-750-0904
...
36
DOG ASSEMBLY (RH) MTD-618-0043
...
37
SPLIT SPACER MTD-750-0903B
...
38
Spring MTD-932-0209
...
39
Tap Screw, 5/16-18 x 1 MTD-710-0602
...
40
TRACK HOUSING MTD-719-0295A
...
41
Steering Cable MTD-946-0948A
...
45
Snap Ring .56" Dia. MTD-916-0114
...
46
Carrier MTD-918-0576A
...
47
RING GEAR MTD-717-1211B
...
48
SNAP RING FOR .625 DIA SHAFT MTD-916-0115
...
49
SPROCKET 13T x .5P MTD-713-0414
...
50
Track Steering Drive Shaft MTD-711-0912
...
51
Fl-Wash. .57" I.D. x 1.12" O.D. MTD-936-0502
...
52
FLAT WASHER MTD-936-0336
...
53
Spiral Pin, 3/16 x 1 MTD-715-0120
...
54
12-Tooth Gear MTD-717-1209A
...
55
18-Tooth Gear MTD-717-1210A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
