Yard Man 31AS2N1C701 (2010) Snow Thrower

Model: 31AS2N1C701 (2010)

Save Part Not Listed?
product name

.Quick Reference 2N1

...
...
xx
Spark Plug MTD-951-10292A
...
xx
Ignition Key MTD-951-10630
...
xx
3-Prong Extension Cord MTD-929-0071B
...
xx
Snow Removal Tool MTD-NA
...
xx
Drive Cable MTD-NA
...
xx
Control Cable MTD-946-04237
...
xx
Speed Cable MTD-NA
...
xx
Steering Cable MTD-NA
...
xx
Auger Assembly - LH MTD-984-04253-0637
...
xx
Auger Assembly - RH MTD-984-04253-0637
...
xx
Impeller Assembly MTD-NA
...
xx
Shave Plate MTD-731-1033
...
xx
Slide Shoe MTD-NA
...
xx
Shear Pin MTD-NA
...
xx
Bow Tie Cotter Pin MTD-NA
...
xx
Lamp MTD-NA
...
xx
Auger Drive Belt MTD-954-04204
...
xx
Wheel Drive Belt MTD-NA
...
xx
Spiral Crescent MTD-735-04032
...
xx
Rubber Paddle MTD-735-04033
...
xx
Friction Wheel Assembly MTD-NA
...
xx
Friction Wheel Rubber MTD-NA
...
xx
COMPLETE WHEEL MTD-734-04063B
...
xx
COMPLETE WHEEL MTD-734-04063B

Drive System & Auger Assembly

...
...
1
FUEL CAP MTD-751-10487C
...
2
FUEL TANK 2 QUART MTD-951-10023
...
3
FUEL TANK BRACKET MTD-790-00134-0637
...
4
GAS TANK SUPPORT WIRE MTD-747-04236
...
5
Hose Clamp, .490 MTD-726-0205
...
6
Fuel Line Hose MTD-751-10349
...
7
Flange Lock Nut, 1/4-20 MTD-712-04064
...
8
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
9
Screw, 3/8-16 x .75 MTD-710-0623
...
10
ENGINE BRACKET MTD-790-00216-0637
...
10
ENGINE BRACKET (Models with Electric Start Only) MTD-790-00334-0637
...
11
Push Nut, .25 ID x .50 OD MTD-726-0233
...
12
Cable Tie, 7.5" MTD-926-0154
...
13
Pulley Half, .625 ID x .225 OD MTD-956-0416B
...
13
Pulley Half, 4L-V x 2.30 (Models with Electric Start Only) MTD-756-04353
...
14
Bell Washer, .343 x .880 x .062 MTD-736-0371
...
14
Flat Washer, .406 x 1.25 x .157 (Models with Electric Start Only) MTD-736-0247
...
15
Hex Bolt, 5/16-24 x .750 MTD-710-0627
...
15
Hex Screw, 3/8-24 x 1.50 (Models with Electric Start Only) MTD-710-1044
...
16
Pulley, 1/2 x 6.00 MTD-756-04232
...
17
V-Belt MTD-954-0101A
...
17
V-Belt (Models with Electric Start Only) MTD-954-04204
...
18
BELT COVER MTD-684-04357
...
18
BELT COVER SINGLE STAGE (Models with Electric Start Only) MTD-790-00045C
...
19
Hex Screw, 1/4-20 x .375 MTD-710-0653
...
20
Hex Screw, 1/4-14 x .625 MTD-710-0896
...
21
Hex Screw, 1/4-14 x .500 MTD-710-0599
...
22
Bearing Cup MTD-790-00249-0637
...
23
Ball Bearing, .625 x 37 x 12 MTD-741-04188A
...
24
Flange Lock Nut, 5/16-18 MTD-712-04063
...
25
Shoulder Spacer MTD-748-0234
...
26
Idler Bracket MTD-790-00238A-0637
...
27
Idler Pulley Assembly, 1.917 MTD-684-04168
...
28
Shoulder Spacer, .280 x .785 x .538 MTD-750-04571
...
29
Hex Screw, 1/4-20 x 1.25 MTD-710-0106
...
30
Push Cap, 1/2 MTD-726-0299
...
31
Shoulder Screw, MTD-738-0924A
...
32
Cable Roller MTD-756-0625
...
33
Auger Assembly, 21" MTD-984-04253-0637
...
34
LH Spacer MTD-750-04757
...
35
RH Spacer MTD-750-04758
...
36
Hex Screw, 1/4-20 x .750 MTD-710-0642
...
37
Lock Washer, 1/4 MTD-936-0329
...
38
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
39
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
40
Hex Lock Nut, 1/4-28 MTD-712-0896
...
41
Auger Housing Assembly, 21" Red Models 31A-2M1A MTD-684-04227-0638
...
41
21" AUGER HOUSING (MASTERCRAFT GREEN) Model 31AS2N1C701 MTD-684-04315-0709
...
41
21" AUGER HOUSING (OYSTER GRAY) Model 31AS2N1C704 MTD-684-04315-0662
...
41
21" AUGER HOUSING (MTD RED) Model 31AS2N1C706 MTD-684-04315-0638
...
41
21" AUGER HOUSING Model 31AS2P5C704 Only MTD-684-04314
...
42
Hex Screw, 1/4-14 x .75 MTD-710-05058
...
43
Rubber Pad MTD-735-04033
...
44
Spiral Crescent MTD-735-04032
...
45
COMPLETE WHEEL MTD-734-04063B
...
45
Wheel, 8 x 1.7 Model 31AS2P5C704 Only MTD-734-1855
...
46
Hex Bolt, 5/16-24 x 1.75 MTD-710-0409
...
47
Lock Washer, 5/16 MTD-936-0119
...
48
SPACER MTD-750-04297B
...
49
Spacer, .875 x 1.185 (Models with Electric Start Only) MTD-750-04303
...
50
SPACER-.88 ID x 1.18 OD x .74 (Models with Electric Start Only) MTD-750-05084
...
51
Fl-Wash. .531" I.D. x .93" O.D. Model 31AS2P5C704 Only MTD-736-0160
...
52
Flat Washer .51 " I.D. x 1.0" O.D. Model 31AS2P5C704 Only MTD-736-0326
...
xx
3-Prong Extension Cord (Models with Electric Start Only, Not shown) MTD-929-0071B

Engine Assembly 265-SU

...
...
1
Bolt MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
2
Valve Cover Furnish 951-11063, Valve Cover Kit MTD-951-11054B
...
3
Breather Hose MTD-731-07059
...
4
Hose Clamp MTD-726-04101
...
5
VALVE COVER GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10722A, Cylinder Head Assy MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10661B, Gasket Kit External MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-11063, Valve Cover Kit MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-11062A, Short Block Assy MTD-751P11565B
...
6
Valve Spring Retainer Furnish 951-10722A, Cylinder Head Assy MTD-951-12000
...
7
Pivot Locking Nut MTD-751-11124
...
7
Pivot Locking Nut Furnish 951-10722A, Cylinder Head Assy MTD-751-11124
...
8
Valve Adjusting Nut MTD-751-11123
...
8
Valve Adjusting Nut Furnish 951-10722A, Cylinder Head Assy MTD-751-11123
...
9
Rocker Arm Furnish 951-10722A, Cylinder Head Assy MTD-951-11893
...
10
Pivot Bolt MTD-710-04902
...
10
Pivot Bolt Furnish 951-10722A, Cylinder Head Assy MTD-710-04902
...
11
EXHAUST VALVE ADJUSTER Furnish 951-10722A, Cylinder Head Assy MTD-751P12002A
...
12
Valve Spring Retainer (Exhaust) Furnish 951-10722A, Cylinder Head Assy MTD-951-12003
...
13
VALVE SPRING Furnish 951-10722A, Cylinder Head Assy MTD-751P12004A
...
14
Valve Seal (Intake) Furnish 951-10722A, Cylinder Head Assy MTD-951-11894
...
15
Bolt MTD-710-04933
...
16
Push Rod Guide Furnish 951-10722A, Cylinder Head Assy MTD-951-11895
...
17
Cylinder Head - Complete Furnish 951-10722A, Cylinder Head Assy MTD-NA
...
18
Spark Plug MTD-951-10292A
...
19
MUFFLER ASSEMBLY MTD-951-11282
...
20
Stud MTD-710-05001
...
20
Stud Furnish 951-10657, Muffler Stud Assy MTD-710-05001
...
21
MUFFLER GASKET MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-10722A, Cylinder Head Assy MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-10661B, Gasket Kit External MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-11062A, Short Block Assy MTD-751P11289A
...
22
Nut MTD-712-04214
...
23
Bolt MTD-710-04940
...
24
Exhaust Pipe Shield MTD-951-11111
...
25
Bolt MTD-710-04914
...
26
Bolt MTD-710-04915
...
27
MUFFLER SHROUD MTD-951-10642B
...
28
Stud, M6 x117 MTD-710-04939
...
29
Stud, M6 x 105 MTD-710-04910
...
30
CARBURETOR INSULATOR GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P11567B
...
30
CARBURETOR INSULATOR GASKET Furnish 951-10722A, Cylinder Head Assy MTD-751P11567B
...
30
CARBURETOR INSULATOR GASKET Furnish 951-10661B, Gasket Kit External MTD-751P11567B
...
30
CARBURETOR INSULATOR GASKET Furnish 951-11062A, Short Block Assy MTD-751P11567B
...
31
Carburetor Insulator Furnish 951-11061A, Gasket Kit Complete MTD-951-11896A
...
31
Carburetor Insulator Furnish 951-10722A, Cylinder Head Assy MTD-951-11896A
...
31
Carburetor Insulator Furnish 951-10661B, Gasket Kit External MTD-951-11896A
...
31
Carburetor Insulator Furnish 951-11062A, Short Block Assy MTD-951-11896A
...
32
CARBURETOR GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P12005B
...
32
CARBURETOR GASKET Furnish 951-10661B, Gasket Kit External MTD-751P12005B
...
33
Carburetor Assembly MTD-951-12705
...
33
Carburetor Assembly (Incl Ref No. 130-142,146-155) MTD-951-12705
...
34
CARBURETOR GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P11897B
...
34
CARBURETOR GASKET Furnish 951-10661B, Gasket Kit External MTD-751P11897B
...
35
Choke Control Bracket MTD-951-11112
...
36
Air Cleaner Housing MTD-951-10634A
...
37
Nut MTD-712-04213
...
38
Choke Knob MTD-951-11284
...
39
THROTTLE LEVER KNOB MTD-751P10757A
...
40
Ignition Switch MTD-951-10637
...
43
Choke Push Rod MTD-951-10640
...
44
Heater Box MTD-951-10635
...
45
Bolt MTD-710-04919
...
46
Gasket, Cylinder Head Furnish 951-11061A, Gasket Kit Complete MTD-951-11898
...
46
Gasket, Cylinder Head Furnish 951-10722A, Cylinder Head Assy MTD-951-11898
...
46
Gasket, Cylinder Head Furnish 951-11062A, Short Block Assy MTD-951-11898
...
47
Push Rod Kit (incl. intake and exhaust rod) MTD-951-10648
...
48
Tappet Furnish 951-11062A, Short Block Assy MTD-951-11899
...
49
Dowel Pin 10×16 MTD-715-04108
...
49
Dowel Pin 10×16 Furnish 951-11062A, Short Block Assy MTD-715-04108
...
52
Piston Ring Set Furnish 951-11062A, Short Block Assy MTD-951-11688
...
53
PISTON PIN SNAP RING Furnish 951-11062A, Short Block Assy MTD-951-11632
...
54
Piston Furnish 951-11062A, Short Block Assy MTD-951-11900
...
55
Piston Pin Furnish 951-11062A, Short Block Assy MTD-951-11901
...
56
Oil FIll Plug Assembly (Incl Ref No. 73,74) MTD-951-11283
...
57
Air Shield MTD-951-11113
...
58
CONNECTING ROD Furnish 951-11062A, Short Block Assy MTD-751P11573A
...
59
Governor Shaft MTD-951-14053
...
59
Governor Shaft Furnish 951-11062A, Short Block Assy MTD-951-14053
...
60
Washer MTD-736-04461
...
60
Washer Furnish 951-11061A, Gasket Kit Complete MTD-736-04461
...
60
Washer Furnish 951-11062A, Short Block Assy MTD-736-04461
...
61
OIL SEAL Furnish 951-11061A, Gasket Kit Complete MTD-951-11902A
...
61
OIL SEAL Furnish 951-11248A, Crankcase Kit MTD-951-11902A
...
61
OIL SEAL Furnish 951-11062A, Short Block Assy MTD-951-11902A
...
62
Cotter Pin MTD-714-04078
...
62
Cotter Pin Furnish 951-11061A, Gasket Kit Complete MTD-714-04078
...
62
Cotter Pin Furnish 951-11062A, Short Block Assy MTD-714-04078
...
63
CAMSHAFT ASSEMBLY Furnish 951-11062A, Short Block Assy MTD-951-11575
...
64
Radial Ball Bearing MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11248A, Crankcase Kit MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11246, Crankcase Cover Kit MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11369, Crankshaft Kit MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11062A, Short Block Assy MTD-951-11369
...
65
WOODRUFF KEY MTD-751P10307A
...
65
WOODRUFF KEY Furnish 951-11369, Crankshaft Kit MTD-751P10307A
...
65
WOODRUFF KEY Furnish 951-11062A, Short Block Assy MTD-751P10307A
...
66
Crankshaft Assembly Furnish 951-11369, Crankshaft Kit MTD-NA
...
66
Crankshaft Assembly Furnish 951-11062A, Short Block Assy MTD-NA
...
67
GOVERNOR GEAR Furnish 951-11062A, Short Block Assy MTD-751P11576A
...
68
DOWEL PIN 9 X 14 MTD-715-04096A
...
68
DOWEL PIN 9 X 14 Furnish 951-11062A, Short Block Assy MTD-715-04096A
...
69
DOWEL PIN 9 X 14 MTD-715-04096A
...
69
DOWEL PIN 9 X 14 Furnish 951-11062A, Short Block Assy MTD-715-04096A
...
70
CRANKCASE GASKET MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11248A, Crankcase Kit MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11246, Crankcase Cover Kit MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11062A, Short Block Assy MTD-751P11371B
...
71
Case Cover Furnish 951-11246, Crankcase Cover Kit MTD-NA
...
71
Cover Complete, Left Crankcase Furnish 951-11062A, Short Block Assy MTD-NA
...
72
Cover Bolt MTD-710-04932
...
72
Cover Bolt Furnish 951-11246, Crankcase Cover Kit MTD-710-04932
...
72
Cover Bolt Furnish 951-11062A, Short Block Assy MTD-710-04932
...
73
O-RING 15.8 x 2.5 Furnish 951-11283, Oil Fill Plug Assy MTD-951-11577
...
73
O-RING 15.8 x 2.5 Furnish 951-11246, Crankcase Cover Kit MTD-951-11577
...
73
O-RING 15.8 x 2.5 Furnish 951-11062A, Short Block Assy MTD-951-11577
...
74
Oil FIll Plug Furnish 951-11283, Oil Fill Plug Assy MTD-NA
...
74
Oil Fill Plug Furnish 951-11246, Crankcase Cover Kit MTD-NA
...
74
Oil Fill Plug Furnish 951-11062A, Short Block Assy MTD-NA
...
75
OIL SEAL MTD-751P11368A
...
75
OIL SEAL Furnish 951-11061A, Gasket Kit Complete MTD-751P11368A
...
75
OIL SEAL Furnish 951-11246, Crankcase Cover Kit MTD-751P11368A
...
75
OIL SEAL Furnish 951-11369, Crankshaft Kit MTD-751P11368A
...
75
OIL SEAL Furnish 951-11062A, Short Block Assy MTD-751P11368A
...
76
Crankcase Furnish 951-11248A, Crankcase Kit MTD-NA
...
76
Crankcase Furnish 951-11062A, Short Block Assy MTD-NA
...
77
OIL DRAIN PIPE Furnish 951-11062A, Short Block Assy MTD-951-11350A
...
78
FLAT WASHER MTD-736-04440A
...
78
FLAT WASHER Furnish 951-11061A, Gasket Kit Complete MTD-736-04440A
...
78
FLAT WASHER Furnish 951-10661B, Gasket Kit External MTD-736-04440A
...
78
FLAT WASHER Furnish 951-11062A, Short Block Assy MTD-736-04440A
...
79
Oil Drain Plug Washer Furnish 951-11062A, Short Block Assy MTD-710-04906
...
80
OIL SEAL MTD-751P11370A
...
80
OIL SEAL Furnish 951-11061A, Gasket Kit Complete MTD-751P11370A
...
80
OIL SEAL Furnish 951-11248A, Crankcase Kit MTD-751P11370A
...
80
OIL SEAL Furnish 951-11369, Crankshaft Kit MTD-751P11370A
...
80
OIL SEAL Furnish 951-11062A, Short Block Assy MTD-751P11370A
...
81
Ignition Module MTD-951-10646A
...
82
Air Flow Shield MTD-951-11110
...
83
Fuel Line Kit (incl. clamps and fuel line) MTD-951-10650
...
84
CARBURETOR HOSE CLAMP MTD-951-11700A
...
85
Oil Drain Assembly, includes 77, 78, 79 MTD-951-10641
...
86
Flywheel MTD-951-10805
...
87
COOLING FAN MTD-951-10909B
...
88
Starter Cup MTD-951-10911
...
89
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
90
Valve Kit MTD-951-10647A
...
90
Valve Kit Furnish 951-10722A, Cylinder Head Assy MTD-951-10647A
...
92
FAN COVER ASSEMBLY MTD-951-12644
...
93
FLAT WASHER MTD-736-04455B
...
94
Bolt MTD-710-04974
...
95
Recoil Starter MTD-951-14151
...
96
Ignition Key MTD-951-10630
...
97
Throttle Control Assembly MTD-951-10758
...
98
Bolt MTD-710-05103
...
99
Governor Shield MTD-951-11108
...
100
Governor Spring MTD-951-11935
...
101
THROTTLE SPRING MTD-751P10664A
...
102
THROTTLE LINKAGE MTD-751P10665A
...
104
Nut M6 MTD-712-05015
...
105
Bolt MTD-710-04908
...
109
ENGINE/DIPSTICK COVER MTD-951-10662
...
110
Bolt MTD-710-04905
...
113
Dipstick Tube MTD-NA
...
113
Dipstick Tube Furnish 951-11913, Oil Fill Tube Assy MTD-NA
...
115
Dipstick MTD-NA
...
115
Dipstick Furnish 751-11912, Dipstick Assy MTD-NA
...
117
Fuel Cap Assembly MTD-951-12533
...
118
Fuel Filter MTD-951-11933
...
119
Fuel Tank MTD-951-10653B
...
121
Switch Housing MTG Bracket MTD-951-11114
...
122
Dipstick O-Ring MTD-951-11904
...
122
Dipstick O-Ring Furnish 751-11912, Dipstick Assy MTD-951-11904
...
123
Bolt, M4 x 55 MTD-710-04965
...
124
Bolt, M4 x 60 MTD-710-04935
...
125
Bolt MTD-710-05182
...
126
DOWEL PIN MTD-715-04088A
...
127
Electric Starter MTD-951-10645A
...
128
Bolt MTD-710-04979
...
129
Blower Housing Shield MTD-951-11109
...
130
PRIMER MTD-951-10639B
...
130
PRIMER Furnish 951-10974A, Carburetor Assembly MTD-951-10639B
...
131
Bolt MTD-710-04945
...
131
Bolt Furnish 951-10974A, Carburetor Assembly MTD-710-04945
...
132
FUEL DRAIN PLUG MTD-710-04938
...
132
FUEL DRAIN PLUG Furnish 951-10974A, Carburetor Assembly MTD-710-04938
...
133
Gasket, Throttle Plate Furnish 951-10974A, Carburetor Assembly MTD-NA
...
133
Gasket, Throttle Plate Choose a Carburetor Kit Below MTD-NA
...
134
Float Pin Furnish 951-10974A, Carburetor Assembly MTD-NA
...
134
Float Pin Choose a Carburetor Kit Below MTD-NA
...
135
Emulsion Tube Furnish 951-10974A, Carburetor Assembly MTD-NA
...
135
Emulsion Tube Choose a Carburetor Kit Below MTD-NA
...
136
Needle Valve Furnish 951-10974A, Carburetor Assembly MTD-NA
...
136
Needle Valve Choose a Carburetor Kit Below MTD-NA
...
137
Main Jet Furnish 951-10974A, Carburetor Assembly MTD-NA
...
137
Main Jet Choose a Carburetor Kit Below MTD-NA
...
138
Needle Valve Spring Furnish 951-10974A, Carburetor Assembly MTD-NA
...
138
Needle Valve Spring Choose a Carburetor Kit Below MTD-NA
...
139
FLOAT Furnish 951-10974A, Carburetor Assembly MTD-731P09132A
...
139
FLOAT Choose a Carburetor Kit Below MTD-731P09132A
...
140
Fuel Bowl Gasket Furnish 951-10974A, Carburetor Assembly MTD-951-11589
...
140
Fuel Bowl Gasket Choose a Carburetor Kit Below MTD-951-11589
...
141
FUEL DRAIN PLUG GASKET Furnish 951-10974A, Carburetor Assembly MTD-951-11349A
...
141
FUEL DRAIN PLUG GASKET Choose a Carburetor Kit Below MTD-951-11349A
...
142
FUEL BOWL GASKET Furnish 951-10974A, Carburetor Assembly MTD-951-11348A
...
142
FUEL BOWL GASKET Choose a Carburetor Kit Below MTD-951-11348A
...
143
Wire Clip MTD-951-11680
...
145
Muffler Stud Assembly (Incl Ref No. 20) MTD-951-10657
...
146
Choke Shaft Furnish 951-10974A, Carburetor Assembly MTD-NA
...
147
Choke Plate Furnish 951-10974A, Carburetor Assembly MTD-NA
...
148
Throttle Shaft Furnish 951-10974A, Carburetor Assembly MTD-NA
...
149
Throttle Plate Furnish 951-10974A, Carburetor Assembly MTD-NA
...
150
Screw, M3×5 Furnish 951-10974A, Carburetor Assembly MTD-NA
...
151
Lock Washer Furnish 951-10974A, Carburetor Assembly MTD-NA
...
152
Idle Jet Assembly Furnish 951-10974A, Carburetor Assembly MTD-NA
...
153
Idle Speed Adjusting Screw Furnish 951-10974A, Carburetor Assembly MTD-NA
...
154
Fuel Bowl Furnish 951-10974A, Carburetor Assembly MTD-NA
...
155
Governor Arm Bracket MTD-951-11106
...
155
Hose Clamp Furnish 951-10974A, Carburetor Assembly MTD-951-11906
...
156
Oil Fill Tube O-Ring MTD-951-11381
...
156
Oil Fill Tube O-Ring Furnish 951-11913, Oil Fill Tube Assy MTD-951-11381
...
xx
Dipstick Assembly (Incl. 102) (Incl Ref No. 115,122) (Not Shown) MTD-951-11912
...
xx
Oil Fill Tube Assembly (Incl. 100) (Incl Ref No. 113,156) (Not Shown) MTD-951-11913
...
xx
Fuel Tank Nipple (Not Shown) MTD-951-10651
...
xx
Gasket Kit, External (Incl Ref No. 5,21,30-32,34,78) (Not Shown) MTD-951-10661B
...
xx
Cylinder Head Assembly (Incl Ref No. 5-14,16,17,21,30,31,46,90) (Not Shown) MTD-951-10722B
...
xx
Carburetor Repair Kit - HAUYI (Incl Ref No. 133-142) (Not Shown) MTD-951-14050
...
xx
Carburetor Repair Kit - DENI (Incl Ref No. 133-142) (Not Shown) MTD-951-12712
...
xx
Gasket Kit, Complete (Incl Ref No. 5,21,30-32,34,46,60-62,70,75,78,80) (Not Shown) MTD-951-11061A
...
xx
Short Block (Incl Ref No. 5,21,30,31,46,48,49,52-55,58-80) (Not Shown) MTD-951-11062B
...
xx
Valve Cover Kit (Incl Ref No. 2,5) (Not Shown) MTD-951-12626
...
xx
Crankcase Cover Kit (Incl Ref No. 64,70-75) (Not Shown) MTD-951-11246
...
xx
Crankshaft Kit (Incl Ref No. 64-66,75,80) (Not Shown) MTD-951-11247A
...
xx
CRANKCASE KIT (Incl Ref No. 61,64,70,76,80) (Not Shown) MTD-951-11248A
...
xx
COMPLETE ENGINE 179cc (Not Shown) MTD-952Z265-SUA

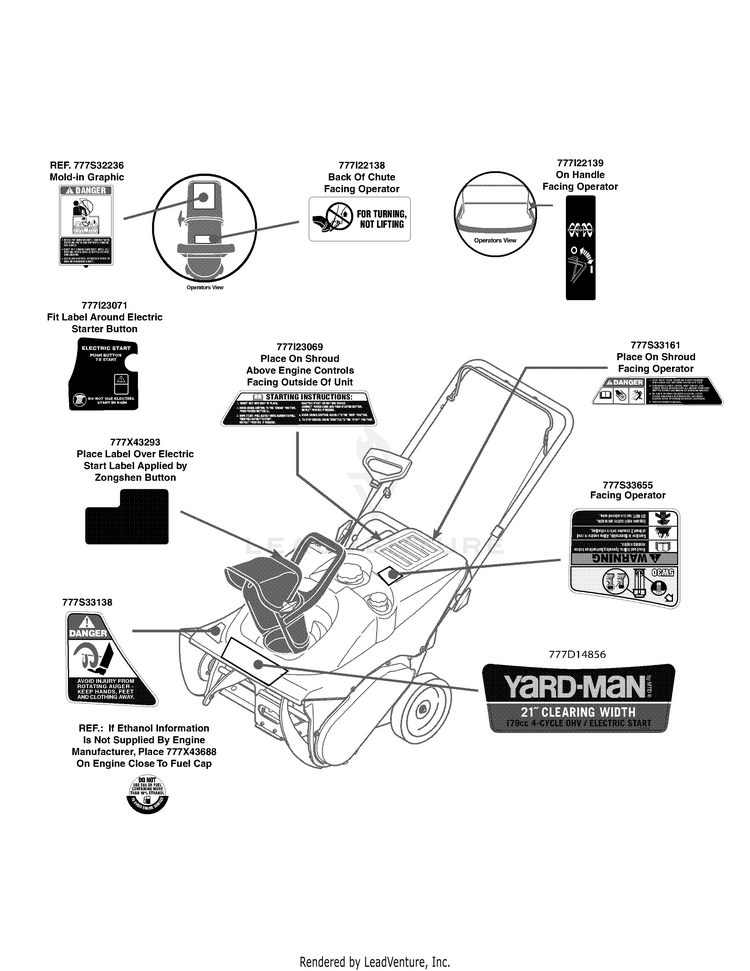

Label Map 31AS2N1C701

...
...
777S32236
LABEL:SNOW CHUTE MTD-777S32236
...
777I22138
LABEL-CHUTE MTD-777I22138
...
777I23069
LABEL-SNOW SHROUD START INSTRUCT MTD-777I23069
...
777I23071
LABEL-SNOW ELECTRIC START MTD-777I23071
...
777X43293
LABEL-SNOW ELECTRIC START MTD-777X43293
...
777S33138
LABEL-SNOW COVER DANGER MTD-777S33138
...
777D14856
LABEL-SNOW YARDMAN 21" ELEC START MTD-777D14856
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777S33655
LABEL-SNOW SHROUD MTD-777S33655
...
777S33161
LABEL-SNOW SHROUD DANGER MTD-777S33161
...
777I22139
LABEL-SNOW:HANDLE MTD-777I22139

Shroud, Chute & Handle

...
...
1
KIT-SERVICE SNOW S (Shown in Image) includes 728-04006 electric start grommet MTD-753-06906
...
1
Grommet Not shown MTD-728-04006
...
1
SHROUD Not Shown MTD-731-06551
...
1
Ignition Switch Not Shown, with key MTD-951-10637
...
1
Ignition Key Not shown MTD-951-10630
...
2
Hex Screw, 10-16 x .625 MTD-710-04669
...
3
Hex Flange Screw, 5/16-18 x 1.25 MTD-710-1090
...
4
Flange Lock Nut, 5/16-18 MTD-712-04063
...
5
Hex Flange Screw, 5/16-18 x 1.50 MTD-710-1882
...
6
Hex Screw, 1/4-15 x .750 MTD-710-0895
...
7
Wing Nut, 5/16-18 MTD-720-04072A
...
8
Carriage Bolt, 5/16-18 x 1.00 MTD-710-04071
...
9
Flange Lock Nut, 5/16-18 MTD-712-04063
...
10
Carriage Bolt, 5/16-18 x .750 MTD-710-0451
...
11
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
12
Chute Handle MTD-731-04388A
...
13
Lower Chute MTD-931-04127
...
14
Upper Handle MTD-749-04459-0637
...
14
Gullwing Handle Model 31AS2P5C704 MTD-749-04106A-0637
...
15
Bail Control MTD-747-04165-0637
...
15
Gullwing Control Bail Model 31AS2P5C704 MTD-747-04159A-0637
...
16
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
17
Control Cable MTD-946-04237
...
18
Carriage Bolt, 5/16-18 x 2.00 MTD-710-04532
...
19
Shave Plate, 21" MTD-731-1033
...
20
Carriage Screw, 1/4-20 x .62 MTD-710-0134
...
21
Flange Lock Nut, 1/4-20 MTD-712-04064
...
22
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
23
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
24
LOWER HANDLE (POWDER BLACK) MTD-749-04114B-0637
...
25
Lower Chute Ring MTD-931-04353
...
26
Chute Adapter MTD-931-04886
...
27
Chute Adjustment Spring MTD-932-04111
...
28
Eye Bolt, 1/4-20 MTD-710-1205
...
29
Knob Handle MTD-720-0279
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
