Yard Man 31AH763G401 (2000) Snow Thrower

Model: 31AH763G401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

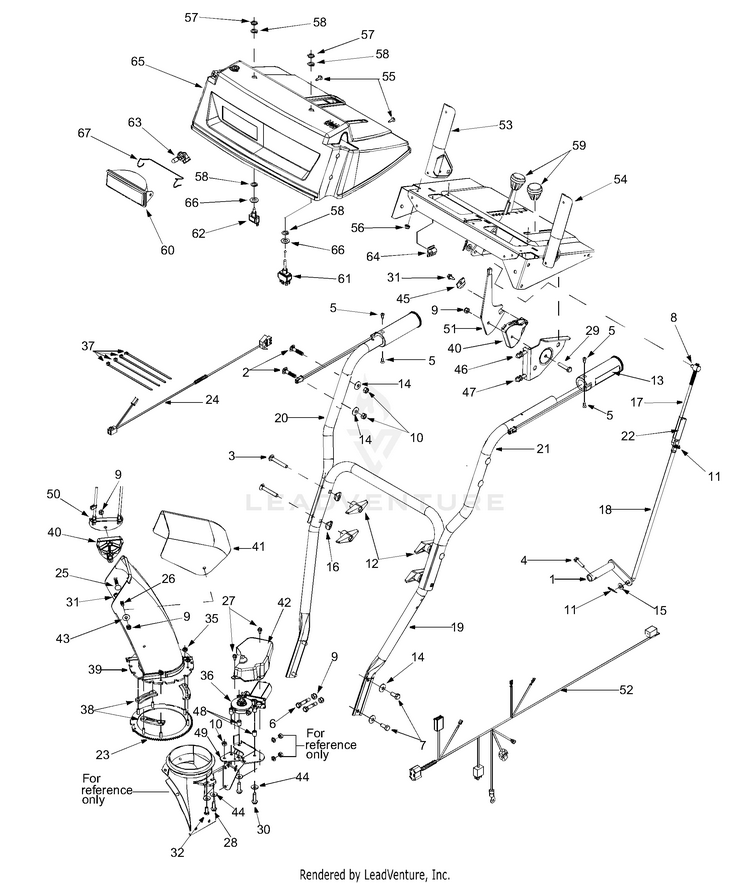

Handle Assembly

...
...
1
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
2
Carriage Bolt 5/16-18 x 1.5" MTD-710-0262
...
3
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
4
TT Screw 1/4-20 x 1" MTD-710-0788
...
5
Oval C-Sk. Screw AB #10-16 x 0.625" MTD-710-0837
...
6
Shear Bolt 5/16-18 x 1.5" MTD-710-0890A
...
7
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
8
Engagement Ferru MTD-911-0677
...
9
Hex Lock Nut 5/16-18 MTD-712-0429
...
10
HEX NUT 5/16-18 MTD-712-3010
...
11
Cotter Pin MTD-714-0104
...
12
Handle Knob MTD-720-0284
...
13
Heated Grip MTD-725-1757
...
14
Bell Washer MTD-736-0242
...
15
FLAT WASHER MTD-736-0275
...
16
Saddle Washer MTD-736-0451
...
17
SHIFT ROD MTD-747-0620A
...
18
LOWER SHIFT ROD MTD-747-0621
...
19
LOWER HANDLE MTD-749-0951A
...
20
UPPER HANDLE (RH) MTD-749-0952A
...
21
UPPER HANDLE (LH) MTD-749-0953A
...
22
Rod-Clutch Lock MTD-950-0963
...
23
GEAR ASSEMBLY-RING MTD-618-0419
...
24
LOWER HARNESS ASSEMBLY MTD-629-0937
...
25
Carriage Bolt: 5/16-18 x 1.5" MTD-710-0262
...
26
Carriage Bolt: 5.16-18 x .750" MTD-710-0451
...
27
TT Screw: 1/4-20 x 0.5" MTD-710-0599
...
28
TT Screw: 5/16-18 x 1" MTD-710-0602
...
29
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
30
TT Screw: 5/16-18 x 1.25" MTD-710-0817
...
31
Hex Screw AB: 1/4-14 x 0.625" MTD-710-0896
...
32
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
35
LOCK NUT 1/4 MTD-912-3027
...
36
CHUTE CRNK KIT MTD-724-0249
...
37
Cable Tie MTD-725-0157
...
38
Chute Flange Keeper MTD-731-0851A
...
39
Lower Chute MTD-731-1300E
...
40
Cable Guide: Chute Tilt MTD-731-1313C
...
41
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
42
COVER-MOTOR MTD-731-2279
...
43
5/16 Washer MTD-736-0159
...
44
Bell Washer MTD-736-0242
...
45
SPECIAL WASHER MTD-736-0506A
...
46
Chute Deflector Control Cable MTD-946-0896
...
47
Chute Deflector Cable w/ Clip MTD-946-0901
...
48
SPACER .330ID x .630OD x .55 MTD-750-1232
...
49
MOTOR BRACKET MTD-782-0599
...
50
Cable Bracket MTD-784-5594
...
51
Handle, Chute Tilt MTD-784-5604A-0637
...
52
UPPER HARNESS ASSEMBLY MTD-629-0936A
...
53
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
54
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
55
Special Screw, #10-16 x .625 MTD-710-04669
...
56
Hex Sems Nut: 1/4-20 MTD-712-0271
...
57
HEX NUT MTD-712-0693
...
58
LOCK RING MTD-716-0398
...
59
Knob MTD-920-0232
...
60
Lens/Lamp Assembly Housing MTD-925-1672
...
61
Toggle Switch: Double Throw MTD-925-1755
...
62
TOGGLE SWITCH (SINGLE) MTD-925-1756
...
63
Headlight Bulb MTD-925-1759
...
64
CLAMP-MTG MTD-726-0152
...
65
HANDLE PANEL MTD-731-2274
...
66
Flat Washer MTD-736-0226
...
67
Headlight Retainer MTD-747-1136
