Yard Man 31AH763G401 (2000) Snow Thrower

Model: 31AH763G401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

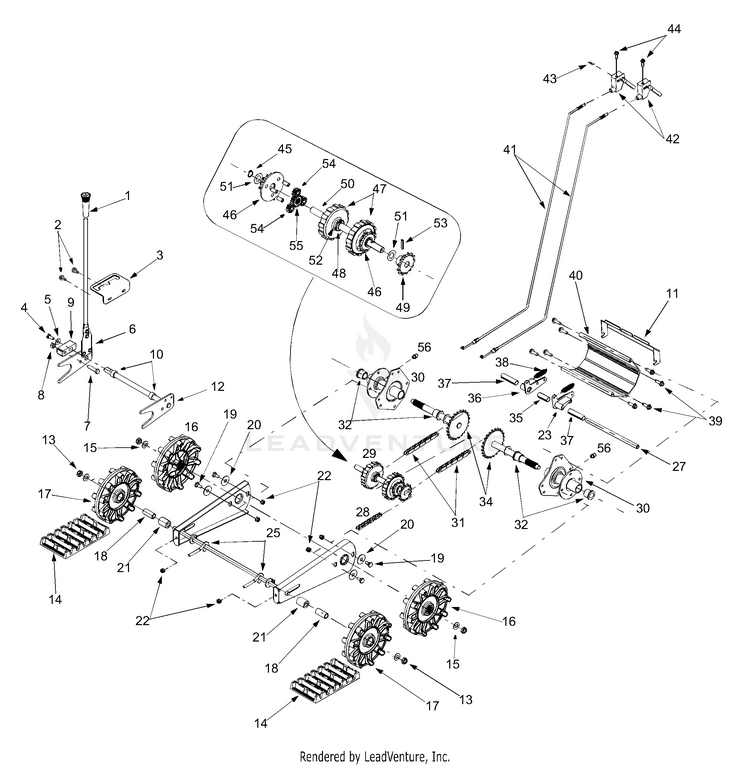

Track Assembly

...
...
1
Grip MTD-720-0223
...
2
Screw, 5/16-18 x .625 MTD-710-0604A
...
3
TRACK LOCKOUT PLATE MTD-784-5642
...
4
Hex Cap Screw, 5/16-24 x .75 MTD-710-0157
...
5
Bell Washer, .34 ID x .872 OD MTD-736-0242
...
6
HANDLE ASSEMBLY MTD-684-0038
...
7
Hex Cap Screw, 3/8-24 x 1.5 MTD-710-0459A
...
8
Hex Nut, 3/8-24 MTD-712-0214
...
9
LIFT SHAFT DRIVE MTD-748-0353A
...
10
Spacer, .628 ID x .875 OD x .5 MTD-750-0547
...
11
STEERING BRACKET MTD-784-5609
...
12
PIVOT ROD ASSEMBLY MTD-684-0009A
...
13
Jam Nut, 1/2-20 MTD-712-0346
...
14
SNOW TRACK MTD-731-1292
...
15
FLAT WASHER .510 x .995 MTD-736-0272
...
16
Track Drive Wheel MTD-731-1538A
...
17
Wheel Assembly Idler MTD-631-0032A
...
18
SPACER MTD-750-0995
...
19
Screw, .435 x .178-5/16 x .56 MTD-738-0140
...
20
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
21
SPACER-.51IDX1.34LG MTD-750-0909
...
22
Hex Nut, 5/16-18 MTD-712-0429
...
23
LH Dogg Assembly MTD-618-0044
...
?24
KIT-REPLACEMENT MTD-753-05977
...
25
EYEBOLT5/16-18 x 3.0 MTD-710-1231
...
?26
TRACK SIDE PLATE MTD-784-5639
...
27
ACTUATOR SHAFT MTD-711-0911
...
28
Chain MTD-713-0233
...
29
Shaft Assembly MTD-918-0169B
...
30
Hub Assembly MTD-683-0024-0637
...
31
Chain MTD-713-0437
...
32
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339
...
?33
Flat Washer, .793 x 1.24 x .06 MTD-736-0287
...
34
Axle Assembly MTD-611-0053
...
35
SPLIT SPACER MTD-750-0904
...
36
DOG ASSEMBLY (RH) MTD-618-0043
...
37
SPLIT SPACER MTD-750-0903B
...
38
Spring MTD-932-0209
...
39
Tap Screw, 5/16-18 x 1 MTD-710-0602
...
40
TRACK HOUSING MTD-719-0295A
...
41
Steering Cable MTD-946-0948A
...
42
Cable Assembly, Trigger MTD-746-0950A
...
43
FLAT WELD NUT MTD-712-0127
...
44
Screw, #10-24 x 1.375 MTD-710-1233
...
45
Snap Ring .56" Dia. MTD-916-0114
...
46
Carrier MTD-918-0576A
...
47
RING GEAR MTD-717-1211B
...
48
SNAP RING FOR .625 DIA SHAFT MTD-916-0115
...
49
SPROCKET 13T x .5P MTD-713-0414
...
50
Track Steering Drive Shaft MTD-711-0912
...
51
Fl-Wash. .57" I.D. x 1.12" O.D. MTD-936-0502
...
52
FLAT WASHER MTD-936-0336
...
53
Spiral Pin, 3/16 x 1 MTD-715-0120
...
54
GEAR-12T MTD-717-1209A
...
55
Gear 18-Tooth MTD-717-1210A
...
56
GREASE FITTING (If Equipped) MTD-937-3000
