Yard Man 31AH65LG701 (2011) Snow Thrower

Model: 31AH65LG701 (2011)

Back To Assemblies

Save Part Not Listed?
product name

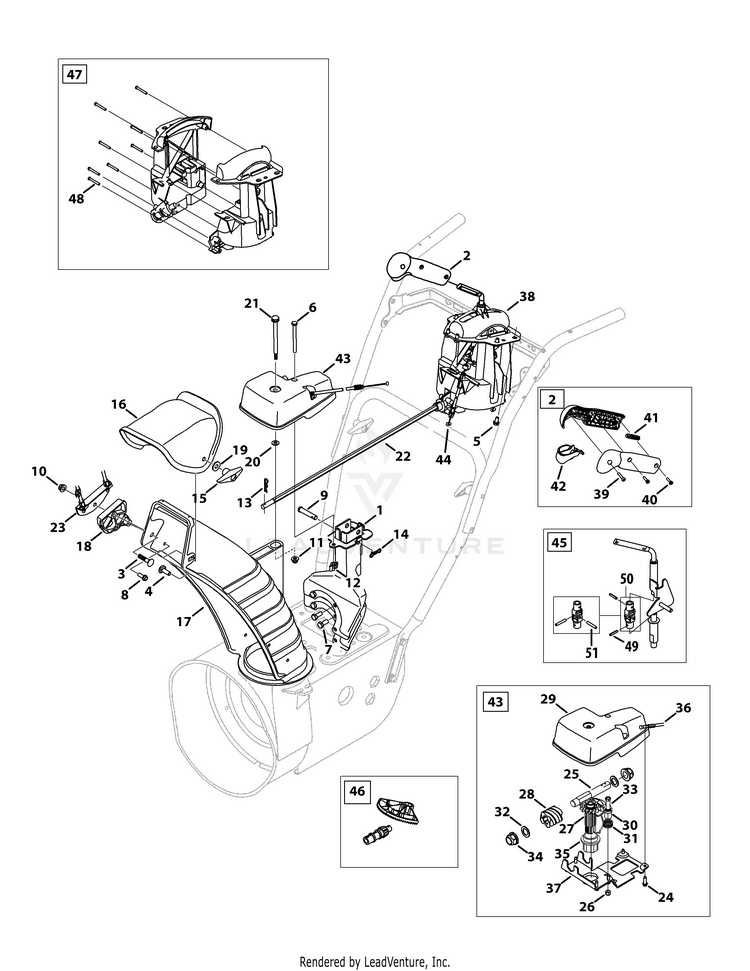

Chute 2-Way & 4-Way Extended

...
...
1
CHUTE SUPPORT BRACKET (POWDER BLACK) 483-SUA, 478-SUA, 370-SUB - engines Large block MTD-684-04310B-0637
...
1
Chute Support Bracket 270-SU, 265-SU, 165-SUB - engines Small block MTD-684-04311A-0637
...
2
Trigger Housing MTD-753-06151
...
3
Bolt, Carriage, 5/16-18 x 1.50, 4-Way 4-Way MTD-710-0262
...
3
Bolt, Carriage, 5/16-18 x .750, 2-Way 2-Way MTD-710-0451
...
4
Bolt, Carrier, 5/16-18 x 1.00 MTD-710-04071
...
5
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
6
Hex Head Screw, 1/4-20 x 3.00 MTD-710-04370
...
7
Hex Head Screw, 5/16-24 x .750 MTD-710-0627
...
8
Screw, Hi-Lo, 1/4-15 x 0.750 MTD-710-0895
...
9
Clevis Pin, 3/8 x 1.87 MTD-711-04469A
...
10
Nut, Flange Lock, 5/16-18 MTD-712-04063
...
11
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
12
WING NUT 1/4-20 MTD-712-3087
...
13
Hairpin Cotter MTD-714-0101
...
14
Bow-Tie Cotter Pin MTD-714-04040
...
15
Knob, Wing, 5/16-18 MTD-720-0284
...
16
UPPER REMOTE CHUTE WITH LABEL 4-Way MTD-731-04427B
...
16
UPPER CHUTE (W/LBL MANUAL TILT) 2-Way MTD-731-04426C
...
17
Chute, Lower MTD-731-06440A
...
18
Cable Guide, Chute Tilt MTD-731-06451
...
19
Fl-Wash. .344" I.D. MTD-736-0159
...
20
Washer, Flat, .25 x .630 MTD-736-04446
...
21
Screw, Shoulder, .312 x 3.5 x 1/4-20 MTD-738-04367
...
22
Chute Rod, 3/8 Hex MTD-747-05116
...
23
Cable Bracket MTD-784-5594-0637
...
24
Screw, 12-16 x .75 MTD-710-04373A
...
25
Hex Shaft MTD-711-05186
...
26
Hexlock Nut, 1/4-28 MTD-712-0896
...
27
HELICAL GEAR-14T MTD-717-04667B
...
28
CHUTE GEARBOX WORM GEAR MTD-717-04672A
...
29
Gear Cover MTD-731-06906
...
30
CHUTE LOCK PAWL MTD-731-06943A
...
31
TORSION SPRING MTD-732-04638D
...
32
FLAT WASHER MTD-736-0290
...
33
Screw, Shoulder, .34 x .95 x 1/4-28 MTD-738-04391
...
34
Hex Bearing MTD-941-0225
...
35
HEX FLANGE BEARING MTD-741-04388A
...
36
Cable Lock MTD-946-04619B
...
37
CHUTE ROTATION BRACKET MTD-790-00342C-0637
...
38
4-WAY CHUTE CONTROL ASSEMBLY 4-Way MTD-984-04338A
...
38
Chute Control, 2-Way 2-Way MTD-984-04348
...
38
Chute Control Housing, 4-Way 4-Way MTD-753-06153
...
38
Chute Control Housing, 2-Way 2-Way MTD-753-06154
...
38
Gear Set MTD-753-06152
...
39
Screw, #8 x 1.00 MTD-710-04353
...
40
Screw, 8-32 x .750 MTD-710-04879
...
41
Joystick Plug MTD-731-04893A
...
42
Joystick Trigger MTD-731-07031
...
43
4-WAY CHUTE ROTATION GEARBOX ASSEMBLY MTD-918-04801B
...
44
Chute Cable MTD-946-04528B
...
44
4-WAY CHUTE CABLE MTD-946-04477
...
45
Shift Assembly MTD-984-04324A
...
46
Gear Set Assembly MTD-753-06152
...
47
Handle Housing Assembly MTD-753-06153
...
48
Screw, #8-18 x 1.250 MTD-710-1256
...
49
Pin, Roll MTD-715-04095
...
50
Block, Asm Joint MTD-684-04350
...
51
Pin, Roll 3/16 x 1.1 MTD-715-0150
