Yard Man 31AH5C3F401 (2002) Snow Thrower

Model: 31AH5C3F401 (2002)

Save Part Not Listed?
product name

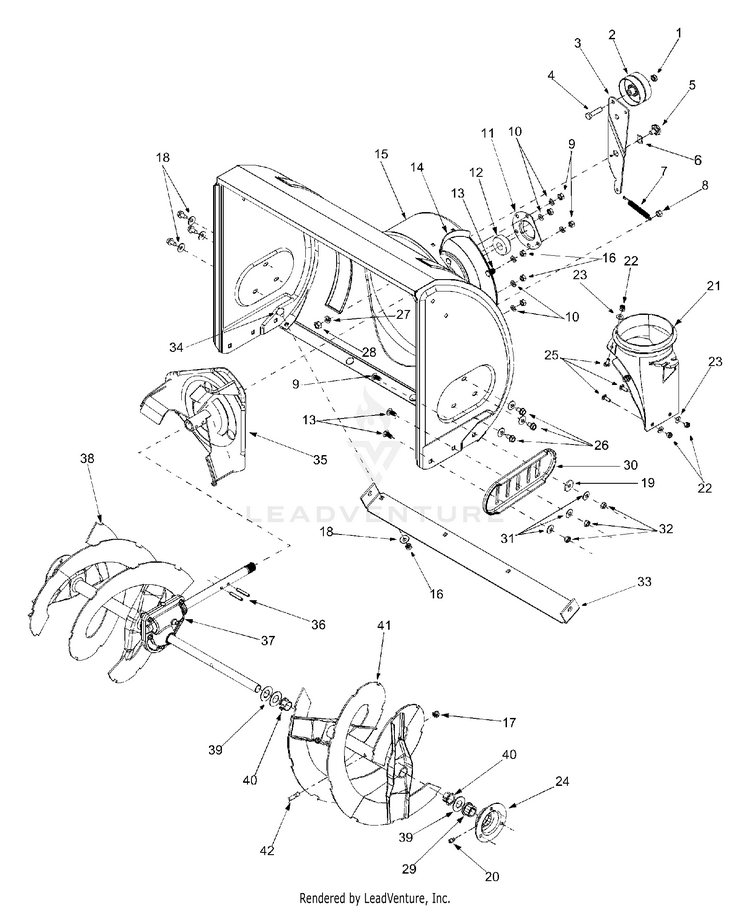

Blower Housing

...
...
1
Lock Jam Nut 3/8-24 MTD-712-0116
...
2
Flat Idler MTD-756-0178
...
3
Auger Idler Brkt. MTD-984-0064-0637
...
4
Hex Cap Screw 3/8-24 x 1.50 MTD-710-0459A
...
5
Shoulder Screw MTD-738-0281
...
6
Wave Washer MTD-936-0167
...
7
Ext. Spring 3.6" Lg. MTD-932-0611
...
8
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
9
Carriage Bolt, 5/16-18 x 1.00 MTD-710-0276
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Housing MTD-05931A
...
12
Flange Ball Bearing MTD-941-0309
...
13
Carriage Bolt, 5/16-18 x .75 MTD-710-0451
...
14
Chute Reinforcement MTD-705-5226
...
15
26" HOUSING ASSEMBLY MTD-684-0040D
...
xx
28" HOUSING ASSEMBLY MTD-684-0041D
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Lock Nut 5/16-18 MTD-712-0429
...
18
Belleville Washer MTD-736-0242
...
19
Flat Wshr, .344ID x 1.125 OD MTD-736-0231
...
20
GREASE FITTING MTD-937-3000
...
21
Adapter Chute MTD-731-1379D
...
22
Hex Lock Nut 1/4-20 MTD-712-0324
...
23
Flat Washer MTD-736-0463
...
24
Bearing Housing MTD-784-5618A-0637
...
25
Carriage Screw 1/4-20 x .75 MTD-710-0703
...
26
Hex Screw 5/16-18 MTD-710-0604A
...
27
Lock Washer 3/8 MTD-736-0169
...
28
Hex Nut 3/8-16 MTD-712-0798
...
29
Hex Flange Bearing MTD-941-0245
...
30
Skid Shoe MTD-784-5038B-0637
...
31
Bell Washer MTD-736-0242
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Shave Plate: Auger 26" MTD-790-00121-0637
...
xx
Shave Plate: Auger 28" MTD-790-00118-0637
...
34
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
35
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
36
Pin MTD-715-0114
...
37
Gear Assembly: Auger 26" MTD-918-0415B
...
xx
Gear Assembly: Auger 28" MTD-918-0416B
...
38
Spiral Assembly: RH 26" MTD-684-04182-0637
...
xx
Spiral Assembly: RH 28" MTD-684-04184-0637
...
39
Flat Washer MTD-736-0188
...
40
FLANGE BUSHING MTD-741-0493C
...
41
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04183-0637
...
xx
28" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04185-0637
...
42
Shear Bolt 5/16-18 x 1.5 MTD-710-0890A
...
xx
Label: Handle Panel (L) MTD-777I20711
...
xx
LABEL-HNDL PANEL MTD-777I20722
...
xx
LABEL-DANGER MTD-777S30514
...
xx
Label: Chute Danger MTD-777S30524

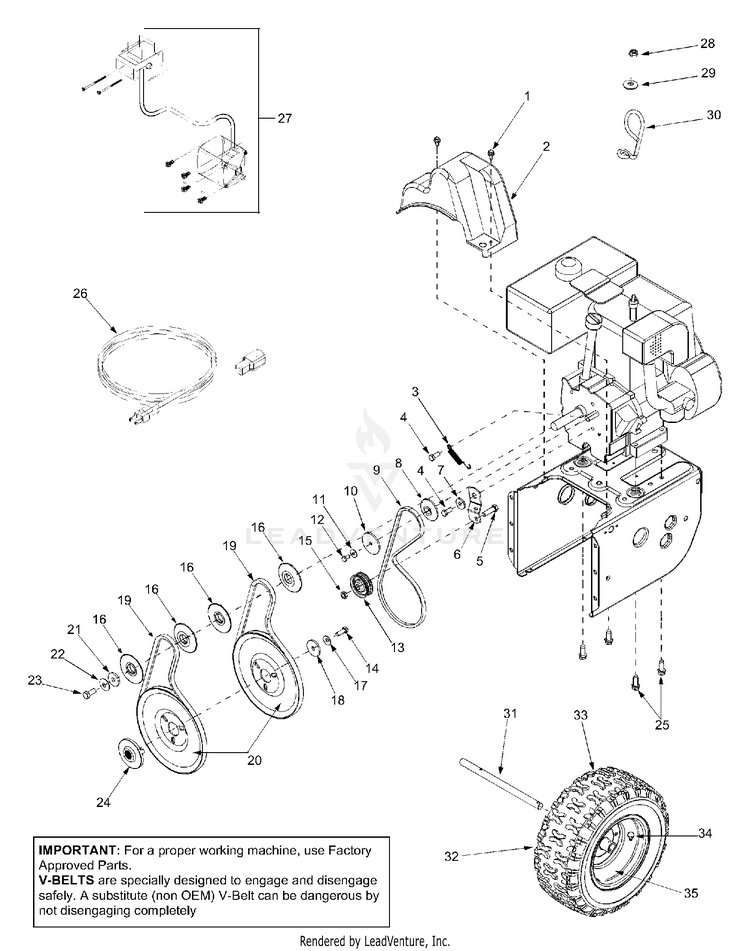

Engine & Belts

...
...
1
Hex Washer Screw 1/4-20 x .625 MTD-710-1652
...
2
Belt Cover MTD-731-1324
...
3
Extension Spring MTD-932-0710
...
4
Hex Screw 5/16-24 x .75 MTD-710-0627
...
5
Hex Cap Screw 3/8-16 x 1.25 MTD-710-3005
...
6
BRACKET-IDLR- MTD-05896A
...
7
Shoulder Spacer MTD-748-0234
...
8
HALF PULLEY MTD-956-0987
...
9
V - Belt MTD-954-0346
...
10
HALF PULLEY MTD-756-0986
...
11
SPRING WASHER BELL MTD-736-0270
...
12
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
13
Flat Idler MTD-756-0313
...
14
SCREW 5/16-24 x .875 GR5 MTD-710-1245A
...
15
Lock Jam Nut 3/8-16 MTD-712-0181
...
16
Pulley Half MTD-756-0569
...
17
Bell Washer MTD-736-0242
...
18
Flat Washer MTD-736-0505
...
19
BELT: 3V X 35.00 LG MTD-954-0430C
...
20
Auger Pulley MTD-756-0967
...
21
Flat Washer 3/8 x 1.25 OD MTD-736-0247
...
22
Bell Washer MTD-736-0331
...
23
Hex Cap Screw 3/8-24 MTD-710-0696
...
24
Adapter Pulley MTD-948-0360
...
25
Hex Screw 3/8-16 x 1.0 MTD-710-0654A
...
26
3-Prong Extension Cord MTD-929-0071B
...
27
STARTER MOTOR MTD-TC-33329H
...
28
Lock Nut, 1/4-20 MTD-712-0324
...
29
Flat Washer, .28 x .74 x .063 MTD-736-0173
...
30
Cable Guide MTD-732-0705
...
31
Axle: .75 dia. x 12.2" Lg. MTD-738-0994A
...
32
WHEEL ASSEMBLY 16X4.8 MTD-734-1709
...
33
Tire 16.5" x 4.8" x 4" MTD-734-1530
...
34
TUBELESS VALVE MTD-934-0255
...
35
RIM ASSEMBLY MTD-734-1708

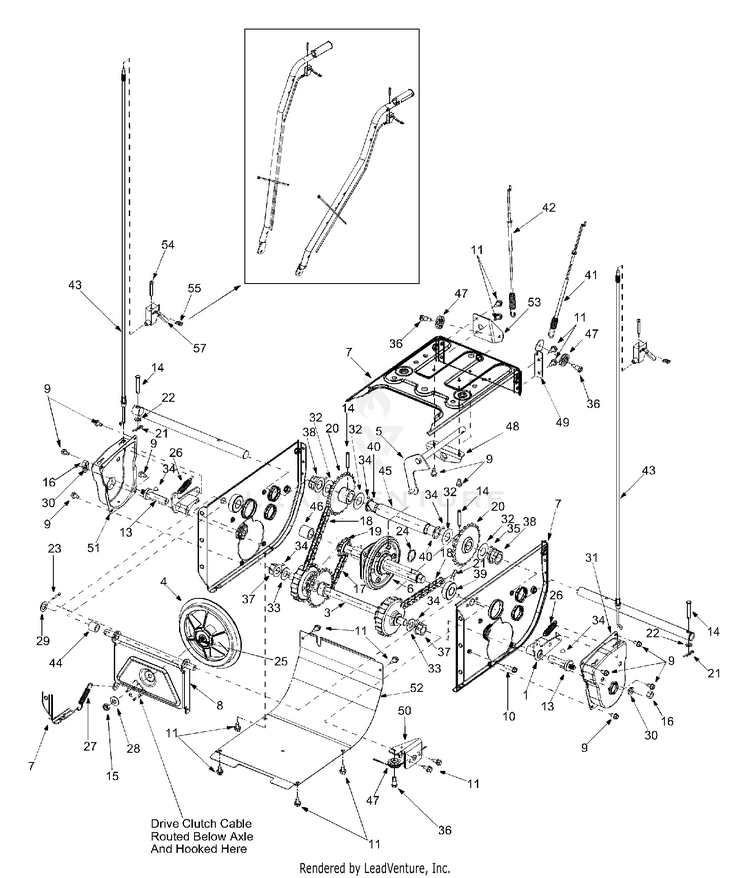

Frame Assembly

...
...
1
DOG ASSEMBLY (RH) MTD-618-0043
...
?2
Dogg Assembly: LH MTD-618-0044
...
3
DRIVE SHAFT ASSEMBLY MTD-618-0575
...
4
Friction Wheel Disc Ass'y. MTD-956-0012A
...
5
SHAFT ASSEMBLY (POWDER BLACK) MTD-684-0014B-0637
...
6
Wheel Assembly Friction MTD-984-0042C
...
7
FRAME MTD-684-0179
...
8
BRACKET ASSEMBLY MTD-684-0131A
...
9
Hex Washer Screw 1/4-20 x .5 MTD-710-0599
...
10
Hex Washer Screw 1/4-20 x 1 MTD-710-0809
...
11
Hex Screw 1/4-20 x .625" MTD-710-1652
...
?12
DRIVE SHAFT MTD-711-1267
...
13
ACTUATOR SHAFT MTD-711-1268
...
14
Pin MTD-711-1364
...
15
Jam Nut 3/8-24 Gr.8 MTD-712-0711
...
16
HEX NUT 3/8-16 GR5 MTD-712-3017
...
17
Chain MTD-713-0233
...
18
Chain MTD-713-0374
...
19
Sprocket: 10T MTD-713-0413
...
20
SPROCKET MTD-713-0472
...
21
Cotter Pin MTD-714-0104
...
22
Flat Washer MTD-736-0142
...
23
Cotter Pin MTD-714-0474
...
24
Snap Ring MTD-716-0102
...
25
Adhesive: Loctite MTD-721-0263
...
26
Spring MTD-932-0209
...
27
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
28
Bell Washer MTD-736-0105
...
29
Flat Washer MTD-736-0160
...
30
Lock Washer MTD-736-0169
...
31
ACTUATOR SHAFT HOUSING MTD-784-5740-0637
...
32
Flat Washer MTD-736-0351
...
33
Flat Washer MTD-736-0626
...
34
Lubricant: 6 in 1 MTD-737-0170
...
35
ARCTIC GREASE (NOT SERVICEABLE) MTD-737-0318-CRTG
...
36
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
37
Hex Flange Bearing MTD-741-1111
...
38
Hex Flange Brg. .752" I.D. MTD-941-0598
...
39
BALL BEARING MTD-941-0600
...
40
FLANGE BUSHING MTD-741-0701
...
41
Cable-Auger Clutch MTD-946-0897
...
42
Cable-Drive Clutch MTD-946-0898
...
43
STEERING CABLE MTD-946-0956C
...
44
Spacer MTD-748-0190
...
45
Axle Support Tube MTD-750-1161A
...
46
SPACER MTD-750-1162
...
47
Roller Cable MTD-756-0625
...
48
Shift Bracket MTD-784-5590
...
49
AUGER GUIDE BRACKET MTD-784-5687A
...
50
GUIDE BRACKET MTD-784-5689A-0637
...
51
ACTUATOR SHAFT HOUSING MTD-784-5730A-0637
...
52
FRAME COVER MTD-784-5638A
...
53
DRIVE ROLL BRACKET MTD-784-5733-0637
...
54
Oval C-Sunk Machine Screw MTD-710-1233
...
55
FLAT WELD NUT MTD-712-0127
...
?56
Cable Tie MTD-725-0157
...
57
Cable Assembly, Trigger MTD-746-0950A

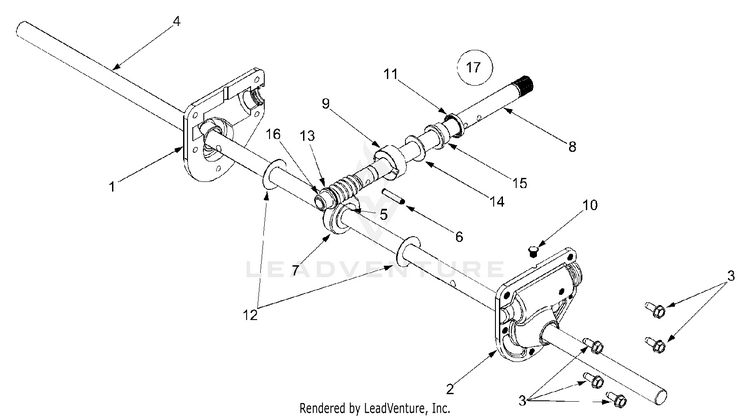

Gear Assembly

...
...
1
RH Housing MTD-918-0123A
...
2
LH Housing MTD-918-0124A
...
3
Self Tapping Screw, 1/4-20 x .75 MTD-710-0642
...
4
26"AUGER SHAFT MTD-711-0909A
...
xx
Spiral Axle, 28" (H5Q3G) MTD-711-0910A
...
5
KEY 3/16 x 5/8 H MTD-914-0161
...
6
Spring Spiral Pin, .25 x 1.25 MTD-715-0143
...
7
WORM GEAR 20T MTD-917-04861
...
8
IMPELLER SHAFT MTD-717P0526
...
9
Thrust Collar MTD-718-0186
...
10
Grease Plug MTD-721-0325
...
11
Grease Seal MTD-721-0327
...
12
Flat Washer, .76 x 1.5 x .030 MTD-736-0351
...
13
Flat Washer, .508 x 1.0 x .020 MTD-736-0369
...
14
Flat Washer, .76 x 1.5 x .060 MTD-736-0445
...
15
Flange Bearing, .75 x 1.0 x .59 MTD-741-0662
...
16
Flange Bearing, .503 ID x .75 OD MTD-741-0663
...
17
Gear Assembly: Auger 26" MTD-918-0415B
...
xx
Gear Assembly: Auger 28" MTD-918-0416B

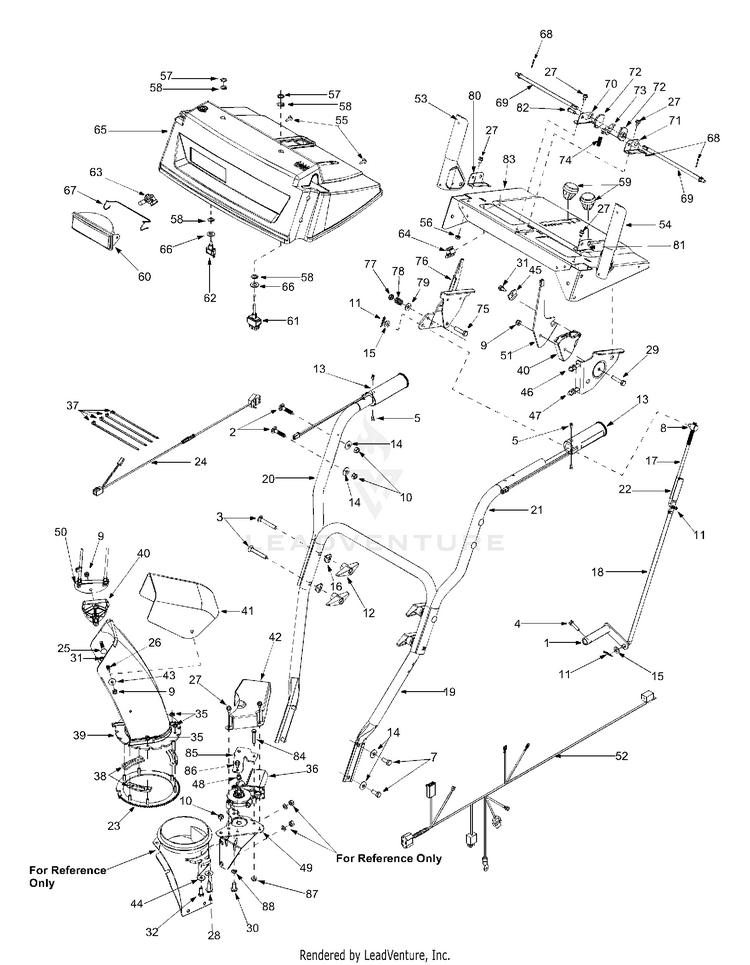

Handle & Chute

...
...
1
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
2
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
3
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
4
TT Screw 1/4-20 x 1" MTD-710-0788
...
5
C-Sunk Screw #10-16x 0.625" MTD-710-0837
...
7
Hex Screw 5/16-18 x .75" MTD-710-1880
...
8
Engagement Ferru MTD-911-0677
...
9
Hex Lock Nut 5/16-18 MTD-712-0429
...
10
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
11
Cotter Pin MTD-714-0104
...
12
Handle Knob MTD-720-0284
...
13
Heated Grip MTD-725-1757
...
14
Belleville Washer MTD-736-0242
...
15
FLAT WASHER MTD-736-0275
...
16
Saddle Washer MTD-736-0451
...
17
SHIFT ROD MTD-747-0620A
...
18
LOWER SHIFT ROD MTD-747-0621
...
19
LOWER HANDLE MTD-749-0951A
...
20
UPPER HANDLE (RH) MTD-749-0952A
...
21
UPPER HANDLE (LH) MTD-749-0953A
...
22
Rod-Clutch Lock MTD-950-0963
...
23
GEAR ASSEMBLY-RING MTD-618-0419
...
24
LOWER HARNESS ASSEMBLY MTD-629-0937
...
25
Carriage Bolt: 5/16-18 x 1.5" MTD-710-0262
...
26
Carriage Bolt: 5.16-18 x .750" MTD-710-0451
...
27
TT Screw: 1/4-20 x 0.5" MTD-710-0599
...
28
TT Screw: 5/16-18 x 1" MTD-710-0602
...
29
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
30
Hex Washer Screw 5/16-18 x .875 MTD-710-0650
...
31
Hex Screw AB:1/4-14 x 0.625" MTD-710-0896
...
32
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
35
LOCK NUT 1/4 MTD-912-3027
...
36
CHUTE CRNK KIT MTD-724-0249B
...
37
Cable Tie MTD-725-0157
...
38
Chute Flange Keeper MTD-731-0851A
...
39
Lower Chute MTD-731-1300E
...
40
Cable Guide: Chute Tilt MTD-731-1313C
...
41
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
42
Motor Cover: Chute Rotation MTD-731-2611
...
43
5/16 Washer MTD-736-0159
...
44
Belleville Washer MTD-736-0242
...
45
SPECIAL WASHER MTD-736-0506A
...
46
Chute Deflector Control Cable MTD-946-0896
...
47
Chute Deflector Cable w/ Clip MTD-946-0901
...
48
Bushing MTD-741-1140
...
49
MOTOR BRACKET MTD-784-5745
...
50
Cable Bracket MTD-784-5594
...
51
Handle, Chute Tilt MTD-784-5604A-0637
...
52
UPPER HARNESS ASSEMBLY MTD-629-0936A
...
53
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
54
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
55
Special Screw, #10-16 x .625 MTD-710-04669
...
56
Hex Sems Nut: 1/4-20 MTD-712-0271
...
57
HEX NUT MTD-712-0693
...
58
LOCK RING MTD-716-0398
...
59
Knob MTD-920-0232
...
60
Lens/Lamp Assembly Housing MTD-925-1672
...
61
Toggle Switch: Double Throw MTD-925-1755
...
62
TOGGLE SWITCH (SINGLE) MTD-925-1756
...
63
Headlight Bulb MTD-925-1759
...
64
CLAMP-MTG MTD-726-0152
...
65
HANDLE PANEL MTD-731-2275
...
66
Flat Washer MTD-736-0226
...
67
Headlight Retainer MTD-747-1136
...
68
Cotter Pin: 3/32 x .75 MTD-714-0507
...
69
Cam Rod MTD-747-0877
...
70
Brkt., Handle Support - RH MTD-784-5680-0637
...
71
HANDLE BRACKET (LH) MTD-784-5679-0637
...
72
Cam Handle Lock MTD-748-0362
...
73
Handle Lock Pawl MTD-948-0363
...
74
Compression Spring: .36 x 1.0 MTD-732-0145
...
75
Hex Cap Screw: 3/8-24 x 1.5 MTD-710-0459A
...
76
KIT-SHIFT HANDLE:S MTD-753-05395
...
77
Jam Nut, 3/8-24 MTD-712-0116
...
78
Comp. Spring: .39 x .6 x .88 MTD-732-0193
...
79
Bell Washer MTD-736-0105
...
80
Brkt., Handle Support - RH MTD-784-5682-0637
...
81
LH Handle Support Bracket MTD-784-5681
...
82
Clevis Pin MTD-711-0653
...
83
HANDLE PANEL ASSEMBLY MTD-684-0102A
...
84
Hex Cap Screw 1/4-20 x 1.5 MTD-710-0606
...
85
MOTOR BRACKET MTD-784-0411-0637
...
86
Hex Washer Screw 1/4-20 1.5 MTD-710-1652
...
87
LOCK NUT 1/4 MTD-912-3027
...
88
Lock Wash. 5/16" I.D. MTD-936-0119
