Yard Man 31AE9P3J801 (2005-2) Snow Thrower

Model: 31AE9P3J801 (2005-2)

Save Part Not Listed?
product name

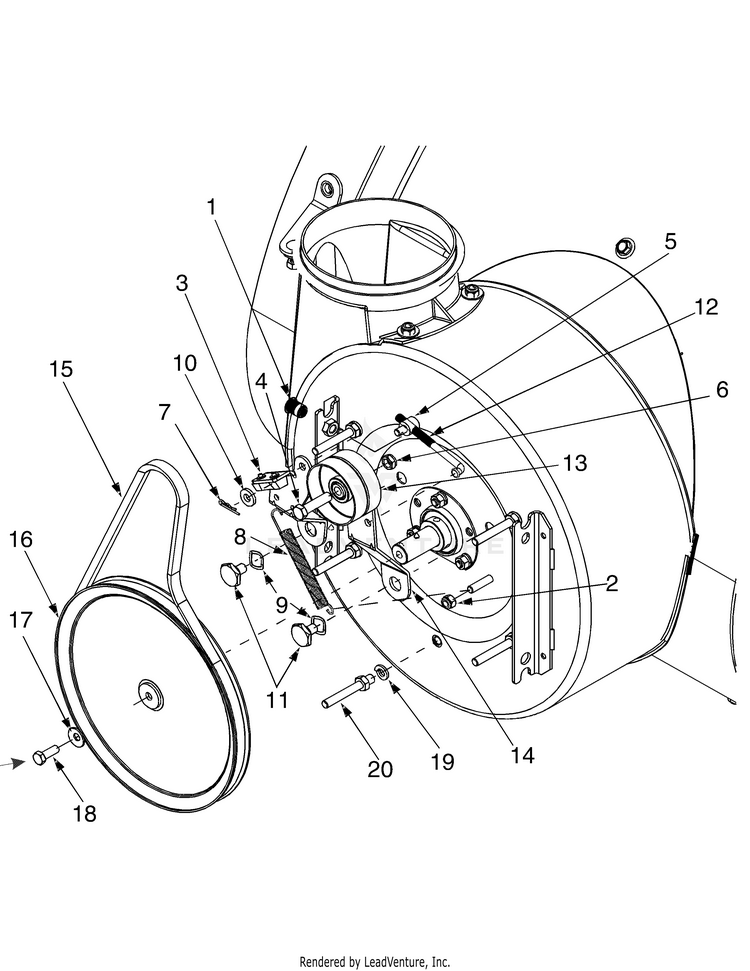

Brackets

...
...
1
INSERT NUT 3/8-16 MTD-712-0717
...
2
Hex Flg. L-Nut 5/16-18 Gr. F Nylon MTD-712-04063
...
3
Bracket Assy-Br MTD-918-0281A
...
4
Hex Scr 3/8-24 x 1.50 Gr. 5 MTD-710-0459A
...
5
Engagement Ferru MTD-911-0677
...
6
Hex Nut 3/8-24 Gr. 5 MTD-712-0116
...
7
Int. Cotter Pin .072 x 1.13" Lg. MTD-714-0104
...
8
Extension Spring .470 Dia. x 4.75 MTD-732-0858
...
9
Wave Washer .625 ID x .885 OD x .015 MTD-736-0174
...
10
FLAT WASHER MTD-936-3008
...
11
Shoulder Scr .625 Dia x .170 MTD-738-0281
...
12
AUGER IDLER ROD MTD-747-0980A
...
13
Flat Idler Pulley MTD-756-0178
...
14
Bracket, Auger Idler MTD-784-0385D
...
15
V-Belt MTD-954-0222A
...
16
1/2" V-Pulley .875 ID x 10.12 OD MTD-756-0243
...
17
Cupped Washer .345 ID x .88 OD x .06 MTD-736-0242
...
18
SCREW 5/16-18 x .750 MTD-710-1880
...
19
Lockwasher 3/8" ID MTD-736-0169
...
20
Belt Keeper Studs 3/8-16 x 2.75 MTD-711-0640

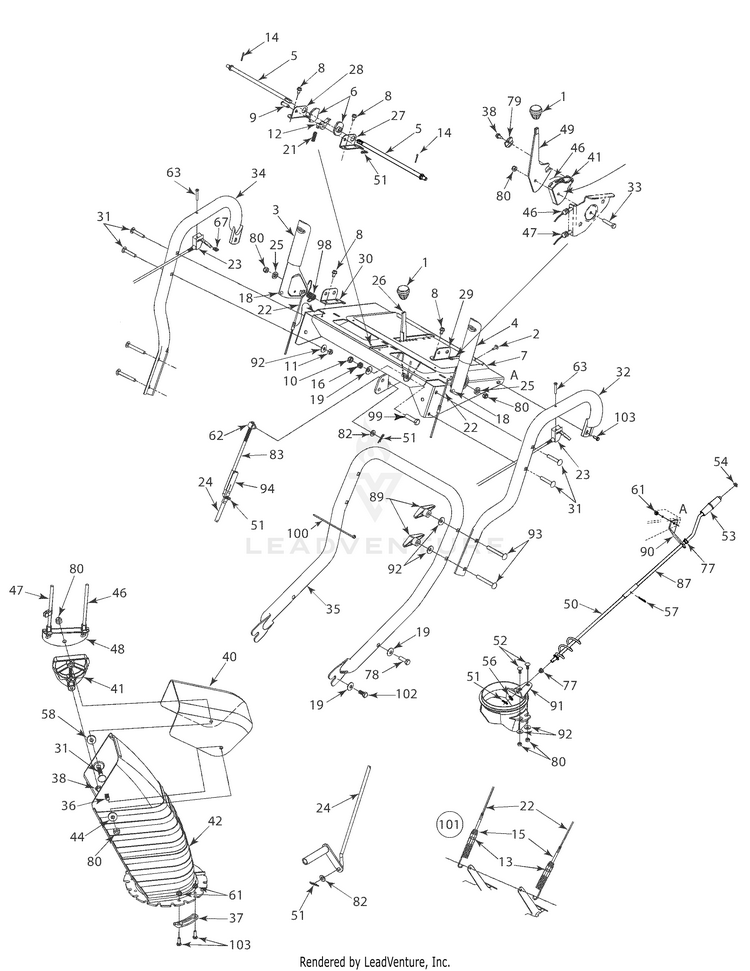

Controls & Chute

...
...
1
Knob MTD-920-0232
...
2
Truss Mach B-Tapp Scr #10-16 x .50 Gr. 5 MTD-710-0351
...
3
CLUTCH HANDLE(RH) MTD-705-5218
...
4
CLUTCH HANDLE(LH) MTD-705-5219
...
5
Cam Rod MTD-747-0877
...
6
Cam Handle Lock Flats (#6) parallel to rear when in stalling engagement handles in the engaged position as shown. MTD-748-0362
...
7
HANDLE PANEL ASSEMBLY MTD-684-0102A
...
7
HANDLE PANEL ASSEMBLY MTD-684-0103A
...
8
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
9
Clevis Pin .31 Dia. x 1.0" Lg. MTD-711-0653
...
10
Hex Nut 3/8-24 Gr. 5 MTD-712-0116
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Handle Lock Pawl MTD-948-0363
...
13
Hex Ins. Locknut 1/4-20 MTD-712-0324
...
14
Cotter Pin 3/32 x .75 MTD-714-0507
...
15
Extension Spring MTD-732-0184
...
16
Compression Spring .39 ID x .88 Lg MTD-732-0193
...
18
Rubber Bumper MTD-735-0199A
...
19
Cupped Washer .401 ID x .870 OD x .063 MTD-736-0105
...
21
Compression Spring .36 DIA x 1.0" LG. MTD-732-0145
...
22
DRIVE CLUTCH CABLE Refer to assembly instructions in the owners manual for correct adjustment. MTD-746P0952
...
23
Trigger Assembly MTD-746-0950A
...
24
Lower Shift Rod MTD-747-0983A
...
25
Washer (special) MTD-736-0509
...
26
KIT-SHIFT HANDLE:S MTD-753-05395
...
27
HANDLE BRACKET (LH) MTD-784-5679-0637
...
28
Brkt., Handle Support - RH MTD-784-5680-0637
...
29
LH Handle Support Brkt. 3/8" MTD-784-5681
...
30
Brkt., Handle Support - RH MTD-784-5682-0637
...
31
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
32
UPPER HANDLE (LH) (POWDER BLACK) MTD-749-0989A-0637
...
33
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
34
RH Upper Handle MTD-749-0990A
...
35
LOWER HANDLE MTD-749-0991
...
36
Carriage Bolt 5/16-18 x 1.00" Lg MTD-710-0276
...
37
Chute Flange Keeper MTD-731-0851A
...
38
Hex HL In dex Washer Screw 1/4-15 X .75 MTD-710-0895
...
40
Upper Chute Remote Tilt MTD-731-0846C
...
41
Cable Guide MTD-731-1313C
...
42
Chute, Lower MTD-731-0903E
...
44
Flat Washer .349 ID x .879 OD x .063 MTD-736-0159
...
46
CABLE-CHUTE MTD-946-0902
...
47
CABLE W/CLIP-CHUTE MTD-946-0903
...
48
Cable Bracket Chute Tilt MTD-784-5594
...
49
Handle, Chute Tilt MTD-784-5604A-0637
...
50
CHUTE CRANK ASSEMBLY(POWDER BLACK) MTD-684-0053B-0637
...
51
Int. Cotter Pin .072 x 1.13" Lg. MTD-714-0104
...
52
Carriage Bolt 5/16-18 x .75 Gr. 2 MTD-710-0451
...
53
Knob 1.0 x 3.2 MTD-720-0201A
...
54
Push Nut 3/8" Rod MTD-726-0100
...
56
Flat Washer .375 ID x .738 OD X.063 MTD-736-0185
...
57
Internal Cotter Pin MTD-714-0101
...
58
Flat Washer .344 ID x 1.125 OD x .125 MTD-736-0231
...
61
Hex Flg. L-Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
62
Engagement Ferru MTD-911-0677
...
63
Oval C-Sunk Screw #10-24 x 1.75 MTD-710-1625
...
77
BUSHING .380 ID MTD-941-0475
...
78
SCREW 3/8-16 x 2.00 GR5 MTD-710-04682
...
79
SPECIAL WASHER MTD-736-0506A
...
80
Hex Flg. L-Nut 5/16-18 Gr. F Nylon MTD-712-04063
...
81
LOCK NUT 1/4 MTD-912-3027
...
82
FLAT WASHER MTD-736-0275
...
83
Upper Shift Rod MTD-747-0997
...
84
Hex Screw 1/4-20 x .75" Lg. Gr. 5 MTD-710-3015
...
87
Rod, Chute Crank MTD-747-0624-0637
...
89
Wingnut Knob, 5/16-18 MTD-720-0284
...
90
Bracket, Chute Crank MTD-705-5266-0637
...
91
BRACKET-CHUTE CRAN MTD-784-5123-0637
...
92
Cupped Washer .340 ID x .872 OD x .06 MTD-736-0242
...
93
Carriage Bolt 5/16-18 x 2.50 MTD-710-0572
...
94
Rod-Clutch Lock MTD-950-0963
...
98
Torsion Spring .44 ID MTD-732-0746
...
99
Hex Scr 3/8-24 x 1.50 Gr. 5 MTD-710-0459A
...
100
Cable Tie MTD-725-0157
...
101
Auger/Drive Cable Assembly MTD-646-0012
...
102
Hex Screw 3/8-16 x .880 Gr. 5 MTD-710-1879
...
103
SCREW 1/4-20 X1.00 GR5 MTD-710-0597

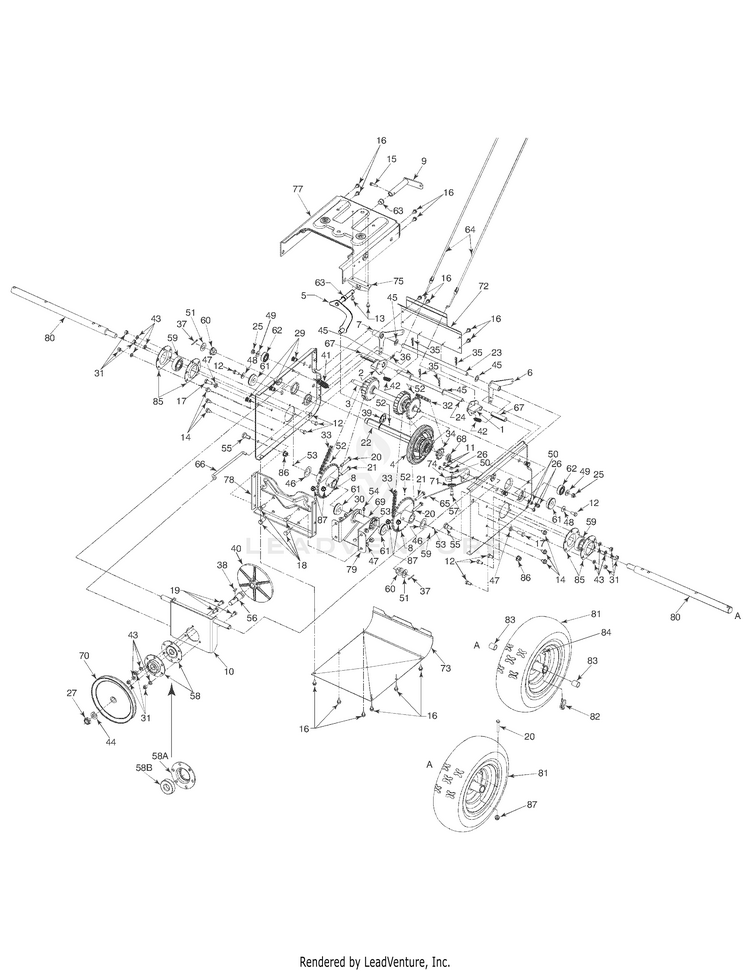

Drive

...
...
1
LEFT DRIVE DOGG ASSEMBLY MTD-918-0279A
...
2
Dogg Assy-Rgt D MTD-918-0280A
...
3
Shaft Assembly, Steering MTD-918-0282E
...
4a
Wheel Ass’y Bearing 6.0" OD MTD-918-07239
...
4b
BONDED FRICTION WHEEL MTD-718-04034
...
4c
Hex Wash. Hd. TT Scr. 1/4-14 x .625 MTD-710-0896
...
5
Rod-Shift Asm MTD-984-04103
...
6
AUGER ACTUATOR BRACKET (POWDER BLACK) MTD-684-0118B-0637
...
7
ACTUATOR BRACKET (POWDER BLACK) MTD-684-0119B-0637
...
8
32T SPROCKET ASSEMBLY MTD-684-0122
...
9
Shift Arm Adapter MTD-684-0161-0637
...
10
FRICTION DRIVE SUPPORT BRACKET MTD-684-0162
...
11
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
12
Hex L-Bolt 5/16-18 x .62 MTD-710-0538
...
13
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
14
Hex Wash Hd Tap Scr. 5/16-18 x .75 MTD-710-0726
...
15
Hex Bolt 1/4-20 x 1.00 MTD-710-0788
...
16
Hex Wash Hd TT Scr. 1/4-20 x .625 MTD-710-1652
...
17
Hex Hd. C-Sunk Scr. 3/8-16 x.880 Gr. 5 MTD-710-1879
...
18
Hex Hd. C-Sunk Scr. 3/8-16 x .880 Gr. 5 MTD-710-3001
...
19
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
20
Hex Hd Cap Scr. 5/16-18 x 2.0 Gr. 5 MTD-710-3103
...
21
Hex Screw 5/16-18 x 1.75" Lg. MTD-710-3180
...
22
HEX SHAFT DRIVE MTD-911-04279
...
23
ACTUATOR SHAFT MTD-711-1193
...
24
DRIVE ACTUATOR SHAFT MTD-711-1194
...
25
Hex Nut 3/8-24 MTD-712-0116
...
26
Hex Nut 1/4-28 MTD-712-0138
...
27
Hex Jam Locknut 5/8-18 Gr. 5 Nylon MTD-712-0413
...
29
INSERT NUT 3/8-16 MTD-712-0717
...
30
HEX NUT 3/8-16 GR5 MTD-712-3017
...
31
HEX NUT 5/16-18 MTD-712-3010
...
32
#41 Chain 1/2" pitch x 36 links- Endless MTD-713-0284
...
33
#420 Chain 1/2" pitch x 40 links-Endless MTD-713-0286
...
34
Sprocket, #41 x 10T MTD-913-04015
...
35
Internal Cotter Pin MTD-714-0101
...
36
Int. Cotter Pin 5/16 DIA MTD-714-0104
...
37
Cotter Pin 1/8 x 1.0 MTD-714-0115
...
38
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
39
E-ring .875 diam. MTD-716-0136
...
40
Plate, Drive MTD-917-0302
...
41
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121
...
42
Spring MTD-932-0209
...
43
Lock Wash. 5/16" I.D. MTD-936-0119
...
44
Lockwasher 5/16 ID MTD-736-0158
...
45
Flat Washer .531 ID x .930 OD MTD-736-0160
...
46
Flat Washer 1.03 ID x 1.62 OD x .03 MTD-736-0163
...
47
Lockwasher Heavy 3/8" ID MTD-736-0217
...
48
Cupped Washer .345 ID x .88 OD x .06 MTD-736-0242
...
49
Flat Washer .385 ID x .87 OD x .06 MTD-736-0300
...
50
L-Wash. 1/4" I.D. MTD-936-0329
...
51
Fl-Wash. .640" I.D. x 1.24" O.D. MTD-736-0187
...
52
Lubricant - LPS 2 Industrial Strength MTD-737-04027
...
53
ARCTIC GREASE (NOT SERVICEABLE) MTD-737-0318-CRTG
...
54
GREASE FITTING MTD-937-3000
...
55
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
56
Drive Plate Spindle MTD-738-0279
...
57
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
58A
BEARING HOUSING ASSEMBLY MTD-741-0163A
...
58B
Brg. Housing 1.85" ID MTD-08253B
...
58
BALL BEARING MTD-741P0919B
...
59
Bearing, Self Aligning MTD-941-04025
...
60
FLANGE BEARING MTD-941-0225
...
61
BALL BEARING MTD-941-0563
...
62
Ball Bearing .5625 ID x 1.3750 x .437 MTD-741-04076
...
63
Flange Bushing .500 ID x .627 OD MTD-741-0748
...
64
Steering Cable MTD-746-0949A
...
65
Auger Cable MTD-946-0951A
...
66
DRIVE CLUTCH ROD MTD-747-0973
...
67
SPLIT SPACER MTD-750-0903B
...
68
Spacer MTD-950-0997
...
69
Spacer, .6725 x 1.125 x 2.48 MTD-750-1302B
...
70
1/2" “V" Pulley .625 ID x 7.50 OD MTD-756-0344
...
71
Cable Guide Roller MTD-756-0625
...
72
UPPER FRAME COVER MTD-784-0379
...
73
LOWER FRAME COVER MTD-784-0380
...
74
AUGER CABLE GUIDE MTD-784-0384-0637
...
75
SHIFT BRACKET MTD-784-0403-0637
...
76
Bearing Retaining Bracket MTD-784-0404
...
77
TRANSMISSION FRAME MTD-790-00162
...
78
FRAME SUPPORT BRACKET MTD-784-0406A-0637
...
79
AXLE SUPPORT BRACKET MTD-784-0407-0637
...
80
AXLE 33-Inch MTD-738-1164A
...
80
AXLE 1.0 x 20.4 45-Inch MTD-738-1166A
...
81
WHEEL ASSEMBLY 16 x 6 MTD-734-1593A
...
81
TIRE-SNOW HOG-16X6 MTD-734-1525
...
81
RIM ASSEMBLY MTD-734-1124A
...
82
Klik Pin MTD-714-0151A
...
83
BEARING MTD-741-0246A
...
84
TUBELESS VALVE MTD-934-0255
...
85
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
86
Flange L-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
87
Flange L-Nut 5/16-18 Gr. F Nylon MTD-712-04063

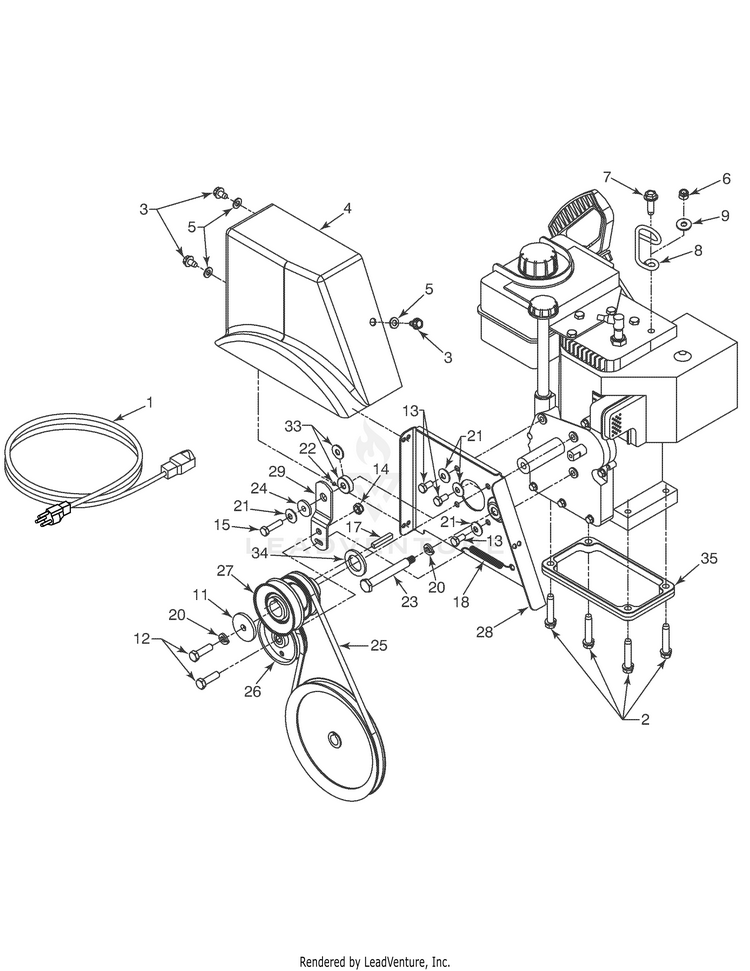

Engine Accessories

...
...
1
3-Prong Extension Cord MTD-929-0071B
...
2
SCREW 3/8-16 x 1.875 (for 10 & 11 HP) MTD-710-1008
...
2
SCREW 3/8-16 x 1.250 (for 12 & 13 HP) MTD-710-0502A
...
3
Hex Wash HD S-Tapp Scr 5/16-18 x .50 MTD-710-0607
...
4
Belt Cover MTD-931-2531
...
5
Flat Washer .330 ID x .630 OD x .0635 MTD-736-0264
...
6
Hex Flg. L-Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
7
Hex Wash Hd Tapp Scr 5/16-18 x 1.00 MTD-710-0602
...
8
Cable Control Wire MTD-732-0705
...
9
Flat Washer .28 ID x .74 OD x .063 MTD-736-0173
...
11
Flat Washer .450 ID x 1.250 OD x .164 MTD-736-0322
...
12
Hex Screw 3/8-24 x 1.25 Gr. 8 Special MTD-710-0191
...
13
Hex Screw 5/16-24 x .625 Gr. 5 MTD-710-0237
...
14
Hex Nut 3/8-24 Gr. 5 Nylon MTD-712-0116
...
15
SCREW 5/16-24 x 1.25 GR5 (for 10 & 11 HP) MTD-710-0672
...
15
SCREW 5/16-24 x .875 GR5 (for 12 & 13 HP) MTD-710-1245B
...
17
Square Key 1/4 x 1/4 x 1.50" Lg. MTD-714-0118
...
18
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
20
Lockwasher Heavy 3/8" ID MTD-736-0217
...
21
Cupped Washer .340 ID x .872 OD x .06 MTD-736-0242
...
22
ARCTIC GREASE (NOT SERVICEABLE) MTD-737-0318-CRTG
...
23
SHOULDER SCREW (for 10 & 11 HP) MTD-738-0982
...
23
SHOULDER SCREW .498 DIA x 3.00 (for 12 & 13 HP) MTD-738-0215A
...
24
Shoulder Spacer .25 THK MTD-748-0234
...
25
V-Belt 3/8 x 35.5 Lg. MTD-954-0131
...
26
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
27
Double Groove Engine Pulley MTD-756-0241B
...
28
BELT COVER BRACKET (POWDER BLACK) MTD-684-0123A-0637
...
29
DRIVE IDLER BRACKET MTD-784-5726
...
33
SPACER .33 (for 10 & 11 HP) MTD-748-0418
...
33
FLAT WASHER (for 12 & 13 HP) MTD-736-0159
...
34
SPACER 1.02 x 1.63 x .1425 (for 10 & 11 HP) MTD-750-1148A
...
35
ENGINE SPACER (for 10 & 11 HP) MTD-717-0882A

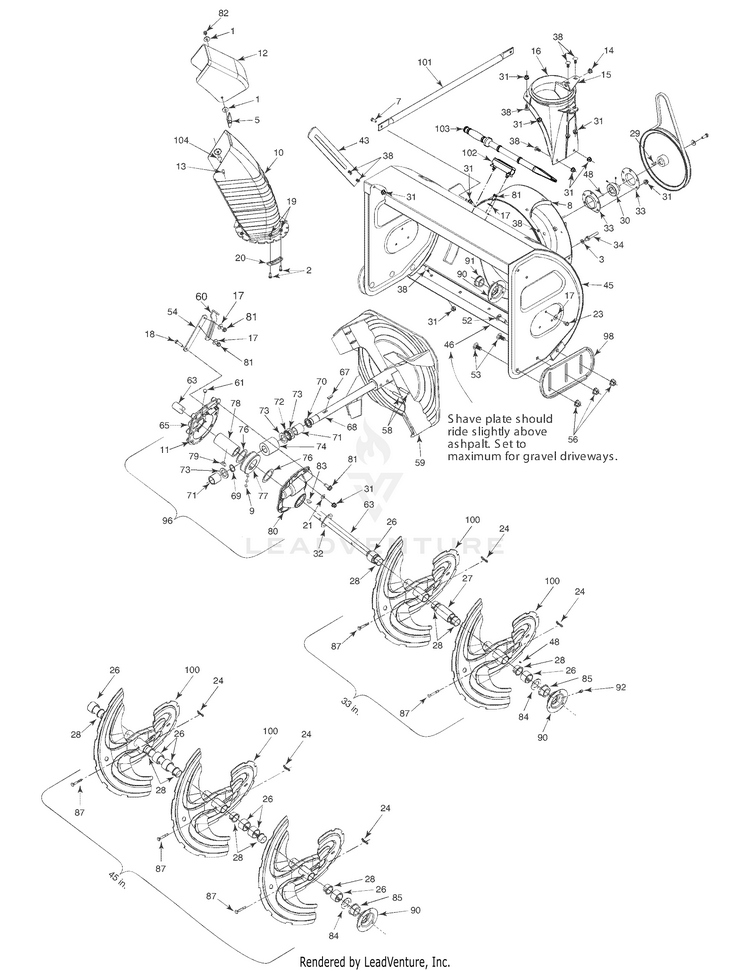

General Assembly

...
...
1
Flat Washer .344 ID x .875 OD MTD-736-0159
...
2
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
3
Lockwasher 3/8" ID MTD-736-0169
...
5
Handle Knob Assembly MTD-720-0284
...
7
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
8
CHUTE BRACKET MTD-784-5711-0637
...
9
Grease MTD-737-0168A
...
10
Chute, Lower MTD-731-0903E
...
11
Ultra Grey Loctite #5699 MTD-721-0328
...
12
Upper Black Plastic Chute MTD-731-0846C
...
13
Carriage Bolt 5/16-18 x 1.00" Lg MTD-710-0276
...
14
BUSHING .380 ID MTD-941-0475
...
15
BRACKET-CHUTE CRAN MTD-784-5123-0637
...
16
Chute Adapter MTD-731-1696B
...
17
Cupped Washer .345 ID x .88 OD x .06 MTD-736-0242
...
18
Hex Screw 5/16-18 x 1.25 MTD-710-0528
...
19
Hex Flange L-Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
20
Chute Flange Keeper MTD-731-0851A
...
21
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
22
HEX FLANGE NUT MTD-712-3004A
...
23
Hex Wash HD Tap Scr 5/16-18 x .75 MTD-710-0726
...
24
Bow Tie Cotter Pin MTD-714-04040
...
26
Spacer 1.5 x 1.0 ID x 1.0" Lg. MTD-731-05163
...
27
Spacer 1.5 x 1.0 ID x 2.5" Lg. MTD-731-05162
...
28
Flange Bushing 1.05 ID x 1.16 OD MTD-741-0494
...
29
#9 HI-Pro Key 3/16 x 3/4 Dia HT MTD-714-0126
...
30
Bearing-Self-Al Torque to 20-30 in. lbs. MTD-941-04024
...
31
Hex Flg. L-Nut 5/16-18 Gr. F Nylon MTD-712-04063
...
32
Flat Washer 1.010 x 1.88 x .060 MTD-736-03046A
...
33
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
34
Belt Keeper Studs 3/8-16 x 2.75 MTD-711-0640
...
38
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
43
Drift Cutter MTD-790-00181
...
45
33" AUGER HOUSING 33-Inch MTD-684-0166A
...
45
45" HOUSING ASSEMBLY 45-Inch MTD-684-0155A
...
46
Shave Plate 33-Inch, Shave plate should ride above ashpalt. MTD-784-5714B-0637
...
46
Shave Plate 45-Inch, Shave plate should ride above ashpalt MTD-790-00280-0637
...
48
ARCTIC GREASE (NOT SERVICEABLE) MTD-737-0318-CRTG
...
52
Carriage Bolt 3/8-16 x 1.00 Gr. 5 MTD-710-3168
...
53
Carriage Bolt 3/8-16 x .75" Lg. MTD-710-0389
...
54
PLATE-SUPPORT MTD-784-5710-0637
...
56
Hex Flange L-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
58
Spring Spirol Pin Heavy - 5/16 dia x 1.7 MTD-715-0118
...
59
IMPELLER ASSEMBLY(POWDER BLACK) MTD-684-0090B-0637
...
60
Gear Hsg. Support Brkt. MTD-784-5076-0637
...
61
Barbed Plug MTD-721-0325
...
63
AXLE 32.12"X1 33-Inch MTD-938-04158
...
63
SPIRAL AXLE 44.12 45-Inch MTD-738-04159
...
65
GEAR HOUSING ASSEMBLY (RH) MTD-918-0246
...
67
#9 HI-Pro Key 3/16 x 3/4 Dia HT MTD-714-0126
...
68
Auger Drive Shaft MTD-711-1133
...
69
Snap Ring for .875 dia. shaft MTD-716-0111
...
70
Oil Seal .875" I.D. MTD-921-0145
...
71
Sleeve Brg. .875 I.D. MTD-941-0217
...
72
Thrust Bearing .88 ID x 1.44 OD x .078 MTD-741-0184
...
73
Flat Washer .88 ID x 1.4 OD x .125 MTD-736-0291
...
74
Double Threaded Worm-L.H. MTD-917-0299
...
76
FLAT WASHER MTD-736-0266
...
77
Double Threaded Worm Gear MTD-917-1425
...
78
Worm Gear Shaft MTD-738-0275
...
79
#91 Woodruff Key 1/4 x 3/4 Dia. MTD-714-0135
...
80
Hsg Assy Auger LH (Inc. 40 & 70) MTD-918-0247
...
80
Hsg Assy Auger LH (Inc. 65 & 66) MTD-918-0435
...
81
Hex Flange Scr. 5/16-18 x .75 MTD-710-1260A
...
82
Hex Ins. L-Nut 5/16-18 MTD-712-0429
...
83
#91 Woodruff Key 1/4 x 3/4 Dia. MTD-714-0135
...
84
Flat Washer MTD-736-0250
...
85
Flange Bearing w/ Flats MTD-941-0170
...
87
SHEAR PIN .25X1.75 GR2 MTD-738-04155
...
90
Bearing Housing MTD-05845C
...
90
BEARING HOUSING MTD-784-0315A
...
91
Flange Bearing w/ Flats MTD-941-0170
...
92
GREASE FITTING MTD-937-3000
...
96
AUGER GEARBOX ASSEMBLY When rebuilding gear box fill one housing half completely. MTD-618-0436
...
96
AUGER GEARBOX ASSEMBLY When rebuilding gear box fill one housing half completely. MTD-618-0436
...
98
Reversible Slide Shoe MTD-784-5697
...
100
SPIRAL ASSEMBLY (LH) 33-Inch MTD-684-04151
...
100
SPIRAL ASSEMBLY (RH) 33-Inch MTD-684-04152
...
100
SPIRAL ASSEMBLY (LH) 45-Inch MTD-684-04151
...
100
SPIRAL ASSEMBLY (RH) 45-Inch MTD-684-04152
...
101
SUPPORT TUBE 33 & 45-Inch MTD-749-1117
...
102
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
103
Snow Removal Tool MTD-931-2643
...
104
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458

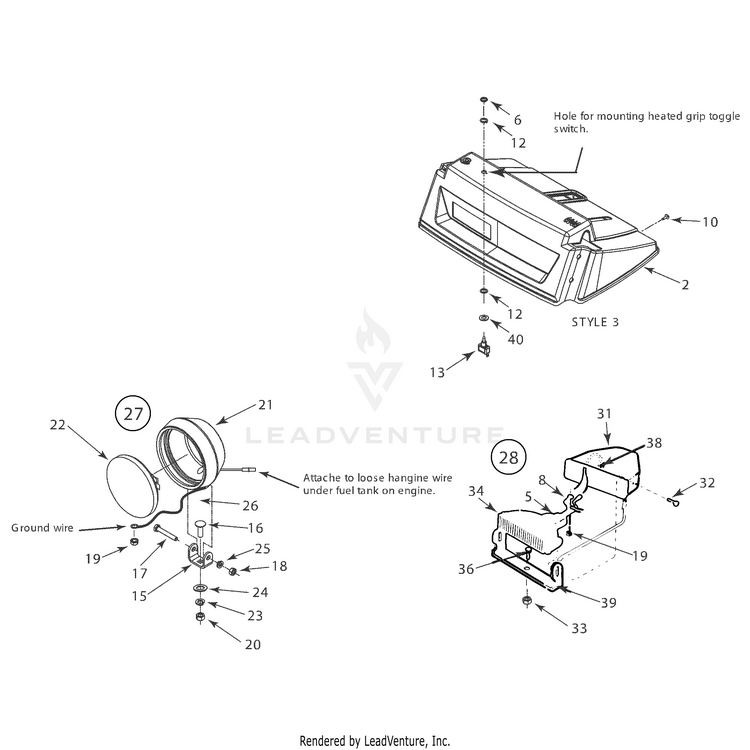

Panel Assembly

...
...
2
HANDLE PANEL MTD-731-1873A
...
2
HANDLE PANEL MTD-731-2564
...
4
HANDLE PANEL 7 STYLE MTD-931-04068
...
5
Lamp MTD-925-1658
...
5
Headlight Bulb MTD-925-1759
...
6
HEX NUT MTD-712-0693
...
7
Lens/Lamp Assembly Housing MTD-925-1672
...
8
Halogen Light Harness MTD-929-0059
...
9
Retainer MTD-747-1136
...
10
Special Screw, #10-16 x .625 MTD-710-04669
...
12
LOCK RING MTD-716-0398
...
13
TOGGLE SWITCH (SINGLE) MTD-925-1756
...
15
BRACKET-LA MTD-13359
...
16
Carriage Bolt 5/16-18 x 1.00" Lg MTD-710-0276
...
17
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
18
Hex Nut 1/4-28 Gr 5 MTD-712-0138
...
19
Sems Hex Nut 1/4-20 MTD-712-0271
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Lamp Housing MTD-725-0586
...
22
HEADLIGHT MTD-925-1300
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
25
L-Wash. 1/4" I.D. MTD-936-0329
...
26
Ground Wire (Purchase locally) MTD-NA
...
27
LAMP ASSEMBLY MTD-725-1301
...
28
TOP MOUNT LIGHT ASSEMBLY MTD-625-0007AP
...
31
Halogen Lamp Housing MTD-731-1364
...
32
Phillips Pan Hd. Scr. M4 x 16mm MTD-710-1240
...
33
Hex Flange Locknut 5/16-18 Gr. F Nylon MTD-712-04063
...
34
LAMP W/LENS ASSEMBLY MTD-925-1669P
...
36
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
38
GROMMET MTD-735-0225
...
39
LAMP MOUNT BRACKET MTD-705-5217
...
40
Flat Washer .474 ID x .879 OD x .064 MTD-736-0226
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
