Yard Man 31AE993J401 (2003) Snow Thrower

Model: 31AE993J401 (2003)

Save Part Not Listed?
product name

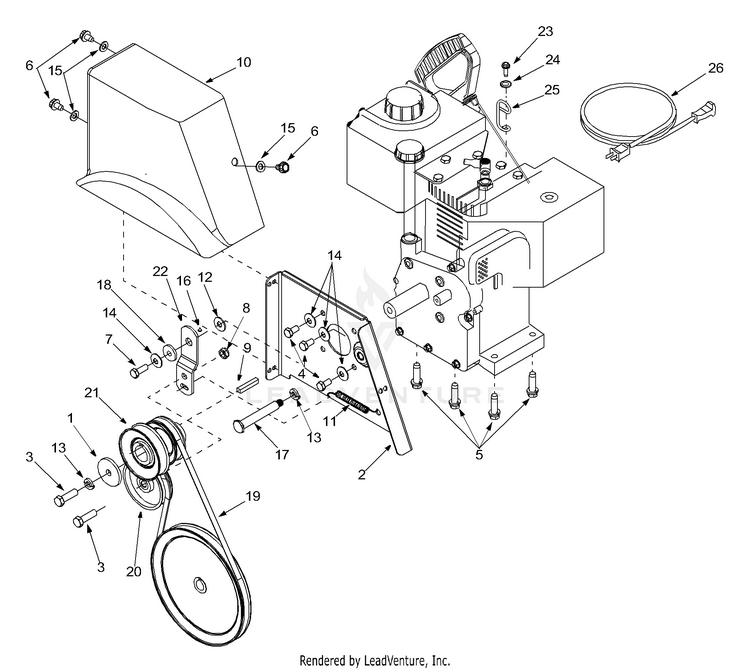

Belt Drive Assembly

...
...
1
FLAT WASHER .395ID 1 MTD-07386
...
2
BELT COVER BRACKET (POWDER BLACK) MTD-684-0123A-0637
...
3
Hex Screw 3/8-24 x 1.25" MTD-710-0191
...
4
Hex Screw 5/16-24 x .625" MTD-710-0237
...
5
TT Sems Screw MTD-710-0502A
...
6
TT Screw 5/16-18 x 0.5" MTD-710-0607
...
7
SCREW 5/16-24X.875 GR5 MTD-710-1245
...
8
Jam Nut MTD-712-0116
...
9
Key MTD-714-0118
...
10
Belt Cover MTD-931-2531
...
11
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
12
5/16 Washer MTD-736-0159
...
13
Lock Washer MTD-736-0217
...
14
Beleville Washer MTD-736-0242
...
15
Flat Washer MTD-736-0264
...
16
Grease MTD-737-3007
...
17
Shoulder Screw MTD-738-0215A
...
18
Shoulder Spacer MTD-748-0234
...
19
V-Belt 3/8 x 35.5 Lg. MTD-954-0131
...
20
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
21
Double Pulley MTD-756-0241B
...
22
DRIVE IDLER BRACKET MTD-784-5726
...
23
Hex Lock Nut: 1/4-20 MTD-712-0324
...
24
Cable Guide MTD-732-0705
...
25
Flat Washer MTD-736-0173
...
26
3-Prong Extension Cord MTD-929-0071B

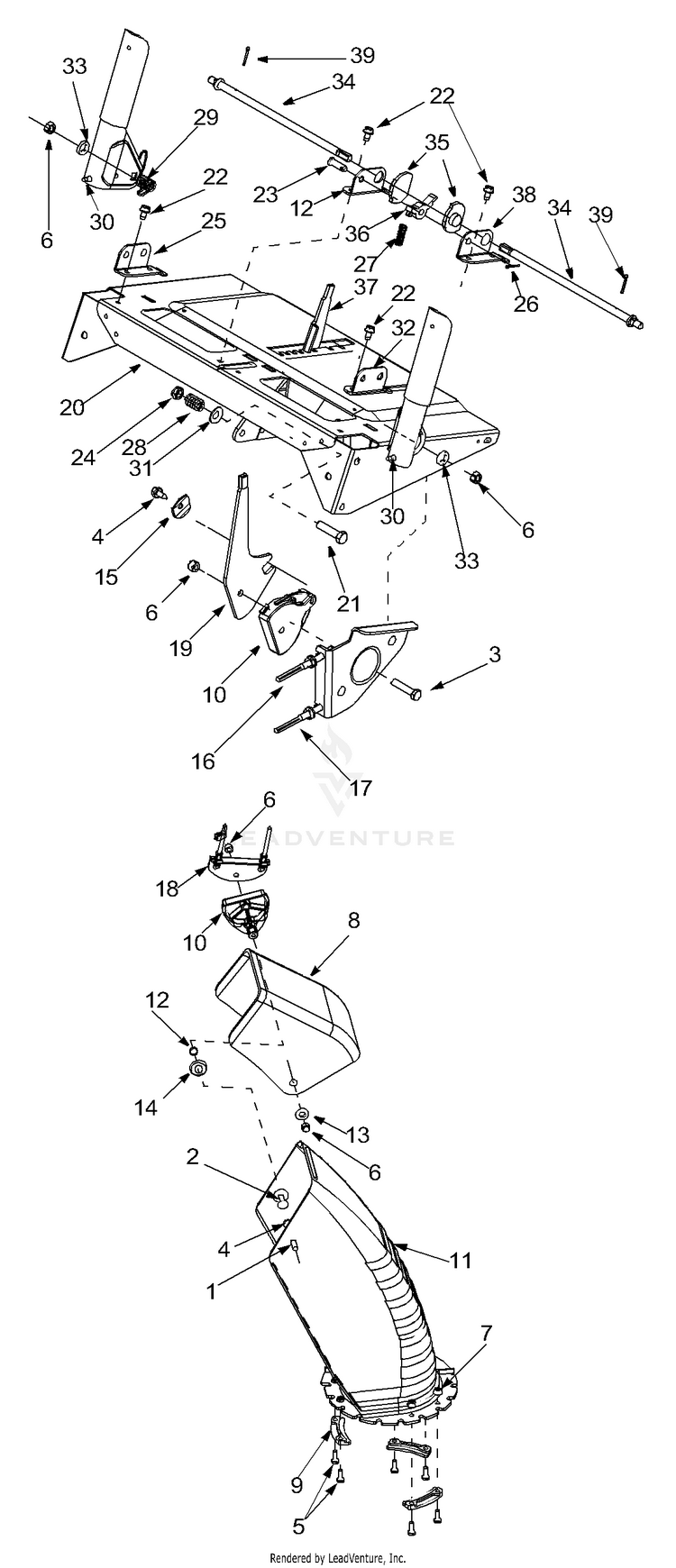

Chute & Controls Assembly

...
...
1
Carriage Screw MTD-710-0276
...
2
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
3
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
4
Hex AB Screw 1/4-14 x .625" MTD-710-0896
...
5
Hex Screw 1/4-20 x .75" MTD-710-3015
...
6
Hex Lock Nut MTD-712-0429
...
7
LOCK NUT 1/4 MTD-912-3027
...
8
Upper Chute MTD-731-0846C
...
9
Chute Flange Keeper MTD-731-0851A
...
10
Cable Guide: Chute Tilt MTD-731-1313C
...
11
Chute, Lower MTD-731-0903E
...
12
Brkt., Handle Support - RH MTD-784-5680-0637
...
13
5/16 Washer MTD-736-0159
...
14
Flat Washer MTD-736-0231
...
15
SPECIAL WASHER MTD-736-0506A
...
16
CABLE-CHUTE MTD-946-0902
...
17
CABLE W/CLIP-CHUTE MTD-946-0903
...
18
Cable Bracket MTD-784-5594
...
19
Handle, Chute Tilt MTD-784-5604A-0637
...
20
HANDLE PANEL ASSEMBLY MTD-684-0102A
...
21
Hex Bolt 3/8-24 x 1.5" MTD-710-0459A
...
22
TT Screw 1/4-20 x 0.5" MTD-710-0599
...
23
Clevis Pin MTD-711-0653
...
24
Jam Nut MTD-712-0116
...
25
Brkt., Handle Support - RH MTD-784-5682-0637
...
26
Cotter Pin MTD-714-0104
...
27
Spring MTD-732-0145
...
28
Spring MTD-732-0193
...
29
Torsion Spring MTD-732-0746
...
30
Rubber Bumper MTD-735-0199A
...
31
Bell Washer MTD-736-0105
...
32
Handle Suppt. Bracket 3/8 LH MTD-784-5681
...
33
Special Washer MTD-736-0509
...
34
Cam Rod MTD-747-0877
...
35
Cam: Handle Lock MTD-748-0362
...
36
Handle Lock Pawl MTD-948-0363
...
37
KIT-SHIFT HANDLE:S MTD-753-05395
...
38
HANDLE BRACKET (LH) MTD-784-5679-0637
...
39
Hairpin Clip MTD-714-0507

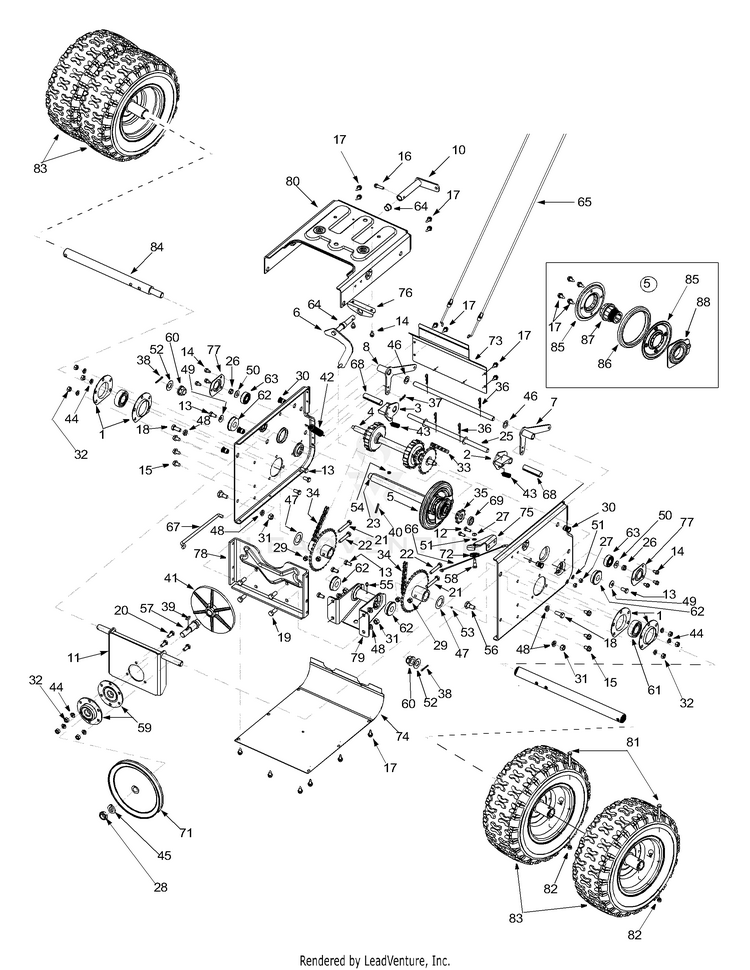

Drive Assembly

...
...
1
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
2
LEFT DRIVE DOGG ASSEMBLY MTD-918-0279A
...
3
Dogg Assy-Rgt D MTD-918-0280A
...
4
Shaft Assembly, Steering MTD-918-0282E
...
5
FRICTION WHEEL ASSEMBLY Items 17, 85, 86, 87, and 88 are part of this assembly. See inset box for illustration of break-down. MTD-918-0296B
...
6
Shift Rod Assembly MTD-684-0117
...
7
AUGER ACTUATOR BRACKET (POWDER BLACK) MTD-684-0118B-0637
...
8
ACTUATOR BRACKET (POWDER BLACK) MTD-684-0119B-0637
...
?9
32T SPROCKET ASSEMBLY MTD-684-0122
...
10
Shift Arm Adapter MTD-684-0161-0637
...
11
FRICTION DRIVE SUPPORT BRACKET MTD-684-0162
...
12
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
13
Hex Screw 5/16-18 x .625" MTD-710-0538
...
14
TT Screw 1/4-20 x 0.5" MTD-710-0599
...
15
TT Screw 5/16-18 x 0.625" MTD-710-0604A
...
16
TT Screw 1/4-20 x 1.0" MTD-710-0788
...
17
TT Screw 1/4-20 x .625" MTD-710-1652
...
18
Hex Screw 3/8-16 x .880" MTD-710-1879
...
19
Hex Screw 3/8-16 x .880" MTD-710-3001
...
20
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
21
Hex Screw 5/16-18 x 2.0" MTD-710-3103
...
22
Hex Screw 5/16-18 x 1.75" MTD-710-3180
...
23
HEX DRIVE SHAFT MTD-711-1191
...
?24
ACTUATOR SHAFT MTD-711-1193
...
25
DRIVE ACTUATOR SHAFT MTD-711-1194
...
26
Jam Nut MTD-712-0116
...
27
Hex Nut 1/4-28 MTD-712-0138
...
28
HEX NUT MTD-712-0221
...
29
Lock Nut MTD-712-0429
...
30
INSERT NUT 3/8-16 MTD-712-0717
...
31
Hex Nut 3/8-16 MTD-712-0798
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Chain: Endless MTD-713-0284
...
34
Chain MTD-713-0286
...
35
Sprocket MTD-713-0413
...
36
Hairpin Clip MTD-714-0101
...
37
Hairpin Clip MTD-714-0104
...
38
Cotter Pin MTD-714-0115
...
39
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
40
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
41
Plate, Drive MTD-917-0302
...
42
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121
...
43
Spring MTD-932-0209
...
44
Lock Wash. 5/16" I.D. MTD-936-0119
...
45
Lock Washer 5/8 MTD-736-0158
...
46
Flat Washer .53 x .93 x .050 MTD-736-0160
...
47
Flat Washer 1.030 x 1.620 x .030 MTD-736-0163
...
48
Lock Washer MTD-736-0217
...
49
Bell Washer MTD-736-0242
...
50
Flat Washer .406 x .875 x .059 MTD-736-0300
...
51
L-Wash. 1/4" I.D. MTD-936-0329
...
52
Fl-Wash. .640" I.D. x 1.24" O.D. MTD-736-0187
...
53
ARCTIC GREASE (NOT SERVICEABLE) MTD-737-0318-CRTG
...
54
Lubricant MTD-737-04027
...
55
GREASE FITTING MTD-937-3000
...
56
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
57
Spindle: drive Plate MTD-738-0279
...
58
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
59
BEARING HOUSING ASSEMBLY MTD-741-0163A
...
60
FLANGE BEARING MTD-941-0225
...
61
Bearing, Self Aligning MTD-941-04025
...
62
BALL BEARING MTD-941-0563
...
63
Ball Bearing MTD-741-0747
...
64
Flange Bushing MTD-741-0748
...
65
Steering Cable MTD-746-0949A
...
66
Auger Cable MTD-946-0951A
...
67
DRIVE CLUTCH ROD MTD-747-0973
...
68
SPLIT SPACER MTD-750-0903B
...
69
Spacer MTD-950-0997
...
?70
Spacer, .6725 x 1.125 x 2.48 MTD-750-1302B
...
71
Drive Pulley MTD-756-0344
...
72
Cable Roller MTD-756-0625
...
73
UPPER FRAME COVER MTD-784-0379
...
74
LOWER FRAME COVER MTD-784-0380
...
75
AUGER CABLE GUIDE MTD-784-0384-0637
...
76
SHIFT BRACKET MTD-784-0403-0637
...
77
Retainer Bracket: Bearing MTD-784-0404
...
78
FRAME SUPPORT BRACKET MTD-784-0406A-0637
...
79
AXLE SUPPORT BRACKET MTD-784-0407-0637
...
80
FRAME ASSEMBLY MTD-790-00016
...
81
Hex Screw 5/16-18 x 2" MTD-710-3103
...
82
Lock Nut MTD-712-0429
...
83
WHEEL ASSEMBLY 16 x 6 MTD-734-1593A
...
84
SHAFT-WHEEL AXLE 1 MTD-738-1137
...
85
Wheel Assembly Friction MTD-984-0042C
...
86
Rubber Only MTD-935-0243B
...
87
Wheel Assembly Friction MTD-984-0042C
...
88
Friction Wheel Bearing MTD-618-0063A

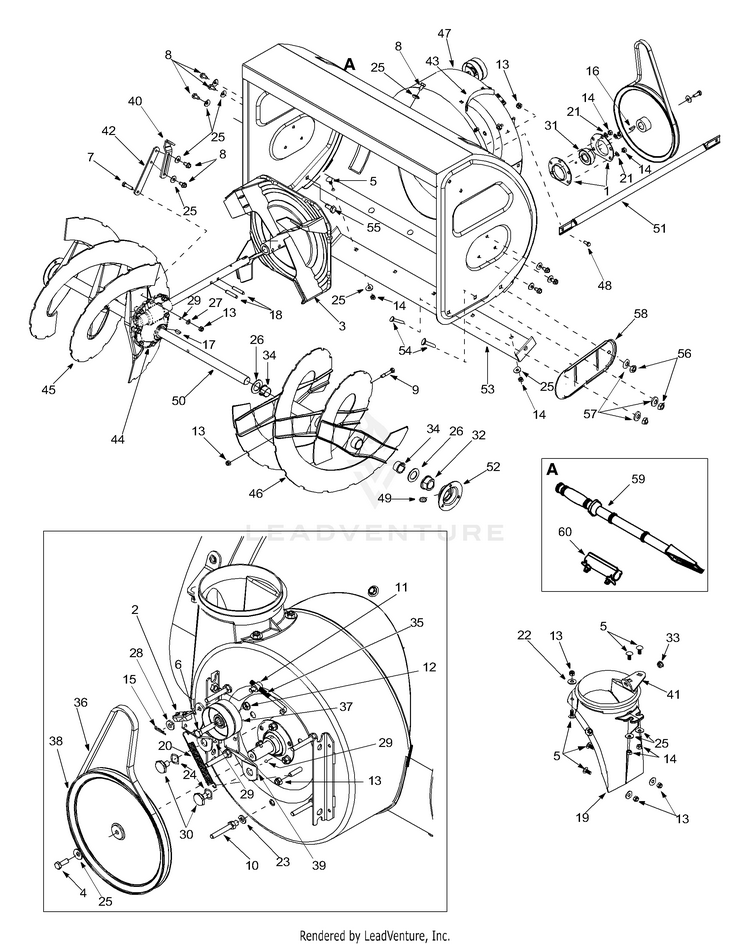

General Assembly

...
...
1
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
2
Bracket Assy-Br MTD-918-0281A
...
3
IMPELLER ASSEMBLY(POWDER BLACK) MTD-684-0090B-0637
...
4
SCREW 5/16-18 x .750 MTD-710-1880
...
5
Carriage Bolt 5/16-18 x .750" MTD-710-0451
...
6
Hex Screw, Special 3/8-24 x 1.5" MTD-710-0459A
...
7
Hex Screw 5/16-18 x 1.25" MTD-710-0528
...
8
Self-Tapp. Screw 5/16-18 x .625" MTD-710-0604A
...
9
Shear Bolt 5/16-18 x 1.75" MTD-710-0891
...
10
Stud MTD-711-0640
...
11
Engagement Ferru MTD-911-0677
...
12
Jam Nut 3/8-24 MTD-712-0116
...
13
Hex Lock Nut 5/16-18 MTD-712-0429
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
Hairpin Clip MTD-714-0104
...
16
Key MTD-714-0126
...
17
Key MTD-714-0135
...
18
Spiral Pin MTD-715-0118
...
19
Chute Adapter MTD-731-1696B
...
20
Extension Spring MTD-732-0858
...
21
Lock Wash. 5/16" I.D. MTD-936-0119
...
22
5/16 Washer MTD-736-0159
...
23
Lock Washer MTD-736-0169
...
24
Wave Washer MTD-736-0174
...
25
Beleville Washer MTD-736-0242
...
26
Flat Washer MTD-736-0250
...
27
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
28
FLAT WASHER MTD-936-3008
...
29
ARCTIC GREASE (NOT SERVICEABLE) MTD-737-0318-CRTG
...
30
Shoulder Screw MTD-738-0281
...
31
Bearing-Self-Al MTD-941-04024
...
32
Flange Bearing w/ Flats MTD-941-0170
...
33
BUSHING .380 ID MTD-941-0475
...
34
Flange Bushing MTD-741-0494
...
35
AUGER IDLER ROD MTD-747-0980A
...
36
V-Belt MTD-954-0222A
...
37
Flat Idler MTD-756-0178
...
38
Pulley MTD-756-0243
...
39
Bracket, Auger Idler MTD-784-0385D
...
40
Gear Hsg. Support Brkt. MTD-784-5076-0637
...
41
BRACKET-CHUTE CRAN MTD-784-5123-0637
...
42
PLATE-SUPPORT MTD-784-5710-0637
...
43
CHUTE BRACKET MTD-784-5711-0637
...
44
AUGER GEARBOX ASSEMBLY MTD-618-0436
...
45
45" SPIRAL ASSEMBLY (RH)(POWDER BLACK) MTD-684-04196-0637
...
46
45" SPIRAL ASSEMBLY (LH) MTD-684-04197
...
47
45" HOUSING ASSEMBLY MTD-684-0155A
...
48
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
49
GREASE FITTING MTD-937-3000
...
50
Spiral Axle MTD-738-0492
...
51
SUPPORT TUBE MTD-749-1117
...
52
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
53
Shave Plate MTD-790-00280-0637
...
54
Carriage Screw MTD-710-0389
...
55
Carriage Bolt MTD-710-3168
...
56
Hex Nut 3/8-16 MTD-712-0798
...
57
Bell Washer MTD-736-0105
...
58
Skid Shoe MTD-784-5697
...
59
Snow Removal Tool MTD-931-2643
...
60
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
61
Cable Tie (Not shown) MTD-725-0157

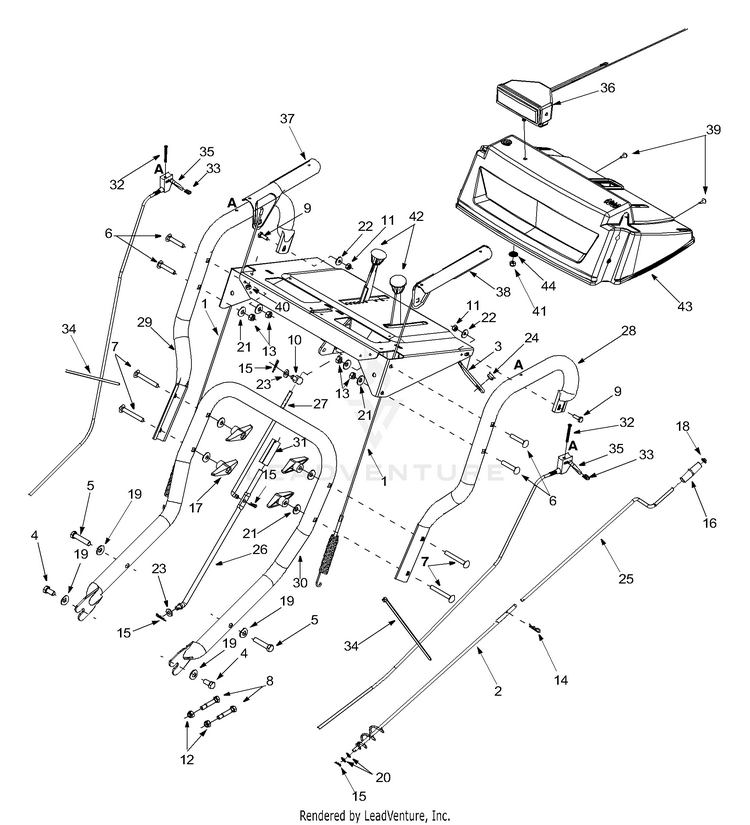

Handle & Chute

...
...
1
Cable Assembly: Auger/Drive MTD-646-0012
...
2
CHUTE CRANK ASSEMBLY(POWDER BLACK) MTD-684-0053B-0637
...
3
Bracket, Chute Crank MTD-705-5266-0637
...
4
Hex Screw 3/8-16 x .880" MTD-710-1879
...
5
SCREW 3/8-16 x 2.00 GR5 MTD-710-04682
...
6
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
7
Carriage Bolt 5/16-18 x 2.5" MTD-710-0572
...
8
Shear Bolt 5/16-18 x 1.75" MTD-710-0891
...
9
Hex Screw 1/4-20 x .75" MTD-710-3015
...
10
Engagement Ferru MTD-911-0677
...
11
HEX NUT 1/4-20 MTD-912-0287
...
12
Hex Lock Nut MTD-712-0429
...
13
HEX NUT 5/16-18 MTD-712-3010
...
14
Hairpin Clip MTD-714-0101
...
15
Hairpin Clip MTD-714-0104
...
16
Chute Crank Knob MTD-720-0201A
...
17
Knob MTD-720-0284
...
18
Push Cap MTD-726-0100
...
19
Bell Washer MTD-736-0105
...
20
Flat Washer MTD-736-0185
...
21
Beleville Washer MTD-736-0242
...
22
SPRING WASHER BELL MTD-736-0270
...
23
FLAT WASHER MTD-736-0275
...
24
BUSHING .380 ID MTD-941-0475
...
25
Rod, Chute Crank MTD-747-0624-0637
...
26
Rod, Lower Shift MTD-747-0983A
...
27
Upper Shift Rod MTD-747-0997
...
28
UPPER HANDLE (LH) (POWDER BLACK) MTD-749-0989A-0637
...
29
Upper Handle RH MTD-749-0990A
...
30
LOWER HANDLE MTD-749-0991
...
31
Rod-Clutch Lock MTD-950-0963
...
32
Oval C-Sunk Screw MTD-710-1625
...
33
FLAT WELD NUT MTD-712-0127
...
34
Cable Tie MTD-725-0157
...
35
Cable Assembly, Trigger MTD-746-0950A
...
36
TOP MOUNT LIGHT ASSEMBLY MTD-625-0007AP
...
xx
Lamp MTD-925-1658
...
xx
Lens/Lamp Assembly Housing MTD-925-1672
...
37
CLUTCH HANDLE(RH) MTD-705-5218
...
38
CLUTCH HANDLE(LH) MTD-705-5219
...
39
Special Screw, #10-16 x .625 MTD-710-04669
...
40
Hex Sems Nut MTD-712-0271
...
41
Hex Lock Nut MTD-712-0429
...
42
Knob MTD-920-0232
...
43
HANDLE PANEL ASSEMBLY MTD-684-0102A
...
44
5/16 Washer MTD-736-0159
