Yard Man 31AE993I401 (2003) Snow Thrower

Model: 31AE993I401 (2003)

Save Part Not Listed?
product name

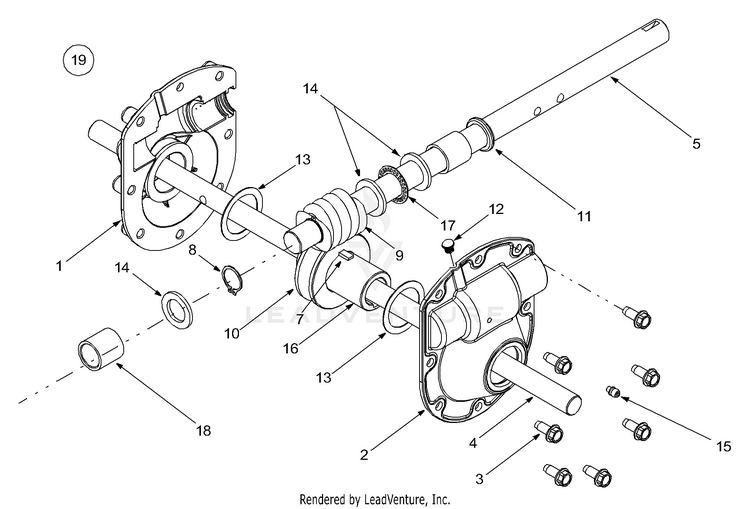

Auger Gearbox Assembly

...
...
1
GEAR HOUSING ASSEMBLY (RH) MTD-918-0246
...
2
Hsg Assy Auger LH (Inc. 40 & 70) MTD-918-0247
...
3
Screw, 5/16-18 x 0.75 MTD-710-1260A
...
4
24"AUGER SHAFT MTD-711-0908A
...
5
Shaft, Auger Drive MTD-711-1133
...
?6
Key, Hi Pro, 3/16 x 3/4 MTD-714-0126
...
7
#91 Woodruff Key 1/4 x 3/4 MTD-714-0135
...
8
Snap Ring .875 Dia. MTD-716-0111
...
9
Double Threaded Worm-L.H. MTD-917-0299
...
10
Double Threaded Worm Gear MTD-917-1425
...
11
Oil Seal .875" I.D. MTD-921-0145
...
12
Plug, 1/4 x .437 MTD-721-0325
...
13
FLAT WASHER MTD-736-0266
...
14
Washer, Flat, .88 x 1.38 MTD-736-0291
...
15
GREASE FITTING MTD-937-3000
...
16
Shaft, Worm Gear MTD-738-0275
...
17
Bearing, Thrust .877 MTD-741-0184
...
18
Sleeve Brg. .875 I.D. MTD-941-0217
...
19
AUGER GEARBOX ASSEMBLY MTD-618-0436

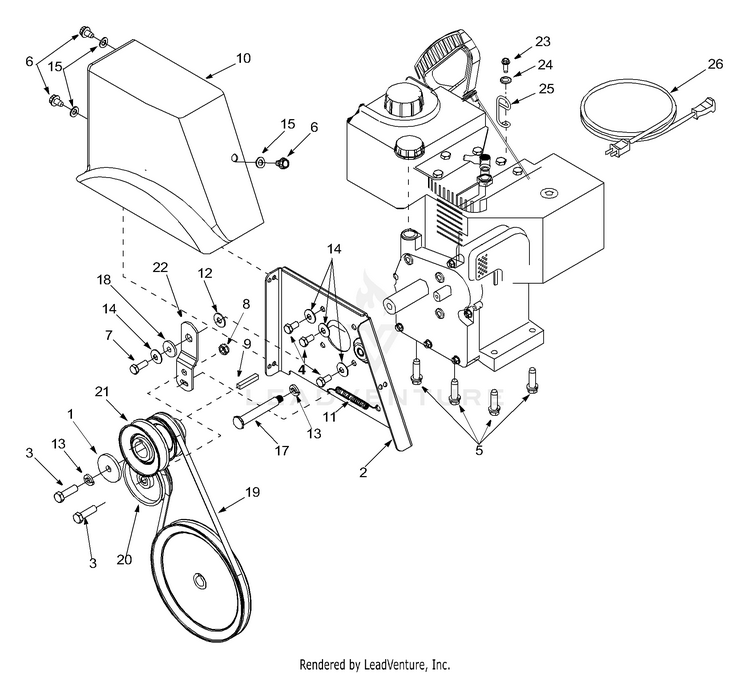

Belt Drive Assembly

...
...
1
FLAT WASHER .395ID 1 MTD-07386
...
2
BELT COVER BRACKET (POWDER BLACK) MTD-684-0123A-0637
...
3
Hex Screw 3/8-24 x 1.25" MTD-710-0191
...
4
Hex Screw 5/16-24 x .625" MTD-710-0237
...
5
TT Sems Screw MTD-710-0502A
...
6
TT Screw 5/16-18 x 0.5" MTD-710-0607
...
7
SCREW 5/16-24 x .875 GR5 MTD-710-1245A
...
8
Jam Nut MTD-712-0116
...
9
Key MTD-714-0118
...
10
Belt Cover MTD-931-2531
...
11
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
12
5/16 Washer MTD-736-0159
...
13
Lock Washer MTD-736-0217
...
14
Beleville Washer MTD-736-0242
...
15
Flat Washer MTD-736-0264
...
17
Shoulder Screw MTD-738-0215A
...
18
Shoulder Spacer MTD-748-0234
...
19
V-Belt 3/8 x 35.5 Lg. MTD-954-0131
...
20
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
21
Double Pulley MTD-756-0241B
...
22
DRIVE IDLER BRACKET MTD-784-5726
...
23
Hex Lock Nut: 1/4-20 MTD-712-0324
...
24
Cable Guide MTD-732-0705
...
25
Flat Washer MTD-736-0173
...
26
3-Prong Extension Cord MTD-929-0071B

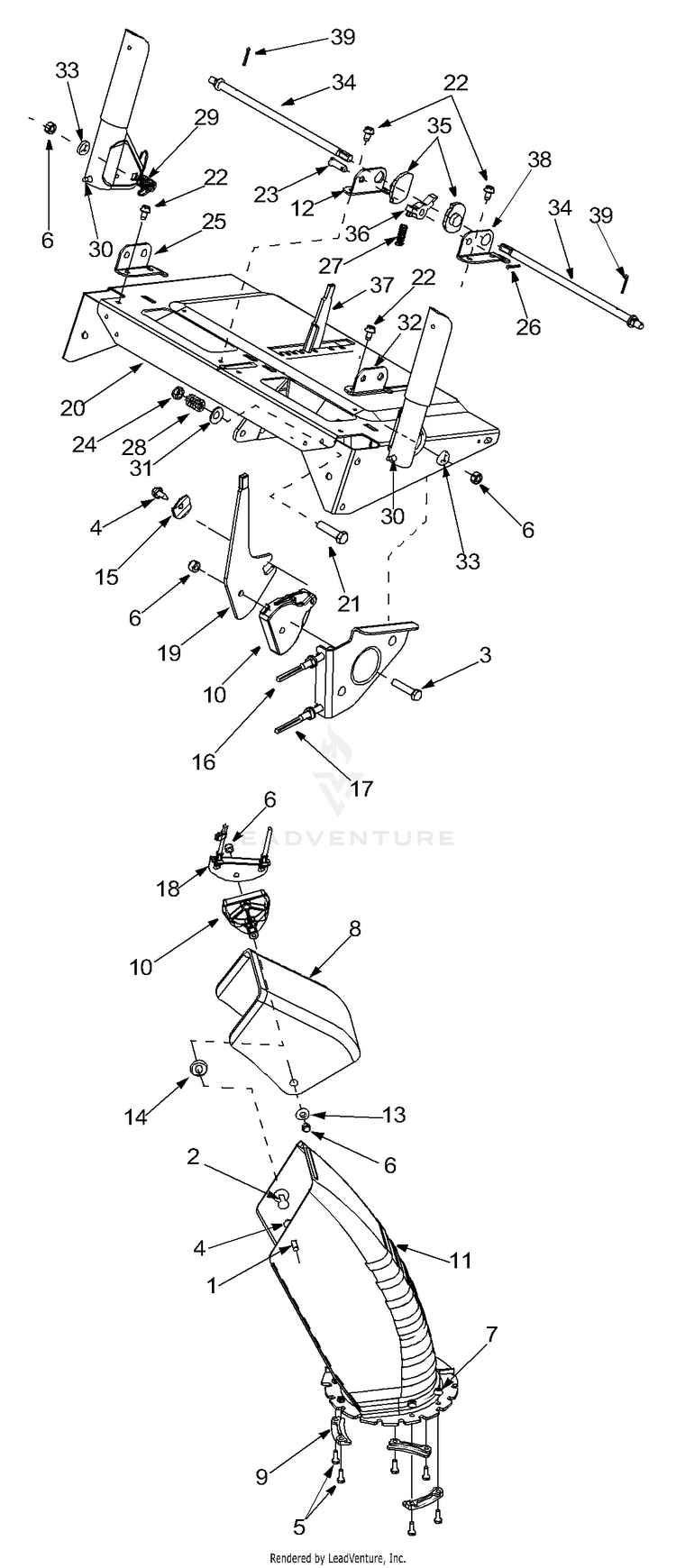

Chute & Controls Assembly

...
...
1
Carriage Screw MTD-710-0276
...
2
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
3
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
4
Hex AB Screw 1/4-14 x .625" MTD-710-0896
...
5
Hex Screw 1/4-20 x .75" MTD-710-3015
...
6
Hex Lock Nut MTD-712-0429
...
7
LOCK NUT 1/4 MTD-912-3027
...
8
Upper Chute MTD-731-0846C
...
9
Chute Flange Keeper MTD-731-0851A
...
10
Cable Guide: Chute Tilt MTD-731-1313C
...
11
Chute, Lower MTD-731-0903E
...
12
Brkt., Handle Support - RH MTD-784-5680-0637
...
13
5/16 Washer MTD-736-0159
...
14
Flat Washer MTD-736-0231
...
15
SPECIAL WASHER MTD-736-0506A
...
16
CABLE-CHUTE MTD-946-0902
...
17
CABLE W/CLIP-CHUTE MTD-946-0903
...
18
Cable Bracket MTD-784-5594
...
19
Handle, Chute Tilt MTD-784-5604A-0637
...
20
HANDLE PANEL ASSEMBLY MTD-684-0102A
...
21
Hex Bolt 3/8-24 x 1.5" MTD-710-0459A
...
22
TT Screw 1/4-20 x 0.5" MTD-710-0599
...
23
Clevis Pin MTD-711-0653
...
24
Jam Nut MTD-712-0116
...
25
Brkt., Handle Support - RH MTD-784-5682-0637
...
26
Cotter Pin MTD-714-0104
...
27
Spring MTD-732-0145
...
28
Spring MTD-732-0193
...
29
Torsion Spring MTD-732-0746
...
30
Rubber Bumper MTD-735-0199A
...
31
Bell Washer MTD-736-0105
...
32
Handle Suppt. Bracket 3/8 LH MTD-784-5681
...
33
Special Washer MTD-736-0509
...
34
Cam Rod MTD-747-0877
...
35
Cam: Handle Lock MTD-748-0362
...
36
Handle Lock Pawl MTD-948-0363
...
37
KIT-SHIFT HANDLE:S MTD-753-05395
...
38
HANDLE BRACKET (LH) MTD-784-5679-0637
...
39
Cotter Pin MTD-714-0507

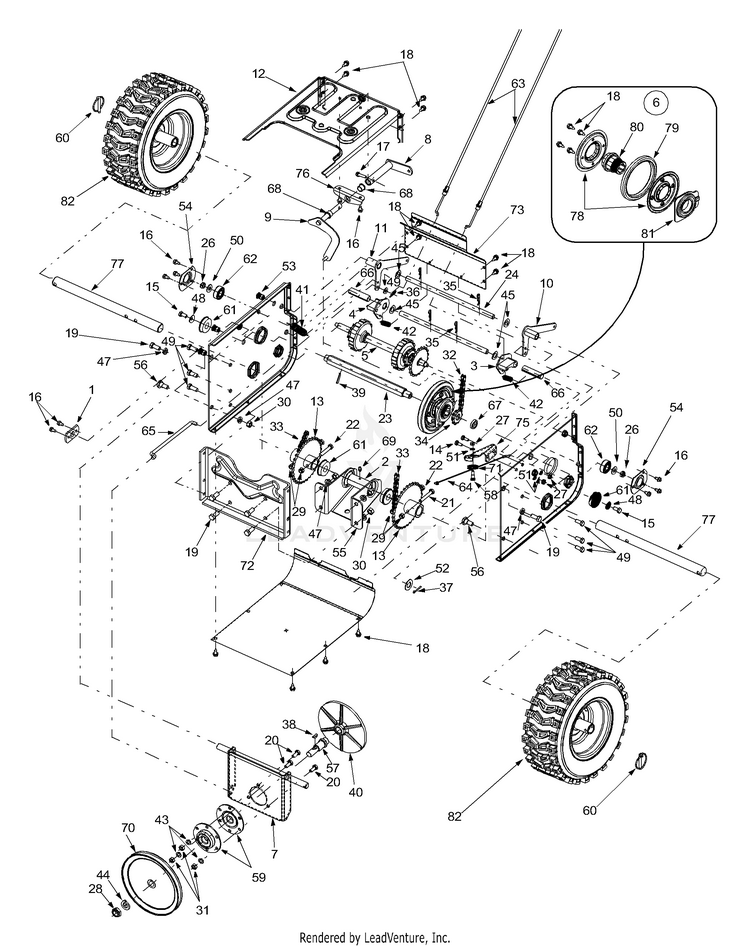

Drive Assembly

...
...
1
BRACKET-PIVOT AXLE MTD-05523
...
2
Spacer, .6725 x 1.125 x 2.48 MTD-750-1302B
...
3
LEFT DRIVE DOGG ASSEMBLY MTD-918-0279A
...
4
Dogg Assy-Rgt D MTD-918-0280A
...
5
Shaft Assembly, Steering MTD-918-0282E
...
6
FRICTION WHEEL ASSEMBLY MTD-918-0296B
...
7
FRICTION DRIVE SUPPORT BRACKET MTD-684-0162
...
8
Shift Arm Adapter MTD-684-0161-0637
...
9
Shift Rod Assembly MTD-684-0117
...
10
AUGER ACTUATOR BRACKET (POWDER BLACK) MTD-684-0118B-0637
...
11
ACTUATOR BRACKET (POWDER BLACK) MTD-684-0119B-0637
...
12
FRAME ASSEMBLY MTD-684-0120
...
13
32T SPROCKET ASSEMBLY MTD-684-0122
...
14
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
15
Hex Screw, 5/16-18 x .625" MTD-710-0538
...
16
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
17
Self-tapping Screw, 1/4-20 x 1" MTD-710-0788
...
18
Self-tapping Screw, 1/4-20 x .625" MTD-710-1652
...
19
Hex Screw 3/8-16 x .880" MTD-710-3001
...
20
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
21
Hex Screw 5/16-18 x 2" MTD-710-3103
...
22
Hex Screw 5/16-18 x 1.75" MTD-710-3180
...
23
HEX DRIVE SHAFT MTD-711-1191
...
24
ACTUATOR SHAFT MTD-711-1193
...
?25
DRIVE ACTUATOR SHAFT MTD-711-1194
...
26
Lock Nut MTD-712-0116
...
27
Hex Nut 1/4-28 MTD-712-0138
...
28
HEX NUT MTD-712-0221
...
29
Hex Lock Nut MTD-712-0429
...
30
Hex Nut 3/8-16 MTD-712-0798
...
31
HEX NUT 5/16-18 MTD-712-3010
...
32
Chain MTD-713-0284
...
33
Chain MTD-713-0286
...
34
Sprocket MTD-713-0413
...
35
Hairpin Clip MTD-714-0101
...
36
Hairpin Clip MTD-714-0104
...
37
Cotter Pin MTD-714-0115
...
38
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
39
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
40
Plate, Drive MTD-917-0302
...
41
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121
...
42
Spring MTD-932-0209
...
43
Lock Wash. 5/16" I.D. MTD-936-0119
...
44
Lock Washer 5/8 MTD-736-0158
...
45
Flat Washer MTD-736-0160
...
?46
Flat Washer MTD-736-0163
...
47
Lock Washer MTD-736-0217
...
48
Bell Washer MTD-736-0242
...
49
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
50
Flat Washer MTD-736-0300
...
51
L-Wash. 1/4" I.D. MTD-936-0329
...
52
Fl-Wash. .640" I.D. x 1.24" O.D. MTD-736-0187
...
53
INSERT NUT 3/8-16 MTD-712-0717
...
54
Bearing Retainer Bracket MTD-784-0404
...
55
AXLE SUPPORT BRACKET MTD-784-0407-0637
...
56
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
57
Spindle: Drive Plate MTD-738-0279
...
58
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
59
BEARING HOUSING ASSEMBLY MTD-741-0163A
...
60
Click Pin MTD-714-0151A
...
61
BALL BEARING MTD-941-0563
...
62
Ball Bearing MTD-741-0747
...
63
Steer Cable MTD-746-0949A
...
64
Auger Cable MTD-946-0951A
...
65
DRIVE CLUTCH ROD MTD-747-0973
...
66
SPLIT SPACER MTD-750-0903B
...
67
Spacer MTD-950-0997
...
68
Flange Bearing MTD-741-0748
...
69
GREASE FITTING MTD-937-3000
...
70
Drive Pulley MTD-756-0344
...
71
Roller Cable MTD-756-0625
...
72
FRAME SUPPORT BRACKET MTD-784-0406A-0637
...
73
UPPER FRAME COVER MTD-784-0379
...
?74
LOWER FRAME COVER MTD-784-0380
...
75
AUGER CABLE GUIDE MTD-784-0384-0637
...
76
SHIFT BRACKET MTD-784-0403-0637
...
77
AXLE-1.0"OD x 14.1 MTD-738-0975
...
78
Wheel Assembly Friction MTD-984-0042C
...
79
Rubber Only MTD-935-0243B
...
80
Wheel Assembly Friction MTD-984-0042C
...
81
Friction Wheel Bearing MTD-618-0063A
...
82
WHEEL ASSEMBLY 16 x 6 MTD-734-1593A
...
xx
TIRE-SNOW HOG-16X6 MTD-734-1525
...
xx
RIM ASSEMBLY MTD-734-1124A
...
xx
TUBELESS VALVE MTD-934-0255

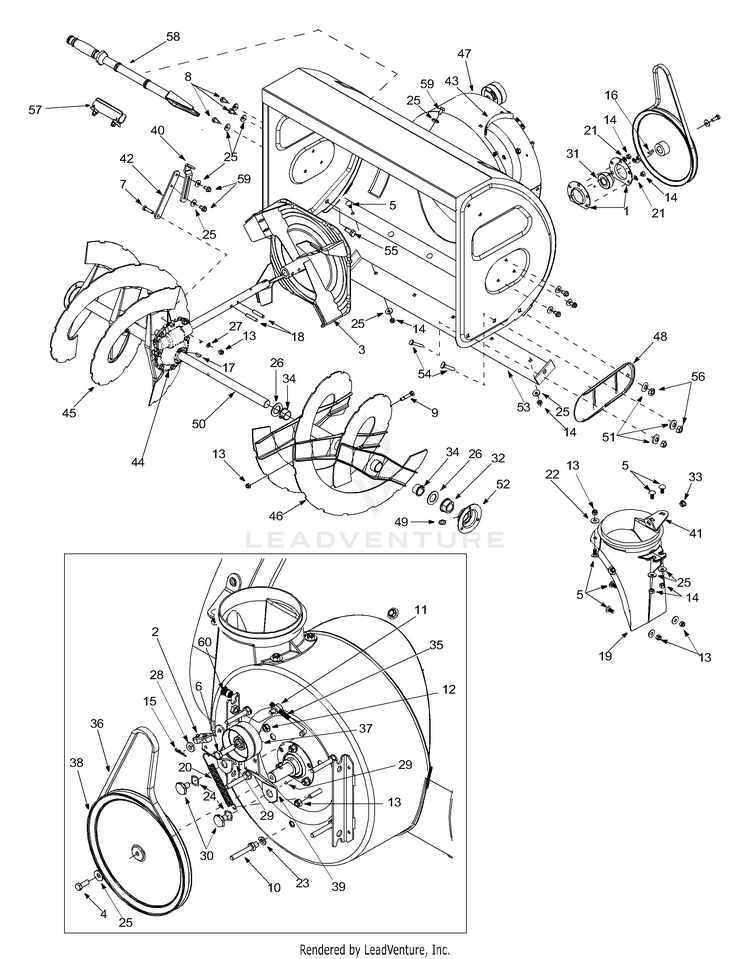

General Assembly

...
...
1
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
2
Bracket Assy-Br MTD-918-0281A
...
3
IMPELLER ASSEMBLY(POWDER BLACK) MTD-684-0090B-0637
...
4
SCREW 5/16-18 x .750 MTD-710-1880
...
5
Carriage Bolt 5/16-18 x .750" MTD-710-0451
...
6
Hex Screw, Special 3/8-24 x 1.5" MTD-710-0459A
...
7
Hex Screw 5/16-18 x 1.25" MTD-710-0528
...
8
Self-Tapp. Screw 5/16-18 x .625" MTD-710-0604A
...
9
Shear Bolt 5/16-18 x 1.75" MTD-710-0891
...
10
Stud MTD-711-0640
...
11
Engagement Ferru MTD-911-0677
...
12
Jam Nut 3/8-24 MTD-712-0116
...
13
Hex Lock Nut 5/16-18 MTD-712-0429
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
Hairpin Clip MTD-714-0104
...
16
Key MTD-714-0126
...
17
Key MTD-714-0135
...
18
Spiral Pin MTD-715-0118
...
19
Chute Adapter MTD-731-1696B
...
20
Extension Spring MTD-732-0858
...
21
Lock Wash. 5/16" I.D. MTD-936-0119
...
22
5/16 Washer MTD-736-0159
...
23
Lock Washer MTD-736-0169
...
24
Wave Washer MTD-736-0174
...
25
Beleville Washer MTD-736-0242
...
26
Flat Washer MTD-736-0250
...
27
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
28
FLAT WASHER MTD-936-3008
...
29
UNKNOWN MTD-NA
...
30
Shoulder Screw MTD-738-0281
...
31
Bearing-Self-Al MTD-941-04024
...
32
Flange Bearing w/ Flats MTD-941-0170
...
33
BUSHING .380 ID MTD-941-0475
...
34
Flange Bushing MTD-741-0494
...
35
AUGER IDLER ROD MTD-747-0980A
...
36
V-Belt MTD-954-0222A
...
37
Flat Idler MTD-756-0178
...
38
Pulley MTD-756-0243
...
39
Bracket, Auger Idler MTD-784-0385D
...
40
Gear Hsg. Support Brkt. MTD-784-5076-0637
...
41
BRACKET-CHUTE CRAN MTD-784-5123-0637
...
42
PLATE-SUPPORT MTD-784-5710-0637
...
43
CHUTE BRACKET MTD-784-5711-0637
...
44
AUGER GEARBOX ASSEMBLY MTD-618-0436
...
45
SPIRAL ASSEMBLY (RH) MTD-705-5210A
...
46
33" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04195-0637
...
47
33" AUGER HOUSING MTD-684-0093B
...
48
Slide Shoe MTD-784-5697
...
49
GREASE FITTING MTD-937-3000
...
50
SPIRAL AXLE MTD-738-0491
...
51
Bell Washer MTD-736-0105
...
52
Bearing Housing MTD-05848B
...
53
Shave Plate MTD-784-5714B-0637
...
54
Carriage Screw MTD-710-0389
...
55
Carriage Bolt MTD-710-3168
...
56
Hex Nut 3/8-16 MTD-712-0798
...
57
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
58
Snow Removal Tool MTD-931-2643
...
59
Screw, 5/16-18 x .75 MTD-710-1260A
...
60
INSERT NUT 3/8-16 MTD-712-0717

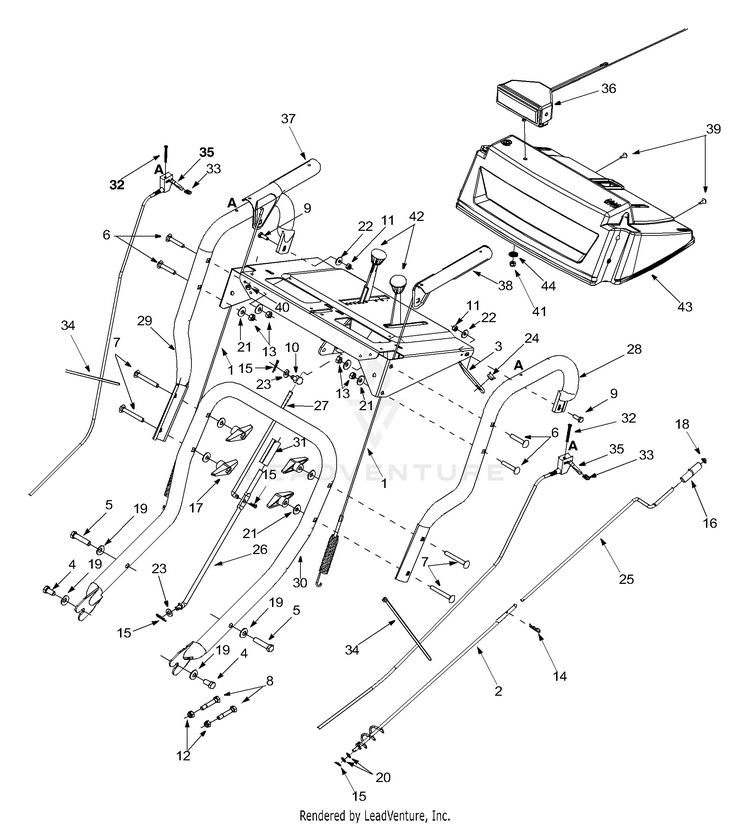

Handle & Chute

...
...
1
Cable Assembly: Auger/Drive MTD-646-0012
...
2
CHUTE CRANK ASSEMBLY(POWDER BLACK) MTD-684-0053B-0637
...
3
Bracket, Chute Crank MTD-705-5266-0637
...
4
Hex Screw 3/8-16 x .88" MTD-710-1879
...
5
SCREW 3/8-16 x 2.00 GR5 MTD-710-04682
...
6
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
7
Carriage Bolt 5/16-18 x 2.5" MTD-710-0572
...
8
Shear Bolt 5/16-18 x 1.75" MTD-710-0891
...
9
Hex Screw 1/4-20 x .75" MTD-710-3015
...
10
Engagement Ferru MTD-911-0677
...
11
HEX NUT 1/4-20 MTD-912-0287
...
12
Hex Lock Nut MTD-712-0429
...
13
HEX NUT 5/16-18 MTD-712-3010
...
14
Hairpin Clip MTD-714-0101
...
15
Hairpin Clip MTD-714-0104
...
16
Chute Crank Knob MTD-720-0201A
...
17
Knob MTD-720-0284
...
18
Push Cap MTD-726-0100
...
19
Bell Washer MTD-736-0105
...
20
Flat Washer MTD-736-0185
...
21
Beleville Washer MTD-736-0242
...
22
SPRING WASHER BELL MTD-736-0270
...
23
FLAT WASHER MTD-736-0275
...
24
BUSHING .380 ID MTD-941-0475
...
25
Rod, Chute Crank MTD-747-0624-0637
...
26
Rod, Lower Shift MTD-747-0983A
...
27
Upper Shift Rod MTD-747-0997
...
28
UPPER HANDLE (LH) (POWDER BLACK) MTD-749-0989A-0637
...
29
Upper Handle RH MTD-749-0990A
...
30
LOWER HANDLE MTD-749-0991
...
31
Rod-Clutch Lock MTD-950-0963
...
32
Oval C-Sunk Screw MTD-710-1625
...
33
FLAT WELD NUT MTD-712-0127
...
34
Cable Tie MTD-725-0157
...
35
Cable Assembly, Trigger MTD-746-0950A
...
36
TOP MOUNT LIGHT ASSEMBLY MTD-625-0007AP
...
xx
Lamp MTD-925-1658
...
xx
Lens/Lamp Assembly Housing MTD-925-1672
...
37
CLUTCH HANDLE(RH) MTD-705-5218
...
38
CLUTCH HANDLE(LH) MTD-705-5219
...
39
Special Screw, #10-16 x .625 MTD-710-04669
...
40
Hex Sems Nut MTD-712-0271
...
41
Hex Lock Nut MTD-712-0429
...
42
Knob MTD-920-0232
...
43
HANDLE PANEL MTD-731-1873A
...
44
5/16 Washer MTD-736-0159
...
xx
LABEL.YARDMAN FRT.HANDLE PANEL MTD-777D00133
...
xx
LABEL-ENGINE 13HP MTD-777D00181
...
xx
LABEL-AUGER HSG YA MTD-777D05319
...
xx
LABEL.SNW.3STY.PNL.STEER.Y.M.RG MTD-777I20412
...
xx
LABEL-STEERABLE (LH) MTD-777I20747
...
xx
LABEL-CHUTE MTD-777S32065
...
xx
LABEL-AUGER HOUSIN MTD-777S32066
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
