Yard Man 31AE993I401 (2000) Snow Thrower

Model: 31AE993I401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

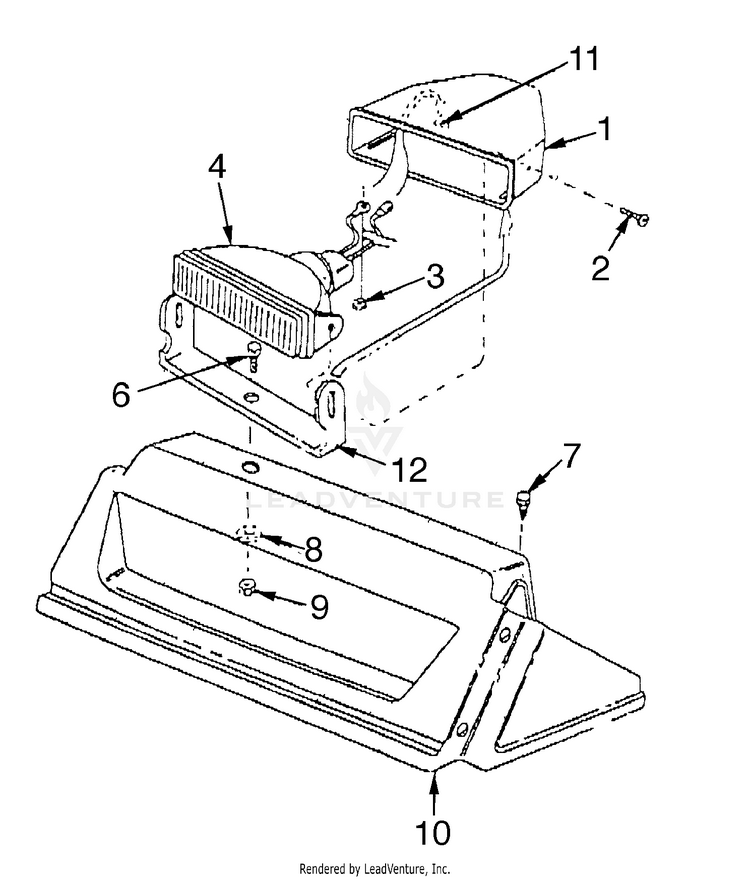

Lamp Assembly

...
...
1
Halogen Lamp Housing MTD-731-1364
...
2
Phillips Pan Head Screw M 4 x 16 MTD-710-1240
...
3
Hex Sems Nut 1/4-20 MTD-712-0271
...
4
LAMP W/LENS ASSEMBLY MTD-925-1669P
...
xx
Halogen Light Harness MTD-929-0059
...
xx
Lamp MTD-925-1658
...
6
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
7
Special Screw, #10-16 x .625 MTD-710-04669
...
8
Fl-Wash .344 ID x .88 OD MTD-736-0159
...
9
Hex Ins L-Nut 5/16-18 MTD-712-0429
...
10
HANDLE PANEL MTD-731-1873A
...
11
GROMMET MTD-735-0225
...
12
LAMP MOUNT BRACKET MTD-705-5217
