Yard Man 31AE993I401 (2000) Snow Thrower

Model: 31AE993I401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

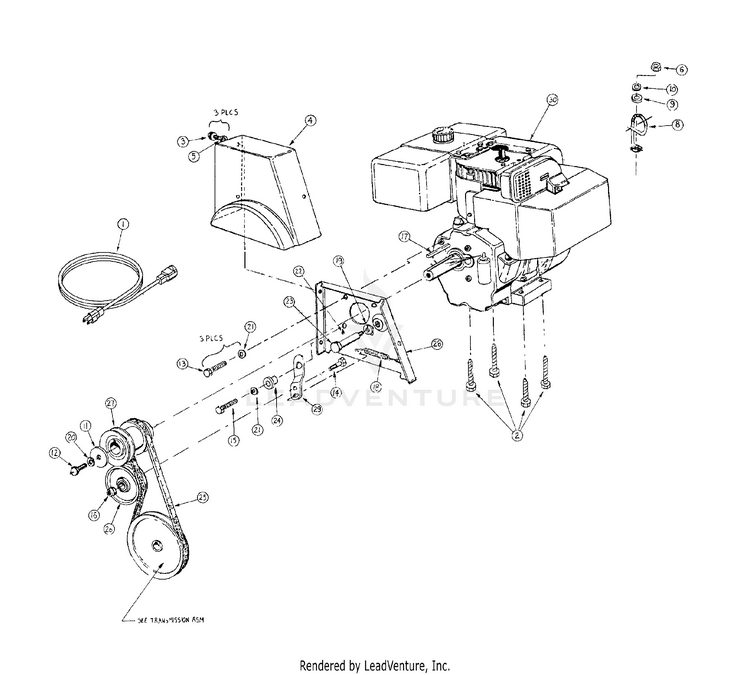

Engine & V-Belt

...
...
1
3-Prong Extension Cord MTD-929-0071B
...
2
Hex L-wash Tt Scr 3/8-16 X 1.25 MTD-710-0502A
...
3
Hwhd 5/16-18 X 1/2 Thd Roll Zn MTD-710-0607
...
4
Belt Cover - Pierced MTD-731-0321-1
...
5
Fl-wash .344 ID X .625 OD X .063 MTD-736-0264
...
6
HEX NUT MTD-712-3006
...
8
Cable Control Wire MTD-732-0705
...
9
Fl-Wash .28 ID x .74 OD x .063 MTD-736-0173
...
10
L-Wash. 1/4" I.D. MTD-936-0329
...
11
FLAT WASHER .395ID 1 MTD-07386
...
12
Scr Hex Cap 3/8-24 X 1. Gd 8 MTD-710-0191
...
13
Scr Hex Cap 5/16-24 X .62 Gd 5 MTD-710-0237
...
14
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
15
SCREW 5/16-24X.875 GR5 MTD-710-1245
...
16
Hex Ins L-nut 3/8 - 24 MTD-712-0116
...
17
Square Key 1/4 X 1.5 MTD-714-0118
...
18
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
19
L-wash 3/8 MTD-736-0169
...
20
Lock Washer 3/8 Heavy MTD-736-0217
...
21
Bell Wash .345 ID X .88 OD X .060 MTD-736-0242
...
22
Grease - Sunaplex 781 - 1/10 MTD-737-0157
...
23
Shoulder Scr .498 Dia X 3.0 Lg MTD-738-0215A
...
24
Shldr Spcr .50 Dia X .14 Shldr MTD-748-0234
...
25
V-Belt 3/8 x 35.5 Lg. MTD-954-0131
...
26
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
27
Dbl Engine Pulley 3.25 & 2.75 MTD-756-0241B
...
28
BELT COVER BRACKET (POWDER BLACK) MTD-684-0123A-0637
...
29
DRIVE IDLER BRACKET MTD-784-5726
...
30
Engine MTD-NA
