Yard Man 31AE993I401 (2000) Snow Thrower

Model: 31AE993I401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

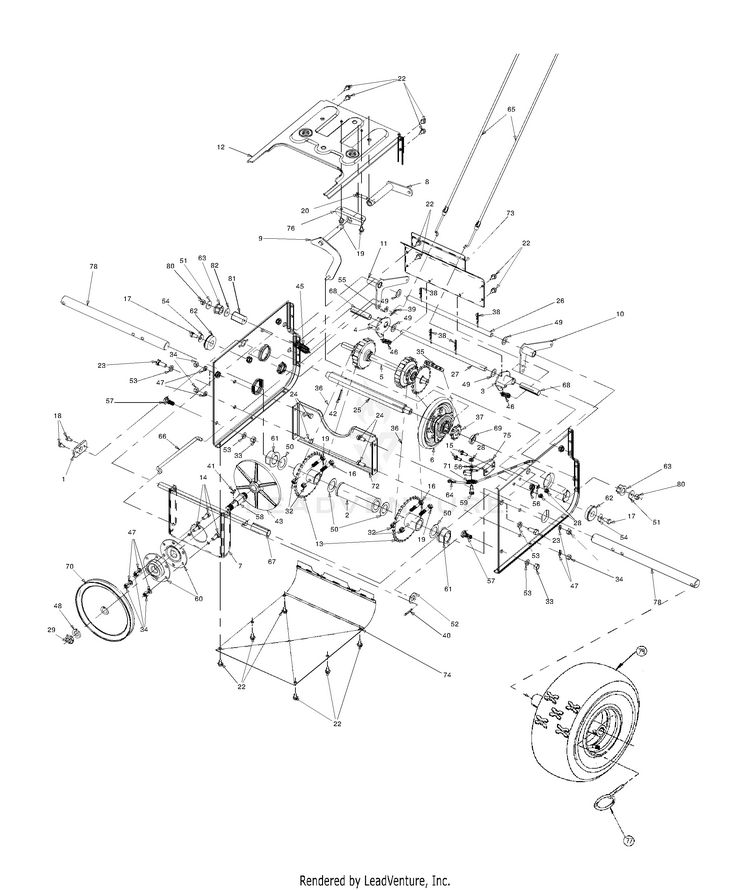

Frame Assembly

...
...
1
BRACKET-PIVOT AXLE MTD-05523
...
2
SLEEVE BUSHING ASSEMBLY MTD-918-0278
...
3
LEFT DRIVE DOGG ASSEMBLY MTD-918-0279A
...
4
Dogg Assy-Rgt D MTD-918-0280A
...
5
Shaft Assembly, Steering MTD-918-0282E
...
6
FRICTION WHEEL ASSEMBLY MTD-918-0296B
...
xx
FRICTION WHEEL ASSEMBLY (Not Shown) MTD-918-0296B
...
7
SUPPORT ASSEMBLY (POWDER BLACK) MTD-684-0115-0637
...
8
ARM ASSEMBLY-SHIFT MTD-684-0116
...
9
Shft Asm Rod MTD-684-0117
...
10
AUGER ACTUATOR BRACKET (POWDER BLACK) MTD-684-0118B-0637
...
11
ACTUATOR BRACKET (POWDER BLACK) MTD-684-0119B-0637
...
12
FRAME ASSEMBLY MTD-684-0120
...
13
32T SPROCKET ASSEMBLY MTD-684-0122
...
14
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
15
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
16
Hex Scr 5/16-18 x 2.00 MTD-710-3180
...
17
Hhcs 5/16-18 x .625 Gr5 Lock MTD-710-0538
...
18
Scr TT 1/4-20 x .5 Hxindwsh MTD-710-0599
...
19
Hex Scr 5/16-18 2.00 Lg MTD-710-3103
...
20
Scr Hexwash 1/4-20 x 2.00 MTD-710-0788
...
22
Scr Ab 1/4-14 .625 Hxindwsh MTD-710-1652
...
23
Hhcs 3/8-16 x .880 Gr5 Std MTD-710-3001
...
24
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
25
HEX DRIVE SHAFT MTD-711-1191
...
26
ACTUATOR SHAFT MTD-711-1193
...
27
DRIVE ACTUATOR SHAFT MTD-711-1194
...
28
Hex Nut 1/4-28 MTD-712-0138
...
29
HEX NUT MTD-712-0221
...
32
Hex Ins L-nut 5/16-18 MTD-712-0429
...
33
Hex Nut 3/8-16 MTD-712-0798
...
34
HEX NUT 5/16-18 MTD-712-3010
...
35
#41 Chain 1/2 Pitch x 36 L MTD-713-0284
...
36
#420 Chain 1/2 Pitch x 40 L MTD-713-0286
...
37
Spkt 10t #41 x .500 MTD-713-0413
...
38
Internal Cot-pin 1/2 Dia MTD-714-0101
...
39
Intern Cot-pin 5/16 Dia MTD-714-0104
...
40
Cotter Pin 1/8 Dia x 1 MTD-714-0115
...
41
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
42
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
43
Plate, Drive MTD-917-0302
...
45
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121
...
46
Spring MTD-932-0209
...
47
Lock Wash. 5/16" I.D. MTD-936-0119
...
48
Lock Washer 5/8 MTD-736-0158
...
49
Wash Fl .531 ID x .930 OD x .05 MTD-736-0160
...
50
Wash Fl 1.03 ID x 1.62 OD MTD-736-0163
...
51
Wash Flt 1/4 ID x .930 OD x .12 MTD-736-0300
...
52
Fl-Wash. .640" I.D. x 1.24" O.D. MTD-736-0187
...
53
Lock Washer 3/8 Heavy MTD-736-0217
...
54
Bell Wash .345 ID x .88 OD MTD-736-0242
...
55
FLAT WASHER MTD-736-0275
...
56
L-Wash. 1/4" I.D. MTD-936-0329
...
57
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
58
Drive Plate Spindle MTD-738-0279
...
59
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
60
BEARING HOUSING ASSEMBLY MTD-741-0163A
...
61
Flange Bearing w/ Flats MTD-941-0170
...
62
BALL BEARING MTD-941-0563
...
63
HEX FLANGE BEARING MTD-941-0597
...
64
Auger Cable MTD-946-0951A
...
65
Steering Cable MTD-746-0949A
...
66
DRIVE CLUTCH ROD MTD-747-0973
...
67
SPACER-SPLIT .64X. MTD-750-1097
...
68
SPLIT SPACER MTD-750-0903B
...
69
Spacer MTD-950-0997
...
70
1/2 V-pulley .62 ID x 7.5 MTD-756-0344
...
71
Cable Guide Roller MTD-756-0625
...
72
FRAME SUPPORT MTD-784-0377-0637
...
73
UPPER FRAME COVER MTD-784-0379
...
74
LOWER FRAME COVER MTD-784-0380
...
75
AUGER CABLE GUIDE MTD-784-0384-0637
...
76
Shift Bracket Frame MTD-784-5590
...
77
Klik Pin Assy Danuse MTD-714-0151A
...
78
AXLE-1.0"OD x 14.1 MTD-738-0975
...
79
WHEEL ASSEMBLY 16 x 6 MTD-734-1593A
...
80
Hex Jam Nut 3/8-24 Thd. MTD-712-0116
...
81
SPACER MTD-750-1196
...
82
FLAT WASHER MTD-736-0639
