product name

Yard Man 31AE993I401 (2000) Snow Thrower

Model: 31AE993I401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

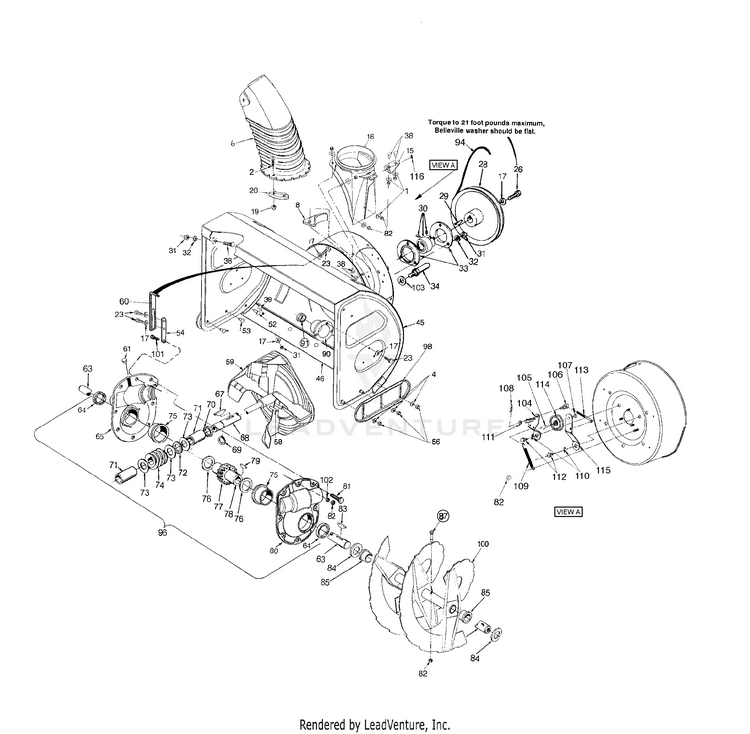

Auger Assembly

...
...
1
Flat Washer .344 ID x .875 OD MTD-736-0159
...
2
Truss. Hd. Mach. Scr. 1/4-20 x .75 MTD-710-3015
...
4
Belleville washer MTD-736-0105
...
6
Chute, Lower MTD-731-0903E
...
8
CHUTE BRACKET MTD-784-5711-0637
...
15
BRACKET-CHUTE CRAN MTD-784-5123-0637
...
16
Chute Adapter MTD-731-1696B
...
17
Bell. Washer .345 ID x .88 OD x .06 MTD-736-0242
...
19
LOCK NUT 1/4 MTD-912-3027
...
20
Chute Flange Keeper MTD-731-0851A
...
23
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
26
SCREW 5/16-18 x .750 MTD-710-1880
...
28
1/2" V-Pulley .875 ID x 10.12 OD MTD-756-0243
...
29
#9 Hi-Pro Key 3/16 x 3/4 Dia HT MTD-714-0126
...
30
Self Aligning Brg. .875 I.D. MTD-941-0185
...
31
HEX NUT 5/16-18 MTD-712-3010
...
32
Lock Wash. 5/16" I.D. MTD-936-0119
...
33
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
34
Belt Keeper Studs 3/8-16 x 2.75 MTD-711-0640
...
38
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
45
33" AUGER HOUSING MTD-684-0093B
...
46
Shave Plate MTD-784-5714B-0637
...
52
Carriage Bolt 3/8-16 x 1.00 Gr. 5 MTD-710-3168
...
53
Carriage Bolt 3/8-16 x .75" Lg. MTD-710-0389
...
54
PLATE-SUPPORT MTD-784-5710-0637
...
56
Hex Jam Nut 3/8-16 MTD-712-0798
...
58
Spring Spiral Pin Heavy 5/16 dia x 1.7 MTD-715-0118
...
59
IMPELLER ASSEMBLY(POWDER BLACK) MTD-684-0090B-0637
...
60
Gear Hsg. Support Brkt. MTD-784-5076-0637
...
61
Barbed Plug MTD-721-0325
...
63
SPIRAL AXLE MTD-738-0491
...
64
Oil Seal 1.50" I.D. MTD-921-0146
...
65
GEAR HOUSING ASSEMBLY (RH) MTD-918-0246
...
67
#9 Hi-Pro Key 3/16 x 3/4 dia HT MTD-714-0126
...
68
Auger Control Shaft MTD-711-1133
...
69
Snap Ring for .875 dia. shaft MTD-716-0111
...
70
Oil Seal .875" I.D. MTD-921-0145
...
71
Sleeve Brg. .875 I.D. MTD-941-0217
...
72
Thrust Bearing .88 ID x 1.44 OD x .078 MTD-741-0184
...
73
Flat Washer .88 ID x 1.4 OD x .125 MTD-736-0291
...
74
Double Threaded Worm-L.H. MTD-917-0299
...
75
Flange Brg. 1.5 ID x 1.75 OD x .80 MTD-741-0670
...
76
FLAT WASHER MTD-736-0266
...
77
Double Threaded Worm Gear MTD-917-1425
...
78
Worm Gear Shaft MTD-738-0275
...
79
#91 Woodruff Key 1/4 x 3/4 dia MTD-714-0135
...
80
Hsg Assy Auger LH (Inc. 40 & 70) MTD-918-0247
...
81
Hex Flange Scr. 5/16-18 x .75 MTD-710-1260A
...
82
Hex Ins. L-Nut 5/16-18 MTD-712-0429
...
83
#91 Woodruff Key 1/4 x 3/4 dia MTD-714-0135
...
84
Flat Washer MTD-736-0250
...
85
Flange Bearing MTD-741-0494
...
87
Shear Bolt 5/16-18 x 1.75 MTD-710-0891
...
90
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637
...
91
Flange Bearing w/ Flats MTD-941-0170
...
94
V-Belt MTD-954-0222A
...
96
AUGER GEARBOX ASSEMBLY MTD-618-0436
...
98
Reversible Skid Shoe MTD-784-5697
...
100
SPIRAL ASSEMBLY (RH) MTD-705-5210A
...
xx
33" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04195-0637
...
101
Hex Scr 5/16-18 x 1.25 MTD-710-0528
...
102
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
103
3/8 Sprg Lock Wash MTD-736-0169
...
104
Bracket Assy-Br MTD-918-0281A
...
105
Scr Hex Cap 3/8-24 x 1.5 GRD 5 MTD-710-0459A
...
106
Engagement Ferru MTD-911-0677
...
107
Hex Ins L-Nut 3/8-24 MTD-712-0116
...
108
Intern Cot-Pin 5/16 dia MTD-714-0104
...
109
Spr Extn .470 dia x 4.75 Lg MTD-732-0858
...
110
Wave Washer .66 ID x .88 OD MTD-736-0174
...
111
FLAT WASHER MTD-936-3008
...
112
Shld Scr .625 dia x .170 x .062 MTD-738-0281
...
113
AUGER IDLER ROD MTD-747-0980A
...
114
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
115
Bracket, Auger Idler MTD-784-0385D
...
116
BUSHING .380 ID MTD-941-0475
