Yard Man 31AE753F401 (1998) Snow Thrower

Model: 31AE753F401 (1998)

Save Part Not Listed?
product name

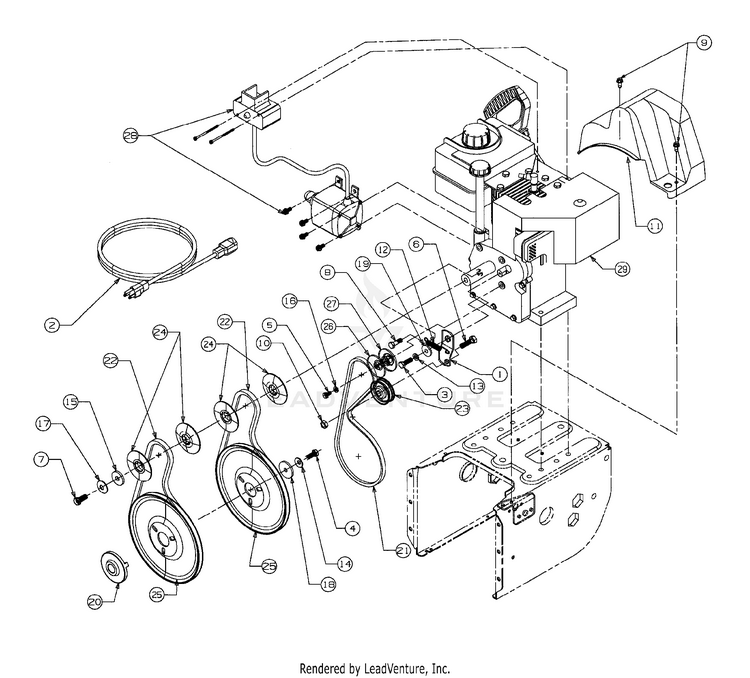

Belt Assembly

...
...
1
BRACKET-IDLR- MTD-05896A
...
2
3-Prong Extension Cord MTD-929-0071B
...
3
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
4
Screw - Hex MTD-710-0157
...
5
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
6
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
7
Screw - Hex MTD-710-0696
...
8
Screw - Hex MTD-710-0888
...
9
Screw - Hex MTD-710-0896
...
10
Nut - Hex MTD-712-0181
...
11
Cover - Belt MTD-731-1324
...
12
Extension Spring MTD-932-0710
...
13
Lock Wash. 5/16" I.D. MTD-936-0119
...
14
Washer - Bell MTD-736-0242
...
15
Washer - Flat MTD-736-0247
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
Washer - Bell MTD-736-0331
...
18
Washer - Flat MTD-736-0505
...
19
Spacer MTD-748-0234
...
20
Adapter Pulley MTD-948-0360
...
21
V - Belt MTD-954-0346
...
22
BELT: 3V X 35.00 LG MTD-954-0430C
...
23
Idler - Flat MTD-756-0313
...
24
Pulley Half MTD-756-0569
...
25
Pulley - Auger MTD-756-0967
...
26
HALF PULLEY MTD-756-0986
...
27
HALF PULLEY MTD-956-0987
...
28
Electric Start Kit MTD-390-987
...
29
UNKNOWN MTD-NA

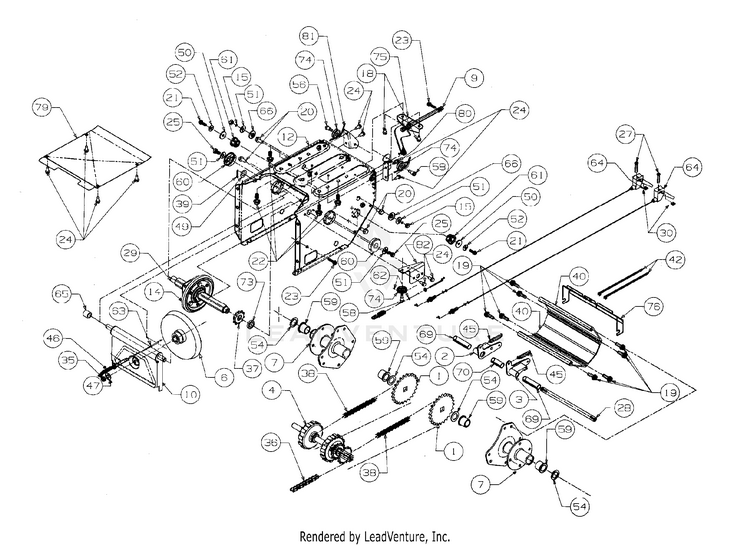

Drive I

...
...
1
Axle Assembly MTD-611-0053
...
2
DOG ASSEMBLY (RH) MTD-618-0043
...
3
Dog Assembly - L.H. MTD-618-0044
...
4
Shaft Assembly MTD-918-0169B
...
6
Friction Wheel Disc Ass'y. MTD-956-0012A
...
7
Hub Assembly MTD-683-0024-0637
...
9
SHAFT ASSEMBLY (POWDER BLACK) MTD-684-0014B-0637
...
10
BRACKET ASSEMBLY MTD-984-0021-0637
...
12
FRAME ASSEMBLY MTD-984-0031
...
14
Wheel Assembly Friction MTD-984-0042C
...
xx
Rubber Only MTD-935-0243B
...
15
Screw MTD-710-0118
...
18
Screw MTD-710-0599
...
19
Screw MTD-710-0602
...
20
Screw, 5/16-18 x .625 MTD-710-0604A
...
21
Screw MTD-710-0642
...
22
Screw MTD-710-0654A
...
23
Screw MTD-710-0788
...
24
Screw MTD-710-0896
...
25
Hex Bolt 5/16-18 x .88" Lg. - 650C MTD-710-3038
...
27
Screw MTD-710-1233
...
28
ACTUATOR SHAFT MTD-711-0911
...
29
DRIVE SHAFT MTD-711-1042
...
30
FLAT WELD NUT MTD-712-0127
...
35
Nut Jam MTD-712-0711
...
36
Chain MTD-713-0233
...
37
Sprocket MTD-713-0413
...
38
Chain MTD-713-0437
...
39
Pin Cotter MTD-714-0474
...
40
TRACK HOUSING MTD-719-0295A
...
42
Cable Tie MTD-725-0157
...
45
Spring MTD-932-0209
...
46
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
47
Washer - Bell MTD-736-0105
...
49
Washer - Flat MTD-736-0160
...
50
Washer - Flat MTD-736-0176
...
51
Washer - Bell MTD-736-0242
...
52
SPRING WASHER BELL MTD-736-0270
...
54
Washer - Flat MTD-736-0287
...
56
Lubricant MTD-737-0170
...
58
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
59
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339
...
60
BALL BEARING MTD-941-0563
...
61
HEX FLANGE BEARING MTD-941-0597
...
62
Cable-Auger Clutch MTD-946-0897
...
63
Cable-Drive Clutch MTD-946-0898
...
64
Cable with Trigger Lever MTD-753-0707
...
65
Spacer MTD-748-0190
...
66
Spacer - Shoulder MTD-748-0234
...
69
SPLIT SPACER MTD-750-0903B
...
70
SPLIT SPACER MTD-750-0904
...
73
Spacer MTD-950-0997
...
74
Roller - Cable MTD-756-0625
...
75
Bracket MTD-784-5590
...
76
STEERING BRACKET MTD-784-5609
...
79
TRACK FRAME COVER (POWDER BLACK) MTD-784-5648A-0637
...
80
AUGER GUIDE BRACKET MTD-784-5687
...
81
DRIVE GUIDE BRACKET MTD-784-5688
...
82
GUIDE BRACKET MTD-784-5689A-0637

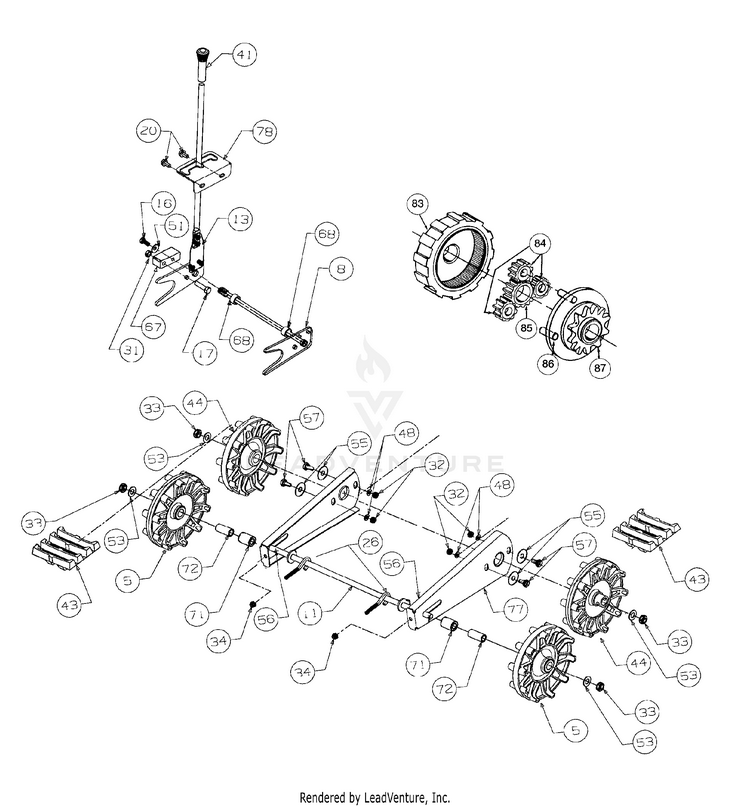

Drive II

...
...
5
Wheel Assembly Idler MTD-631-0032A
...
8
PIVOT ROD ASSEMBLY MTD-684-0009A
...
11
KIT-REPLACEMENT MTD-753-05977
...
13
HANDLE ASSEMBLY MTD-684-0038
...
16
Screw MTD-710-0157
...
17
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
20
Screw, 5/16-18 x .625 MTD-710-0604A
...
26
EYEBOLT5/16-18 x 3.0 MTD-710-1231
...
31
Nut Lock MTD-712-0214
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Nut Jam MTD-712-0346
...
34
Nut Hex MTD-712-0429
...
41
Grip MTD-720-0223
...
43
SNOW TRACK MTD-731-1292
...
44
Wheel-Track Drive MTD-731-1538A
...
48
Lock Wash. 5/16" I.D. MTD-936-0119
...
51
Washer - Bell MTD-736-0242
...
53
FLAT WASHER .510 x .995 MTD-736-0272
...
55
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
56
Lubricant MTD-737-0170
...
57
Screw - Shoulder MTD-738-0140
...
58
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
67
LIFT SHAFT DRIVE MTD-748-0353A
...
68
Spacer MTD-750-0547
...
71
SPACER-.51IDX1.34LG MTD-750-0909
...
72
SPACER MTD-750-0995
...
77
TRACK SIDE PLATE MTD-784-5639
...
78
TRACK LOCKOUT PLATE MTD-784-5642
...
83
RING GEAR MTD-717-1211B
...
84
GEAR-12T MTD-717-1209A
...
85
Gear 18-Tooth MTD-717-1210A
...
86
Pin Dowel MTD-741-0542
...
87
Carrier MTD-918-0576A

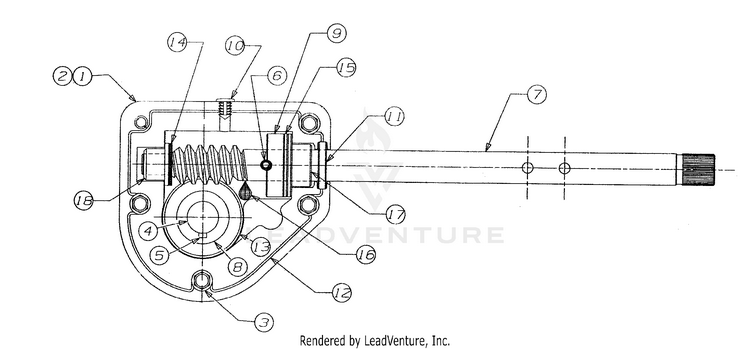

Gear Assembly

...
...
1
RH Housing MTD-918-0123A
...
2
LH Housing MTD-918-0124A
...
3
Screw MTD-710-0642
...
4
26"AUGER SHAFT MTD-711-0909A
...
5
KEY 3/16 x 5/8 H MTD-914-0161
...
6
Pin - Spiral MTD-715-0143
...
7
IMPELLER SHAFT MTD-717P0526
...
8
WORM GEAR 20T MTD-917-04861
...
9
Collar - Thrust MTD-718-0186
...
10
Plug MTD-721-0325
...
11
Seal - Oil MTD-721-0327
...
12
Locktite 5699 MTD-721-0328
...
13
Washer - Flat MTD-736-0351
...
14
Washer - Flat MTD-736-0369
...
15
Washer - Flat MTD-736-0445
...
16
Grease MTD-737-0168A
...
17
Bearing - Flange MTD-741-0662
...
18
Bearing - Flange MTD-741-0663
...
xx
Gear Assembly: Auger 26" MTD-918-0415B

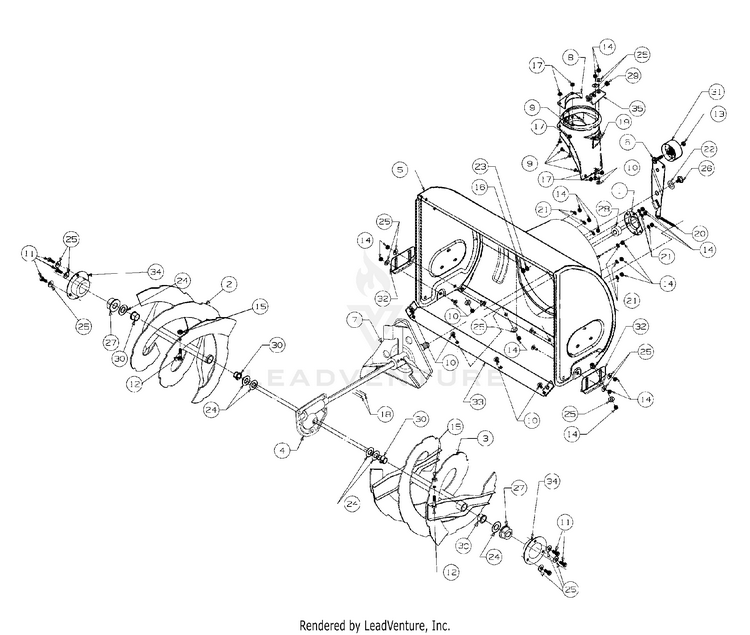

General Assembly

...
...
1
Bearing Housing MTD-05931A
...
2
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04183-0637
...
3
Spiral Assembly: RH 26" MTD-684-04182-0637
...
4
Gear Assembly: Auger 26" MTD-918-0415B
...
5
26" HOUSING ASSEMBLY MTD-684-0040D
...
6
Auger Idler Brkt. MTD-984-0064-0637
...
7
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
8
Reinforcement-Chute MTD-705-5226
...
9
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
10
Screw - Carriage MTD-710-0451
...
11
Screw, 5/16-18 x .625 MTD-710-0604A
...
12
Shear Bolt 5/16-18 x 1.5" Lg. MTD-710-0890A
...
13
Nut - Hex Lock MTD-712-0116
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
Nut - Hex MTD-712-0429
...
16
Nut - Hex MTD-712-0798
...
17
LOCK NUT 1/4 MTD-912-3027
...
18
Pin - Spring MTD-715-0114
...
19
Adapter Chute MTD-731-1379D
...
20
Ext. Spring 3.6" Lg. MTD-932-0611
...
21
Lock Wash. 5/16" I.D. MTD-936-0119
...
22
Wave Washer MTD-936-0167
...
23
Washer - Lock MTD-736-0169
...
24
Washer - Flat MTD-736-0188
...
25
Washer - Bell MTD-736-0242
...
26
Screw - Shoulder MTD-738-0281
...
27
Hex Flange Bearing MTD-941-0245
...
28
Flange Ball Bearing MTD-941-0309
...
29
BUSHING .380 ID MTD-941-0475
...
30
FLANGE BUSHING MTD-741-0493C
...
31
Idler - Flat MTD-756-0178
...
32
Slide Shoe MTD-784-5580-0637
...
33
Shave Plate 26" MTD-784-5579A-0665
...
34
Bearing Housing MTD-784-5618A-0637
...
35
Chute Crank Bracket MTD-784-5647-0637

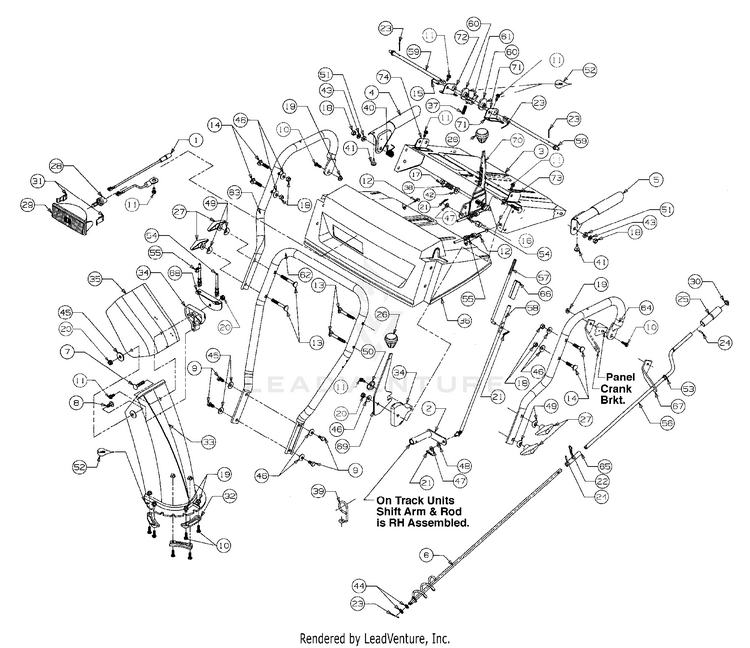

Handle & Chute

...
...
1
Halogen Light Harness MTD-929-0059
...
2
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
3
HANDLE PANEL SUPPORT MTD-684-0032A
...
4
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
5
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
6
CHUTE CRANK ASSEMBLY(POWDER BLACK) MTD-684-0053B-0637
...
7
Bolt - Carriage MTD-710-0262
...
8
Bolt - Carriage MTD-710-0451
...
9
Screw - Hex MTD-710-0118
...
10
Screw - Hex MTD-710-3015
...
11
Screw - Washer Head-Hex MTD-710-0896
...
12
Special Screw, #10-16 x .625 MTD-710-04669
...
13
CARRIAGE BOLT MTD-710-1178
...
14
Bolt - Carriage MTD-710-1250
...
15
Pin - Clevis MTD-711-0653
...
16
Engagement Ferru MTD-911-0677
...
17
Nut - Hex Lock MTD-712-0116
...
18
HEX NUT 5/16-18 MTD-712-3010
...
19
LOCK NUT 1/4 MTD-912-3027
...
20
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
21
Pin - Cotter Internal MTD-714-0104
...
22
Pin - Cotter MTD-714-0145
...
23
Pin - Cotter MTD-714-0507
...
24
Rolled Pin, 1/8 x .63 MTD-915-0138
...
25
Knob - Chute Crank MTD-720-0201A
...
26
Knob MTD-920-0232
...
27
Knob - Wing Nut MTD-720-0284
...
28
Lamp MTD-925-1658
...
29
Lens/Lamp Assembly Housing MTD-925-1672
...
30
Cap - Push MTD-726-0100
...
31
Headlight Retainer MTD-747-1136
...
32
Keeper - Chute MTD-731-0851A
...
33
Lower Chute MTD-731-1300E
...
34
Cbl. Guide, Chute Tilt MTD-731-1313C
...
35
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
36
HANDLE PANEL MTD-731-1545
...
37
Spring MTD-732-0145
...
38
Spring MTD-732-0193
...
39
Wire - Control MTD-732-0705
...
40
Spring MTD-732-0746
...
41
Bumper MTD-735-0199A
...
42
Washer - Bell MTD-736-0105
...
43
Lock Wash. 5/16" I.D. MTD-936-0119
...
44
Washer - Flat MTD-736-0140
...
45
Washer MTD-736-0231
...
46
Washer - Bell MTD-736-0242
...
47
Washer - Flat MTD-736-0264
...
48
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
49
Washer - Saddle MTD-736-0451
...
50
SPECIAL WASHER MTD-736-0506A
...
51
Washer MTD-736-0509
...
52
Grease, Benalene 8 oz tube MTD-737-0300A
...
53
BUSHING .380 ID MTD-941-0475
...
54
Chute Deflector Control Cable MTD-946-0896
...
55
Chute Deflector Cable w/ Clip MTD-946-0901
...
56
Upper Chute Crank MTD-747-0737-0637
...
57
SHIFT ROD MTD-747-0620A
...
58
LOWER SHIFT ROD MTD-747-0621
...
59
Rod - Cam MTD-747-0877
...
60
Cam - Handle Lock MTD-748-0362
...
61
Handle Lock Pawl MTD-948-0363
...
62
LOWER HANDLE MTD-749-0951A
...
63
HANDLE (RH) MTD-749-0954
...
64
HANDLE (LH) MTD-749-0955-0637
...
65
SPACER-.38IDX.500 x 2.50LG MTD-950-0785
...
66
Rod-Clutch Lock MTD-950-0963
...
67
Bracket, Chute Crank MTD-705-5266-0637
...
68
Bracket - Cable MTD-784-5594
...
69
Handle, Chute Tilt MTD-784-5604A-0637
...
70
KIT-SHIFT HANDLE:S MTD-753-05395
...
71
HANDLE BRACKET (LH) MTD-784-5679-0637
...
72
Brkt., Handle Support - RH MTD-784-5680-0637
...
73
Bracket - Handle Support - L.H. MTD-784-5681
...
74
Brkt., Handle Support - RH MTD-784-5682-0637
