Yard Man 31AE6GLF701 (2005) Snow Thrower

Model: 31AE6GLF701 (2005)

Save Part Not Listed?
product name

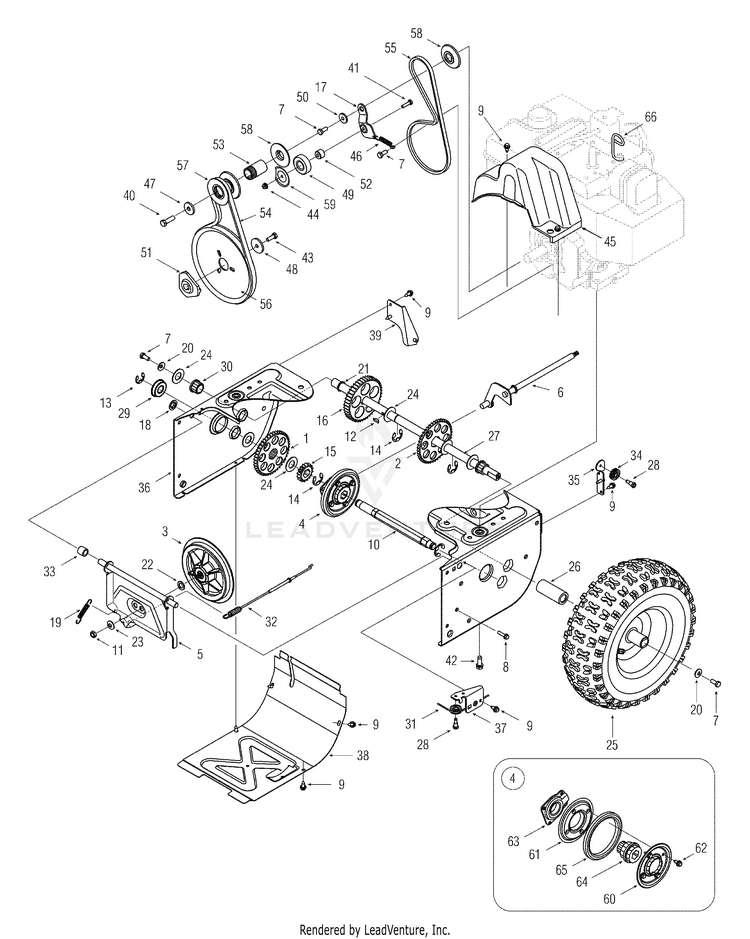

Drive

...
...
1
Gear Assembly, 16/44T MTD-917-04026A
...
2
Gear Assembly, 16/44T MTD-917-04025A
...
3
Friction Wheel Disc Ass'y. MTD-956-0012A
...
4
FRICTION WHEEL ASSEMBLY 4.9 OD MTD-984-04066
...
5
BRACKET ASSEMBLY MTD-684-04045
...
6
SHIFT ROD ASSEMBLY MTD-684-04139
...
7
Screw, 5/16-24 x .750, Gr5 MTD-710-0627
...
8
Screw, 1/4-20 x 1.000 MTD-710-0788
...
9
Screw, 1/4-20 x .625 MTD-710-1652
...
10
DRIVE WHEEL SERVICE KIT MTD-753-05173A
...
11
Nut, Jam, 3/8-24, Gr2 MTD-712-0711
...
12
KEY 3/16 x 5/8 H MTD-914-0161
...
13
Ring, E Type, .750 MTD-716-0231
...
14
Ring, E-Type, .875 MTD-716-0136
...
15
Pinion, 16T MTD-717-04129A
...
16
GEAR-44 T AXLE SHAFT SNWTH NLAUD MTD-717-04137A
...
17
DRIVE IDLER BRACKET MTD-790-00082
...
18
Nut, Speed, .500 MTD-726-0221
...
19
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
20
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
21
Washer, Flat, .75 x 1.00 x .060 MTD-736-04161
...
22
Washer, Flat, .406 x .875 x .059 MTD-736-0300
...
23
Washer, Bell, .375 x .870 x .063 MTD-736-0105
...
24
Washer, Flat, .793 x 1.24 x .060 MTD-736-0287
...
25
Snow Hog Wheel Assembly 13 x 4 MTD-634-04144A
...
xx
RIM ASSEMBLY (6 x 3.25) W/VALVE MTD-634-04172A
...
xx
Tire Only MTD-734-1732
...
xx
TUBELESS VALVE MTD-934-0255
...
25
WHEEL ASSEMBLY (13 x 5) MTD-634-04143A
...
xx
RIM ASSEMBLY (6 x 3.25) W/VALVE MTD-634-04172A
...
xx
TIRE-SNOW HOG 13X5 TIRE-CODE MTD-734-1527
...
xx
TUBELESS VALVE MTD-934-0255
...
25
Wheel - 15 x 5 31AH6GLF790 MTD-634-04142A
...
xx
RIM ASSEMBLY (6 x 3.25) W/VALVE MTD-634-04172A
...
xx
Tire Only MTD-734-1859-0901
...
xx
TUBELESS VALVE MTD-934-0255
...
25
Wheel Assembly Complete, Wheel Size 16 x 4.8 MTD-634-04141
...
xx
RIM ASSEMBLY (8.0X3.75) W/VALVE MTD-634-04173-0662
...
xx
Tire Only MTD-734-1530
...
xx
TUBELESS VALVE MTD-934-0255
...
26
Spacer, 1.25 OD x .75 ID x 3.00 MTD-731-04873
...
27
Axle, .75 x 22 MTD-738-04095A
...
28
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
29
BALL BEARING MTD-941-0563
...
30
Hex Flange Bearing MTD-941-0245
...
31
Cable-Auger Clutch MTD-946-0897
...
32
Drive Clutch Cable 41.75" Lg. MTD-946-04086
...
33
Spacer, .508 ID x .75 OD x .68 MTD-748-0190
...
34
Roller, Cable MTD-756-0625
...
35
AUGER GUIDE BRACKET MTD-784-5687A
...
36
DRIVE FRAME HOUSING MTD-790-00072
...
37
Guide Bracket, Front, Auger Cable MTD-790-00096
...
38
FRAME COVER MTD-790-00054
...
39
DRIVE CABLE BRACKET MTD-790-00055
...
40
Screw, 3/8-24 x 1.25, Gr8 MTD-710-0191
...
41
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
42
Screw, Sems, 3/8-16 x 1.00 MTD-710-0654A
...
43
Screw, 5/16-24 x .875, Gr8 MTD-710-1245B
...
44
Nut, Flange Lock, Nylon, 1/4-20, Gr F MTD-712-04064
...
45
BELT COVER (SMALL BLOCK) MTD-631-05321
...
46
Extension Spring MTD-932-0710
...
47
Washer, Flat, .406 x 1.25 x.157 MTD-736-0247
...
48
Washer, Flat, .34 x 1.50 x .150 MTD-736-0505
...
49
BALL BEARING MTD-741P0919B
...
50
Shoulder Spacer MTD-748-0234
...
51
Pulley Adapter, .75 DIA MTD-748-04053A
...
52
SPACER MTD-750-04230A
...
53
Spacer, .875 ID x 1.185 OD MTD-750-04303
...
54
Auger Drive Belt MTD-954-04050A
...
55
V-Belt MTD-954-0456
...
56
Pulley, Auger, 8.1 x .50 MTD-756-04109
...
57
HALF PULLEY A2.76 x 1.140 SPLINE MTD-756-06563
...
58
Pulley, Half, 2.2 OD MTD-756-04114
...
59
WASHER-BRG 2.12 OD x .255ID MTD-990-00062
...
60
Plate, Friction, 12 Pt 4.60 Dia MTD-790-00010
...
61
FRICTION PLATE MTD-790-00011
...
62
Screw, Self-tapping, 1/4-14 x 0.625 MTD-710-0896
...
63
Bearing Assembly, Friction Wheel MTD-618-04169
...
64
Hub, Friction Wheel MTD-718-04070
...
65
Rubber Only MTD-935-0243B
...
66
Guide, Cable MTD-732-0705

Drive Shaft Threaded 753-05173

...
...
1
Gear Assembly, 16/44T MTD-917-04025A
...
2
Gear Assembly, 16/44T MTD-917-04026A
...
3
FRICTION WHEEL ASSEMBLY MTD-984-04177
...
4
SCREW: LOCK: 5/16"-24 x .75: GR5 MTD-710-0627
...
5
HEX DRIVE SHAFT MTD-911-04556
...
6
NUT: FLANGELOCK: 3/8"-16: GRF MTD-712-04065
...
7
KEY 3/16 x 5/8 H MTD-914-0161
...
8
E-RING: RETAINER: .875 DIA. MTD-716-0136
...
9
E-RING: RETAINER: .750 DIA. MTD-716-0231
...
10
GEAR-44 T AXLE SHAFT SNWTH NLAUD MTD-717-04137A
...
11
GEAR: PINION: 16T: .8125 HEX MTD-717-04301
...
12
WASHER: BELL: .340 x .872 x .060 MTD-736-0242
...
13
WASHER: FLAT: .793x 1.24x .06 HT MTD-736-0287
...
14
GREASE-LITHIUM 1oz MTD-937-04085
...
15
AXLE: .75 DIA. x 22" LG MTD-738-04209
...
16
Hex Flange Bearing MTD-941-0245
...
17
BALL BEARING MTD-941-0563
...
18
GREASE:AEROSHELL 2 MTD-737-04141

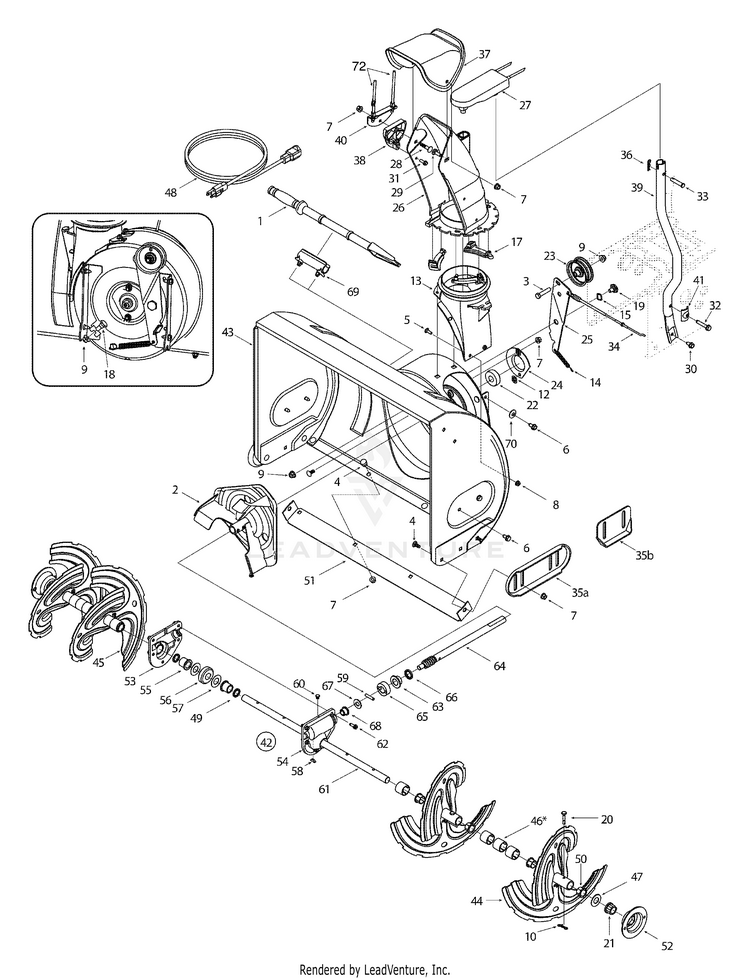

General Assembly

...
...
1
Snow Removal Tool MTD-931-2643
...
2
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
3
Screw, 3/8-16 x 1.75, Gr5, Std MTD-710-0347
...
4
Bolt, Carriage, 5/16-1 8 x.750 Gr1 MTD-710-0451
...
5
Screw, Carriage, 1/4-20 x .75, Gr5 MTD-710-0703
...
6
Screw, 5/16-12 x 0.750 MTD-710-0726
...
7
Nut, Flange Lock, Nylon, 5/16-18, Gr F MTD-712-04063
...
8
Nut, Flange Lock, Nylon, 1/4-20, Gr F MTD-712-04064
...
9
Nut, Flange Lock, Nylon, 3/8-16, Gr F MTD-712-04065
...
10
Cotter Pin, Bow-Tie MTD-714-04040
...
11
Cable, Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
12
Nut, Push-on, .2 5 Dia MTD-726-04012
...
13
CHUTE ADAPTER MTD-731-04705D
...
14
Ext. Spring 3.6" Lg. MTD-932-0611
...
15
Washer, Wave, .625 x .885 x.015 MTD-736-0174
...
16
Washer, Flat, .25 x .630 x .0515 MTD-736-0463
...
17
Chute Flange Keeper MTD-731-04869A
...
18
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
19
Screw, Shoulder, .625 x .17, 3/8-16 MTD-738-0281
...
20
Shear Pin MTD-738-04124A
...
21
Hex Flange Bearing MTD-941-0245
...
22
Flange Ball Bearing MTD-941-0309
...
23
Flat Idler Pulley MTD-756-04224
...
24
BEARING HOUSING 1.85 ID MTD-790-00075B
...
25
AUGER IDLER BRACKET MTD-790-00080D
...
26
4-WAY LOWER CHUTE ASSEMBLY (Inc. Ref 17, Qty. 3) MTD-631-04132
...
27
ROTATION PUL ASM S/T JOYSTICK KIT MTD-753-04875P
...
28
Bolt, Carriage, 5/16-1 8, 1.50, Gr2 MTD-710-0262
...
29
Bolt, Carriage, 5/16-1 8, 1.00 MTD-710-04071
...
30
Screw, 5/16-12 x 0.75 MTD-710-0726
...
31
Screw, 1/4-15x 0.75 MTD-710-0895
...
32
Screw, Self-tapping 5/16-18x 1.75 MTD-710-0909A
...
33
Pin, Clevis, 3/8 x 1.75 MTD-711-0415
...
34
Cable-Auger Clutch MTD-946-0897
...
35A
Shoe, Skid (Deluxe) MTD-790-00091
...
35B
Shoe, Skid (Standard) MTD-784-5580
...
36
Pin, Cotter, .072 Dia. x 1.13 MTD-714-0104
...
37
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
38
Cable Guide, Chute Tilt MTD-731-1313C
...
39
SUPPORT TUBE MTD-749-04155
...
40
Cable Bracket (Cables not included) MTD-784-5594
...
41
Handle Tab MTD-984-5599
...
42
24" GEARBOX ASSEMBLY MTD-918-04171C
...
xx
26" GEARBOX ASSEMBLY MTD-918-04172C
...
xx
28" GEARBOX ASSEMBLY MTD-918-04173B
...
xx
30" GEARBOX ASSEMBLY MTD-918-04165B
...
43
24" AUGER HOUSING MTD-684-04069
...
xx
26" AUGER HOUSING MTD-684-04071
...
xx
28" AUGER HOUSING MTD-684-04073
...
xx
30" AUGER HOUSING MTD-684-04080
...
44
AUGER SPIRAL (LH) MTD-684-04107A
...
45
AUGER SPIRAL (RH) MTD-684-04108A
...
46
Spacer, 1.25 OD x .75 ID x 1.00 One found between spirals on models with 24-inch auger housing; Two found between spirals on models with 26-inch auger housing; Three found between spirals on models with 28-inch auger housing. MTD-731-04870
...
47
Washer, Flat, .76 x 1.49 x .0 6 MTD-736-0188
...
48
3-Prong Extension Cord MTD-929-0071B
...
49
Seal, Oil, .750 ID MTD-721-0179
...
50
FLANGE BUSHING MTD-741-0493C
...
51
Plate, Shave, 2.25 x 23.66 MTD-790-00120
...
xx
Plate, Shave, 2.25 x 25.66 MTD-790-00121
...
xx
Plate, Shave, 2.25 x 27.66 MTD-790-00118
...
xx
Plate, Shave, 2.25 x 29.66 MTD-790-00119
...
52
Housing, 1" Hex Bearing MTD-790-00087A-0637
...
53
RH Housing MTD-918-0123A
...
54
LH Housing MTD-918-0124A
...
55
Bearing, Flange, .75 x 1.00 x .975 MTD-741-0661B
...
56
WORM GEAR 20T MTD-917-04861
...
57
Washer, Flat, .7 60 ID x 1.5 OD MTD-736-0351
...
58
KEY 3/16 x 5/8 H MTD-914-0161
...
59
Pin, Dowel,. 25 OD x 1.2 MTD-715-04021
...
60
Plug, 1/4 x .437 MTD-721-0325
...
61
24" AUGER SHAFT MTD-711-04285A
...
xx
26" AUGER AXLE MTD-711-06144
...
xx
28" AUGER AXLE MTD-711-06145
...
xx
Auger Axle, 30" MTD-711-04282A
...
62
Screw, Self-tapping, 1/4-20, 0.750 MTD-710-0642
...
63
Bearing, Flange, .75 ID x 1.00 OD x .5 9 MTD-741-0662
...
64
Shaft, Worm .75 OD MTD-917-04126
...
65
Collar, Thrust MTD-718-04071
...
66
Seal, Oil, .75 x 1 x .131 MTD-721-0327
...
67
Washer, Flat, .5 1 x 1.12 MTD-736-3084
...
68
Bearing, Flange, .75 ID x 1.00 OD x .925 MTD-741-0663
...
69
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
70
Washer, Bell, 3.40 x 872 x .060 MTD-736-0242
...
72
CHUTE DEFLECTOR CABLE MTD-946-04165

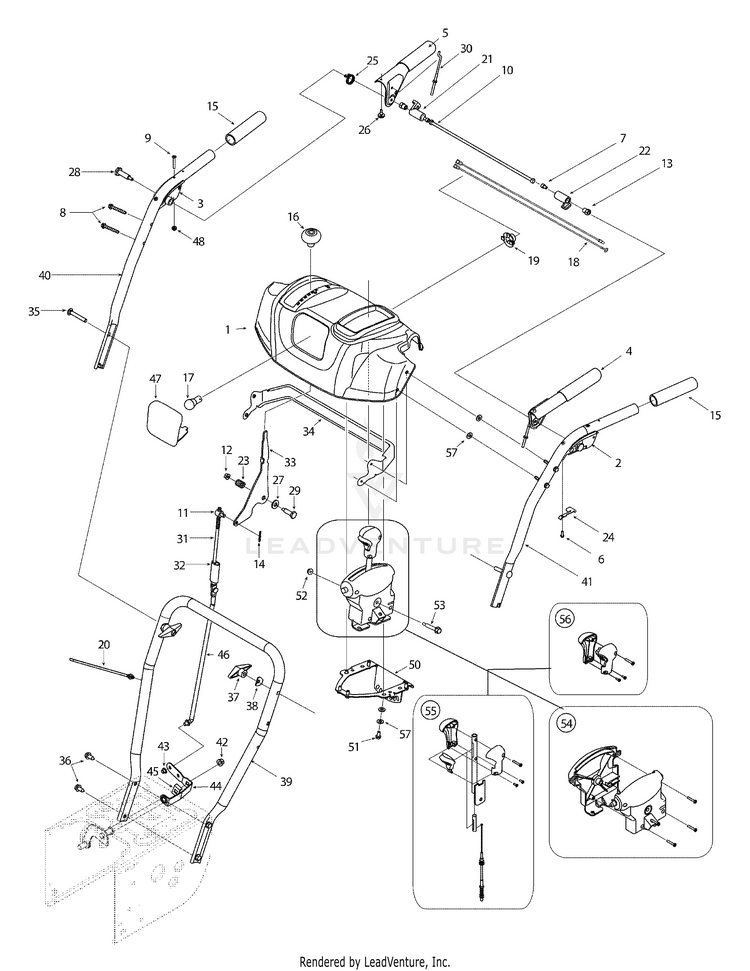

Handle

...
...
1
Handle Panel Ass’y - Yellow (Inc. Ref. 47) MTD-631-04180
...
xx
Handle Panel Black, includes 39 & 40 (Inc. Ref. 47) MTD-931-04183
...
xx
HANDLE PANEL (Inc. Ref. 47) MTD-931-05349
...
2
CLUTCH LOCK HANDLE ASSEMBLY (LH) (Inc. Ref. 48) MTD-631-04133A
...
3
CLUTCH LOCK HANDLE ASSEMBLY (RH) (Inc. Ref. 48) MTD-631-04134B
...
4
HANDLE ASSEMBLY (LH) MTD-684-04105D
...
5
HANDLE ASSEMBLY (RH) MTD-684-04106D
...
6
Screw, #8-16 x .50 MTD-710-04326
...
7
Screw, 1/4-20 x .375 MTD-710-04354
...
8
Screw, Self-tapping, 1/4-20 x 1.750 MTD-710-1026
...
9
Screw, Machine, #10-24 x 1.375 MTD-710-1233
...
10
Pivot Rod MTD-753-04882C
...
11
Engagement Ferru MTD-911-0677
...
12
Nut, Flange Lock, Nylon, 1/4-20 MTD-712-04064
...
13
Nut, Shoulder, Hex, 1/4-20, MTD-712-04081A
...
14
Pin, Cotter, .072 Dia. x 1.13 MTD-714-0104
...
15
Grip, 1.0 ID x 5.0 MTD-720-0274
...
16
Knob, Black MTD-720-04039
...
17
Lamp MTD-925-04213
...
18
HARNESS MTD-725-04214
...
19
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
20
Tie, Cable, 19 x 8.39", Tree Mount MTD-726-0470
...
21
LOCK PLATE MTD-731-04894D
...
22
CLUTCH LOCK CAM MTD-731-04896C
...
23
Spring, Compression, .3 9 x .60 x .88 MTD-732-0193
...
24
CLUTCH SPRING MTD-732-04219C
...
25
TORSION SPRING MTD-732-04238B
...
26
Bumper, Rubber, .62 OD x .22 MTD-735-0199A
...
27
Washer, Flat, .3 85 x .870x .092 MTD-736-0262
...
28
SHOULDER SCREW .437 x 1.345 1/4-20 MTD-738-04348
...
29
Screw, Shoulder, .3 74 Dia. x 1.05 MTD-738-04125
...
30
Cable "Z" Fitting MTD-946-0778
...
31
Rod, Shift, .312 x 8.98 Upper MTD-747-04348
...
32
Rod-Clutch Lock MTD-950-0963
...
33
SHIFT LEVER (POWDER BLACK) MTD-790-00130-0637
...
34
PANEL BRACKET MTD-790-00140-0637
...
35
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
36
Screw, 5/16-12, 0.750 MTD-710-0726
...
37
Wing Knob, 5/16-18 MTD-720-0284
...
38
Washer, Saddle , 320 x .93 x .060 MTD-736-0451
...
39
Lower Handle MTD-749-04138A
...
40
Handle, Upper, RH MTD-749-04141
...
41
Upper Handle, LH MTD-749-04191A
...
42
Nut, Flange Lock, Nylon, 5/16-18 MTD-712-04063
...
43
Nut, Speed, .3125 Dia. MTD-726-0135
...
44
Spring Lever, Shift MTD-732-04205
...
45
Bracket, Shift Spacer MTD-790-00156
...
46
Shift Rod, Lower MTD-747-04257
...
47
LENS MTD-931-04864
...
48
Nut, Hex Lock, Nylon, #10-24, Gr2 MTD-712-0161
...
50
LOCK CONTROL BRACKET MTD-790-00131A-0637
...
51
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
52
Flange Lock Nut 1/4-20 MTD-712-04064
...
53
Bolt, Shoulder, 5/16 x 1.7, 1/4-20 MTD-738-04133
...
54
Kit, Chute Control Housing MTD-753-04864
...
xx
SERVICE KIT 4-WAY CHUTE CONTROL MTD-753-08388A
...
55
KIT-LEVER TUBE ASSEMBLY MTD-753-04866
...
56
KIT-LEVER TUBE MTD-753-04863
...
57
Washer, Flat, .25 x .630 x .051 MTD-736-0463
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
