Yard Man 31AE633E401 (2001) Snow Thrower

Model: 31AE633E401 (2001)

Save Part Not Listed?
product name

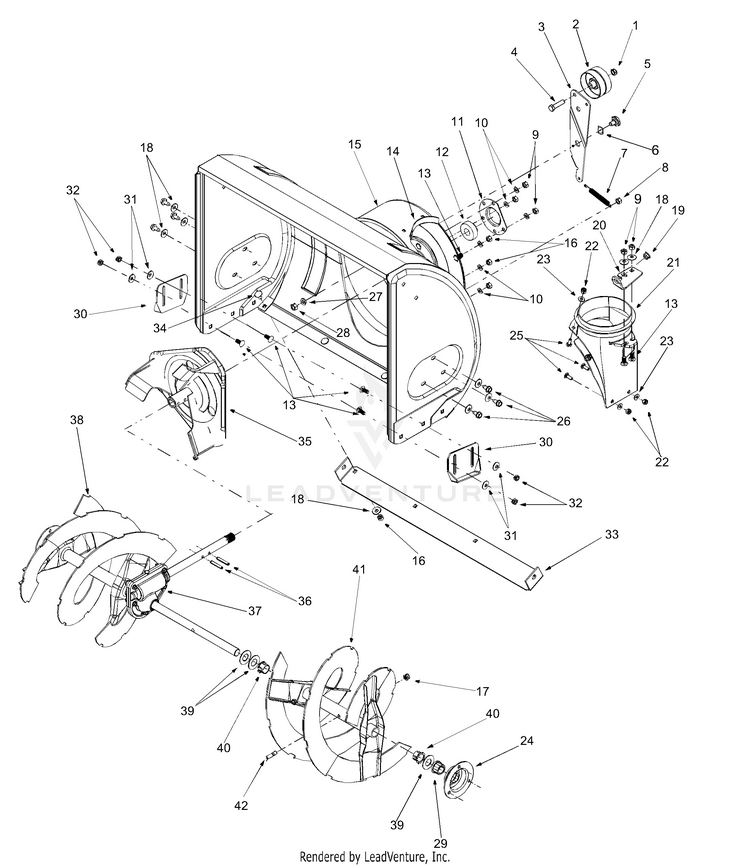

Blower Housing

...
...
1
Lock Jam Nut 3/8-24 MTD-712-0116
...
2
Flat Idler MTD-756-0178
...
3
Auger Idler Brkt. MTD-984-0064-0637
...
4
Hex Cap Screw 3/8-24 x 1.50 MTD-710-0459A
...
5
Shoulder Screw MTD-738-0281
...
6
Wave Washer MTD-736-0174
...
7
Ext. Spring 3.6" Lg. MTD-932-0611
...
8
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Bearing Housing MTD-05931A
...
12
Flange Ball Bearing MTD-941-0309
...
13
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
14
Chute Reinforcement MTD-705-5226
...
15
30" HOUSING ASSEMBLY (E663) MTD-684-0055B
...
xx
24" HOUSING ASSEMBLY (E633) MTD-684-0039D
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Lock Nut 5/16-18 MTD-712-0429
...
18
Bell Washer MTD-736-0242
...
19
BUSHING .380 ID MTD-941-0475
...
20
Chute Crank Bracket MTD-784-5647-0637
...
21
Adapter Chute MTD-731-1379D
...
22
Hex Lock Nut 1/4-20 MTD-712-0324
...
23
Flat Washer MTD-736-0463
...
24
Bearing Housing MTD-784-5618A-0637
...
25
Carriage Screw 1/4-20 x .75 MTD-710-0703
...
26
Screw, 5/16-18 x .625 MTD-710-0604A
...
27
Lock Washer 3/8 MTD-736-0169
...
28
Hex Nut 3/8-16 MTD-712-0798
...
29
Hex Flange Bearing MTD-941-0245
...
30
Skid Shoe MTD-784-5580
...
31
Bell Washer MTD-736-0242
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Shave Plate: Auger 30" (E663) MTD-790-00119-0637
...
xx
Shave Plate 24" (E633) MTD-790-00120-0637
...
34
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
35
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
36
Pin MTD-715-0114
...
37
Gear Assembly: Auger 30" (E663) MTD-918-0417B
...
xx
GEARBOX ASSEMBLY 24" W FITTING (E633) MTD-918-0414B
...
38
Spiral Assembly: RH 30" (E663) MTD-684-04186-0637
...
xx
24" SPIRAL ASSEMBLY (RH) (POWDER BLACK) (E633) MTD-684-04180-0637
...
39
Flat Washer MTD-736-0188
...
40
FLANGE BUSHING MTD-741-0493C
...
41
30" SPIRAL ASSEMBLY (LH) (POWDER BLACK) (E663) MTD-684-04187-0637
...
xx
Spiral 24" LH (E633) MTD-684-04181-0637
...
42
Shear Bolt 5/16-18 x 1.5 MTD-710-0890A

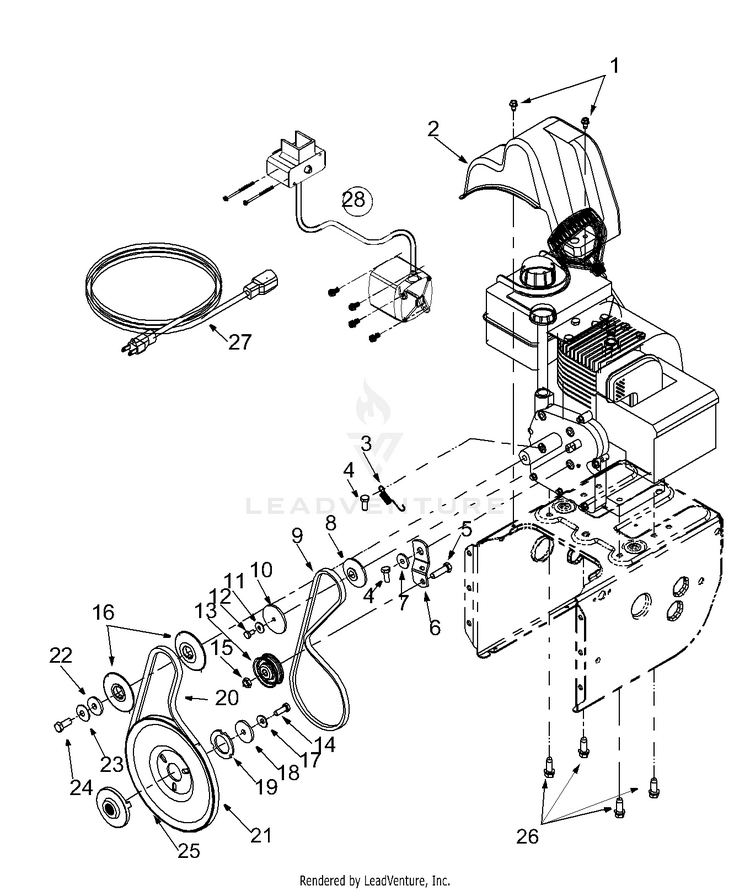

Engine & V-Belts

...
...
1
Hex Washer Screw 1/4-20 x.5 MTD-710-0599
...
2
Belt Cover MTD-731-1324
...
3
SPRING MTD-932-0339
...
4
Hex Screw 5/16-24 x .75 MTD-710-0627
...
5
Hex Cap Screw 3/8-16 x 1.25 MTD-710-3005
...
6
BRACKET-IDLR- MTD-05896A
...
7
Shoulder Spacer MTD-748-0234
...
8
HALF PULLEY MTD-756-0985
...
9
V-Belt MTD-954-0343
...
10
PULLEY-HAL MTD-756-0984
...
11
SPRING WASHER BELL MTD-736-0270
...
12
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
13
Flat Idler MTD-756-0313
...
14
SCREW 5/16-24X.875 GR5 MTD-710-1245
...
15
Lock Jam Nut 3/8-16 MTD-712-0181
...
16
Pulley Half MTD-756-0569
...
17
Bell Washer MTD-736-0242
...
18
Flat Washer MTD-736-0505
...
19
Washer MTD-936-0507
...
20
BELT: 3V X 35.00 LG MTD-954-0430C
...
21
Auger Pulley MTD-756-0967
...
22
Flat Washer MTD-736-0247
...
23
Bell Washer MTD-736-0331
...
24
Hex Cap Screw 3/8-24 MTD-710-0696
...
25
Adapter Pulley MTD-948-0360
...
26
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
27
3-Prong Extension Cord MTD-929-0071B
...
28
STARTER MOTOR (Includes Ref. 27) MTD-TC-33329H

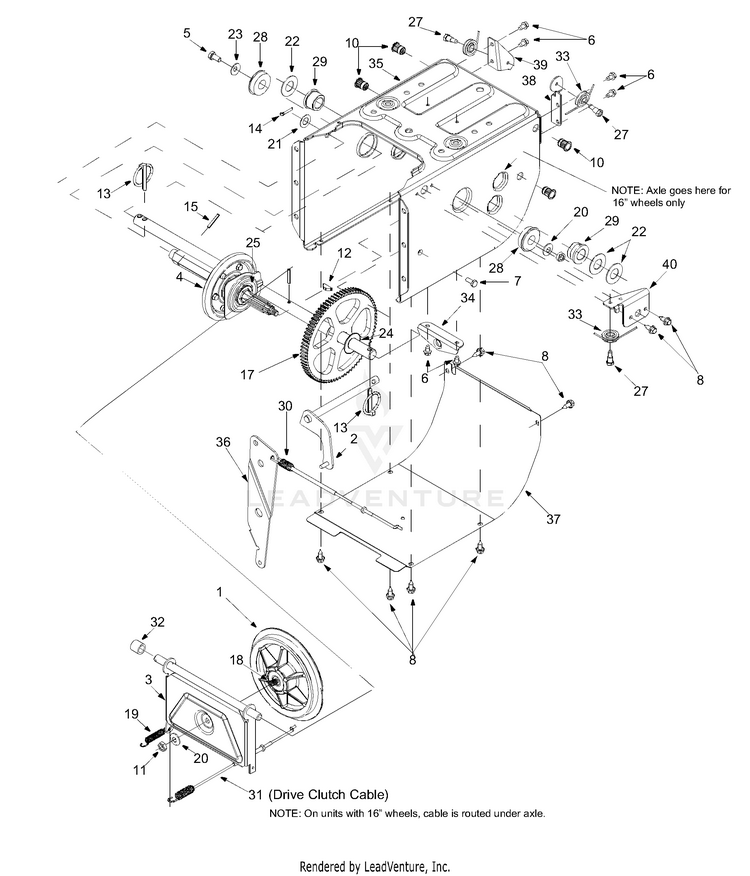

Frame Assembly

...
...
1
Friction Wheel Disc Assembly MTD-656-0021A
...
2
SHIFT ROD ASSEMBLY MTD-684-04243
...
3
BRACKET ASSEMBLY MTD-984-0021-0637
...
4
Wheel Assembly Friction MTD-984-0042C
...
5
Hex Bolt: 5/16-18 x .625" MTD-710-0538
...
6
Self-Tapping Screw 1/4-20 x 0.5" MTD-710-0599
...
7
Self-Tapping Screw 1/4-20 x 1.25" MTD-710-0809
...
8
Self-Tapping Screw 1/4-20 x .625" MTD-710-1652
...
?9
Jam Lock Nut 3/8-24 MTD-712-0116
...
10
INSERT NUT 5/16 MTD-712-0703A
...
11
Jam Nut MTD-712-0711
...
12
Key MTD-714-0126
...
13
Click Pin MTD-714-0143A
...
14
Cotter Pin MTD-714-0474
...
15
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
?16
7-Tooth Shaft MTD-917-04094
...
17
Gear - 80 Tooth MTD-717-1445
...
18
Loctite (TM) Adhesive MTD-721-0263
...
19
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
20
Spring Washer MTD-736-0105
...
21
Flat Washer MTD-736-0160
...
22
Flat Washer MTD-736-0188
...
23
Beleville Washer MTD-736-0242
...
24
Flat Washer MTD-736-0351
...
25
Lubricant MTD-737-0170
...
?26
Axle: Wheel MTD-738-0869
...
27
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
28
BALL BEARING MTD-941-0563
...
29
Hex Flange Brg. .752" I.D. MTD-941-0598
...
30
Cable-Auger Clutch MTD-946-0897
...
31
Cable-Drive Clutch MTD-946-0898
...
32
Spacer MTD-748-0190
...
33
Cable Roller MTD-756-0625
...
34
Shift Bracket: Frame MTD-784-5590
...
35
FRAME HOUSING MTD-784-5630A
...
36
Auger Idler Brkt. MTD-984-0064-0637
...
37
FRAME COVER MTD-784-5638A
...
38
AUGER GUIDE BRACKET MTD-784-5687A
...
39
DRIVE GUIDE BRACKET MTD-784-5688
...
40
GUIDE BRACKET MTD-784-5689A-0637

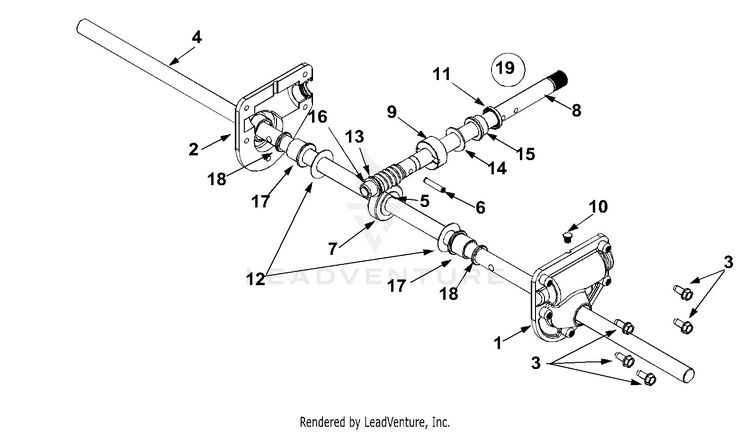

Gear Assembly

...
...
1
RH Housing (Incl. # 17, 18) MTD-918-0123A
...
2
LH Housing (Incl. # 17, 18) MTD-918-0124A
...
3
Self Tapping Screw, 1/4-20 x .75 MTD-710-0642
...
4
Axle, Spiral 30" (E663) MTD-711-1024A
...
xx
24"AUGER SHAFT (E633) MTD-711-0908A
...
5
KEY 3/16 x 5/8 H MTD-914-0161
...
6
Spring Spiral Pin, .25 x 1.25 MTD-715-0143
...
7
WORM GEAR 20T MTD-917-04861
...
8
IMPELLER SHAFT MTD-717P0526
...
9
Thrust Collar MTD-718-0186
...
10
Grease Plug MTD-721-0325
...
11
Grease Seal MTD-721-0327
...
12
Flat Washer, .76 x 1.5 x .030 MTD-736-0351
...
13
Flat Washer, .508 x 1.0 x .020 MTD-736-0369
...
14
Flat Washer, .76 x 1.5 x .060 MTD-736-0445
...
15
Flange Bearing, .75 x 1.0 x .59 MTD-741-0662
...
16
Flange Bearing, .75 x 1.0 x .925 MTD-748-0663
...
17
Bearing, Flange, .75 x 1.00 x .975 MTD-741-0661B
...
18
Grease Seal MTD-721-0179
...
19
Gear Assembly: Auger 30" (E663) MTD-918-0417B
...
xx
GEARBOX ASSEMBLY 24" W FITTING (E633) MTD-918-0414B
...
xx
Grease MTD-737-0168A

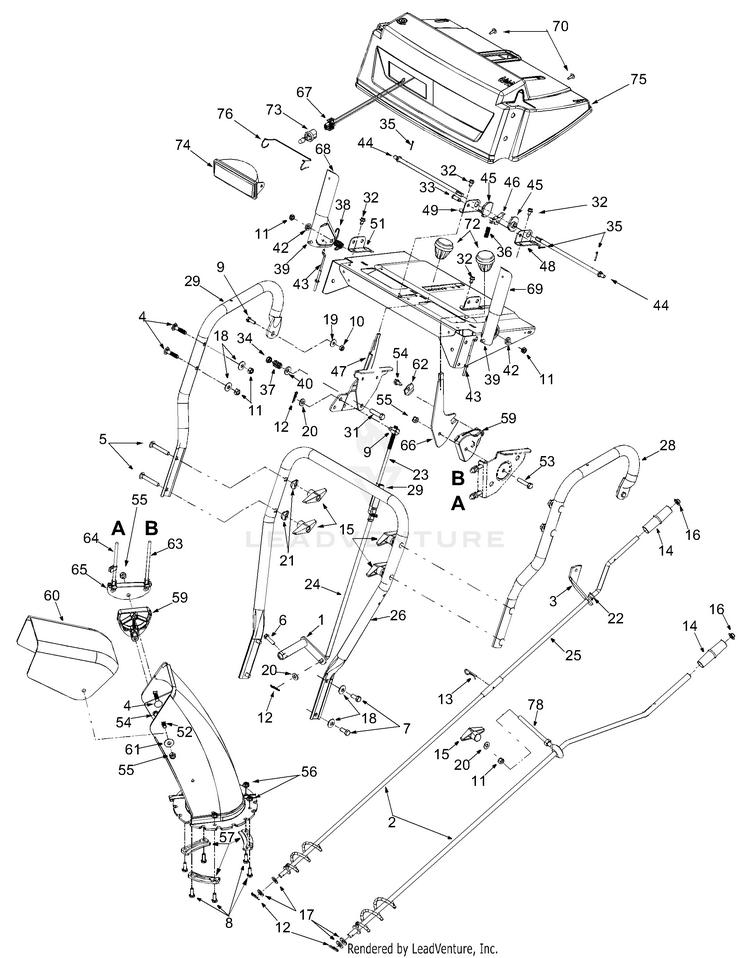

Handle Assembly & Chute

...
...
1
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
2
CHUTE CRANK ASSEMBLY(POWDER BLACK) MTD-684-0053B-0637
...
xx
Chute Crank Ass'y MTD-984-0022
...
3
Bracket, Chute Crank MTD-705-5266-0637
...
4
Carriage Bolt, 5/16-18 x 1.5 MTD-710-0262
...
5
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
6
Self Tapping Screw, 1/4-20 x 1 MTD-710-0788
...
7
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
8
Hex Cap Screw, 1/4-20 x .75 MTD-710-3015
...
9
Engagement Ferru MTD-911-0677
...
10
HEX NUT 1/4-20 MTD-912-0287
...
11
Lock Nut MTD-712-0429
...
12
Internal Cotter Pin MTD-714-0104
...
13
Click Pin MTD-714-0145
...
14
Chute Crank Knob MTD-720-0201A
...
15
Wing Knob, 5/16-18 MTD-720-0284
...
16
Push Cap, 3/8 MTD-726-0100
...
17
Flat Washer, .375 x .738 x .063 MTD-736-0185
...
18
Bell Washer, .34 x .872 MTD-736-0242
...
19
SPRING WASHER BELL MTD-736-0270
...
20
FLAT WASHER MTD-736-0275
...
21
Saddle Washer, .32 x .93 MTD-736-0451
...
22
BUSHING .380 ID MTD-941-0475
...
23
SHIFT ROD MTD-747-0620A
...
24
LOWER SHIFT ROD MTD-747-0621
...
25
Upper Chute Crank MTD-747-0737-0637
...
26
LOWER HANDLE MTD-749-0951A
...
?27
HANDLE (RH) MTD-749-0954
...
28
HANDLE (LH) MTD-749-0955-0637
...
29
Rod-Clutch Lock MTD-950-0963
...
?30
HANDLE PANEL ASSEMBLY MTD-684-0102A
...
31
Hex Cap Screw, 3/8-24 x 1.5 MTD-710-0459A
...
32
Self Tapping Screw, 1/4-20 x .5 MTD-710-0599
...
33
Clevis Pin MTD-711-0653
...
34
Jam Nut, 3/8-24 MTD-712-0116
...
35
Cotter Pin MTD-714-0104
...
36
Compression Spring, .36 x 1.0 MTD-732-0145
...
37
Comp. Spring, .39 x .6 x .88 MTD-732-0193
...
38
Torsion Spring, .44 x .8 MTD-732-0746
...
39
Rubber Bumper MTD-735-0199A
...
40
Bell Washer, .401 x .87 x .063 MTD-736-0105
...
42
Special Washer, .35 x .72 x .13 MTD-736-0509
...
43
Cable "Z" Fitting MTD-946-0778
...
44
Cam Rod MTD-747-0877
...
45
Cam Handle Lock MTD-748-0362
...
46
Handle Lock Pawl MTD-948-0363
...
47
KIT-SHIFT HANDLE:S MTD-753-05395
...
48
HANDLE BRACKET (LH) MTD-784-5679-0637
...
49
Brkt., Handle Support - RH MTD-784-5680-0637
...
?50
LH Handle Support Bracket MTD-784-5681
...
51
Brkt., Handle Support - RH MTD-784-5682-0637
...
52
Carriage Bolt, 5/16-18 x .75 MTD-710-0451
...
53
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
54
Screw, 1/4-14 x .625 MTD-710-0896
...
55
Hex Lock Nut, 5/16-18 MTD-712-0429
...
56
LOCK NUT 1/4 MTD-912-3027
...
57
Lower Chute Flange Keeper MTD-731-0851A
...
?58
Lower Chute MTD-731-1300E
...
59
Chute Tilt Cable Guide MTD-731-1313C
...
60
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
61
Washer, 5/16 MTD-736-0159
...
62
SPECIAL WASHER MTD-736-0506A
...
63
Chute Deflector Control Cable MTD-946-0896
...
64
Chute Deflector Cable w/ Clip MTD-946-0901
...
65
Cable Bracket MTD-784-5594
...
66
Handle, Chute Tilt MTD-784-5604A-0637
...
67
Halogen Light Harness MTD-929-0059
...
68
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
69
LH Engagement Handle Ass'y MTD-684-0059
...
70
Special Screw, #10-16 x .625 MTD-710-04669
...
?71
Hex Sems Nut, 1/4-20 (For ground wire of light ass'y) MTD-712-0271
...
72
Knob MTD-920-0232
...
73
Lamp MTD-925-1658
...
74
Lens/Lamp Assembly Housing MTD-925-1672
...
75
HANDLE PANEL MTD-731-1545
...
76
Headlamp Retainer MTD-747-1136
...
78
EYEBOLT MTD-747-0697
...
xx
Eyebolt Grommet (Not Shown) MTD-735-0234

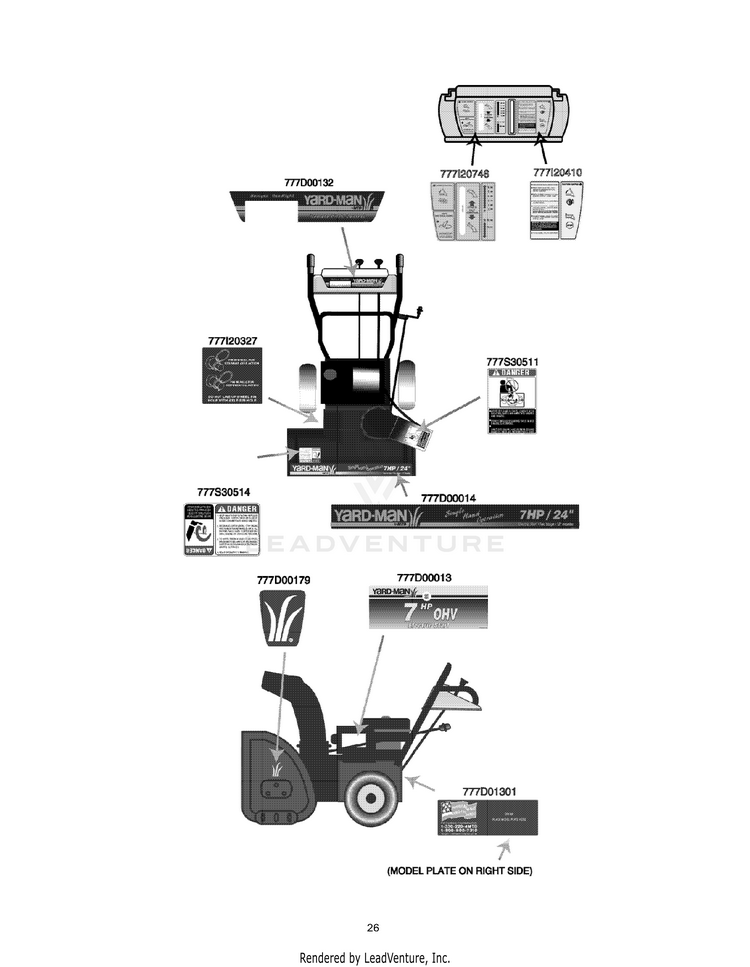

Labels

...
...
