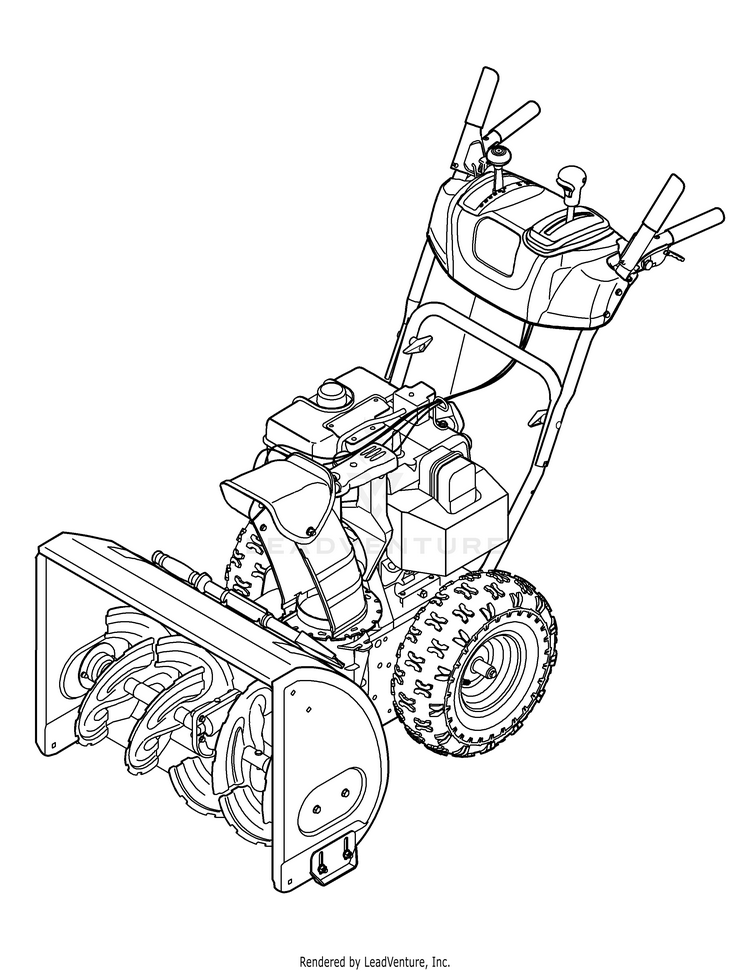

Yard Man 31AE5KLF801 (2006) Snow Thrower

Model: 31AE5KLF801 (2006)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Key MTD-TC-35062
...
xx
Extension Cord MTD-NA
...
xx
Snow Removal Tool MTD-931-2643
...
xx
Cable-Auger Clutch MTD-946-0897
...
xx
Drive Cable MTD-946-04229B
...
xx
STEERING CABLE MTD-946-0956C
...
xx
Spiral Assembly, LH MTD-684-04107A-0637
...
xx
Spiral Assembly, RH MTD-684-04108A-0637
...
xx
Shave Plate MTD-790-00121-0637
...
xx
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
xx
Slide Shoe MTD-784-5580-0637
...
xx
Slide Shoe - Reversible MTD-790-00091-0637
...
xx
Shear Pin MTD-738-04124A
...
xx
Bow Tie Cotter Pin MTD-714-04040
...
xx
Lamp MTD-925-1629
...
xx
Lamp For Use With Heated Grips Only MTD-925-04213
...
xx
Auger Drive Belt MTD-954-04050A
...
xx
Wheel Belt MTD-754-04088
...
xx
Spiral Cresent MTD-NA
...
xx
Rubber Paddle MTD-NA
...
xx
Friction Wheel Assembly MTD-684-04159C
...
xx
Wheels MTD-634-04141

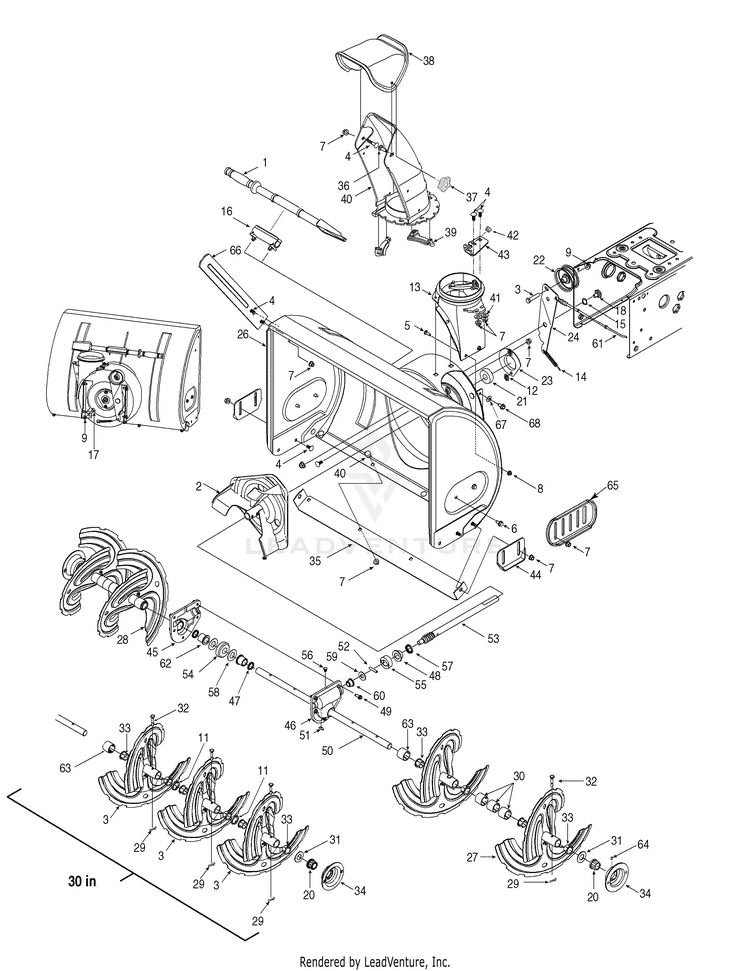

Blower Housing Assembly

...
...
1
Snow Removal Tool MTD-931-2643
...
2
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
3
Hex Screw 3/8-16 x 1.75 MTD-710-0347
...
4
Carriage Bolt 5/16-18 x .75 Gr. 1 MTD-710-0451
...
5
Carriage Screw 1/4-20 x .75 Gr. 5 MTD-710-0703
...
6
Hex Wash HD AB Tap Scr 5/16-18 x .625 MTD-710-0604A
...
7
Flange Locknut 5/16-18 Gr. F Nylon MTD-712-04063
...
8
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
9
Hex L-Flanged Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
10
Cable Tie MTD-725-0157
...
11
Spacer 1.25 x .75 x 3/16" Lg. MTD-731-04871
...
12
Push-on Nut .25 dia. MTD-726-04012
...
13
CHUTE ADAPTER MTD-731-04705D
...
14
Ext. Spring 3.6" Lg. MTD-932-0611
...
15
Wave Washer .660 ID x .88 OD x .010 MTD-736-0174
...
16
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
17
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
18
Shoulder Scr .625 Dia x .170 MTD-738-0281
...
20
Hex Flange Bearing MTD-941-0245
...
21
Flange Ball Bearing MTD-941-0309
...
22
Flat Idler Pulley MTD-756-04224
...
23
BEARING HOUSING 1.85 ID MTD-790-00075B
...
24
AUGER IDLER BRACKET MTD-790-00080D
...
26
26" AUGER HOUSING MTD-684-04071
...
27
AUGER SPIRAL (LH) MTD-684-04107A
...
28
AUGER SPIRAL (RH) MTD-684-04108A
...
29
Bow Tie Cotter Pin MTD-714-04040
...
30
Spacers Need two between spirals MTD-731-04870
...
31
Flat Washer .760 ID x 1.49 OD MTD-736-0188
...
32
Shear Pin .25 x 1.5 Gr. 2 MTD-738-04124A
...
33
FLANGE BUSHING MTD-741-0493C
...
34
Bushing Housing MTD-790-00087A
...
xx
BEARING HOUSING 1" HEX (w/grease fitting hole) MTD-790-00138A-0637
...
35
Shave Plate MTD-790-00121
...
36
Carriage Bolt 5/16-18 x 1.0 MTD-710-04071
...
37
Star Knob MTD-720-04072A
...
38
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
39
Chute Flange Keeper MTD-731-04869A
...
40
Lower Chute MTD-731-04912B
...
41
Carriage Bolt 5/16-18 x 1.0 MTD-710-0276
...
42
BUSHING .380 ID MTD-941-0475
...
43
Chute Crank Bracket MTD-784-5647-0637
...
44
Slide Shoe MTD-784-5580
...
45
RH Housing MTD-918-0123A
...
46
LH Housing MTD-918-0124A
...
47
Oil Seal 3/4 ID MTD-721-0179
...
48
Flange Bearing .75 ID x 1.00 OD x .50 MTD-741-0662
...
49
Thd Forming Scr. 1/4-20 x .75 MTD-710-0642
...
50
26" AUGER AXLE MTD-711-06144
...
51
KEY 3/16 x 5/8 H MTD-914-0161
...
52
Dowel Pin .25 OD x 1.2 MTD-715-04021
...
53
Shaft, Worm .75 OD MTD-917-04126
...
54
WORM GEAR 20T MTD-917-04861
...
55
Thrust Collar MTD-718-04071
...
56
Plug, 1/4 x .437 MTD-721-0325
...
57
Oil Seal .75 x 1 x .131 MTD-721-0327
...
58
Flat Washer .76 ID x 1.5 OD x .03 MTD-736-0351
...
59
Fl. Washer .510 x 1.120 x .060 MTD-736-3084
...
60
Flange Bearing .75 ID x 1.0 OD x .925 MTD-741-0663
...
61
Cable-Auger Clutch (w/"Z" fitting) MTD-946-0897
...
62
Bearing, Flange, .75 x 1.00 x .975 MTD-741-0661B
...
63
Spacer 1.25 x .75 x 1.00 MTD-731-04870
...
64
GREASE FITTING MTD-937-3000
...
65
Reversible Slide Shoe MTD-790-00091
...
66
Drift Cutter - Optional MTD-790-00181
...
67
Cupped Washer .340 x 872 x .060 MTD-736-0242
...
68
Hex Wash HD AB Tap Scr 5/16-18 x .625 MTD-710-1206A
...
xx
26" GEARBOX ASSEMBLY Not Shown MTD-918-04172C

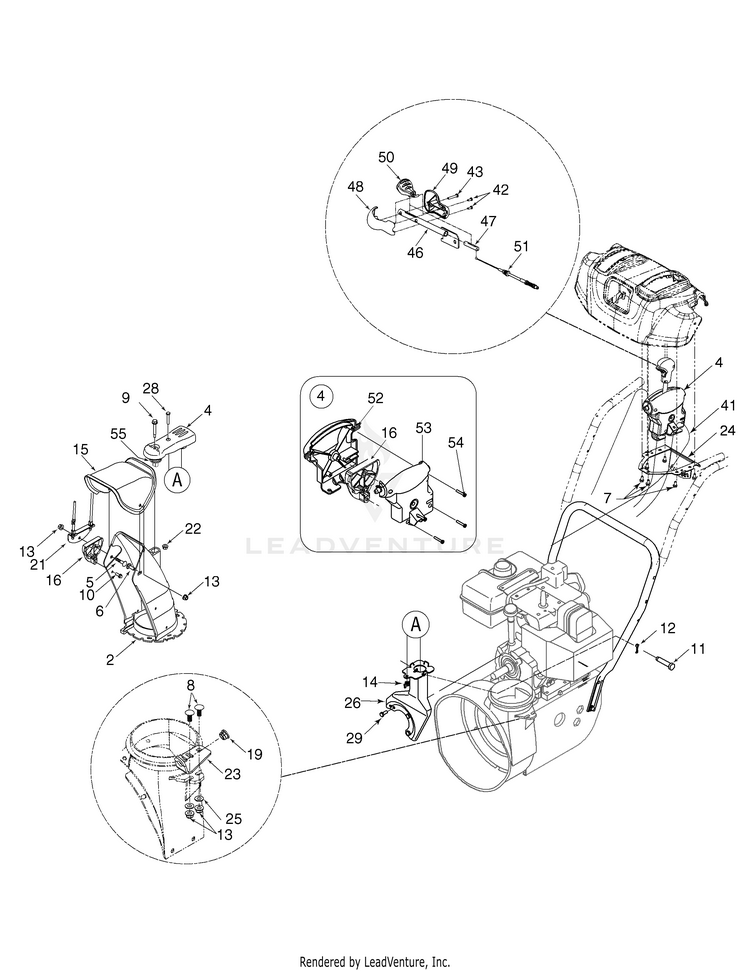

Chute Control Assembly

...
...
2
Lower Chute (4 Way) MTD-731-04861B
...
4
SERVICE KIT 4-WAY CHUTE CONTROL (Also order 684-04310A-0637 support bracket in this application) (Replaces 684-04116B 4 Way Chute Control) (Discard the support bracket furnished in the 753-08388 service kit) MTD-753-08388A
...
5
Carriage Bolt 5/16-18 x 1.50 Gr. 2 MTD-710-0262
...
6
Carriage Screw 5/16-18 x 1.0 MTD-710-04071
...
7
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
8
Carriage Bolt 5/16-18 x 1.00" Lg MTD-710-0276
...
9
Shoulder Screw .312 x 1.7:1/4-20 MTD-738-04194
...
10
Hex Tapp Scr 1/4 x .75" Lg. MTD-710-0895
...
11
Clevis Pin 3/8 x 1.87 MTD-711-04469A
...
12
Bow Tie Cotter Pin MTD-714-04040
...
13
Flange Locknut 5/16-18 Gr. F Nylon MTD-712-04063
...
14
WING NUT 1/4-20 MTD-712-3087
...
15
Upper Chute w/Export Label, Remote MTD-931-04425B
...
16
Cable Guide MTD-731-1313C
...
19
BUSHING .380 ID MTD-941-0475
...
21
Cable Bracket Chute Tilt MTD-784-5594
...
22
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
23
Chute Crank Bracket MTD-784-5647-0637
...
24
LOCK CONTROL BRACKET MTD-790-00131A-0637
...
25
Flat Washer .349 ID x .879 OD x .063 MTD-736-0159
...
26
CHUTE SUPPORT BRACKET ASSEMBLY (POWDER BLACK) (use with 684-04116B 4 Way Chute Control Assembly) MTD-684-04162B-0637
...
26
CHUTE SUPPORT BRACKET (POWDER BLACK) (use with 753-08388 4 Way Chute Control Assembly Service Kit) MTD-684-04310B-0637
...
27
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
28
Hex Hd. Cap Screw 1/4-20 x 1.5 Gr. 5 MTD-710-0606
...
29
Hex Hd. Cap Screw 5/16-24 x .75 MTD-710-0627
...
41
Chute Rotation Cable order assembly 684-04116B MTD-NA
...
42
Plastite Screw #6 x .375 MTD-710-04352
...
43
Plastite Screw #8 x 1.00 MTD-710-04353
...
46
LEVER ASSEMBLY MTD-984-04115
...
47
Joystick Plug MTD-731-04893A
...
48
RH Trigger Control Knob order 753-04866 Kit, Lever Tube Knob & Cable MTD-NA
...
49
LH Trigger Control Knob order 753-04866 Kit, Lever Tube Knob & Cable MTD-NA
...
50
Trigger Levier order 753-04866 Kit, Lever Tube Knob & Cable MTD-NA
...
51
Detent Cable order 753-04866 Kit, Lever Tube Knob & Cable MTD-NA
...
52
Control Head Housing LH order 753-04864 Kit, Chute Control Housing MTD-NA
...
53
Control Head Housing RH order 753-04864 Kit, Chute Control Housing MTD-NA
...
54
Screw #8 x 1.0 Plastite MTD-710-04353
...
xx
ROTATION PUL ASM S/T JOYSTICK KIT MTD-753-04875P

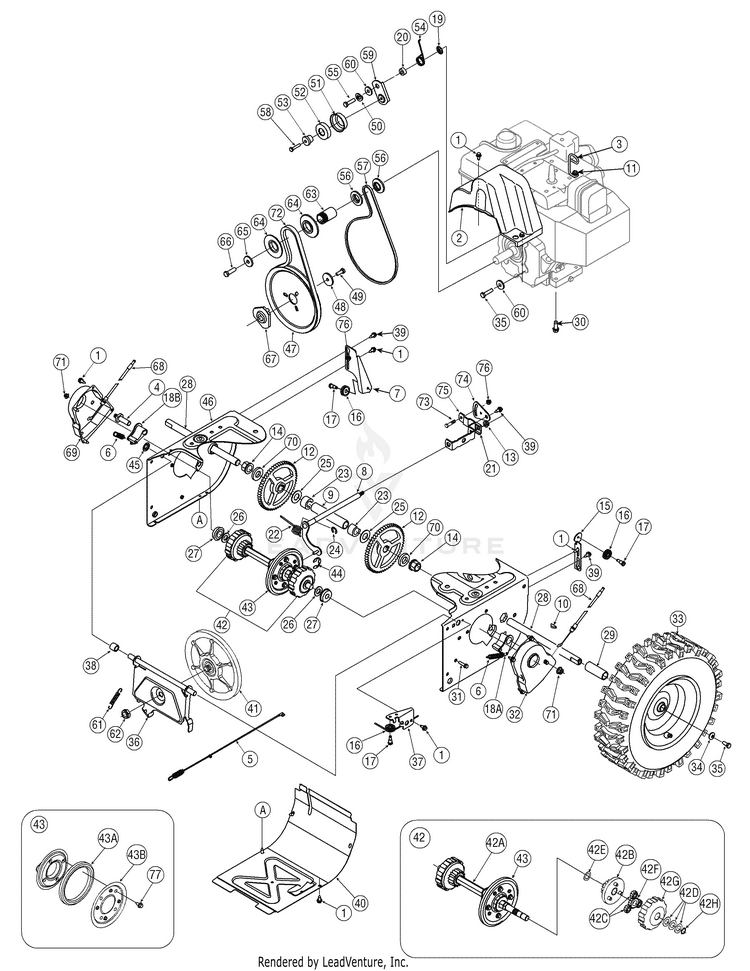

Drive Assembly

...
...
1
Hex Wash Hd TT Scr. 1/4-20 x .625 MTD-710-1652
...
2
BELT COVER (SMALL BLOCK) (w/4 Way Chute Control) MTD-631-05321
...
2
BELT COVER (Std.) MTD-731-05353B
...
3
Cable Control Wire MTD-732-0705
...
4
Drive Shaft Actuator MTD-711-1268B
...
5
Drive Cable MTD-946-04229B
...
6
Extension Spring .5 OD x 1.71 Lg. MTD-732-04345
...
7
CABLE GUIDE BRACKET (DRIVE) MTD-790-03997
...
8
SHIFT ROD ASSEMBLY MTD-684-04156A
...
9
Axle Support Tube MTD-750-04474
...
10
#9 HI-Pro Key 3/16 x 3/4 Dia HT MTD-714-0126
...
11
Hex Wash Hd Tapp Scr 5/16-18 x 1.00 MTD-710-0602
...
12
GEAR-56T MTD-917-04210
...
13
Flange Lock-Nut 5/16-18 Gr. F Nylon MTD-712-04063
...
14
Hex Flange Bearing MTD-941-0245
...
15
AUGER CABLE GUIDE BRACKET MTD-790-00206B
...
16
Cable Guide Roller MTD-756-0625
...
17
Hex Shld.Scr.1/4-28 x .375 MTD-738-0924A
...
18A
DOGG ASSEMBLY (LH) MTD-618-04288
...
18B
Dogg Assembly - RH MTD-618-04287
...
19
Push Nut MTD-726-04012
...
20
Spacer, .340 x .750 MTD-750-04477A
...
21
Shift Spacer Bracket MTD-790-00156
...
22
TORSION SPRING MTD-732-04311A
...
23
Spacer MTD-731-05297
...
24
E-RING FOR .500 MTD-916-0104
...
25
Flat Washer .760 ID x 1.49 OD MTD-736-0188
...
26
Flat Washer .580 x 1.125 x .080 MTD-736-0626
...
27
Ball Bearing MTD-741-04076
...
28
Axle MTD-938-04180
...
29
Spacer MTD-731-04873
...
30
Hex Wash HD Tap Scr 3/8-16 x .88 MTD-710-0654A
...
31
Hex Bolt 1/4-20 x 1.00 MTD-710-0788
...
32
HEX SHAFT RETAINER (LH) MTD-790-00185
...
33
16 x 4.8 Snow Hog Wheel Wheel Assembly MTD-634-04141
...
33
Tire 16 x 4.8 size MTD-734-1530
...
33
Rim 16 x 4.8 size MTD-634-04173
...
33
WHEEL AXLE SHAFT .75 x 22" MTD-938-04493
...
34
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
35
Hex L-Bolt 5/16-24 x .75 Gr. 5 MTD-710-0627
...
36
FRICTION WHEEL BRACKET MTD-684-04154B-0637
...
37
Auger Cable Guide Bracket MTD-790-00096
...
38
Spacer .513 ID x 1.0 MTD-748-0190
...
39
Shoulder Screw .373 x .105:TT 1/4-20 MTD-738-04184A
...
40
FRAME COVER MTD-790-00226
...
41
FRICTION WHEEL DISC ASSEMBLY MTD-656-04055A
...
42
Drive Shaft Assembly (w/.75 diam hex shaft) MTD-918-04322A
...
42A
Hex Drive MTD-711-04416A
...
42B
Planetary Carrier Ass'y MTD-918-04284
...
42C
Gear 12T MTD-717-1209A
...
42D
Fl-Wash. .57" I.D. x 1.12" O.D. MTD-936-0502
...
42E
FLAT WASHER MTD-936-0336
...
42F
Gear 18T MTD-717-1210A
...
42G
Ring Planetary Gear Ass'y (500) MTD-918-04285
...
42H
Retaining Ring 1.56 diam. MTD-716-0194
...
43
Friction Wheel Assembly MTD-684-04159C
...
43A
FRICTION WHEEL 5.50OD MTD-935-04054A
...
43B
Friction Plate MTD-790-00174C
...
44
Retainer Ring MTD-716-0136
...
45
Cap Speed Nut 1/4 Rod MTD-726-0221
...
46
DRIVE FRAME HOUSING MTD-790-00183E
...
47
Auger Pulley MTD-756-04109
...
48
Flat Washer .34 x 1.50 x .150 MTD-736-0505
...
49
Hex Bolt 5/16-24 x 0.875 MTD-710-1245B
...
50
Lock Wash. 5/16" I.D. MTD-936-0119
...
51
Bearing Sleeve MTD-790-00230
...
52
BALL BEARING MTD-741P0919B
...
53
Spacer MTD-750-04571
...
54
TORSION SPRING MTD-732-04308C
...
55
Hex HD. Cap Scr. 5/16-24 x 1.25 Lg. MTD-710-0672
...
56
HALF PULLEY:1/4-V x 1.5 OD MTD-956-04179
...
57
Belt 33.0" Lg. MTD-754-04088
...
58
Hex Bolt 1/4-20 x 1.25 MTD-710-0809
...
59
Drive Idler Bracket MTD-790-00208D
...
60
Spacer, Shoulder, .3175 x .500 MTD-748-04112B
...
61
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
62
Jam L-Nut 5/8-18 Gr. 5 Nylon MTD-712-0413
...
63
Spacer .875 ID x 1.185 OD MTD-750-04303
...
64
HALF PULLEY A2.76 x 1.140 SPLINE MTD-756-06563
...
65
Flat Washer .40 ID x 1.25 OD x .160 MTD-736-0247
...
66
Hex Screw 3/8-24 x 1.25 MTD-710-0191
...
67
Pulley Adapter, .75 DIA MTD-748-04053A
...
68
STEERING CABLE MTD-946-0956C
...
69
HEX SHAFT RETAINER (RH) MTD-790-00186
...
70
Axle Spacer MTD-750-0767
...
71
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
72
Auger Drive Belt MTD-954-04050A
...
73
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
74
Pivot Bracket MTD-790-00217A
...
75
Shift Bracket MTD-790-00218A
...
76
Flange Lock-Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
77
Hex Wash. Hd. TT Scr. 1/4-14 x .625 MTD-710-0896

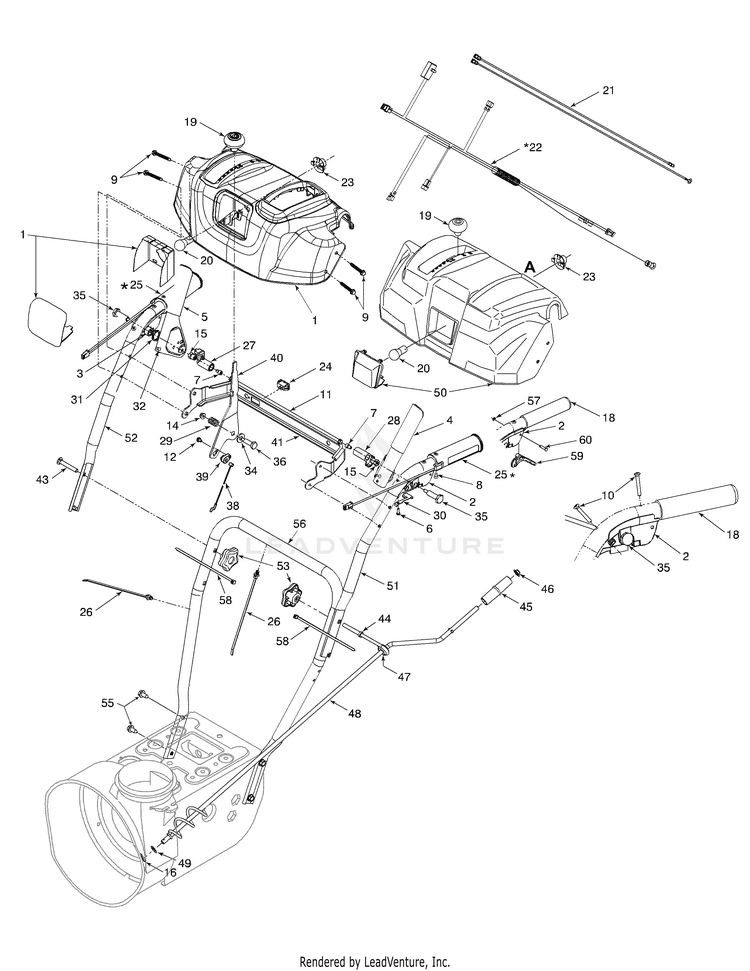

Handle Assembly

...
...
1
Handle Panel Ass’y - Yellow Yellow MTD-631-04180
...
1
Handle Panel Ass’y - Black Black MTD-631-04185
...
1
Handle Panel Black, includes 39 & 40 Black w/Chute Control MTD-931-04183
...
2
CLUTCH LOCK HANDLE ASSEMBLY (LH) MTD-631-04133A
...
3
CLUTCH LOCK HANDLE ASSEMBLY (RH) MTD-631-04134B
...
4
HANDLE ASSEMBLY (LH) MTD-684-04105D
...
5
HANDLE ASSEMBLY (RH) MTD-684-04106D
...
6
Screw #8-16 x .50 MTD-710-04326
...
7
Screw 1/4-20 x .375 MTD-710-04354
...
8
Oval HD C-Sunk Scr #10 x 5/8 MTD-710-0837
...
9
Hex TT-Tap Scr 1/4-20 x 1.625 MTD-710-04586
...
10
Oval C-Sunk Hd Screw 10-24 x 1.375 MTD-710-1233
...
11
Pivot Rod MTD-753-04882C
...
12
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
14
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
15
Hex Shoulder Nut 1/4-20 MTD-712-04081A
...
16
Int. Cotter Pin .072 x 1.13" Lg. MTD-714-0104
...
18
Grip MTD-720-0274
...
19
Shift Knob MTD-720-04039
...
19
SHIFT KNOB Yellow MTD-720-04045
...
20
Lamp (w/heated grips) MTD-925-04213
...
20
Lamp MTD-925-1629
...
21
HARNESS MTD-725-04214
...
22
Wiring Harness use with heated grips MTD-725-04216B
...
23
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
24
Switch MTD-725-04393
...
25
Heated Grip use with heated grips MTD-725-1757
...
26
Cable Tie 19 x 8.39" (w/plug) (w/plug) MTD-726-0470
...
26
Cable Tie (w/heated grips) (w/heated grips) MTD-725-0157
...
27
LOCK PLATE MTD-731-04894D
...
28
CLUTCH LOCK CAM MTD-731-04896C
...
29
Compression Spring .38 ID x .88 Lg MTD-732-0193
...
30
CLUTCH SPRING MTD-732-04219C
...
31
TORSION SPRING MTD-732-04238B
...
32
Rubber Bumper MTD-735-0199A
...
34
FLAT WASHER .38X.88 MTD-736-0267
...
35
SHOULDER SCREW .437 x 1.345 1/4-20 MTD-738-04348
...
36
Shoulder Screw .374 Dia. x 1.05 Lg. MTD-738-04125
...
38
Selector Speed Cable MTD-746-04227A
...
39
Barrel Cable Hold Down MTD-946-0605
...
40
SHIFT LEVER MTD-790-00203-0637
...
41
HANDLE SUPPORT BRACKET MTD-790-00248E-0637
...
43
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
44
Chute Crank Eye Bolt Special MTD-747-04263
...
45
Knob 1.0 x 3.2 MTD-720-0201A
...
46
Push Nut 3/8" Rod MTD-726-0100
...
47
Grommet MTD-735-0234
...
48
CHUTE CRANK ASSEMBLY MTD-684-04104-0637
...
49
Flat Washer .406" I.D. x .75" O.D. MTD-736-0185
...
50
Handle Panel Ass’y - Troy-Bilt Troy-Bilt MTD-931-04181A
...
51
Upper Handle, LH MTD-749-04191A
...
51
Upper Handle, LH (Heated Grips) MTD-749-04191A
...
52
Upper Handle RH MTD-749-04141
...
52
Upper Handle, RH (Heated Grips) MTD-749-04190A
...
53
Star Knob MTD-720-04072A
...
55
Hex Wash HD Lo Tap Scr 5/16 x .75 MTD-710-1260A
...
56
Lower Handle MTD-749-04138A
...
57
E Ring MTD-716-04036
...
58
Cable Tie MTD-725-0157
...
59
Steering Control MTD-731-04913
...
60
Pin 3/16 MTD-738-04126
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
