product name

Yard Man 31AE5KLF701 (2005) Snow Thrower

Model: 31AE5KLF701 (2005)

Back To Assemblies

Save Part Not Listed?
product name

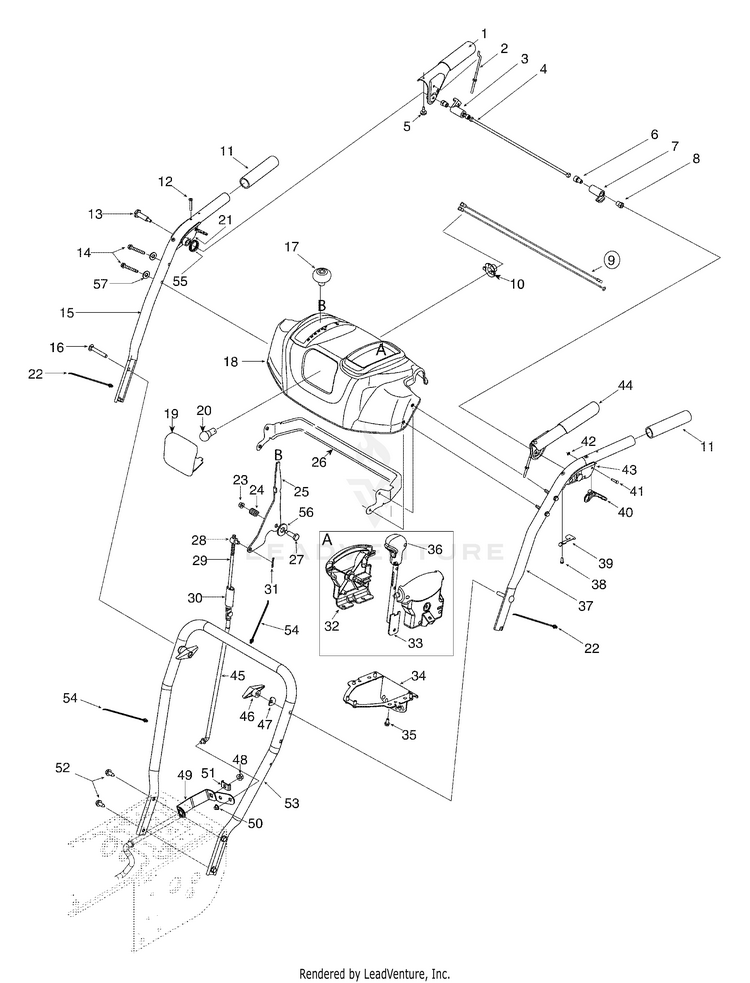

Handle

...
...
1
HANDLE ASSEMBLY (RH) MTD-684-04106D
...
2
Cable "Z" Fitting MTD-946-0778
...
3
LOCK PLATE MTD-731-04894D
...
4
Pivot Rod MTD-753-04882C
...
5
Rubber Bumper MTD-735-0199A
...
6
Screw, 1/4-20 x.375 MTD-710-04354
...
7
CLUTCH LOCK CAM MTD-731-04896C
...
8
Shoulder Nut, 1/4-20 MTD-712-04081A
...
9
HARNESS MTD-725-04214
...
10
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
11
Handle Grip MTD-720-0274
...
12
Screw, #10-24 x 0.375 MTD-710-1233
...
13
SHOULDER SCREW .437 x 1.345 1/4-20 MTD-738-04348
...
14
Screw, 1/4-20 x 1.750 MTD-710-1026
...
15
Upper Handle RH MTD-749-04141
...
16
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
17
SHIFT KNOB MTD-720-04045
...
18
Handle Panel Ass’y - Yellow MTD-631-04180
...
19
LENS MTD-931-04864
...
20
Lamp MTD-925-04213
...
21
CLUTCH LOCK HANDLE ASSEMBLY (RH) MTD-631-04134B
...
22
Cable Tie MTD-725-0157
...
23
Flange Lock Nut, 1/4-20 MTD-712-04064
...
24
Compression Spring MTD-732-0193
...
25
SHIFT LEVER (POWDER BLACK) MTD-790-00130-0637
...
26
PANEL BRACKET MTD-790-00140-0637
...
27
Shoulder Screw MTD-738-04125
...
28
Engagement Ferru MTD-911-0677
...
29
Upper Shift Rod MTD-747-04348
...
30
Rod-Clutch Lock MTD-950-0963
...
31
Hairpin Clip MTD-714-0104
...
32
Kit, Chute Control Housing MTD-753-04864
...
33
KIT-LEVER TUBE ASSEMBLY MTD-753-04866
...
34
LOCK CONTROL BRACKET MTD-790-00131A-0637
...
35
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
36
KIT-LEVER TUBE MTD-753-04863
...
37
Upper Handle, LH MTD-749-04191A
...
38
Screw, #8-16 x 0.50 MTD-710-04326
...
39
CLUTCH SPRING MTD-732-04219C
...
40
Steering Control MTD-731-04913
...
41
Pin, 3/16 MTD-738-04126
...
42
E Ring MTD-716-04036
...
43
CLUTCH LOCK HANDLE ASSEMBLY (LH) MTD-631-04133A
...
44
HANDLE ASSEMBLY (LH) MTD-684-04105D
...
45
Lower Shift Control Rod MTD-747-04266
...
46
Handle Knob Assembly MTD-720-0284
...
47
Saddle Washer MTD-736-0451
...
48
Flange Lock Nut, 5/16-18 MTD-712-04063
...
49
Shift Arm MTD-732-04205
...
50
Speed Nut MTD-726-0135
...
51
Shift Bracket Spacer MTD-790-00156
...
52
AB Screw, 5/16-12 x 0.75 MTD-710-0726
...
53
Lower Handle MTD-749-04138A
...
54
Cable Tie MTD-726-0470
...
55
TORSION SPRING MTD-732-04238B
...
56
Flat Washer MTD-736-0262
...
57
Washer, Flat,.25 x.630 x.0515 MTD-736-0463
