Yard Man 31AE5KLF701 (2005) Snow Thrower

Model: 31AE5KLF701 (2005)

Back To Assemblies

Save Part Not Listed?
product name

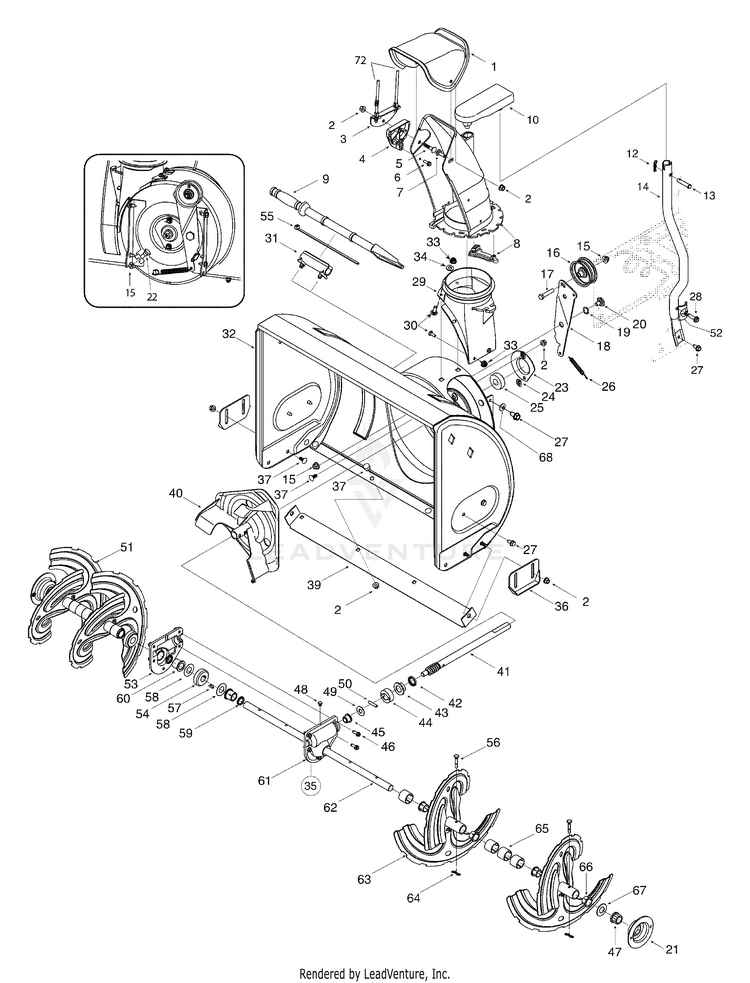

General Assembly

...
...
1
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
2
Flange Lock Nut, 5/16-18 MTD-712-04063
...
3
Cable Bracket MTD-784-5594
...
4
Chute Tilt Cable Guide MTD-731-1313C
...
5
Carriage Bolt, 5/16-18 x 1.50 MTD-710-0262
...
6
Hi-Lo S crew, 1/4-15x 0.75 MTD-710-0895
...
7
Carriage Bolt, 5/16-18 x 1.0 MTD-710-04071
...
8
4-WAY LOWER CHUTE ASSEMBLY MTD-631-04132
...
8
Chute Flange Keeper MTD-731-04869A
...
9
Snow Removal Tool MTD-931-2643
...
10
ROTATION PUL ASM S/T JOYSTICK KIT MTD-753-04875P
...
12
Cotter Pin MTD-714-0104
...
13
Clevis Pin MTD-711-0415
...
14
SUPPORT TUBE MTD-749-04155
...
15
Flange Lock Nut MTD-712-04065
...
16
Flat Idler Pulley MTD-756-04224
...
17
Hex Bolt, 3/8-16 x 1.75 MTD-710-0347
...
18
AUGER IDLER BRACKET MTD-790-00080D
...
19
Wave Washer MTD-736-0174
...
20
Shoulder Screw MTD-738-0281
...
21
Housing, 1" Hex Bearing MTD-790-00087A-0637
...
22
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
23
BEARING HOUSING 1.85 ID MTD-790-00075B
...
24
Push Nut MTD-726-04012
...
25
Flange Ball Bearing MTD-941-0309
...
26
Ext. Spring 3.6" Lg. MTD-932-0611
...
27
AB Screw, 5/16-12 x 0.75 MTD-710-0726
...
28
TT Screw, 5/16-18 x 1.750 MTD-710-0909A
...
29
CHUTE ADAPTER MTD-731-04705D
...
30
Carriage Screw, 1/4-20 x 0.75 MTD-710-0703
...
31
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
32
26" AUGER HOUSING MTD-684-04071
...
33
Flange Lock Nut, 1/4-20 MTD-712-04064
...
34
Flat Washer MTD-736-0463
...
35
26" GEARBOX ASSEMBLY MTD-918-04172C
...
36
Slide Shoe MTD-784-5580
...
37
Carriage Bolt MTD-710-0451
...
39
Shave Plate MTD-790-00121
...
40
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
41
Shaft, Worm .75 OD MTD-917-04126
...
42
Oil Seal MTD-721-0327
...
43
Flange Bearing MTD-741-0662
...
44
Thrust Collar MTD-718-04071
...
45
Flange Bearing MTD-741-0663
...
46
TT Screw, 1/4-20 x 0.75 MTD-710-0642
...
47
Hex Flange Bearing MTD-941-0245
...
48
Plug MTD-721-0325
...
49
Flat Washer MTD-736-3084
...
50
Dowel Pin MTD-715-04021
...
51
AUGER SPIRAL (RH) MTD-684-04108A
...
52
Handle Tab MTD-984-5599
...
53
RH Housing MTD-918-0123A
...
54
WORM GEAR 20T MTD-917-04861
...
55
Cable Tie MTD-725-0157
...
56
Shear Pin MTD-738-04124A
...
57
KEY 3/16 x 5/8 H MTD-914-0161
...
58
Flat Washer MTD-736-0351
...
59
Oil Seal MTD-721-0179
...
60
Bearing, Flange, .75 x 1.00 x .975 MTD-741-0661B
...
61
LH Housing MTD-918-0124A
...
62
26" AUGER AXLE MTD-711-06144
...
63
AUGER SPIRAL (LH) MTD-684-04107A
...
64
Bow Tie Cotter Pin MTD-714-04040
...
65
Spacer MTD-731-04870
...
66
FLANGE BUSHING MTD-741-0493C
...
67
Flat Washer MTD-736-0188
...
68
Bell Washer MTD-736-0242
...
xx
3-Prong Extension Cord MTD-929-0071B
...
72
CHUTE DEFLECTOR CABLE MTD-946-04165
