Yard Man 25A-592A401 (2003) Edger

Model: 25A-592A401 (2003)

Back To Assemblies

Save Part Not Listed?
product name

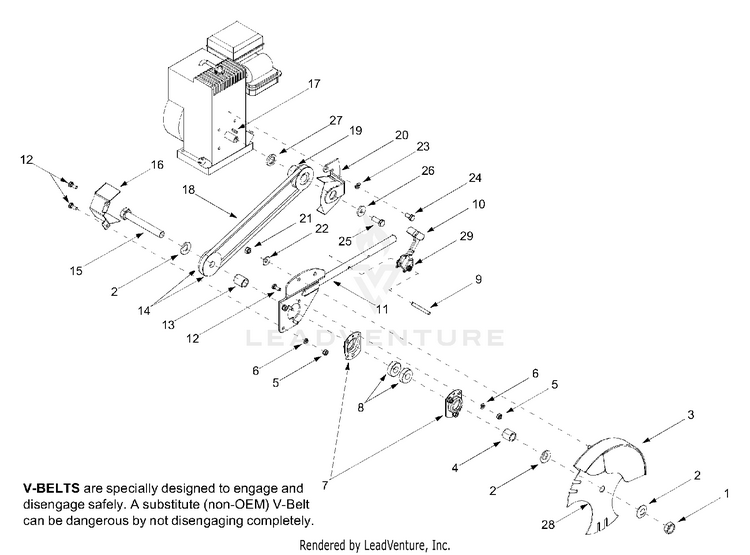

Drive & Blade

...
...
1
Hex Jam Nut, 5/8-18 MTD-712-0413
...
2
Bell Washer, .64 x 1.25 x .18 MTD-736-0317
...
3
GUARD ASSEMBLY MTD-781-0076
...
4
SLEEVE MTD-950-0118
...
5
HEX NUT 1/4-20 MTD-912-0287
...
6
L-Wash. 1/4" I.D. MTD-936-0329
...
7
BEARING HOUSING MTD-05034A
...
8
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
9
Spirol Pin, 1/4 x 2.0 MTD-715-0121
...
10
LEVER ASSEMBLY MTD-981-0093
...
11
SPINDLE PLATE ASSEMBLY MTD-781-0078
...
12
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
13
SPACER .635 ID X.88 OD x 1.030 MTD-750-0229
...
14
3/8" "V"-Pulley MTD-956-0449
...
15
Hex Bolt 5/8-18 x 4.5" Lg. MTD-710-3151A
...
16
Belt Guard MTD-781-0427-0637
...
17
Square Key, 3/16 x .75 MTD-714-0122
...
18
V-Belt MTD-954-0142
...
19
ENGINE PULLEY MTD-756-0327B
...
20
BELT GUARD MTD-687-0100
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Belleville Washer, .340 x .872 MTD-736-0242
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
24
Hex Cap Screw, 5/16-24 x .625 MTD-710-0237
...
25
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
26
Flat Washer, .385 x 1.0 x .135 MTD-736-0258
...
27
Spacer .755" I.D. x 1.25" O.D. MTD-948-0160
...
28
Triplex Edger Blade, 9.0 MTD-781-0748
...
29
Double-torsion Spring MTD-732-0188A
