Yard Man 25A-564A401 (1998) Edger

Model: 25A-564A401 (1998)

Save Part Not Listed?
product name

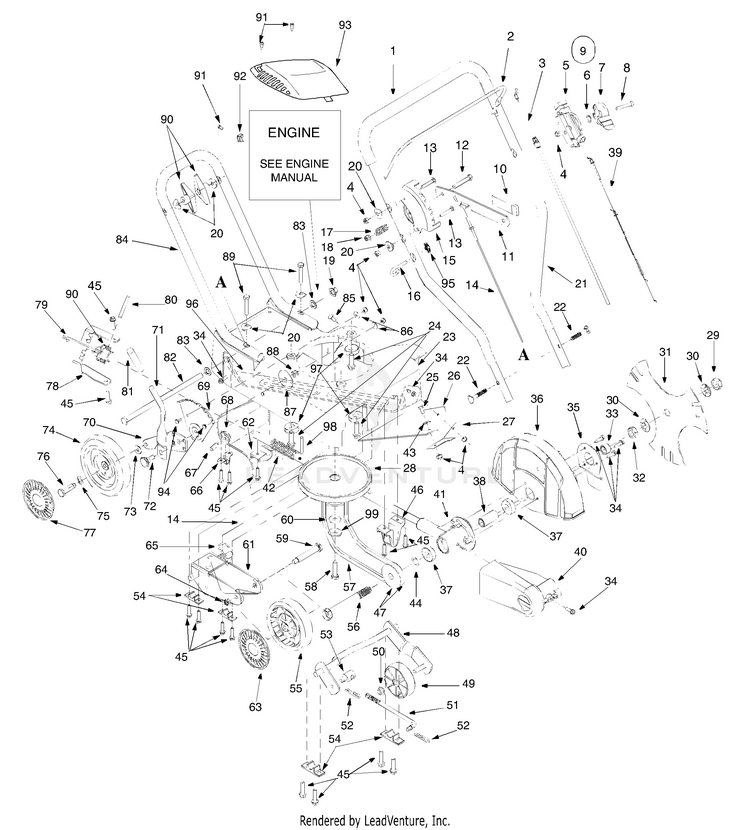

General Assembly

...
...
1
FOAM GRIP 20" MTD-720-0297
...
2
BLADE CONTROL BAIL MTD-747-0976B
...
3
CABLE CONTROL 44"B&S MTD-746-0966
...
4
Hex Lock Nut 1/4-20 Thd. MTD-712-0324
...
5
Throttle Body MTD-946-0875
...
6
Curved Spring Wash. .66" I.D. MTD-936-0501
...
7
Throttle Lever MTD-946-0876
...
8
Screw Oval C-Sunk 1/4-20 x 1.81 Lg. MTD-710-0605
...
9
Throttle Box Comp. (Inc. Ref. 4,5,6,7,8) MTD-811-0185
...
10
Depth Lever Grip MTD-720-0142
...
11
LEVER DEPTH MTD-781-0742-0637
...
12
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
13
Carriage Bolt 1/4-20 x 1.50 Lg. MTD-710-0111
...
14
DEPTH INDEX CABLE MTD-746-0955
...
15
DEPTH INDEX BRACKET MTD-781-0741
...
16
Eye Bolt 1/4-20 MTD-710-1205
...
17
SPRING MTD-932-0369
...
18
Hex Lock Nut 5/16-18 MTD-712-0429
...
19
Push Cap x 1/2 Rod MTD-726-0299
...
20
Washer .320 ID x .93 O.D. MTD-736-0451
...
21
UPPER HANDLE MTD-749-1079
...
22
Carriage Bolt 5/16-18 x 2.0 Lg. MTD-710-1174
...
23
EDGER BASE ASSEMBLY MTD-631-0079
...
24
Tapp Screw w/Hex Lock Wash 3/8-16 MTD-710-0502A
...
25
Hex Screw 1/4-20 x .50 Lg. MTD-710-3013
...
26
DISCHARGE SHIELD MTD-731-1935
...
27
KEEPER DEFLECTOR MTD-781-0746
...
28
ENGINE PULLEY MTD-756-1150A
...
29
Hex Jam Nut 5/8-18 MTD-712-0413
...
30
Bell Washer .63 I.D. x 1.25 O.D. x .18 MTD-736-0317
...
31
Star Blade MTD-781-0748
...
32
HEX JAM NUT 5/8-18 MTD-712-0318
...
33
SPACER .628 MTD-750-1163
...
34
Hx Scr. w/Wash.: TT: 1/4-20 x .750 Lg. MTD-710-0642
...
35
BLADE GUIDE MTD-781-0740
...
36
GUARD BLADE MTD-731-1942
...
37
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
38
SPACER .628I MTD-750-1158
...
39
Throttle Cable MTD-946-1115
...
40
GUARD BELT MTD-731-1939
...
41
Spindle w/Insert MTD-719-0387
...
42
COMPRESSION SPRING MTD-732-0862
...
43
Flat Washer .283 I.D x .75 O.D. x .030 MTD-736-0342
...
44
Flat Washer .635 I.D. x .93 O.D. x .06 MTD-736-0116
...
45
Hex Screw w/Wash 1/4 MTD-710-1241
...
46
FRONT HANDLER ROD MTD-731-1929
...
47
3/8" "V"-Pulley MTD-956-0449
...
48
CURB WHEEL SUPPORT BRACKET MTD-681-0140
...
49
ROLLER CURB MTD-731-1932
...
50
Push Cap x 3/8 Rod MTD-726-0100
...
51
ROD 5/16X24 MTD-747-0991
...
52
Cotter Pin .072 x 1.12 MTD-714-0104
...
53
FERRULE 5/16X24 MTD-711-1171
...
54
BUSHING .515DIA X MTD-731-1931
...
55
WHEEL 7X2LINK W/BB MTD-734-1869
...
xx
BALL BEARING N/I(2 per wheel -Incl. w/No. 55) MTD-941-0484
...
56
SCREW 5/8-18 x 5.25 MTD-710-1627
...
57
V-Belt MTD-954-0142
...
58
Hex Screw: 3/8-24 x 1.50 Lg. MTD-710-0191
...
59
Shoulder Screw MTD-938-0481A
...
60
Bell Wash. .396 I.D. x 1.140 O.D. x .095 MTD-736-0452
...
61
BRACKET ASSEMBLY. FRT MTD-681-0141
...
62
REAR HANDLER ROD MTD-731-1930
...
63
Hubcap: Spoke w/Hole Yellow MTD-731-1886
...
64
Top Lock Jam Nut 3/8-16 MTD-912-3020
...
65
TORSION SPRING MTD-732-0867
...
66
KEEPER CABLE MTD-781-0747
...
67
ROD IDLER MTD-747-0993
...
68
Cable Roller Pulley MTD-756-0625
...
69
INDEX PLATE MTD-781-0745
...
70
PIVOT ARM MTD-781-0744
...
71
SPRING LEVER MTD-732-0806
...
72
Shoulder Bolt .500 x .434 Lg. MTD-738-0507B
...
73
Bell Wash. .401 I.D. x .870 O.D. x .063 MTD-736-0105
...
74
Wheel Ass'y. Comp. MTD-734-1978
...
xx
BALL BEARING N/I (2 per wheel - Incl. w/No. 74) MTD-941-0484
...
75
Wave Washer.510 ID x.750 OD MTD-936-0504
...
76
Shoulder Bolt .498 x 1.445: 3/8-16 MTD-738-0102
...
77
HUBCAP-SPOKE YELLOW MTD-731-1426B
...
78
BRACKET TILT MTD-781-0749
...
79
LEVER ADJUSTER ASSEMBLY MTD-681-0139
...
80
Pin 1/4 x 2.0" Lg. MTD-715-0121
...
81
Foam Grip MTD-720-0230
...
82
AXLE CURB MTD-711-1278
...
83
Flat Wash. .531 I.D. x .875 O.D. x .06 MTD-736-3068
...
84
LOWER HANDLE MTD-749-1078
...
85
Carriage Screw 1/4-20 x .62 MTD-710-0134
...
86
Flat Wash. .285 I.D. x 1.25 O.D. x .06 MTD-736-0211
...
87
Flat Wash. .406 I.D. x 1.92 O.D. x .06 MTD-736-3040
...
88
Hex Lock Nut 3/8-16 MTD-712-0130
...
89
Hex Screw 5/16-18 x 1.75 Lg. MTD-710-3180
...
90
Torsion Spring MTD-732-0188A
...
90
Star Knob MTD-720-04072A
...
91
Hex Scr. w/Wash.:T: #10-32 x .625 Lg. MTD-710-1237
...
92
Cable Clamp (B&S) MTD-BS-690798
...
93
ENGINE SHROUD MTD-751B281476
...
94
SCREW 1/4-20X.75 MTD-710-1637
...
95
Handle Knob MTD-720-0279
...
96
BASE SUPPORT MTD-781-0758
...
97
Flat Washer MTD-736-0258
...
98
Roll Pin MTD-715-0143
...
99
Flat Washer .38 ID x 1.38 OD x 1.25 MTD-736-0320
