Yard Man 25A-551B401 (2003) Edger

Model: 25A-551B401 (2003)

Back To Assemblies

Save Part Not Listed?
product name

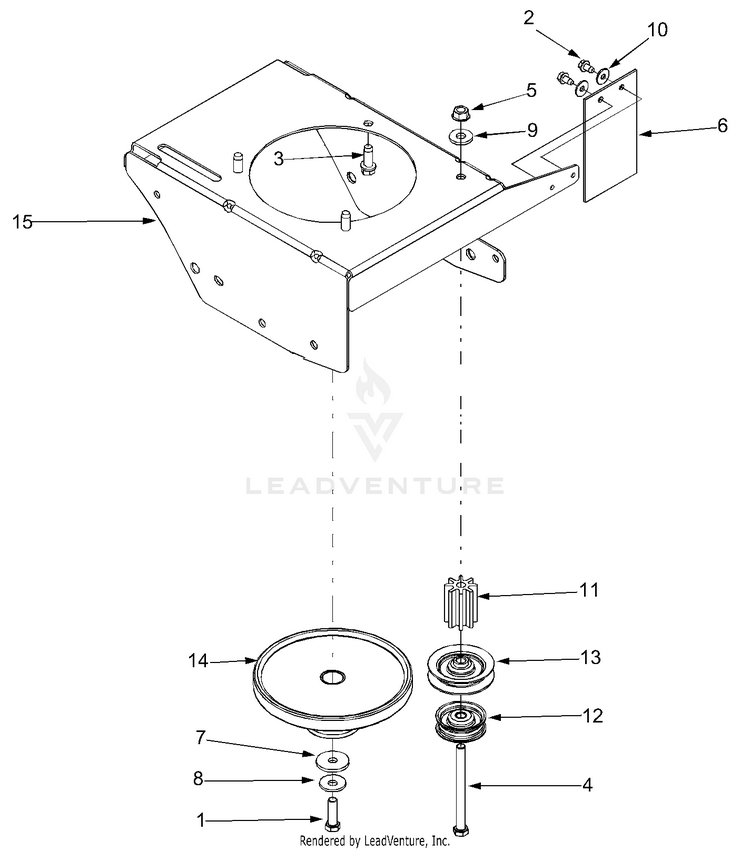

Frame

...
...
1
Screw, 3/8-24 MTD-710-0191
...
2
Screw, 1/4-20 MTD-710-0599
...
3
Screw, 3/8-16 MTD-710-0654A
...
4
Screw, 3/8-16 MTD-710-0944
...
5
Flange Lock Nut 3/8-16 MTD-912-0431
...
6
DEBRIS GUARD MTD-931-04168
...
7
Flat Washer, 3/8 ID x 1.37 OD MTD-736-0320
...
8
Bell Washer,.396 x 1.140 MTD-736-0452
...
9
Flat Washer,.406 x 1.00 MTD-736-3052
...
10
Flat Washer,.260 x.720 MTD-736-3090
...
11
MOUNT SPACER MTD-950-04142
...
12
Flat Idler Pulley, 1.88 OD MTD-756-0313
...
13
Idler Pulley MTD-756-1035A
...
14
Combination Flywheel Pulley MTD-756-1150A
...
15
FRAME-EDGER MTD-787-01072
