Yard Man 14CU804H401 (2004) Garden Tractor

Model: 14CU804H401 (2004)

Back To Assemblies

Save Part Not Listed?
product name

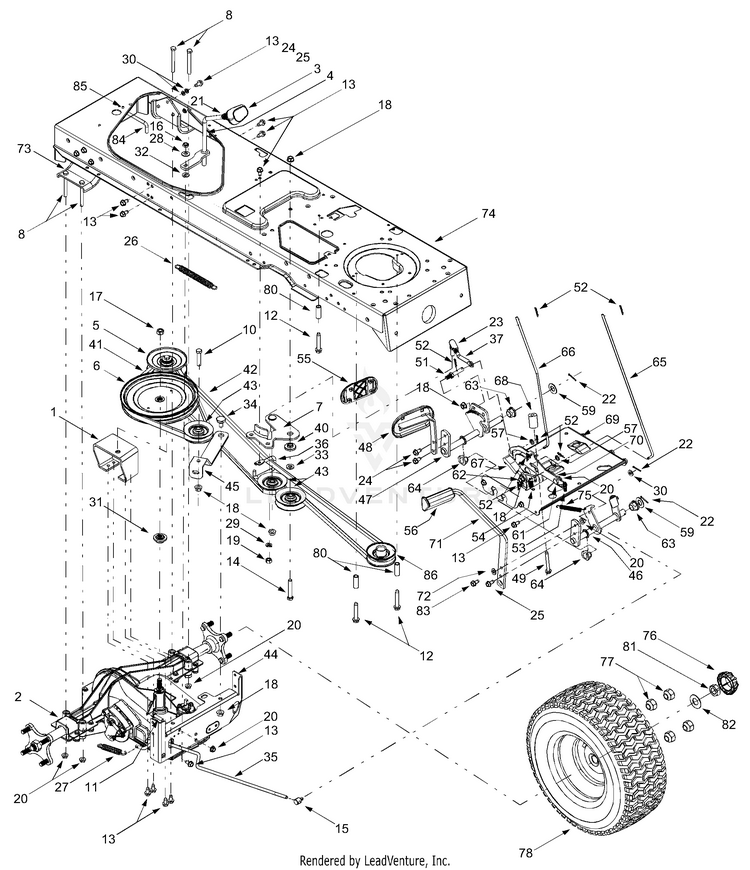

Drive, Controls

...
...
1
VARIABLE BRACKET ASSEMBLY MTD-618-0375
...
2
TRANS ASSEMBLY-COMP 2SPD MTD-753-05002
...
3
Shfter Knob MTD-931-0009A
...
4
SHIFT LEVER MTD-647-0037
...
5
VARIABLE SPEED PULLEY ASSEMBLY MTD-656-0050
...
6
Transmission Pulley, 8.5 MTD-956-0665
...
7
BRACKET-DOUBLE IDLER PWR BL MTD-683-0251
...
8
Hex Cap Screw, 5/16-18 x 2.75 MTD-710-0176
...
10
Hex Cap Screw, 3/8-16 x 1.75 MTD-710-0347
...
11
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
12
Self-tapping Screw, 1/4-20 x 1.25 MTD-710-0809
...
13
Self Tapping Screw, 5/16-12 x.75 MTD-710-0726
...
14
Hex Cap Screw, 3/8-16 x 2.25 MTD-710-3011
...
15
Engagement Ferru MTD-911-0677
...
16
Hex Jam Nut, 3/8-16 MTD-712-0181
...
17
Hex Flange Nut, 7/16-20 MTD-912-0702
...
18
Flange Lock Nut 3/8-16 MTD-912-0431
...
19
HEX NUT 3/8-16 GR5 MTD-712-3017
...
20
HEX FLANGE NUT MTD-712-3004A
...
21
HEX JAM NUT 3/8-16 GR5 MTD-712-3008
...
22
Cotter Pin MTD-714-0111
...
23
Ball Joint, 3/8-24 MTD-923-3018
...
24
LD Screw, 5/16-18 x.75 MTD-710-1260A
...
25
Self-tapping Screw, 5/16-18 x.875 MTD-710-0650
...
26
EXTENSION SPRING MTD-932-0384
...
27
Ext. Spring .59 OD x 4.00 Lg. MTD-732-0716D
...
28
Bell Washer,.401 x.870 x.063 MTD-736-0105
...
29
Lock Washer, 3/8 MTD-736-0169
...
30
FLAT WASHER MTD-736-0275
...
31
PULLEY HUB MTD-918-0771A
...
32
FLAT WASHER .44 x .75 x .06 MTD-736-0642
...
33
Flat Washer,.407 x.812 x.135 MTD-736-3010
...
34
Shoulder Screw, .625 Dia. x .21 MTD-738-0322A
...
35
BRAKE ROD MTD-747-1122
...
36
BELT GUARD MTD-747-1123A
...
37
IDLER ADJUSTMENT ROD MTD-747-1127
...
40
Shoulder Spacer,.380 ID MTD-738-0372B
...
41
Variable-speed Belt MTD-954-0468
...
42
Drive Belt MTD-954-0467A
...
43
Flat Idler Pulley MTD-756-04224
...
44
TRANSMISSION TORQUE BRACKET MTD-783-0667B
...
45
Idler Bracket MTD-783-0669-0637
...
46
SERVICE REPLACEMENT KITLAC MTD-753-05606
...
47
SPEED CONTROL ASSEMBLY (POWDER BLACK) MTD-647-0032A-0637
...
48
CONTROL PEDAL ASSEMBLY MTD-683-0266
...
49
SCREW 5/16-18 x 2.50 MTD-710-1135
...
51
PIN 3/8-16 x 2.21 MTD-711-1363
...
52
Cotter Pin MTD-714-0104
...
53
SPRING MTD-732-0335
...
54
Extension Spring,.5 OD x 1.41 MTD-732-0955
...
55
Drive Pedal Pad MTD-735-0662
...
56
Brake Pedal Pad MTD-735-3049A
...
57
Flat Washer,.385ID x.870OD MTD-736-0262
...
?58
Flat Washer, 9/32 x 1/2 x 1/16 MTD-736-0142
...
59
Flat Washer,.64 x 1.24 x.06 MTD-736-0187
...
61
Shoulder Bolt MTD-938-0155
...
62
Shoulder Screw,.5 x.434 MTD-738-0507B
...
63
FLANGE BEARING MTD-941-0225
...
64
Split Hex Flange Bearing MTD-741-3065B
...
65
CRUISE CONTROL ROD MTD-747-04096
...
66
LOCK CONTROL BRAKE ROD MTD-747-04093A
...
67
CRUISE LATCH MTD-748-0413
...
68
SPACER .385ID x 1.54" MTD-748-0415B
...
69
Steering Support Bracket MTD-783-04612-0637
...
70
LOCKOUT BRACKET MTD-783-0732A
...
71
SERVICE REPLACEMENT KITLAC MTD-753-05606
...
72
FLAT WASHER MTD-936-3008
...
73
AXLE BRACKET MTD-783-0693A-0637
...
74
LOWER FRAME ASSEMBLY MTD-683-0304C
...
75
Extension Spring,.5 OD x 6.37 MTD-732-0963
...
76
HUB CAP MTD-731-2290B
...
77
Lug Nut, 7/16-14 MTD-712-3050
...
78
WHEEL ASSEMBLY (23 x 9.5 x 12) MTD-634-0132
...
xx
Rim Only MTD-634-04238
...
xx
TUBELESS VALVE MTD-934-0255
...
xx
Tire Only, Square Shoulder MTD-734-1728
...
80
Spacer,.372 x.26 x 1.03 MTD-750-0566A
...
81
Jam Nut, 3/4-16 MTD-712-3026
...
82
Flat Washer,.78 x 1.59 x.06 MTD-736-0316
...
83
Self-tapping Screw, 5/16-18 x.75 MTD-710-1611B
...
84
TRANSMISSION BELT GUARD ROD MTD-747-1185
...
85
Self Tapping Screw,1/4-20 x.5 MTD-710-0599
...
86
Engine Pulley, 3.56" MTD-756-0639B
