Yard Man 14CU804H401 (2004) Garden Tractor

Model: 14CU804H401 (2004)

Back To Assemblies

Save Part Not Listed?
product name

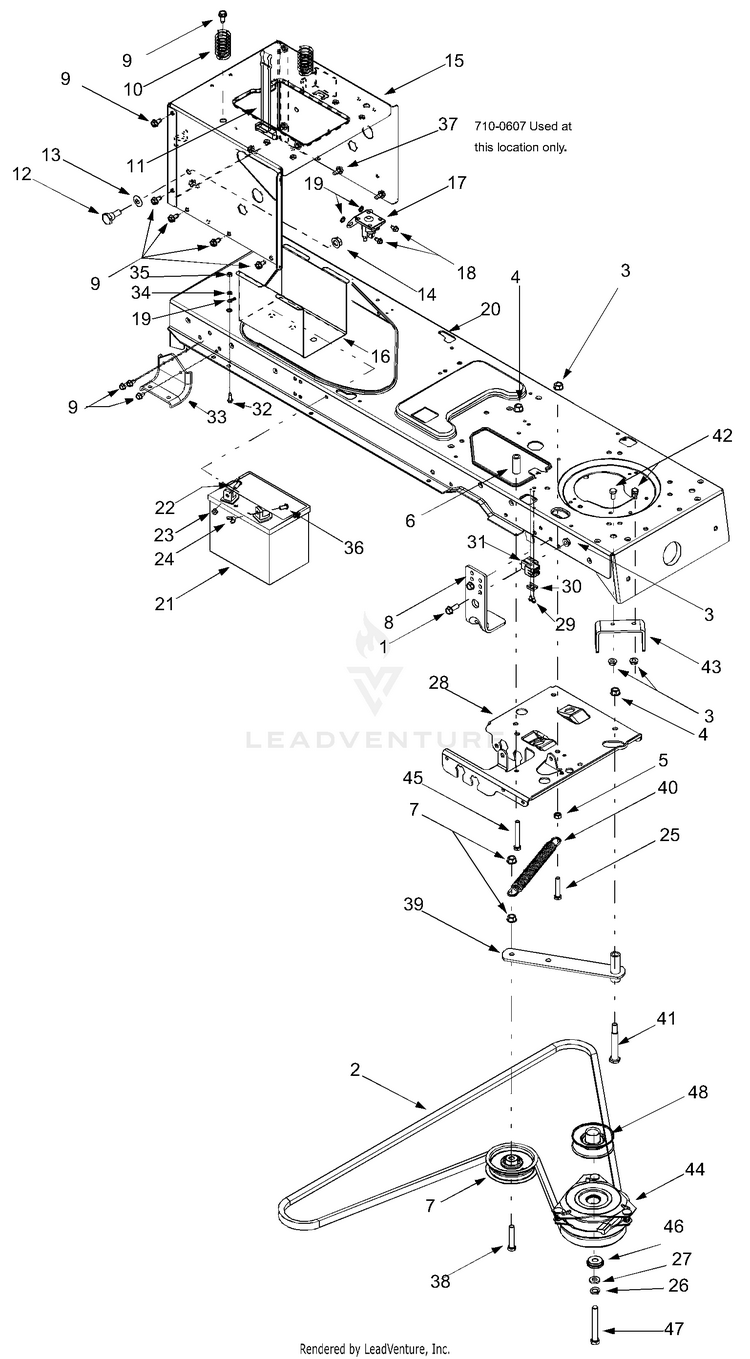

PTO Electric

...
...
1
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
2
PTO Belt MTD-954-0476
...
3
HEX FLANGE NUT MTD-712-3004A
...
4
Flange Lock Nut 3/8-16 MTD-912-0431
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
SPACER .385ID x 1.54" MTD-748-0415B
...
7
Fl-Idler Pulley 3.5" O.D. MTD-756-0627D
...
8
DECK UP STOP BRACKET MTD-783-04467-0637
...
9
Self Tapping Screw, 5/16-18 x.625 MTD-710-0604A
...
10
Compression Spring, 1.28 x 3.125 MTD-732-04035
...
11
BATTERY STRAP MTD-723-0444
...
12
Shoulder Screw,.625 x.5, 7/16-20 MTD-738-1020
...
13
Bell Washer,.45 x 1.0 x.062 MTD-736-0407
...
14
Flange Lock Nut, 7/16-20 MTD-712-0459
...
15
UPPER HITCH PLATE MTD-783-1031A
...
16
BATTERY TRAY MTD-783-0349
...
17
Solenoid MTD-925-1426A
...
18
Self Tapping Screw, 1/4-20 x.5 MTD-710-0599
...
19
Lock Washer, 1/4 MTD-736-0222
...
20
LOWER FRAME ASSEMBLY MTD-683-0304C
...
21
BATTERY MTD-925-1707D
...
22
Hex Cap Screw, 1/4-20 x.75 MTD-710-0703
...
23
Hex Sems Nut, 1/4-20 MTD-712-0271
...
24
NUT, 1/4 WING MTD-712-3044
...
25
Hex Cap Screw, 5/16-18 x 1.75 MTD-710-3180
...
26
Lock Washer, 7/16 MTD-736-0171
...
27
Flat Washer,.450 x 1.25 MTD-736-0322
...
28
Steering Support Bracket MTD-783-04612-0637
...
29
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
30
Switch Plate MTD-17962
...
31
SWITCH MTD-925-04039
...
32
Self-tapping Screw, 1/4-20 x 0.75 MTD-710-0642
...
33
AXLE BRACKET MTD-783-0693A-0637
...
34
L-Wash. 1/4" I.D. MTD-936-0329
...
35
HEX NUT MTD-712-3006
...
36
Shoulder Screw MTD-738-1132
...
37
Self-tapping Screw, 5/16 x 0.5 MTD-710-0607
...
38
Hex Cap Screw, 3/8-16 x 2.0 MTD-710-3144
...
39
IDLER BRACKET ASSEMBLY MTD-683-0294
...
40
Extension Spring,.62 x 5.62 MTD-732-0978
...
41
Shoulder Screw,.498 x 3.245 MTD-738-0982
...
42
Hex Cap Screw, 5/16-18 x.625 MTD-710-3025
...
43
CLUTCH BRACKET MTD-783-1003-0637
...
44
Electric PTO Clutch MTD-917-1709
...
45
Hex Cap Screw, 3/8-16 x 2.5 MTD-710-0859
...
46
Shld. Spacer .445" I.D. MTD-938-0785
...
47
Hex Cap Screw, 7/16-20 x 3.75 (Grade 5) MTD-710-1049
...
48
Engine Pulley MTD-756-0639A
