Yard Man 14AW834H401 (1999) Garden Tractor

Model: 14AW834H401 (1999)

Back To Assemblies

Save Part Not Listed?
product name

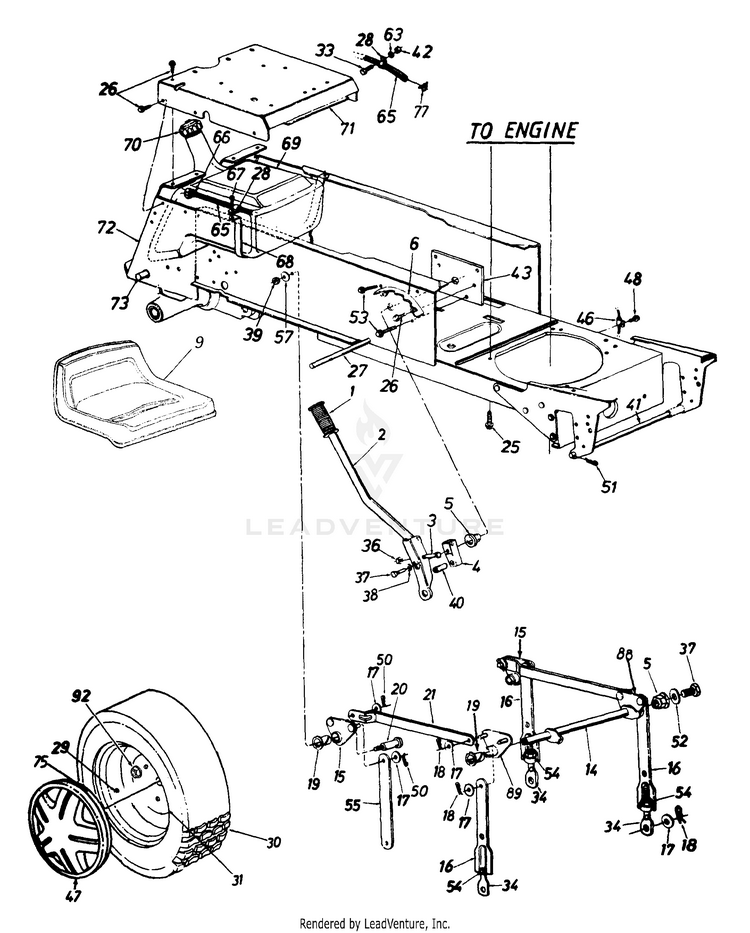

Deck Lift, Fuel Tank, Wheels Rear

...
...
1
LIFT HANDLE GRIP MTD-720-0233
...
2
LIFT HANDLE ASS Y. MTD-17282
...
3
SCREW 5/16-18 x 1.5 LG For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number shown on parts list MTD-710-0805A
...
4
LIFT SHAFT MTD-748-0274A
...
5
FLANGE BEARING MTD-941-0225
...
6
BRACKET-INDEX-DECK MTD-14231-0637
...
?7
Hex Bolt 3/8-16 x 1" Lg. (Optional) MTD-710-0514
...
?8
LOCK NUT 1/4 (Optional) MTD-912-3027
...
9
Seat - 14-1/4" High MTD-957-0350
...
?10
Seat Stop (Optional) MTD-783-0611
...
14
LIFT SHAFT MTD-983-0101
...
15
LIFT BRACKET PIV0T MTD-13895
...
16
Adj. Deck Lift Link MTD-17303-0637
...
17
Fl-Wash. 1/2" I.D. x 1.00" O.D. x .090" MTD-736-0192
...
18
Hairpin Cotter MTD-714-0101
...
19
Flanged Brg. 5/8" I.D. MTD-741-0591
...
20
SHOULDER BOLT MTD-738-0445
...
21
LINK-CONNECTING MTD-13790-0637
...
25
Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg. MTD-710-0502A
...
26
Hex Thd. Rolling Scr. 5/16-18 x .75" MTD-710-0726
...
27
ROD-RUNNING BOARD MTD-738-0435
...
28
Clamp MTD-726-0272
...
29
TUBELESS VALVE MTD-934-0255
...
30
WHEEL ASSEMBLY (23 x 9.5 x 12) MTD-634-0132
...
xx
Tire Only MTD-734-1728
...
31
Rim Only MTD-634-04238
...
33
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
34
Eye Bolt Adj. Link 1/2-13 Thd. MTD-911-0817
...
36
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
37
Hex Bolt 5/16-24 x .75" Lg. (Gr. 5) For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number shown on parts list MTD-710-0157
...
38
UNKNOWN MTD-NA
...
39
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
40
SPRING MTD-932-0369
...
41
ROD-DECK CONNECTING MTD-738-0777A
...
42
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
43
REINFORCEMENT PLATE MTD-14170-0637
...
46
Mounting Clamp MTD-726-0273
...
47
HUB CAP W/ICON (Opt) MTD-734-1785A
...
xx
Spoked Hub Cap (Beige) (Opt) MTD-734-1616A
...
xx
SPOKED HUB CAP (Opt) MTD-734-1617A
...
48
Hex Wash. Hd. TT-Tap Scr MTD-710-0599
...
50
Cotter Pin .09 Dia. x 1.0" Lg. MTD-714-0111
...
51
Int. Cotter Pin MTD-714-0149B
...
52
Flat Wash. .34" I.D. x 1.12" O.D. MTD-736-0231
...
53
Hex Wash. Hd. AB-Tap Scr. MTD-710-0607
...
54
HEX NUT MTD-712-0206
...
55
LINK-DECK MTD-14399-0637
...
57
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
63
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number shown on parts list MTD-936-0329
...
65
Fuel Line 46" Lg. MTD-751-10349-54
...
66
Hose Clamp MTD-726-0205
...
67
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
68
STRAP MTD-17424
...
69
FUEL TANK MTD-751-0566
...
70
Gas Gauge MTD-751-0531B
...
71
PIVOT BRACKET ASSEMBLY MTD-983-0108A-0637
...
72
HITCH PLATE MTD-783-0631
...
73
HITCH ROD MTD-738-0482
...
75
SPRING CLIP MTD-727-0425A
...
?76
Hex Wash. Hd. Tap Scr. (Optional) MTD-710-1268
...
77
Hose Clamp MTD-726-0272
...
?78
Seat Adj. Grip (Optional) MTD-720-0309A
...
?79
KIT-ADJUSTABLE SEA (Optional) MTD-753-0842
...
?80
Compression Spring (Optional) MTD-732-0499
...
?81
Spring Wash. .265 I.D. x .562 O.D. (Optional) MTD-936-0175
...
?82
Fl-Wash. .344" I.D. (Optional) MTD-736-0204
...
?83
Fl-Wash. .406" I.D. (Optional) MTD-736-0300
...
?84
Shld. Bolt .34" x 1/4-20 Thd. (Optional) MTD-738-0137A
...
?85
SEAT PIVOT BRACKET (Optional) MTD-783-0607
...
?86
LEVER SEAT (Optional) MTD-783-0609
...
?87
SEAT SELECTOR (Optional) MTD-783-0610
...
88
PIVOT BRACKET ASSEMBLY (LH) MTD-683-0097
...
89
PIVOT BRACKET ASSEMBLY (RH) MTD-683-0098
...
92
Lug Nut 7/16-14 Thd. MTD-712-3050
