Yard Man 14AW834H401 (1998) Lawn Tractor

Model: 14AW834H401 (1998)

Back To Assemblies

Save Part Not Listed?
product name

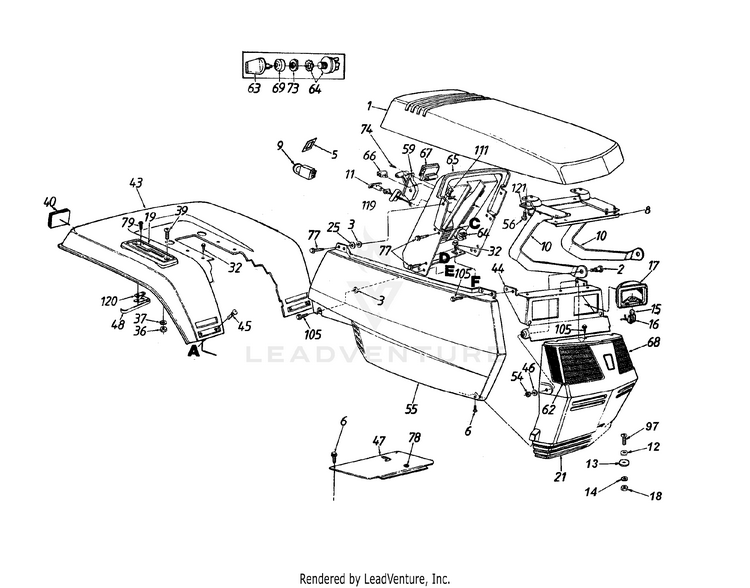

Hood Assembly, Grille & Fender

...
...
1
HOOD (RADIANT YELLOW) MTD-931-1433
...
2
SHOULDER SCREW .437 DIA x .350 MTD-938-0141
...
3
Bolt Retainer 1/4" I.D. MTD-726-0233
...
5
RETAINER SWITCH (Models with Electric PTO) MTD-783-0462
...
6
Truss Mach. B-Tap Scr.#10 x .5" MTD-710-0351
...
8
HOOD REINFORCEMENT MTD-783-0121
...
9
PTO SWITCH (BLACK KNOB) ANSI SYM (Models with Electric PTO) MTD-925-1716A
...
10
HOOD HINGE MTD-783-0123
...
11
Choke Control MTD-746-0614A
...
12
Fl-Wash. .34" I.D. x 1" O.D. MTD-736-3078
...
13
Speed Nut MTD-726-0201
...
14
Lock Wash. 5/16" I.D. MTD-936-0119
...
15
Miniature Lamp 12V Socket Type MTD-925-0963
...
16
SHORT LAMP SOCKET MTD-925-1650
...
17
HEADLIGHT HOUSING MTD-931-0705
...
18
HEX NUT 5/16-18 MTD-712-3010
...
19
HYDRO INDEX BRACKET MTD-731-1734
...
21
GRILLE MTD-731-1442A
...
25
Fl-Wash. 1/4" I.D. x .93" O.D. MTD-736-0176
...
32
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
36
UNKNOWN MTD-NA
...
37
UNKNOWN MTD-NA
...
39
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
40
Reflector MTD-930-3000
...
43
FENDER-SEN MTD-783-0466
...
44
BRACKET-LIGHT MTD-17223
...
45
CARRIAGE BOLT 1/4-20X.50" (Models with Electric PTO) MTD-710-05177
...
46
Fl-Wash. .328" I.D. x .68" O.D. MTD-736-0278
...
47
TRANSMISSION COVER MTD-17393B
...
48
REVERSE SAFETY SWITCH MTD-725-1713
...
54
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
55
COVER MTD-731-1434
...
xx
SIDE COVER (LH) MTD-731-1435
...
56
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
59
UNKNOWN MTD-NA
...
62
Lens-R.H. MTD-931-0948
...
63
Key MTD-925-0201
...
64
Switch, Ignition MTD-925-1717
...
65
DASH PANEL MTD-731-0962
...
xx
DASH PANEL (Models with Electric PTO) MTD-731-1772
...
66
UNKNOWN MTD-NA
...
67
Ammeter MTD-925-0925
...
68
LENS (LH) MTD-931-0949
...
69
Ignition Switch Cap MTD-725-1347
...
73
IGNITION SWITCH NUT MTD-925-1346
...
74
Truss Mach. AB-Tap Scr. #10 x .5" MTD-710-0779A
...
77
Hex Wash. Hd. Tap Scr. 1/4 x .75" MTD-710-0642
...
78
BUSHING MTD-731-0405
...
79
UNKNOWN MTD-NA
...
97
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
105
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
111
SPEED NUT 1/4-20 MTD-712-0185
...
119
CLIP-CHOKE RETAINER MTD-17782
...
120
Insulatop Nut Plate MTD-926-0320
...
121
HOOD REINCEMENT SPACER MTD-17762
