Yard Man 14AW834H401 (1998) Lawn Tractor

Model: 14AW834H401 (1998)

Back To Assemblies

Save Part Not Listed?
product name

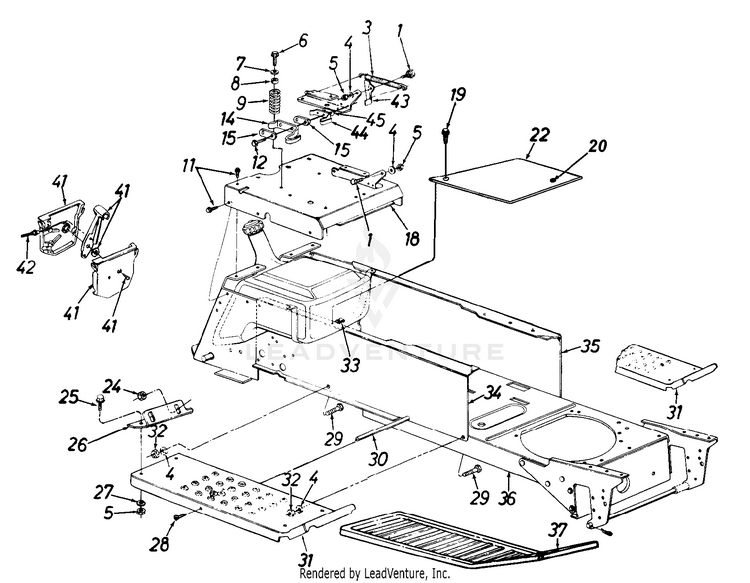

Frame & Seat Base

...
...
1
Shld. Bolt .437" Dia. x .162" MTD-738-0296
...
3
Extension Spring MTD-932-0581B
...
4
Lock Wash. 5/16" I.D. MTD-936-0119
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
Hex Wash. Hd. Tap Scr. MTD-710-0650
...
7
Fl-Wash. .344" I.D. MTD-736-0159
...
8
RUBBER BUSHING .318IDX.930OD MTD-722-0160
...
9
COMPRESSION SPRING MTD-732-0588
...
11
Hex Wash. Hd. AB-Tap Scr. MTD-710-0726
...
12
Hex Wash. Hd. AB-Tap Scr. #8 x .5 MTD-710-0227
...
14
Outer Seat Spring Switch MTD-925-1303
...
15
Insulator Plate MTD-726-0279
...
18
Seat Plate MTD-683-0101A
...
19
Truss Mach. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
20
BUSHING MTD-731-0405
...
22
TRANSMISSION COVER MTD-17393B
...
24
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
25
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
26
BRACKET-FENDER (RH) MTD-17406
...
xx
FENDER BRACKET - L.H MTD-17407
...
27
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
28
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
29
Rib Neck Bolt 5/16-24 x .75" Lg. MTD-710-1012
...
30
ROD-RUNNING BOARD MTD-738-0435
...
31
RUNNING BOARD (RH) MTD-16922
...
xx
RUNNING BOARD (LH) MTD-16921
...
32
Hex Nut 5/16-24 Thd. MTD-912-3057
...
33
Speed Nut #10Z MTD-726-0139
...
34
FRAME (RH) S MTD-17360C
...
35
FRAME (LH) S MTD-17361D
...
36
FRAME-LOWER MTD-17359C
...
37
LARGE FOOT PAD MTD-731-1052
...
41
Throttle Control Box Ass'y. MTD-831-0823A
...
42
Throttle Control Wire 39" Lg. MTD-946-0630A
...
43
BRACKET-SEAT LIFT MTD-17239C
...
44
Seat Spring Switch MTD-725-1439
...
45
Insulator Boss Plate MTD-726-0278
