Yard Man 14AW834H401 (1997) Garden Tractor

Model: 14AW834H401 (1997)

Back To Assemblies


product name

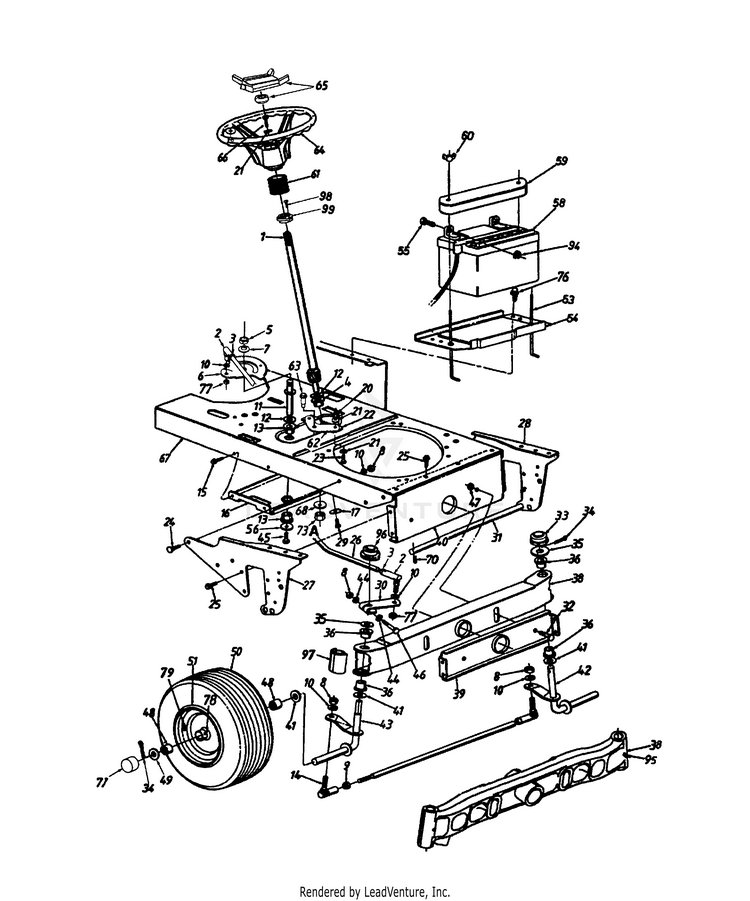

Wheels, Front/Axle/Steering Assembly

...
...
1
Steering Shaft Ass'y. New Part; For model (833,834) MTD-938-0963

...
xx
FREE WHEELING AXLE For model (834) MTD-738-0962

...
2
Ball Joints MTD-923-0448A

...
3
Hex Jam Nut 7/16-20 MTD-912-0240

...
4
BRG:HEX FLNG 5/8 MTD-941-0656A

...
5
HEX JAM NUT 5/8-18 MTD-712-0318

...
6
Steering Gear Segment New Part MTD-717-0943C

...
7
Bell-Wash. 5/8" I.D. x 1.25" O.D. MTD-736-0317

...
8
Hex Nut 3/8-24 Thd. MTD-712-0241

...
9
Hex Jam Nut 3/8-24 Thd. MTD-712-0711

...
10
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size shown on parts list. MTD-736-0169

...
11
STEERING SEGMENT MTD-738-0768

...
12
Fl-Wash. .64" I.D. x 1.24" O.D. MTD-736-0187

...
13
Hex Flange Bearing Bronze .625" I.D. MTD-948-0227A

...
14
Ball Joint, 3/8-24 MTD-923-3018

...
15
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599

...
16
IDLER BRACKET MTD-16888A-0637

...
17
Cap, 1.25 x .16 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size shown on parts list. MTD-948-0389

...
?19
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size shown on parts list. MTD-936-0119

...
20
Hex Nut 5/16-24 Thd. MTD-912-3057

...
21
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242

...
22
BRACKET-BE MTD-16894

...
23
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157

...
24
SCREW 3/8-24 x .80 MTD-710-0793

...
25
Screw, 5/16-18 x .625 MTD-710-0604A

...
26
Steering Drag Link New Part MTD-711-1106A

...
27
PIVOT SUPPORT BRACKET (RH) MTD-783-0338

...
28
PIVOT SUPPORT BRACKET (LH) MTD-783-0337

...
29
Pan Hd. Scr. 5/16-18 x .62" Lg. MTD-710-1309

...
30
STEERING ARM ASSEMBLY BLACK MTD-983-0061A-0637

...
31
ROD-DECK CONNECTING MTD-738-0777A

...
32
Shld. Bolt .498" Dia. x 2.45" Lg. MTD-738-0527

...
33

...
34
COTTER PIN-5/32 DIA x 1.00 MTD-914-0121

...
35
Flat Washer MTD-736-0316

...
36
FLANGE BEARING .760 ID Used with steel pivot bar. MTD-741-0660A

...
?37

...
38
Pivot Axle - Powder Black MTD-683-0128B-0637

...
xx
CAST IRON AXLE MTD-719-0343

...
39
PIVOT SUPPORT BRACKET BLACK MTD-16889A-0637

...
40
Pivot Bar Support Brkt.-Rear MTD-16890A-0637

...
41
Fl-Wash. .76" I.D. x 1.49" O.D. MTD-736-0188

...
42
AXLE ASSEMBLY LH: FRONT MTD-638-0007A

...
43
AXLE ASSEMBLY (RH) MTD-938-0008A

...
44
Bowed Washer MTD-936-0286

...
45
Hex L-Scr. 5/16-18 x .62" Lg. MTD-710-0538

...
46
Hex Bolt 3/8-24 x 2.25" Lg. MTD-710-0331

...
47
Flange Lock Nut 3/8-16 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size shown on parts list. MTD-912-0431

...
48
FLANGE BEARING MTD-741-0516B

...
49
Fl-Wash. .71" I.D. x 1.5" O.D. MTD-736-0316

...
50
WHEEL ASSEMBLY (16 x 6.5 x 8) MTD-634-0084

...
xx
Tire Only MTD-734-1727


...
53
HOLD DOWN BATTERY ROD MTD-911-0222A

...
54
PLATE New Part MTD-783-0346A

...
55
Hex Bolt 1/4-20 x .75" Lg. (Gr. 5) MTD-710-3015

...
56
Fl-Wash. .33" I.D. x 1.25" O.D. MTD-736-0343

...
58
BATTERY New Part MTD-725-0453F

...
59
BATTERY COVER MTD-731-1683

...
60
WING NUT 1/4-20 MTD-712-3087

...
61
STEERING BELLOW For model (83A) MTD-731-0559B

...
xx
STEERING BELLOW 9" For model (833,834) MTD-931-0954

...
62
STEERING BRACE New Part MTD-783-0465-0637

...
63
Shoulder Screw, .50 x .925, 3/8-16 MTD-738-0966A

...
64
Steering Wheel (4 Spoke) MTD-931-0027A

...
65
Steering Wheel Cap For model (833,83A) MTD-931-0220

...
xx
STEERING WHEEL INSERT For model (834) MTD-931-0955

...
66
Hex L-Bolt 5/16-18 x 1" Lg. MTD-710-0643

...
67
FRAME-LOWER New Part MTD-17359C

...
68
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452

...
70
Internal Cotter Pin MTD-714-0149B

...
71
Hub Cap For model (833,83A) MTD-931-0484A

...
xx
HUB CAP-YELLOW For model (834) MTD-934-1788A

...
?72
SPRING CLIP For model (834) MTD-727-0425A

...
73
HEX NUT 3/8-16 GR5 MTD-712-3017

...
76
Hex Wash. B-Tap Scr. 1/4 x .62" Lg. MTD-710-0896

...
77
Hex Jam L-Nut 3/8-24 Thd. MTD-712-0262

...
78
GREASE FITTING (SLOTTED) MTD-737-0280

...
79
TUBELESS VALVE MTD-934-0255

...
94
Hex L-Nut 1/4-20 Thd. MTD-712-0291

...
95
GREASE FITTING Used with cast iron pivot bar. MTD-937-3000


...
97
End Cap, Pivot Bar (w/ Fitting) MTD-931-1291A

...
98
Oval Hd. Scr. #10 x 5/8" Lg. For model (833,83A) MTD-710-0837

...
99
Flange Bearing For model (833,83A) MTD-741-0587
