Yard Man 14AW804P401 (2001) Garden Tractor

Model: 14AW804P401 (2001)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

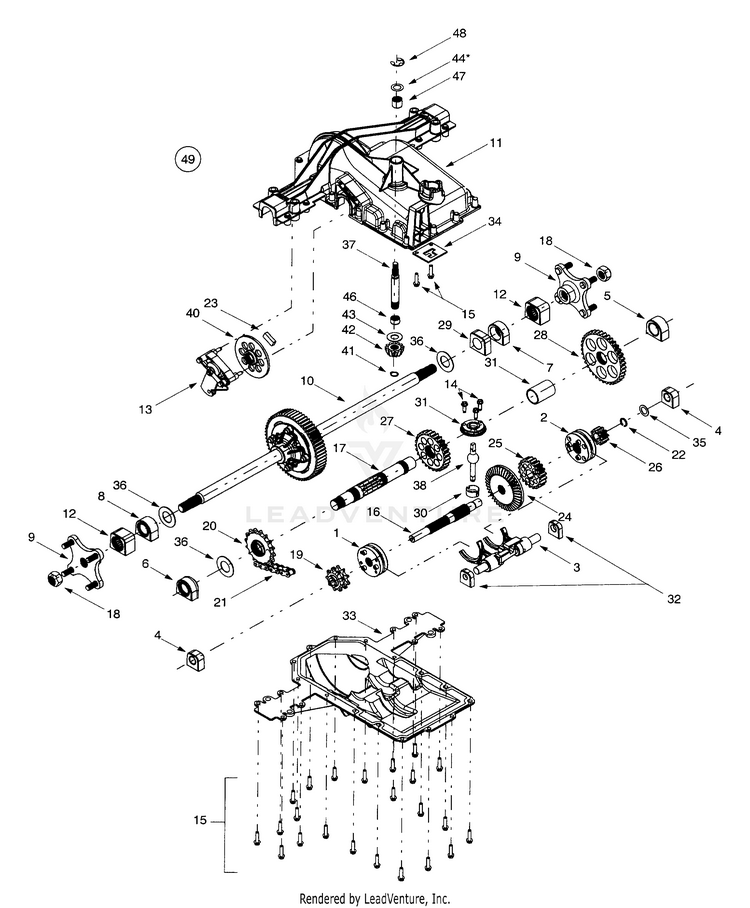

Transmission Assembly

...
...
1
REVERSE COLLAR ASSEMBLY MTD-618-0225
...
2
Hi-Lo Collar Assembly MTD-618-0226
...
3
FORK ASSEMBLY-SHIFT MTD-618-0227A
...
4
DRIVE SHAFT BLOCK ASSEMBLY MTD-618-0284
...
5
OUTPUT BLOCK ASSEMBLY MTD-618-0285
...
6
OUTPUT BEARING SEAL BLOCK ASSEMBLY MTD-618-0286
...
7
INBOARD BLOCK ASSEMBLY MTD-618-0287
...
8
AXLE BLOCK ASSEMBLY MTD-618-0302
...
9
WHEEL HUB ASSEMBLY MTD-618P0579B
...
10
DIFFERENTIAL AXLE ASSEMBLY MTD-918-0368A
...
11
HOUSING AS MTD-719-0379A
...
12
AXLE BLOCK ASSEMBLY MTD-641-0002A
...
13
RIGHT HAND BRAKE ASSEMBLY MTD-961-0012
...
14
Self-tapping Screw, 1/4-20 x .75 MTD-710-0642
...
15
Self-tapping Screw, 1/4-20 x 1.0 MTD-710-0788
...
16
DRIVE SHAFT MTD-711-1051A
...
17
OUTPUT SHAFT (RH) MTD-711-1216
...
18
Nut, 3/4-16 MTD-712-1329
...
19
SPROCKET-9T MTD-913-0446
...
20
16-TOOTH SPROCKET MTD-713-0447
...
21
ENDLESS CHAIN .625 MTD-913-0448
...
22
Snap Ring MTD-916-0131
...
23
BRAKE PUCK MTD-917-0678
...
24
SPUR GEAR 41T MTD-917-1438A
...
25
SPUR GEAR 20T MTD-917-1439A
...
26
SPUR GEAR 10T MTD-717-1440
...
27
SPUR GEAR 27T MTD-717-1441
...
28
SPUR GEAR 37T MTD-717-1442
...
29
INNER AXLE BEARING MTD-718-0500
...
30
Shifter Insert MTD-718-0504
...
31
SHIFT COVER MTD-718-0505
...
32
SHIFTER BRG. BLOCK MTD-718-0537
...
33
LOWER HOUSING MTD-719-0385
...
34
LOCKOUT PLATE MTD-718-0540
...
35
Flat Washer, 5/8 x 1.0 MTD-736-0337
...
36
Flat Washer, 1.01 x 1.86 x .060 MTD-736-3046A
...
37
INPUT SHAFT MTD-711-1235
...
38
Shift Lever MTD-747-1140
...
?39
SPACER 1.13 ID x 1 MTD-750-1033A
...
40
Disc Brake MTD-761-0215
...
41
Snap Ring .56" Dia. MTD-916-0114
...
42
BEVEL GEAR 13T MTD-717-1463A
...
43
THRUST WASHER MTD-936-0335
...
44
FLAT WASHER Use applicable flat washer (12a, 12b or 12c) in this application allowing proper end-play as instructed in MTD's Service Manual. MTD-936-0336
...
xx
Flat Washer, 5/8 x 1.0 x .040 Use applicable flat washer (12a, 12b or 12c) in this application allowing proper end-play as instructed in MTD's Service Manual. MTD-736-0337
...
xx
FLAT WASHER Use applicable flat washer (12a, 12b or 12c) in this application allowing proper end-play as instructed in MTD's Service Manual. MTD-936-0349
...
46
NEEDLE BEARING MTD-941-0335
...
47
Needle Bearing MTD-741-0696
...
48
E-ring, .75 MTD-716-0231
...
49
TRANS ASSEMBLY-COMP 2SPD MTD-753-05002
...
xx
Grease, Benalene 8 oz tube MTD-737-0300A
...
xx
Grease MTD-737-0289
