Yard Man 14AW804H401 (2000) Garden Tractor

Model: 14AW804H401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

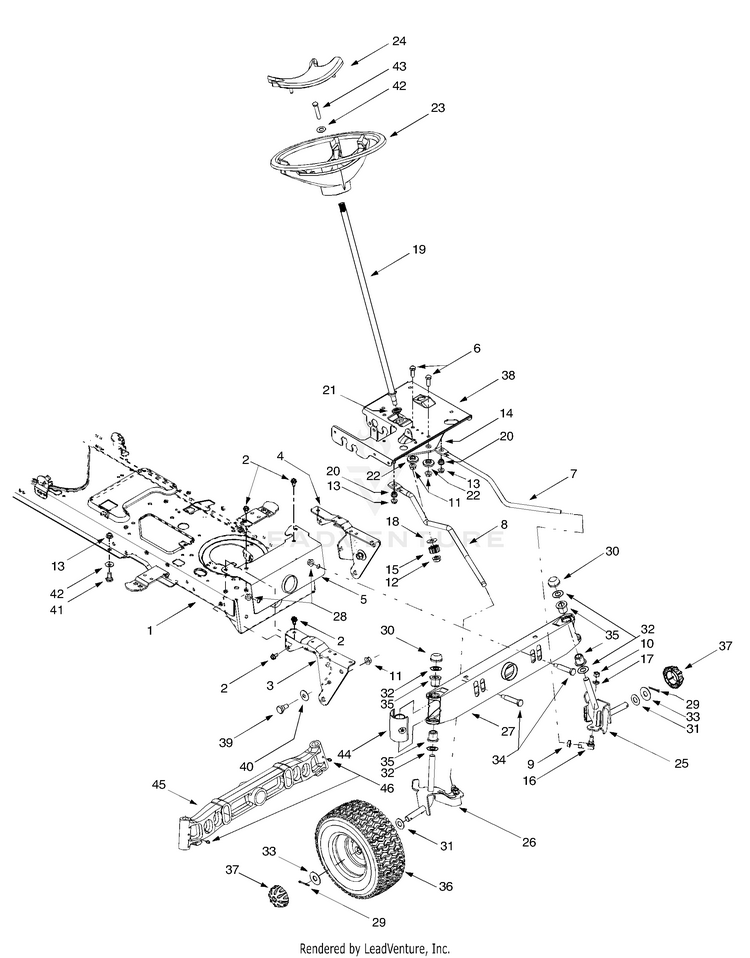

Axle, Front, Steering, Frame, Wheels, Front

...
...
1
LOWER FRAME MTD-683-0304
...
2
Self-tapping Screw, 16-18 x .625 MTD-710-0604A
...
3
PIVOT SUPPORT BRACKET (RH) MTD-783-0726E
...
4
PIVOT SUPPORT BRACKET (LH) MTD-783-0727D
...
5
PIVOT BAR BRACKET (POWDER BLACK) MTD-783-0728B-0637
...
6
Hex Cap Screw, 3/8-16 x 1 (Grade 5) MTD-710-0514
...
7
DRAG LINK (LH) MTD-711-1409A
...
8
DRAG LINK (RH) MTD-711-1408
...
9
Hex Jam Nut 7/16-20 MTD-912-0240
...
10
Hex Nut, 3/8-24 (Grade 2) MTD-712-0241
...
11
Flange Lock Nut 3/8-16 MTD-912-0431
...
12
Flange Lock Nut, 7/16-20 MTD-712-0459
...
13
HEX FLANGE NUT MTD-712-3004A
...
14
GEAR:STRG:11/90 RATIO MTD-717-1550F
...
15
Steering Pinion Gear MTD-717-1554
...
16
Ball Joints MTD-923-0448A
...
17
Lock Washer, 3/8 MTD-736-0169
...
18
Flat Washer, .51 x 1.12 x .06 MTD-736-3084
...
19
SHF:STRG:.625 OD x 24.25 LG MTD-738-1001A
...
20
BUSHING .380 ID MTD-941-0475
...
21
BRG:HEX FLNG 5/8 MTD-941-0656A
...
22
Shoulder Spacer, .380 ID MTD-738-0372B
...
23
STEERING WHEEL MTD-731-1869
...
24
STEERING WHEEL CAP MTD-731-1904
...
25
AXLE ASSEMBLY (.750) (LH) MTD-638-0017
...
26
AXLE ASSEMBLY (.750) (RH) MTD-638-0018
...
27
Pivot Bar MTD-683-0128B
...
28
Flange Lock Nut 3/8-16 MTD-912-0431
...
29
Cotter Pin MTD-714-0470
...
30
Push Cap, .750 MTD-726-0341
...
31
Flat Washer, .64 x 1.0 x .12 MTD-736-0162
...
32
Flat Washer, .64 x 1.24 x .06 MTD-736-0187
...
xx
Flat Washer, .78 x 1.59 x .06 MTD-736-0316
...
33
Flat Washer, .635 x 1.589 x .06 MTD-736-0285
...
34
Shoulder Screw .50 x 2.230:3/8-16 MTD-738-1011A
...
35
FLANGE BEARING .760 ID MTD-741-0660A
...
36
WHEEL ASSEMBLY (16 x 6.5 x 8) MTD-634-0183
...
xx
Rim Only w/ Plastic Bearing MTD-634-0182-0662
...
xx
TUBELESS VALVE (Not Shown) MTD-934-0255
...
xx
Tire Only, Square Shoulder MTD-734-1727
...
xx
FLANGE BEARING (Not Shown) MTD-741-0516B
...
xx
FLANGE BEARING W/ZERT (Not Shown) MTD-741-0990B
...
37
HUB CAP MTD-731-2290B
...
38
Steering Support Bracket MTD-783-04612-0637
...
39
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
40
Bell Washer, .39 x 1.13 x .062 MTD-736-0331
...
41
Shoulder Screw, .435 x .178, 5/16 x .56 MTD-738-0140
...
42
Bell Washer, .34 x .872 MTD-736-0242
...
43
Hex Bolt, 5/16-18 X 1 MTD-710-0643
...
44
End Cap, Pivot Bar (w/ Fitting) MTD-931-1291A
...
45
CAST PIVOT BAR AXLE MTD-919-04177E
...
46
GREASE FITTING MTD-937-3000
...
?47
Self-tapping Screw, 5/16-18 x .750 MTD-710-1260A
