Yard Man 13RN772G055 (2009) Lawn Tractor

Model: 13RN772G055 (2009)

Back To Assemblies

Save Part Not Listed?
product name

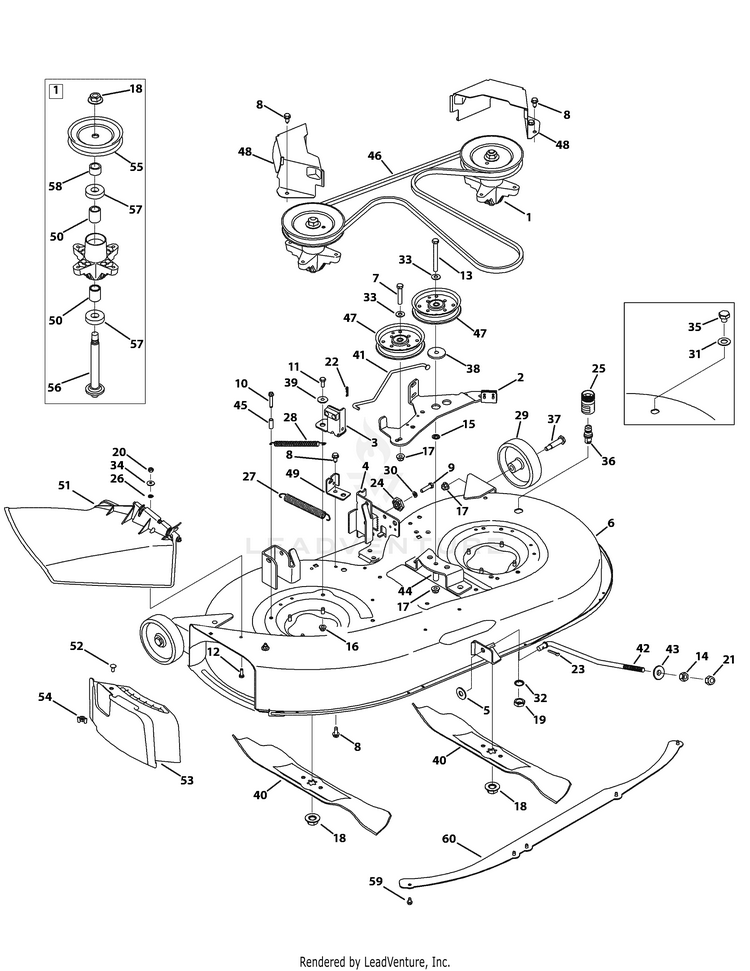

Mower Deck 42 Inch

...
...
1
SPINDLE ASSEMBLY MTD-918-04456B
...
2
42" DECK BRAKE ASSEMBLY MTD-683P04138C
...
3
Deck Brake Assembly MTD-983-04167
...
4
Deck Hanger Bracket LH MTD-683-04228-0637
...
5
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
6
42" DECK ASSEMBLY W/WHEEL BRACKET (BLACK JACK) MTD-983-04547-0691
...
6
42" DECK ASSEMBLY W/O WHEEL BRACKET (POWDER BLACK) MTD-983-04546-0637
...
6
42" DECK ASSEMBLY W/O WHEEL BRACKET (YARD-MAN GREEN) MTD-983-04546-0665
...
6
Deck Assembly, 42" w/o Wheel - Red MTD-983-04546-0638
...
7
Hex Screw, 3/8-16 x 1.75 MTD-710-0347
...
8
SCREW 5/16-18 x .750 MTD-710-04484
...
9
Hex Screw, 5/16-18 x 1.25 MTD-710-0528
...
10
Screw, 1/4-20 x 1.500 MTD-710-0778
...
11
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
12
Hex Screw, 1/4-20 x .75 MTD-710-3015
...
13
Hex Screw, 3/8-16 x 3.50 MTD-710-3085
...
14
HEX NUT MTD-712-0206
...
15
Push Nut, 3/8 MTD-712-0229
...
16
Flangelock Nut, 5/16-18 MTD-712-04063
...
17
Flangelock Nut, 3/8-16 MTD-712-04065
...
18
HEX NUT MTD-712-0417A
...
19
Nut, Hex, M16-1.5 MTD-712-0641
...
20
HEX NUT MTD-712-3006
...
21
Hex Locknut, 1/2-13 MTD-712-3083
...
22
Hairpin Clip MTD-714-0104
...
23
Cotter Pin, 3/16 x 1.00 MTD-714-3002
...
24
Deck Gear Adjuster MTD-917-04074
...
25
Water Nozzle Adaptor MTD-921-04041
...
26
Push Nut, .25 ID X .50 OD MTD-726-0233
...
27
Extension Spring, 0.75 OD x 6.375 MTD-732-04280B
...
28
Extension Spring, .500 DIA x 6.375 MTD-732-04287
...
29
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
30
Lock Washer, 5/16 MTD-936-0119
...
31
Flat Washer, 1/2 x 1.25 x .10 MTD-736-0187
...
32
Lock Washer, 5/8 MTD-736-0225
...
33
Flat Washer, .385 x .87 x .06 MTD-936-0267
...
33
Flat Washer, .406 x .875 x .059 MTD-936-3000
...
34
SPRING WASHER BELL MTD-736-0270
...
35
Bolt Plug, M16 x 1.5 MTD-738-04146
...
36
Water Nozzle MTD-737-04003D
...
37
Shoulder Bolt. .496 x 1.525:3/8-16 MTD-938-0373
...
38
Shoulder Spacer .884 x .190 MTD-738-04162C
...
39
Shoulder Spacer, .5000 x .1475 MTD-738-04166
...
40
3 in 1 Blade MTD-942-0616A
...
41
Brake Control Rod MTD-747-04379A
...
42
Rod, Lift, Deck, Frt, 13.7 MTD-747-04944B
...
43
LIFT PIVOT CUP MTD-748-04069A
...
44
Spacer, 3/8 ID x .68 OD x 1.46 LG MTD-750-04446
...
45
Spacer, .260 x .375 x 1.030 LG MTD-750-0566A
...
46
V-Belt MTD-954-04060C
...
47
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
48
Belt Cover - Powder Black MTD-783-04327B-0637
...
48
Belt Cover - Powder Black MTD-783-04327B-0637
...
48
Belt Cover - Green MTD-783-04327B-0665
...
48
Belt Cover - Powder Black MTD-783-04327B-0637
...
49
Deck Engage Cable Bracket MTD-783-04740-0637
...
50
Spacer, .80 x 1.10 x 1.322 MTD-750-1000
...
51
CHUTE ASSEMBLY MTD-631-05229
...
51
CHUTE ASSEMBLY MTD-631-05229
...
52
Carriage Screw, 1/4-20 x .62 MTD-710-0134
...
53
Mulch Plug MTD-731-2363
...
54
WING NUT 1/4-20 MTD-712-3087
...
55
Deck Pulley, 6.3 Diameter MTD-956-1227
...
56
Spindle Shaft, 5.50 LG MTD-938-04241
...
57
BALL BEARING MTD-741P0919B
...
58
Spacer, .820 x 1.150 x .480 MTD-750-04739
...
59
Screw, 1/4-20 x .500 MTD-710-0599
...
60
42" Deck Skirt MTD-753-0884
